Deep-Water High-Magnification SDI Zoom Camera

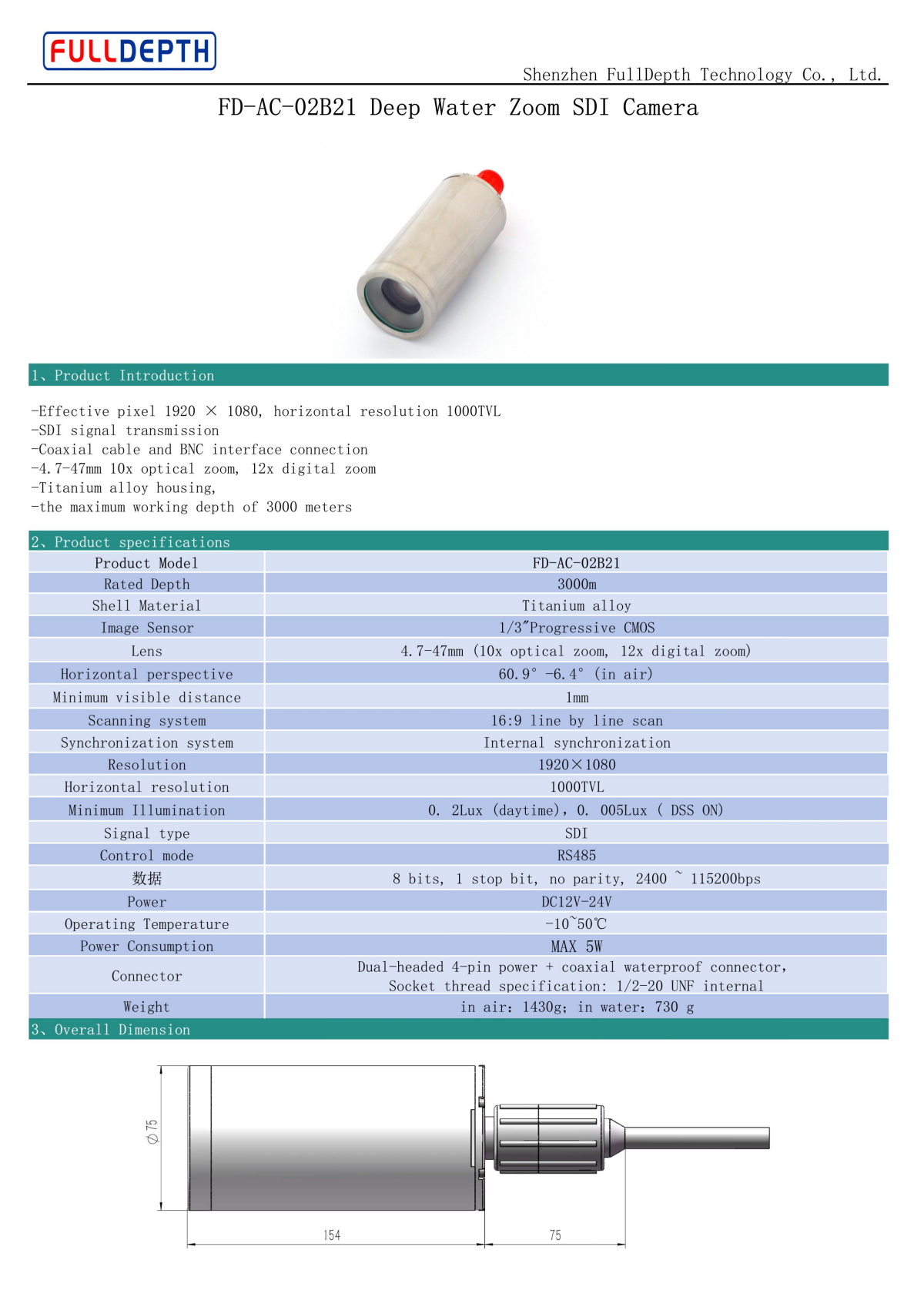

FD-AC-02B21 Deep-Water High-Magnification SDI Zoom Camera Product Introduction

      FD-AC-02B21 Deep Water 10x SDI Zoom Camera, developed by Shenzhen Full Depth Technology Co., Ltd., is a high-performance visual device tailored for harsh deep-sea environments. Featuring high-definition imaging, outstanding pressure resistance and stable signal transmission, it delivers dependable visual support for ROV operations, deep-sea scientific research, marine engineering and other underwater applications.

Core Performance: High-Definition Imaging with Exquisite Details

       Equipped with a 1/3" progressive CMOS sensor, the camera boasts an effective resolution of 1920×1080 and a horizontal resolution of 1000 TVL, delivering sharp and vivid footage. It supports 10x optical zoom combined with 12x digital zoom, with a focal length ranging from 4.7 mm to 47 mm and a horizontal viewing angle of 60.9° to 6.4° (in air). It captures both wide panoramic views and tiny targets with precision.

        The minimum illumination reaches 0.2 Lux in daytime, and drops to 0.005 Lux with DSS enabled, ensuring steady and clear video even in low-light deep-sea conditions.

Deep-Sea Protection: Titanium Alloy Housing for Pressure & Corrosion Resistance

        The camera body is made of titanium alloy, capable of withstanding water pressure at depths up to 3000 meters. It features superior corrosion resistance to endure long-term exposure to high-pressure and high-salinity marine environments.

        Adopting a lightweight design, the titanium alloy unit weighs 1430 g in air and 730 g underwater. It is easy to mount on various underwater operating platforms and guarantees reliable operation in deep sea.

Stable Transmission: Lag-Free SDI Signal Output

         It adopts SDI signal transmission via coaxial cables and BNC connectors, offering great compatibility and real-time video transmission with zero latency.

         Controlled via RS485 with a baud rate ranging from 2400 bps to 115200 bps, the camera supports accurate remote control over zoom, viewing angle and other functions.

          Designed with wide voltage input of DC 12V-24V, it works stably within an operating temperature range of -10℃ to 50℃. The maximum power consumption is merely 5 W, compatible with the power supply systems of diverse underwater equipment.

Wide Application: Versatile & Reliable for Multiple Scenarios

With superior overall performance, FD-AC-02B21 is an ideal solution for a full range of deep-sea operations:

•ROV & Deep-Sea Salvage: Provides clear visual guidance for robot navigation, target identification and salvage work.

•Marine Scientific Research & Ecological Monitoring: Facilitates deep-sea biological research, marine environmental surveys and ecological supervision by recording marine life and environmental details.

•Marine Engineering & Resource Exploitation: Applies to seabed mineral development and underwater facility inspection, ensuring visualized safety for engineering operations.

•National Defense & Military: Delivers stable and reliable video footage for underwater security, exploration and other missions.

         Engineered specifically for deep-sea use, FD-AC-02B21 integrates high-definition imaging and stable signal transmission. It stands as an optimal choice for visual operations in marine industries, providing clear and reliable visual assurance for deep-sea exploration and development.
