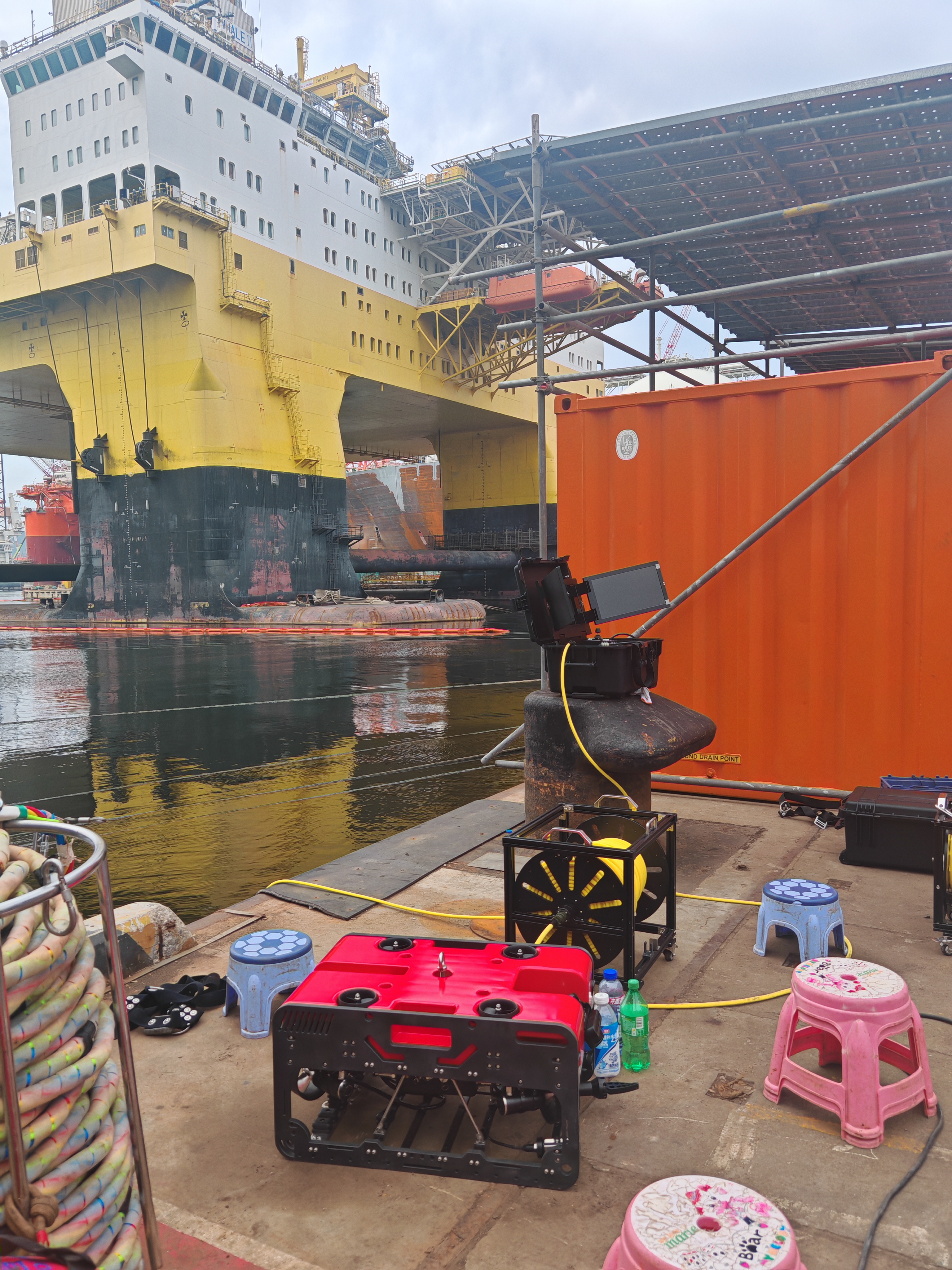

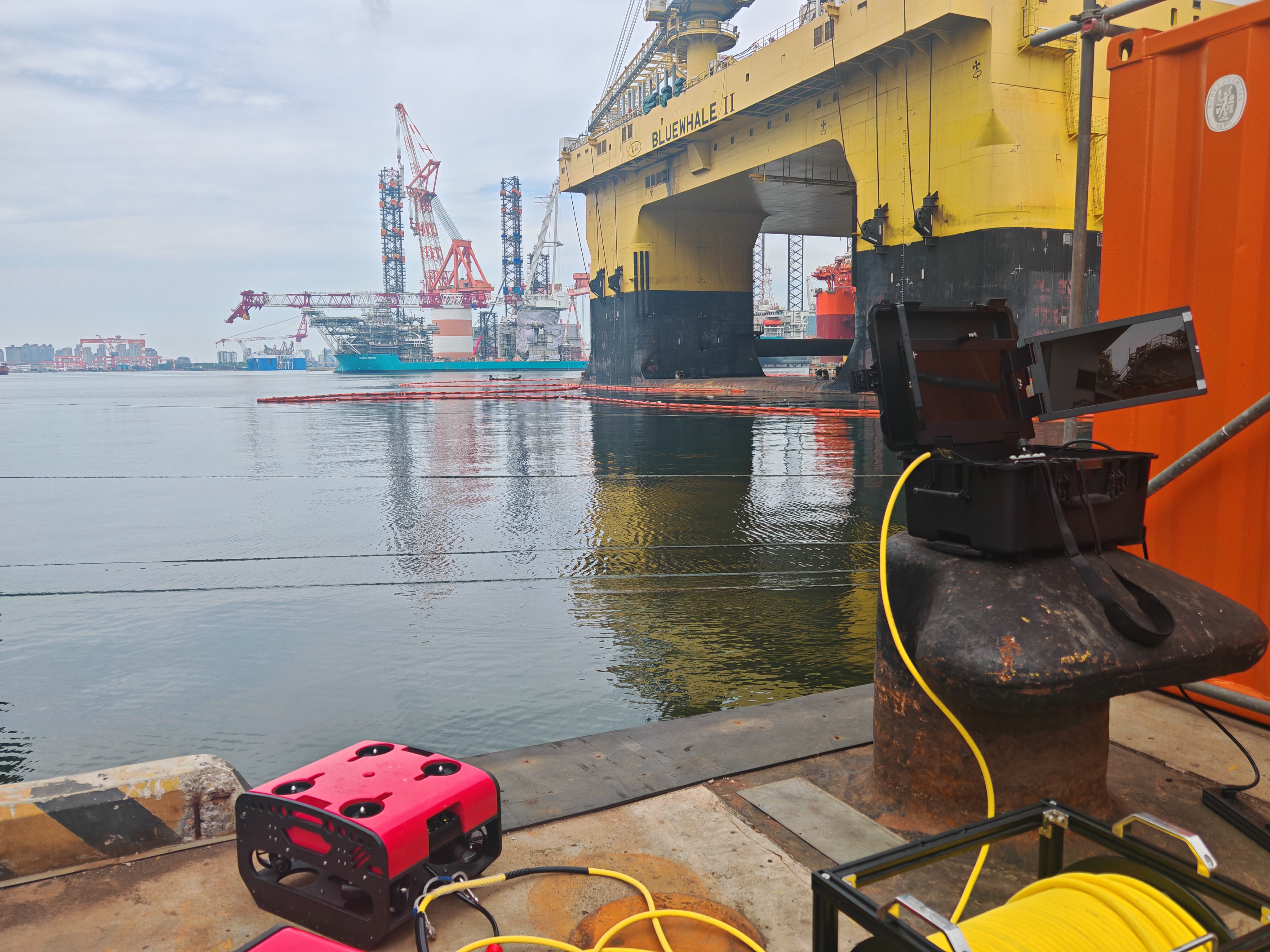

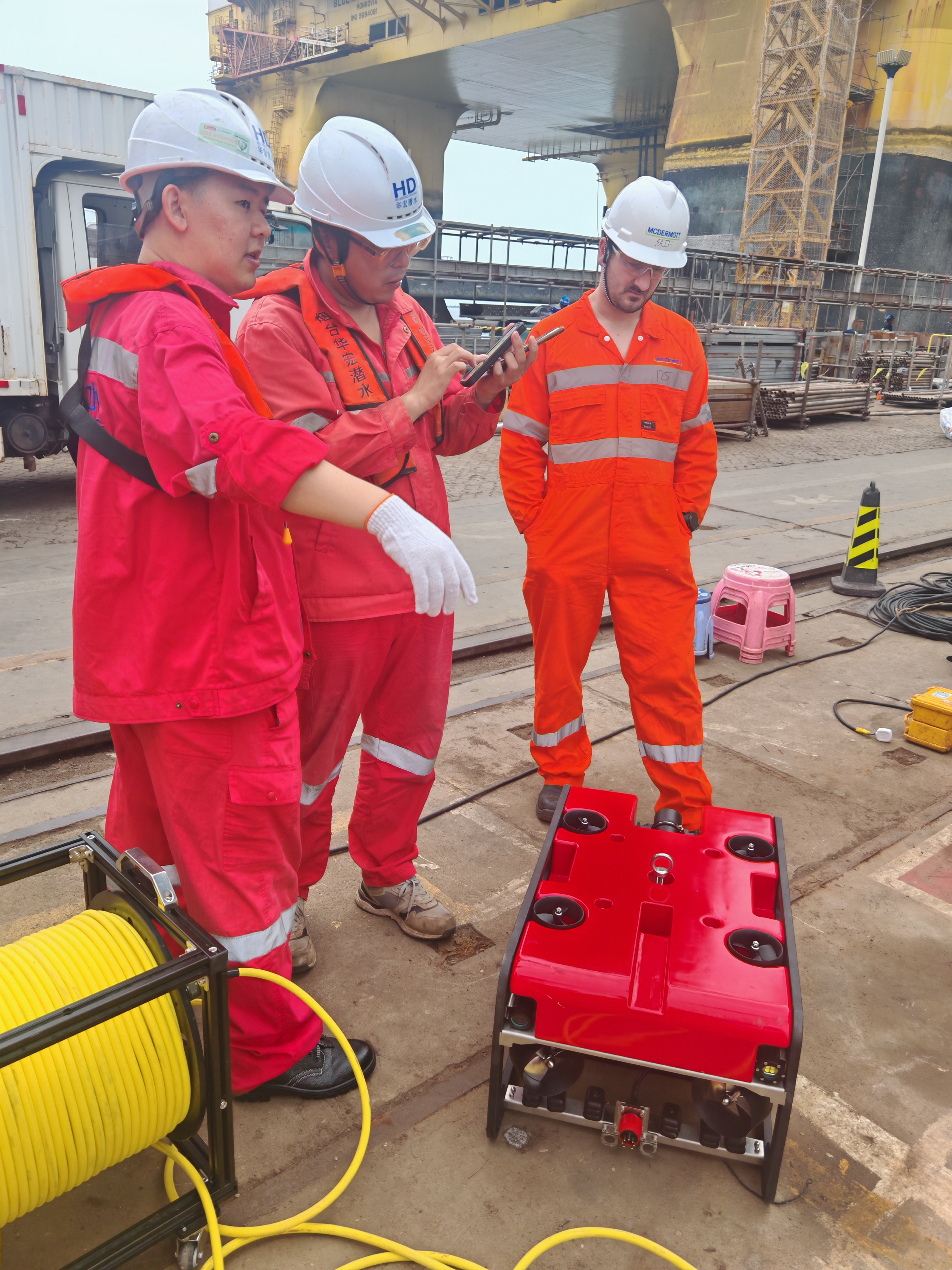

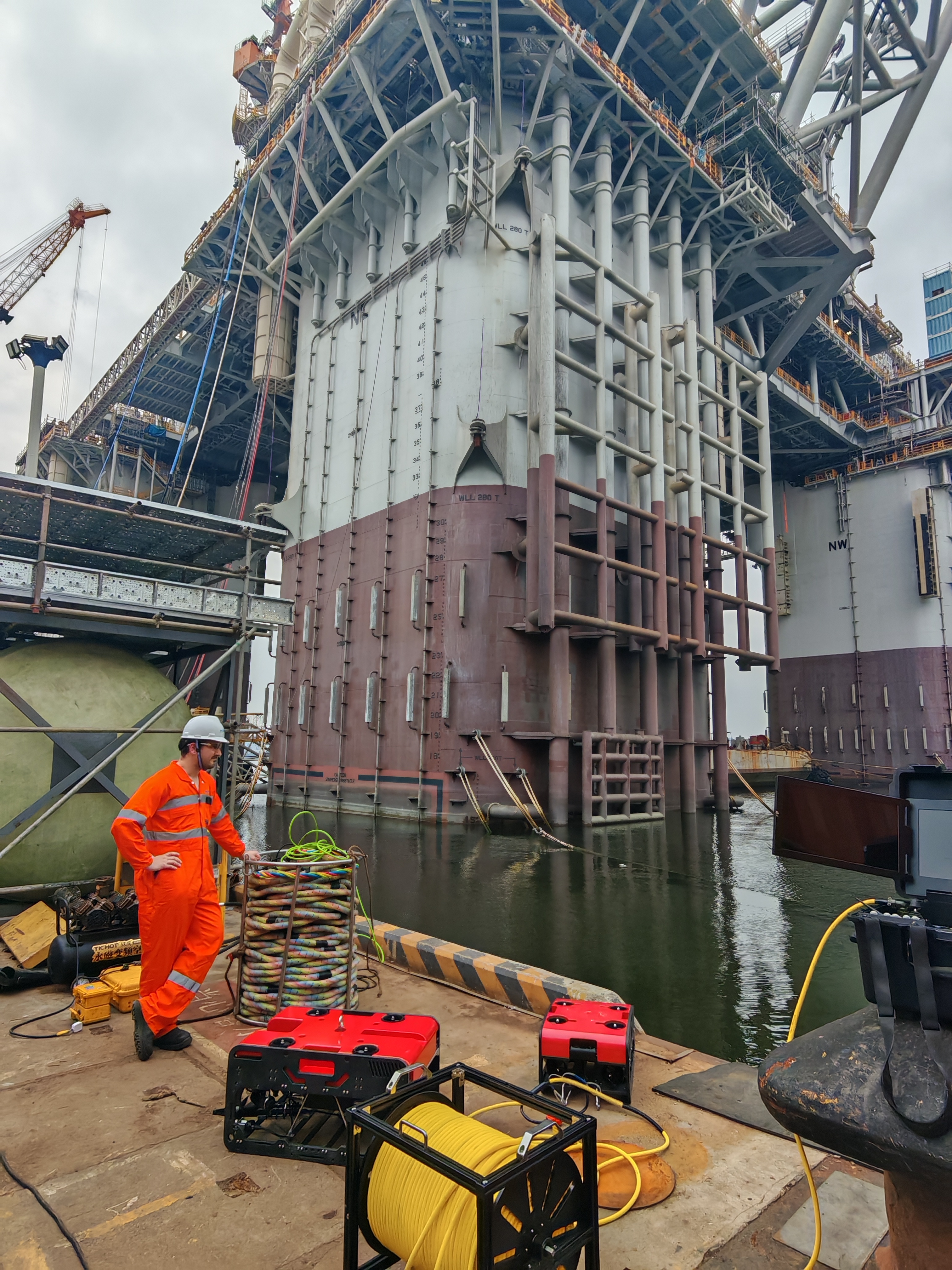

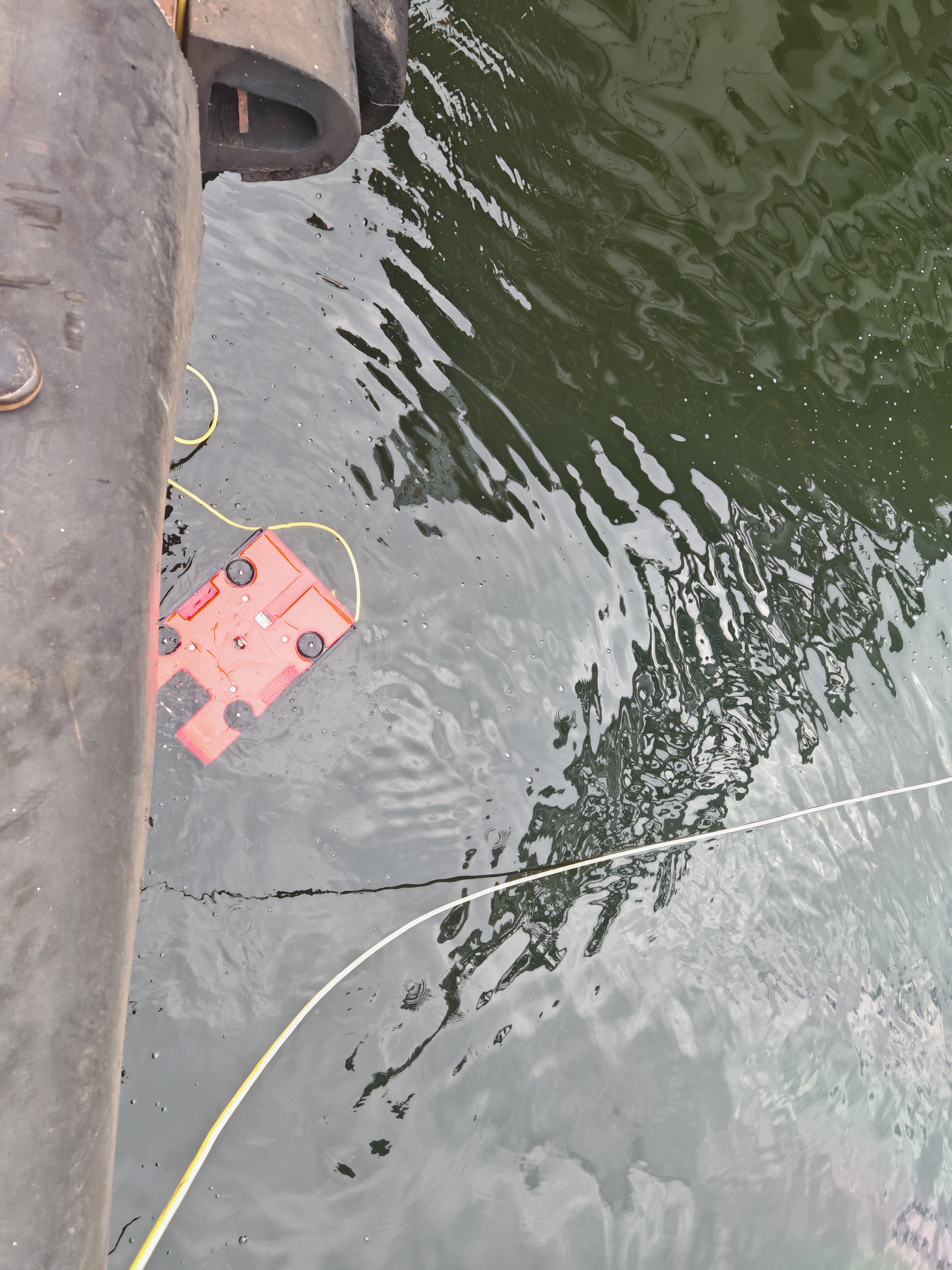

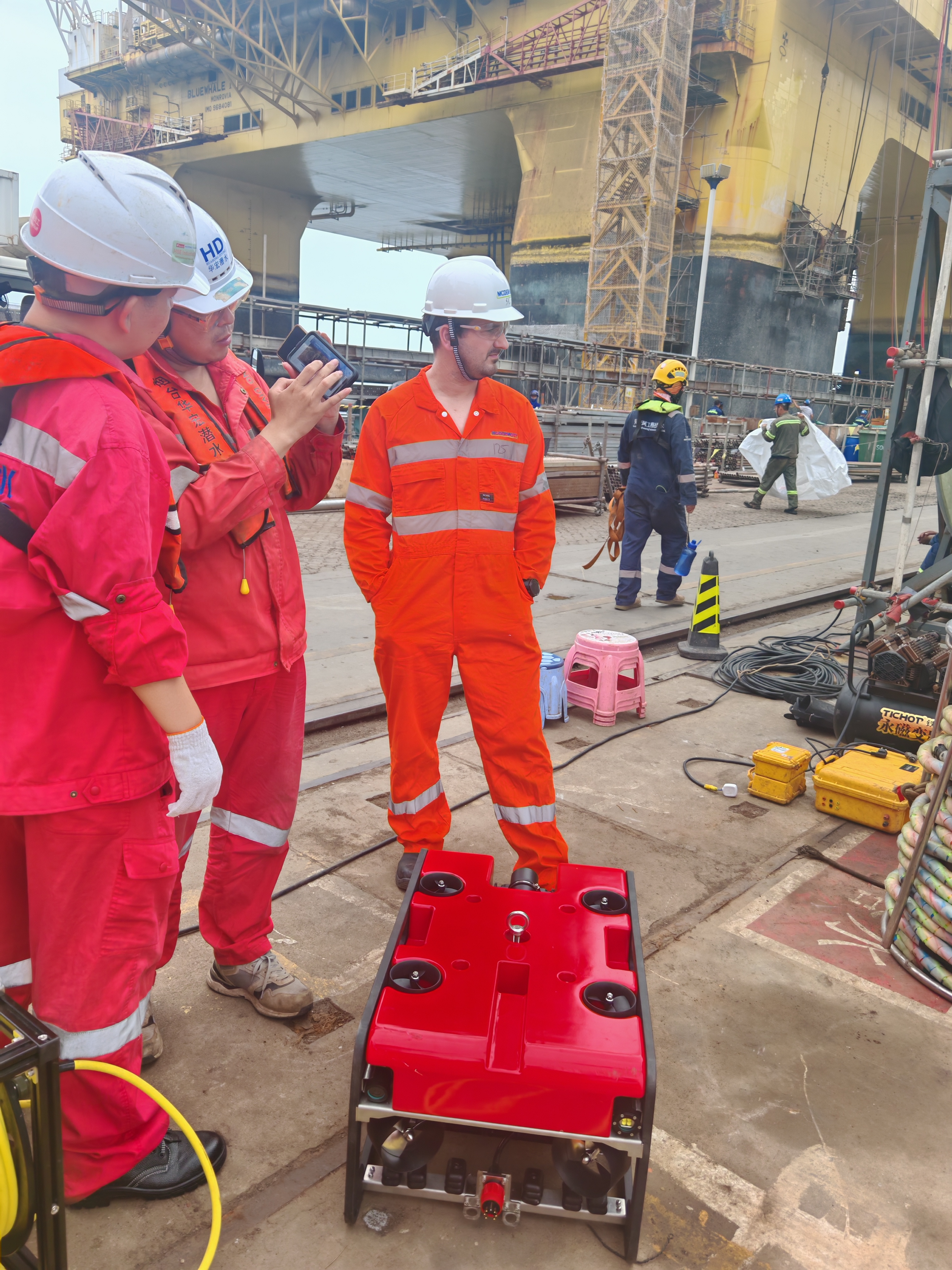

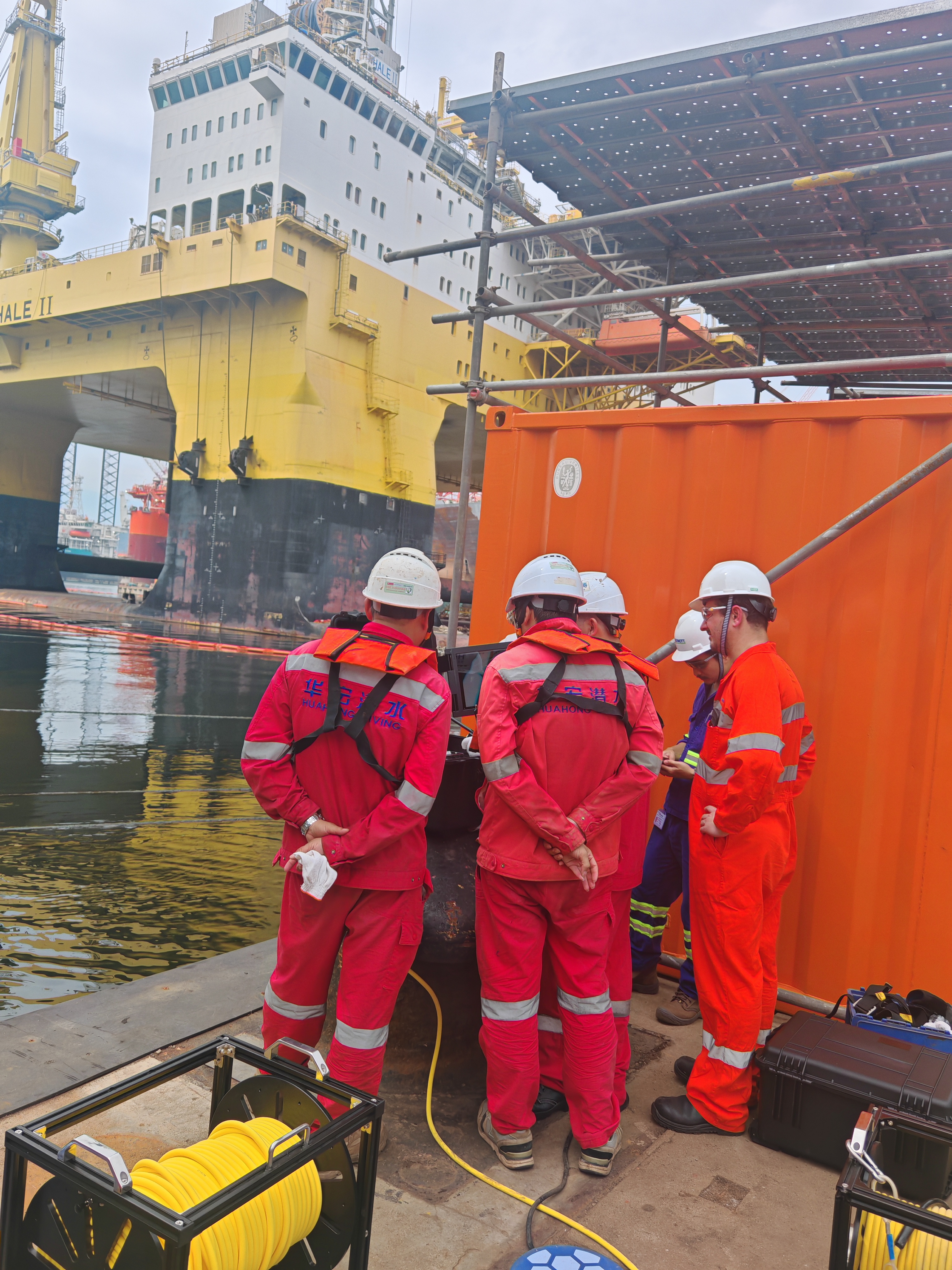

Hull Inspection Operation by Smart8TMax Underwater Robot

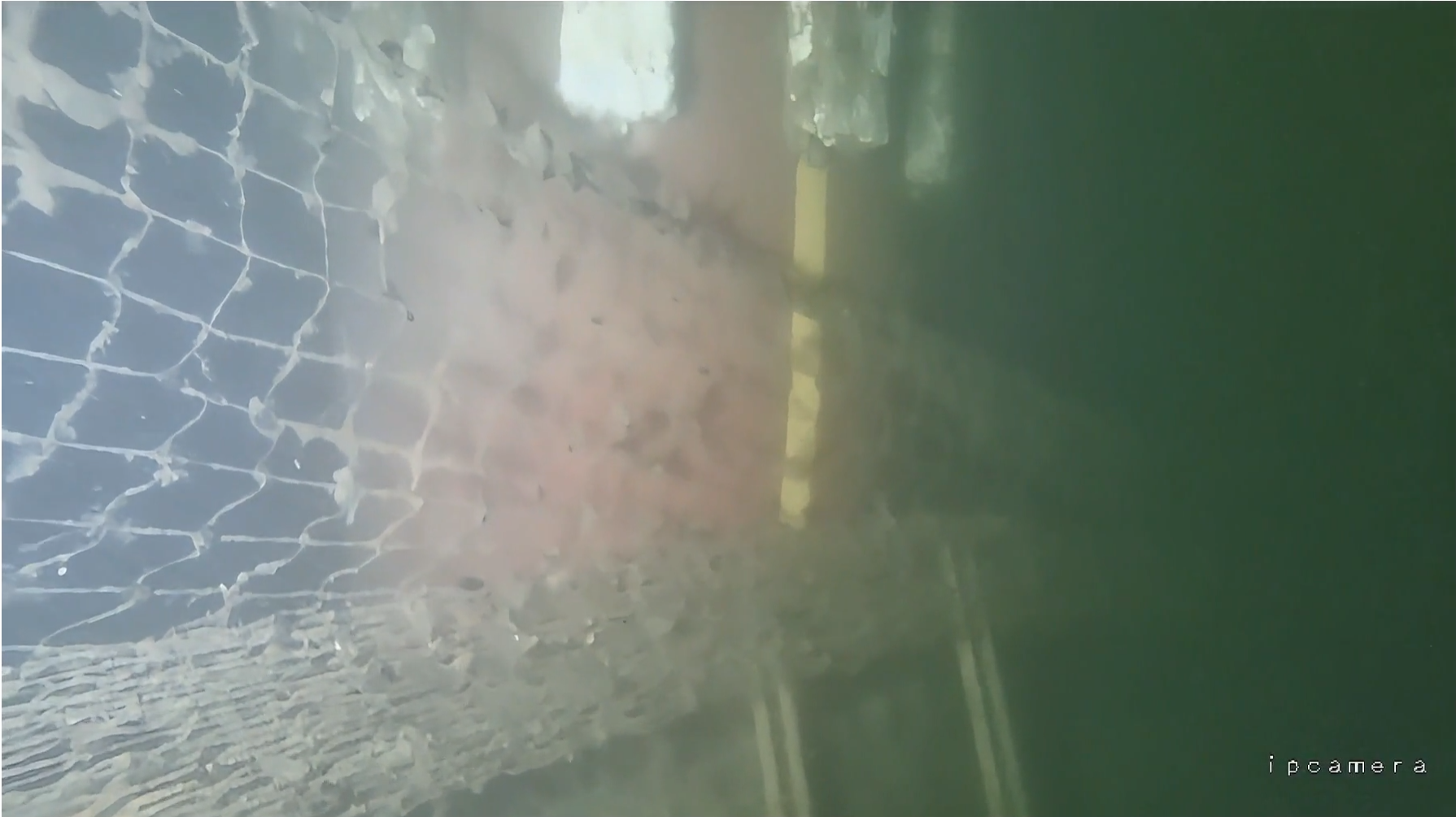

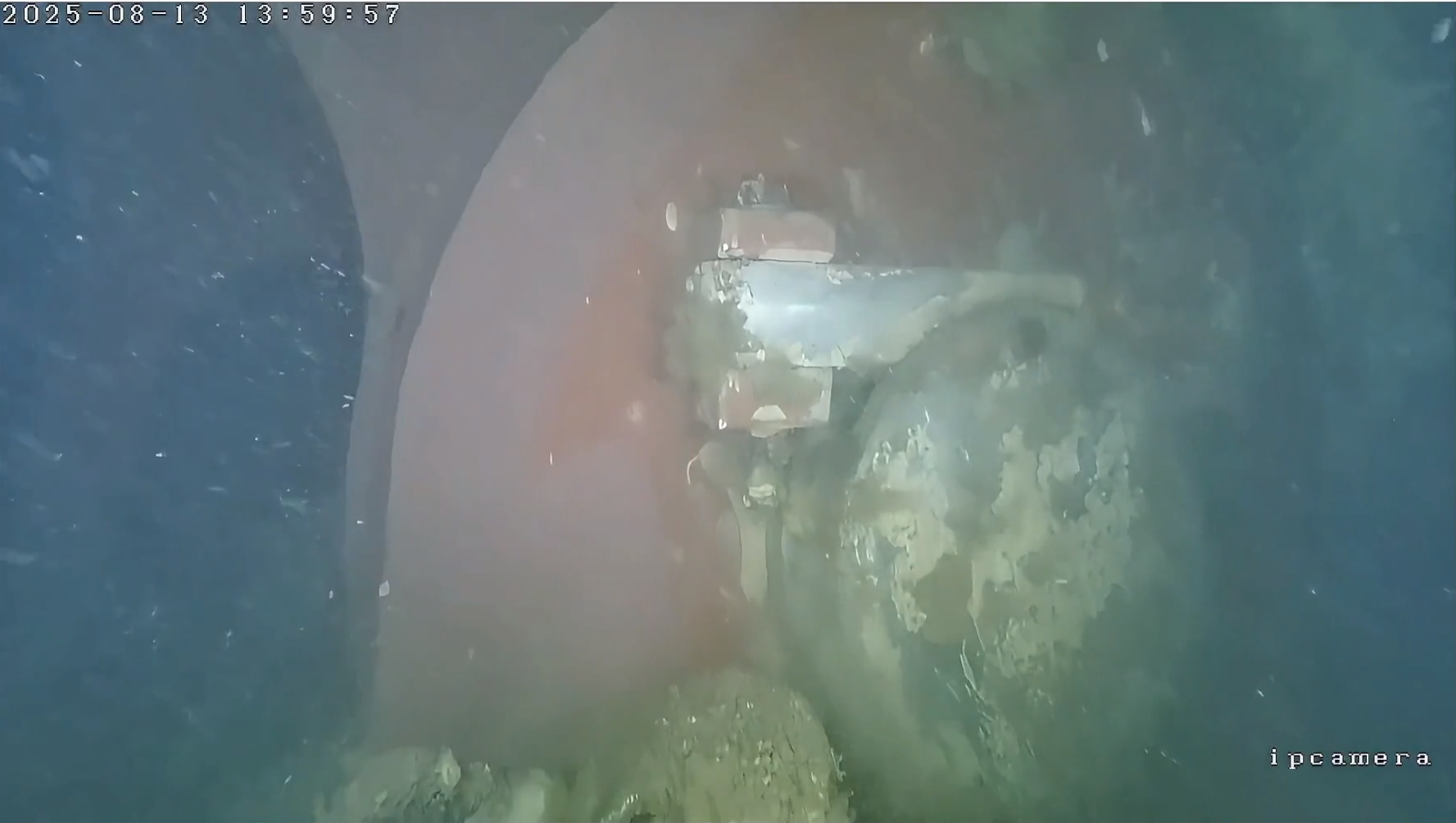

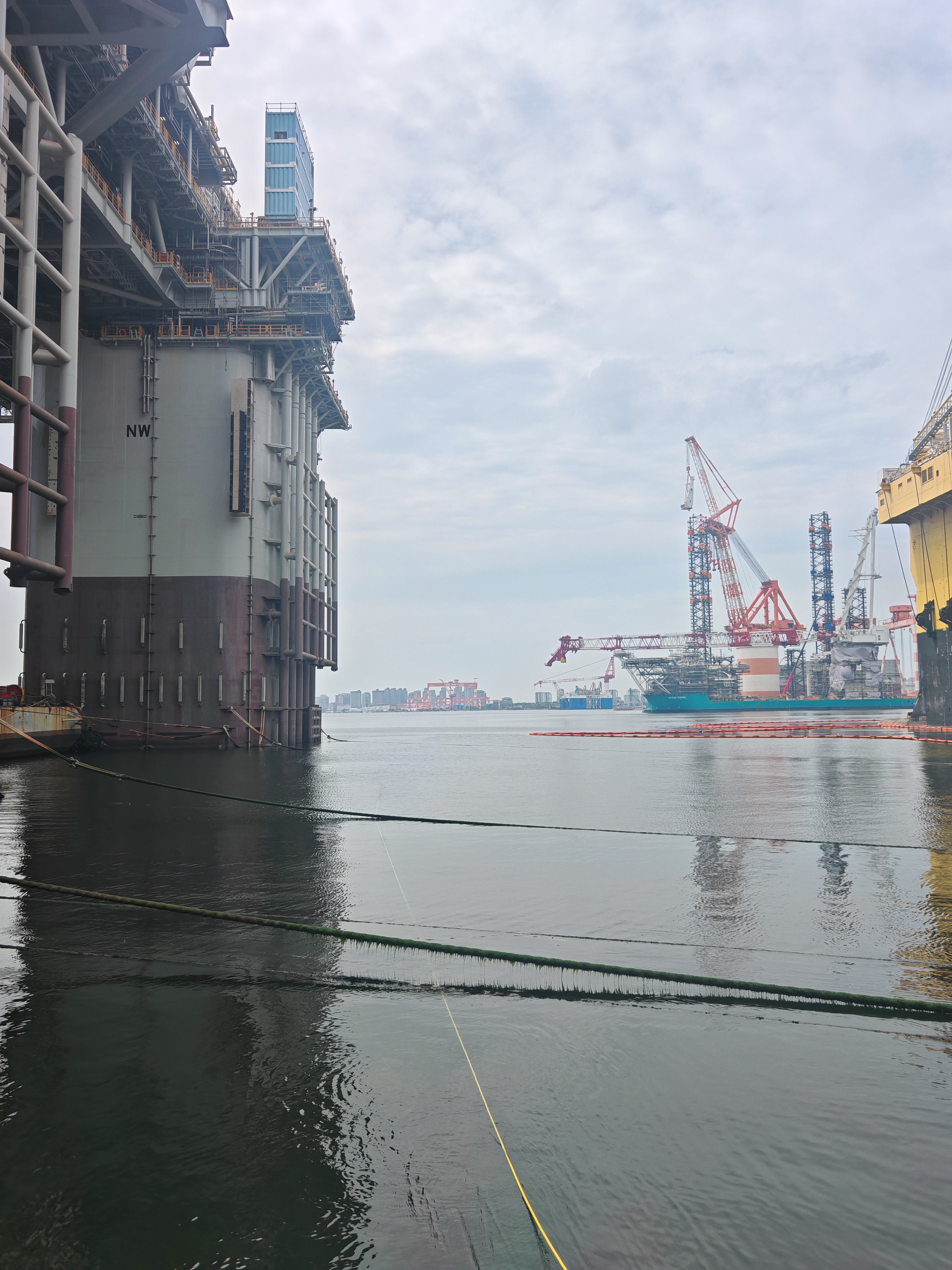

The 8-Thruster underwater robot detects the underwater structure of ship engineering. When the ship bottom silently bears thousands of tons of water, who is guarding its "health"? From the dark underwater world to clear visualization, technology makes the hidden dangers visible.

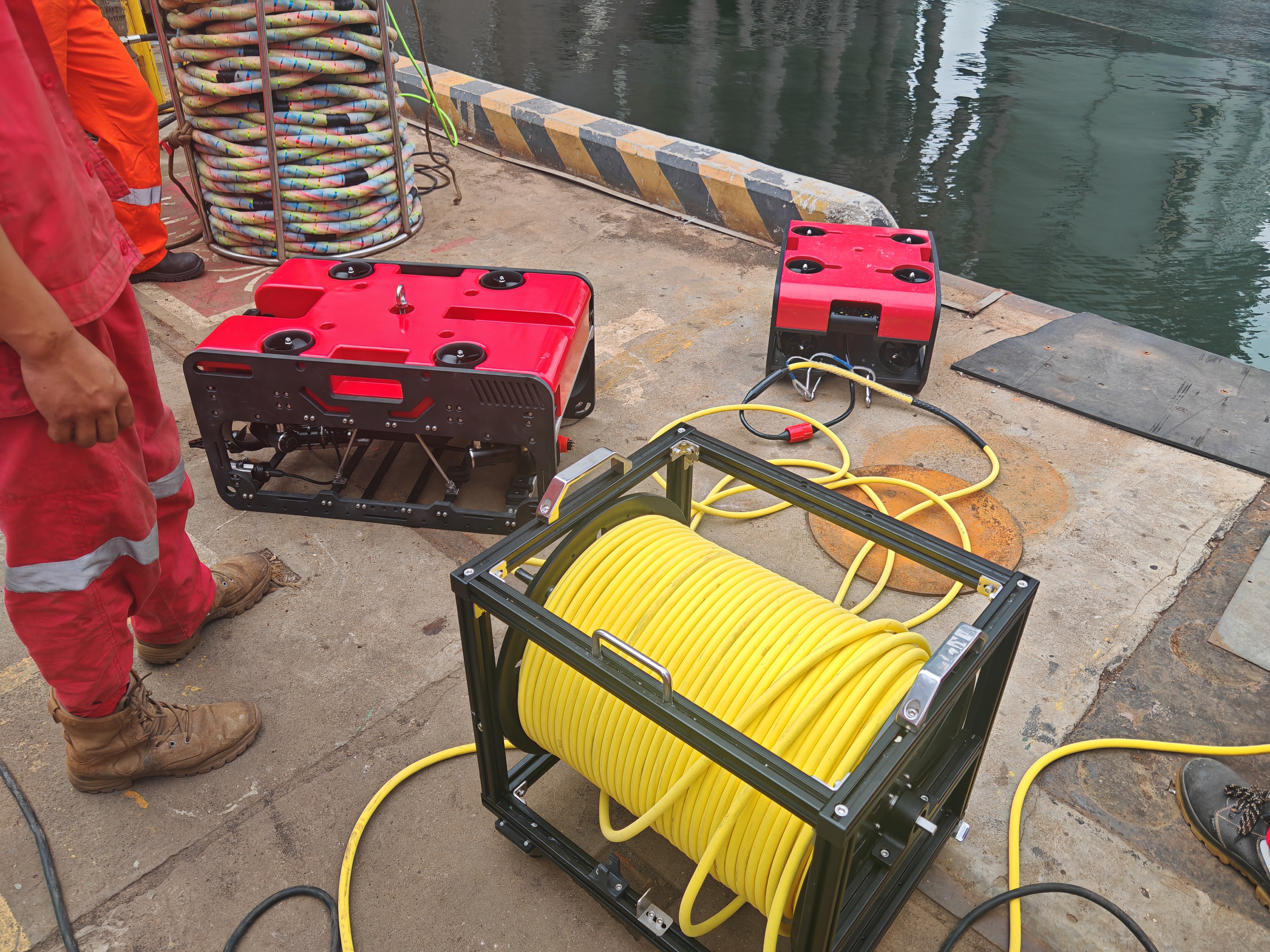

Smart8T Max ROV: High-Performance Underwater Robotic System

     The Smart8T Max ROV is a professional, fully integrated remotely operated vehicle engineered for reliable, versatile underwater operations, ideal for marine inspection, infrastructure maintenance, scientific research, and offshore exploration.

     Designed for deep-water performance, the ROV boasts a rated depth of 300 meters, powered by eight maintenance-free, fully sealed oil-filled thrusters (four horizontal, four vertical). This system delivers a maximum forward thrust of 40kg, vertical thrust of 25kg, and a top speed of 3 knots, ensuring precise maneuverability even in strong currents. Its HDPE frame with profile support bone balances durability and light weight, with dimensions of 750×500×440mm and a total weight of ~50kg.

    Equipped with a cutting-edge imaging system, the ROV features a front-view 200W-pixel 1080P HD camera with ±90° tilt PTZ, and a rear-view 800W-pixel 4K HD camera. Both cameras integrate advanced image enhancement, automatic fog penetration, and shallow-water green light suppression, delivering clear footage in murky or low-light conditions. Two 5000-lumen high-brightness fill lights (front and rear) further optimize visibility, while a suite of sensors—including pressure/depth, compass, pitch/roll, and leak sensors—provides real-time operational and system health data. The ROV supports exceptional scalability, with optional add-ons like manipulators, multibeam sonar, and hydroacoustic positioning systems.

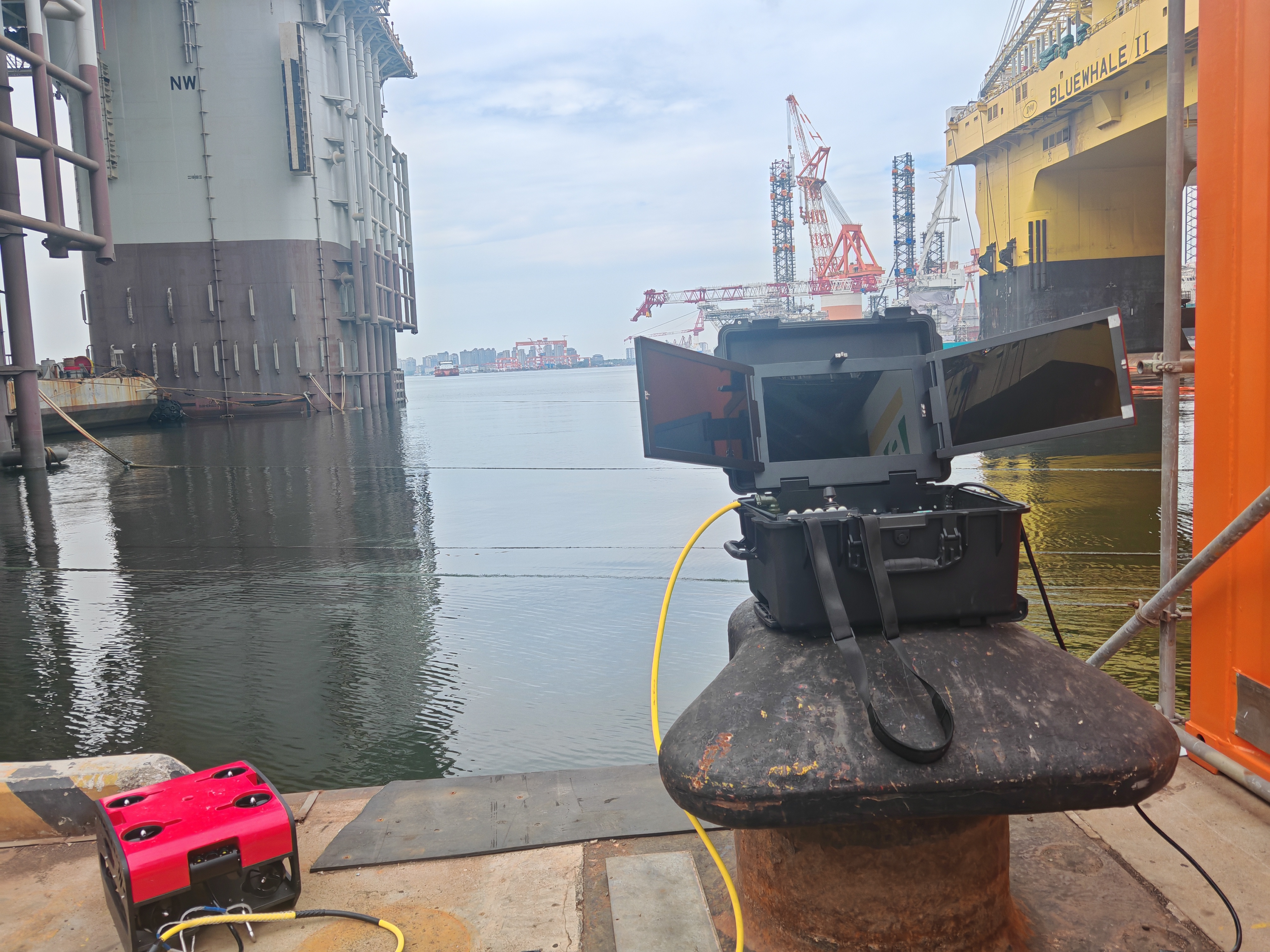

    Powered by a shore-based 3700W AC220V supply for unlimited range, the system is paired with a 300m neutral buoyancy composite tether, reinforced with Kevlar fiber for 500kg tensile strength, housed in a manual PP spool. The control system features a 17-inch 1000nit high-brightness foldable monitor for real-time data display, an I5 CPU host computer (16G RAM, 1T SSD, Win10), and a waterproof keyboard with integrated mouse. Safety is prioritized with an earth leakage protector, reliable grounding, and a remote control handle supporting both wired and wireless operation.

    Packaged in a special air-transport box for easy field deployment, the Smart8T Max ROV combines robust performance, user-friendly operation, and modular expandability, making it an indispensable tool for professional underwater missions.
