Note: Due to the hardware upgrade of the 8MP image sensor, the 2MP and 8MP models can no longer share the same housing structure. They are divided into two independent models: FD‑DS6K‑IPCB (2MP) and FD‑DS6K‑IPCN (8MP). Both are rated for 6000‑meter deep‑sea operation.
Product Overview

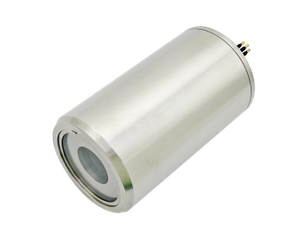

The FD‑DS6K series are deep‑water IP network cameras developed for deep‑sea exploration, ROV/AUV underwater vehicles, and ocean engineering observation. Equipped with corrosion‑resistant deep‑sea pressure‑resistant housing and professional underwater image optimization algorithms, the cameras support standard ONVIF protocol for seamless integration with various underwater control systems. They are widely applied in deep‑sea scientific research, underwater inspection, and visual monitoring for underwater operations.

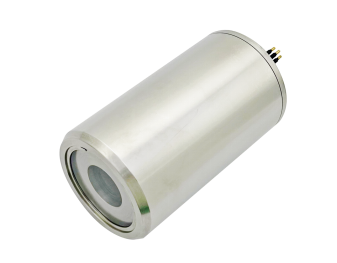

Key Features of FD‑DS6K‑IPCN (8MP Version)
-8M pixels
-Rated depth 6000m
-2.8–12mm 4x zoom lens
-IP camera,support standard ONVIF
-Built-in color restoration and underwater fog penetration algorithm
-316L Stainless steel casing
FD‑DS6K‑IPCN Technical Specifications
Product Model
FD-DS6K-IPCN
Rated Depth
6000m
Shell Material
316L stainless steel
Resolution
4K(8M pixels)
Sensor
1/2.8” CMOS
Minimum Illumination
0.01Lux (color mode); 0.005Lux (black and white mode)
Lens
2.8–12mm 4x zoom lens
Image Enhancement
automatic fog penetration + green light suppression
Connector
MCBH6M+MCIL6F,cable length 0.6 m
Supporting Protocol
TCP/IP、UDP、RTP、RTSP、 RTCP、RTMP、HTTP、
DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP
Interface Protocol
ONVIF
Interface
Standard network interface
Power
DC12-24V
Operating Temperature
-20~60℃
Power Consumption
≤4.5W
Weight
in air：3300g ；in water：2600g

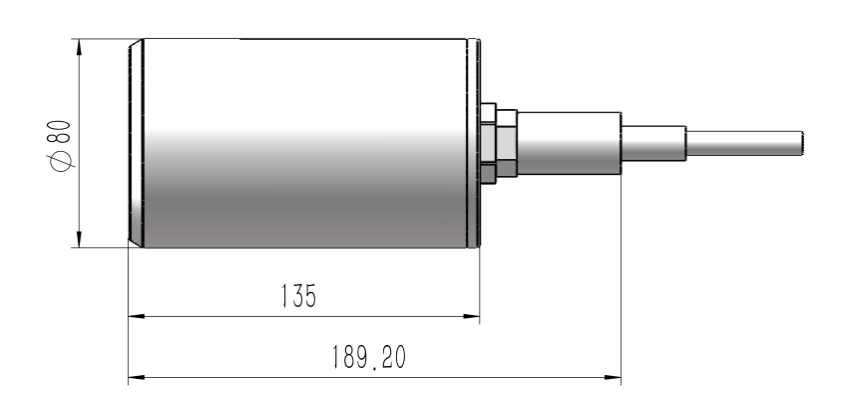

Overall Dimension
FD‑DS6K‑IPCB (2MP Version)
FD‑DS6K‑IPCB is the 2‑megapixel variant of this series. It also features 6000‑meter pressure resistance, 316L stainless‑steel pressure housing, underwater image enhancement algorithms and ONVIF network protocol. It is a cost‑effective option for projects with moderate resolution requirements.
Important Model Change Notice Due to hardware revision of the 8MP image sensor, the 8MP model can no longer reuse the original housing of the 2MP version. The product line is officially split as below:
✅ FD‑DS6K‑IPCB: 2MP model
✅ FD‑DS6K‑IPCN: 8MP 4K zoom model
The housings of the two models are not interchangeable. Please strictly distinguish between models for selection, procurement and spare‑part replacement to avoid mismatched housing and assembly issues.
Application Scenarios
ROV integration, AUV deployment, marine scientific observation, subsea pipeline inspection, underwater engineering monitoring, visual status monitoring of deep‑sea equipment and other deep‑sea operation scenarios.
