Why Is Sonar So Expensive? Here's Where Every Dollar Goes

By FullDepth Technology | Shenzhen FullDepth Technology Co., Ltd.

People ask us this all the time:

"Why is your sonar so expensive? Isn't it just a device that listens to sound underwater?"

It's a fair question. Today, we want to take one minute to walk you through exactly what you're paying for — and why every component in a professional-grade sonar system earns its price.

Step 1: The Heart of Every Sonar — The Transducer

The most critical component in any sonar system is called the transducer. Think of it as the sonar's "ear" — but unlike any ear you've ever imagined.

This component must operate hundreds or even thousands of meters below the ocean surface, capturing the faintest acoustic signals and converting them into crisp, clear electrical data in real time.

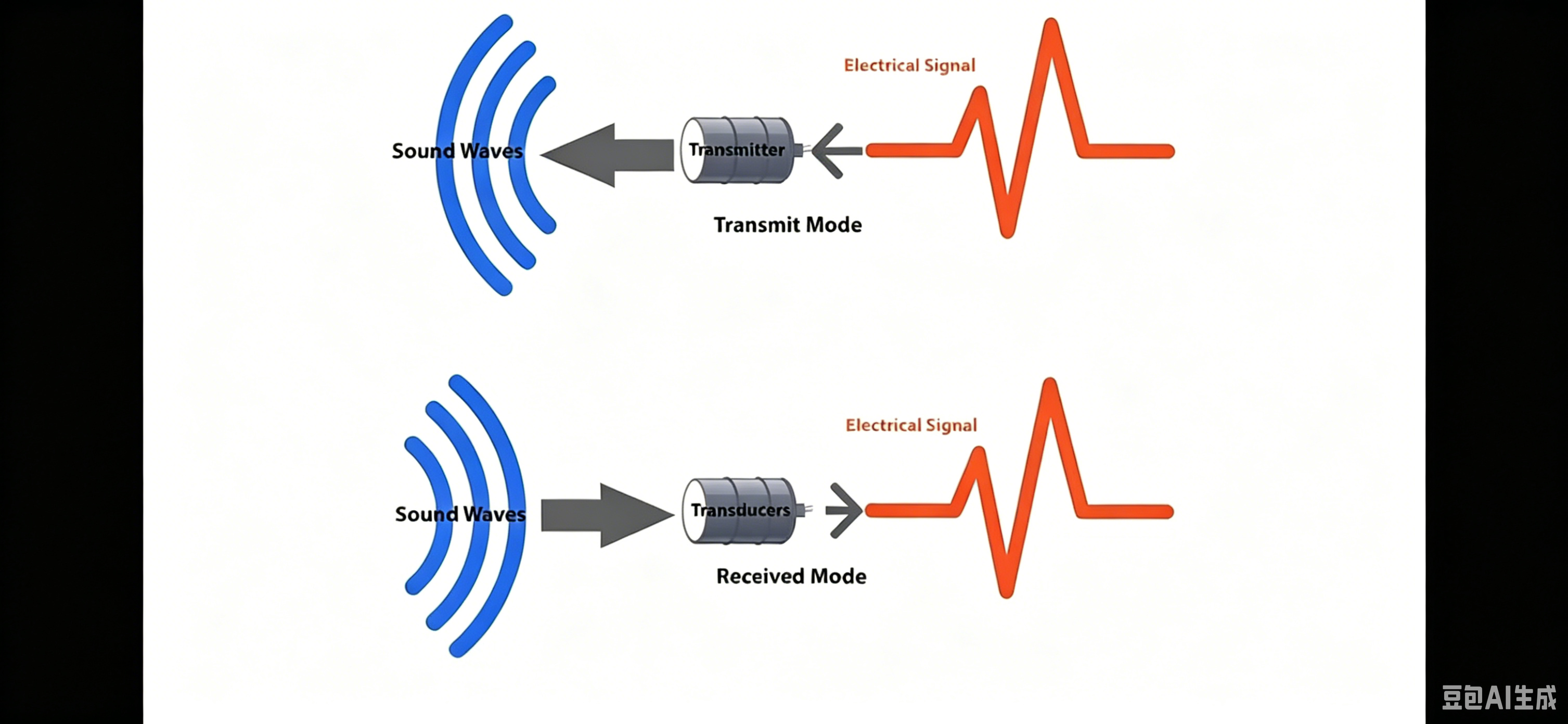

![Sonar Transducer Working Principle — Transmit Mode and Received Mode] (Insert Image: Transmit Mode / Received Mode diagram)

As shown above, the transducer works in two modes:

• Transmit Mode: An electrical signal is sent to the transmitter, which converts it into sound waves that travel through the water.

• Received Mode: Returning sound waves strike the transducer, which converts the mechanical energy back into an electrical signal for processing.



This bidirectional conversion — electrical to acoustic, and acoustic back to electrical — is the foundation of all sonar imaging. Making it work reliably at depth, under enormous pressure, with zero signal loss, is extraordinarily difficult.

Step 2: The Piezoelectric Ceramic — Precision at the Micron Level

To achieve this kind of performance, we use piezoelectric ceramics as the core sensing material. The formulation and sintering process demand extreme precision.

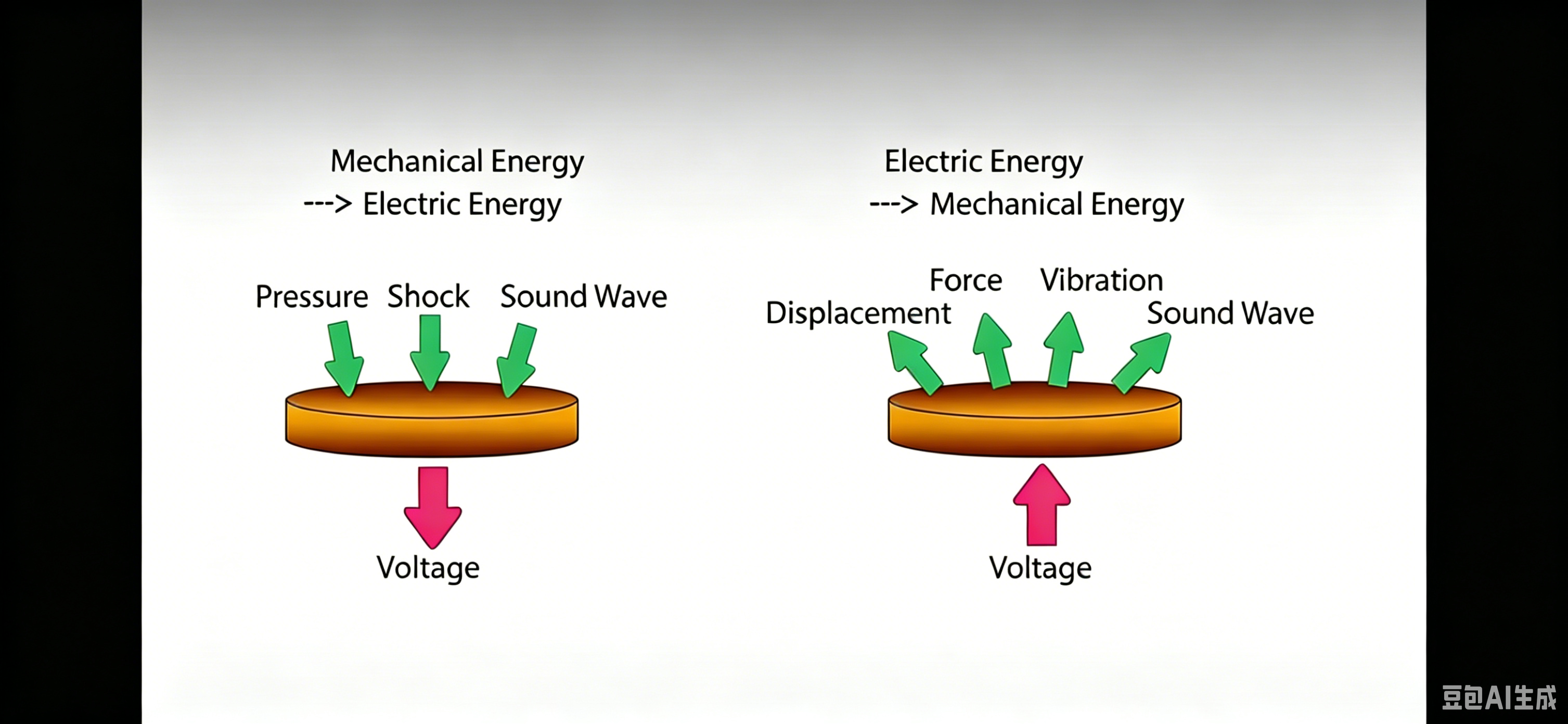

(Insert Image: Piezoelectric effect diagram — Mechanical Energy → Electric Energy / Electric Energy → Mechanical Energy)

The piezoelectric principle works like this:

• When pressure, shock, or sound waves act on the ceramic disc, the material generates a voltage — converting mechanical energy into electrical energy.

• Conversely, when a voltage is applied, the ceramic produces displacement, force, vibration, and sound waves — converting electrical energy back into mechanical energy.

Cutting these ceramic discs requires our own in-house developed semiconductor-grade precision cutting machine, with accuracy controlled to within 2 microns — roughly 1/35th the diameter of a human hair.

After cutting, each piece undergoes complex polarization and aging treatment. The yield rate is not high — even the slightest defect is disqualifying.

Step 3: The Matching Layer — The Transducer's "Clothing"

Once cut and treated, the ceramic elements must be fitted with a matching layer — a specialized interface material between the transducer and the water. It must simultaneously:

1. Allow sound waves to transmit into the water as efficiently as possible.

2. Withstand saltwater corrosion and extreme hydrostatic pressure at operating depth.

We use an automated encapsulation process. If a single air bubble or delamination forms, the entire transducer is scrapped. No rework. No second chances.

Step 4: The Cable — Where Engineering Meets Extreme Environment

The cable connecting the transducer to the surface control system must survive conditions most materials simply cannot. It must:

• Withstand hundreds to thousands of meters of water pressure

• Transmit signals with zero attenuation and zero crosstalk

• Remain absolutely watertight throughout its entire service life

The watertight connectors and armored cables that meet these requirements are engineering achievements in themselves. The cost of a single cable assembly can be comparable to the price of an ordinary passenger car.

What You're Really Buying

When you look at a professional sonar unit, you're not looking at a metal box. You're looking at:

• Precision-formulated piezoelectric ceramics, cut to 2-micron tolerances

• Multilayer matching materials engineered for underwater acoustic transmission and corrosion resistance

• Automated encapsulation processes with zero tolerance for defects

• Armored, watertight cable assemblies rated for deep-sea pressure environments

• Full-chain testing and validation at every stage of production

Every device we manufacture is built to ensure that this system performs stably and accurately, at every second, in the deep ocean.

That is the true value of sonar.

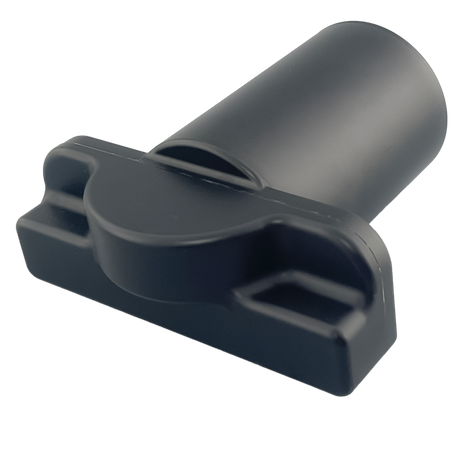

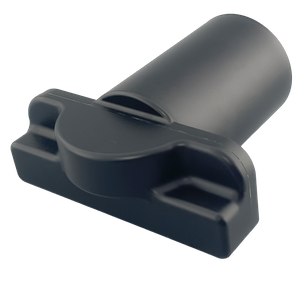

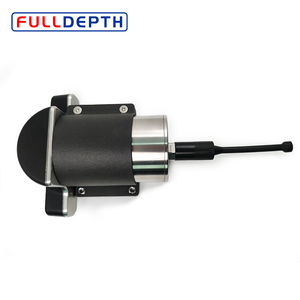

FullDepth's FD-F750M: Built on These Principles

When you invest in FullDepth sonar, you're investing in a system where every component — from the ceramic element to the cable connector — has been engineered to perform without compromise in the harshest underwater environments on Earth.
