FD-MB360 Multi-Beam Panoramic Sonar

FD-MB360 Multi-Beam Panoramic Sonar

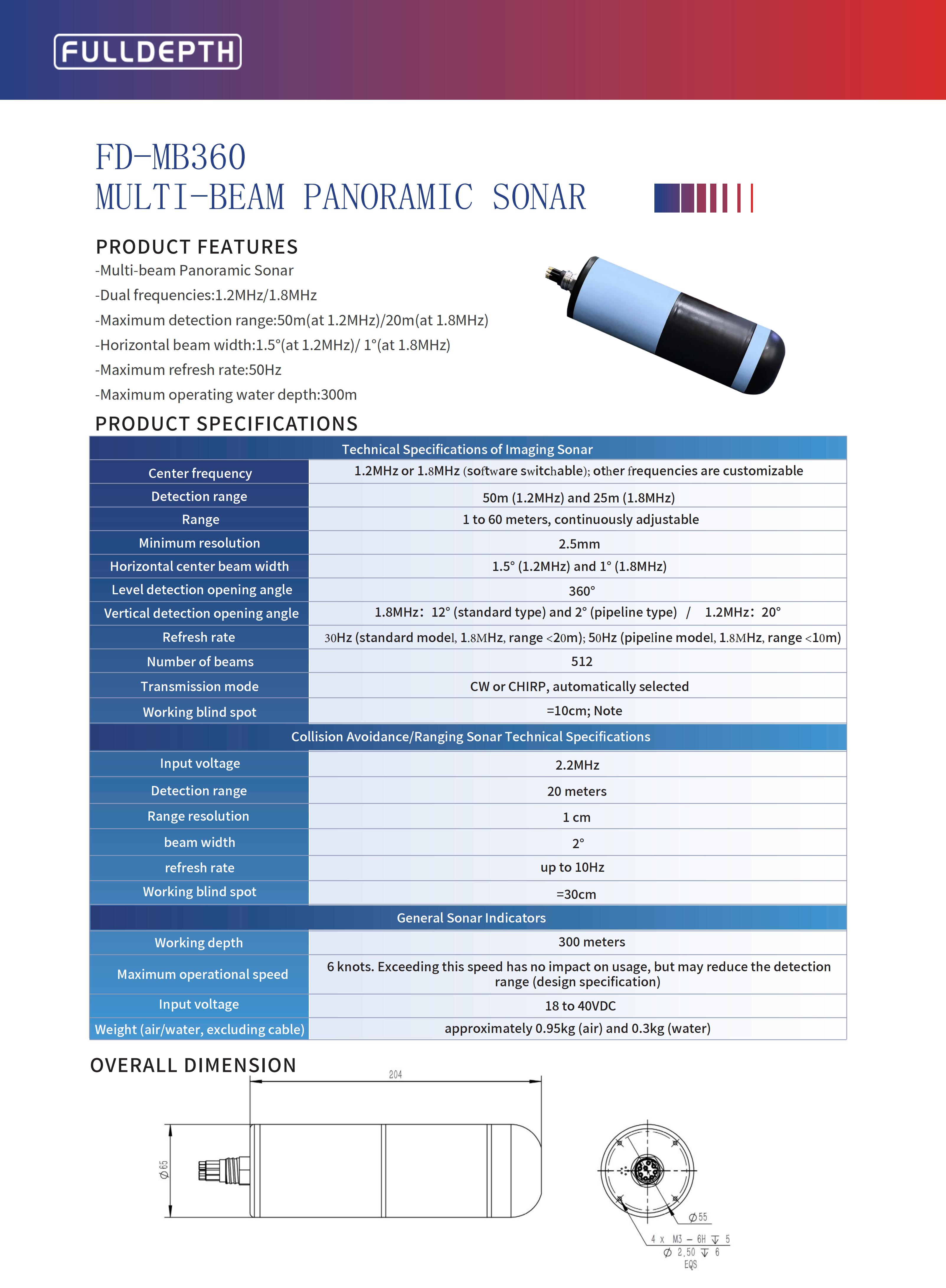

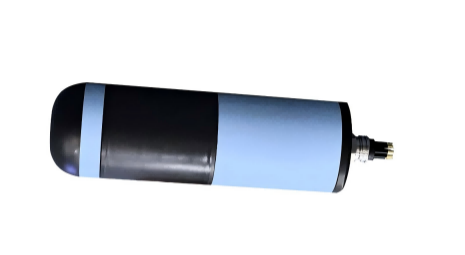

The FD-MB360 is a high-performance multi-beam panoramic sonar, delivering 360°full-circle underwater detection, imaging, and collision avoidance for marine operations. With dual-frequency flexibility, ultra-high resolution, and robust deep-water performance, it provides comprehensive situational awareness for vessels, ROVs, and offshore projects.

Core Advantages

✅ 360°Panoramic Coverage & Dual-Frequency Flexibility

•360°horizontal opening angle for full-circle underwater scanning, eliminating blind spots.

•Software-switchable dual frequencies: 1.2MHz (50m max range, 1.5°beamwidth) and 1.8MHz (25m max range, 1°beamwidth), with custom frequencies available.

•Continuously adjustable detection range from 1 to 60 meters, adapting to diverse operational scenarios.

✅ Ultra-High Resolution & Real-Time Imaging

•2.5mm minimum resolution and 512 high-density beams capture fine underwater details.

•Maximum refresh rate up to 50Hz (pipeline model, <10m range) for smooth, real-time panoramic imaging.

•CW or CHIRP transmission mode, automatically selected for optimal signal quality.

✅ Integrated Collision Avoidance & Safety

•Dedicated 2.2MHz collision avoidance/ranging sonar with 20m detection range, 1cm range resolution, and 2°beamwidth.

•Ultra-small working blind spot: ≤10cm for imaging sonar, ≤30cm for collision avoidance sonar.

•6 knots maximum operational speed with no functional loss, ensuring stable performance during navigation.

✅ Robust & Reliable Design

•300m maximum operating water depth, suitable for coastal, offshore, and deep-water missions.

•18 to 40VDC input voltage, compatible with marine power systems.

•Lightweight build: ~0.95kg (air) / 0.3kg (water, excluding cable) for easy integration on vessels, ROVs, and AUVs.

Key Applications

Ideal for vessel navigation & collision avoidance, ROV/AUV autonomous operation, pipeline inspection, seabed mapping, port security, and underwater search & rescue.
