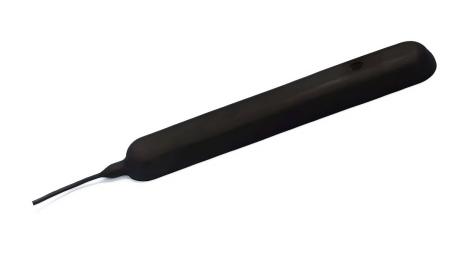

FD-SS900 Side-Scan Sonar

The FD-SS900 Side-Scan Sonar is a high-performance underwater detection system, designed for precise seabed imaging, marine surveying, and underwater inspection.

Key Features

•Dual Selectable Frequencies: Supports 900kHz (default, high-resolution) and 450kHz (long-range) for flexible operation.

•Integrated Design: Compact, easy-to-deploy transducer for stable performance in diverse marine environments.

•Outstanding Detection Performance: 900kHz model offers a 75m maximum range with 0.3° ultra-narrow horizontal beamwidth; 450kHz model extends range to 150m with 0.6° beamwidth.

•Dual Model Options: Standard FD-SS900 for dedicated side-scan imaging; FD-SS900 Plus with 4-in-1 functionality (side-scan, down-scan, depth measurement, attitude detection).

• High Resolution: 10mm distance resolution, with course resolution up to 0.11m@20m (900kHz) for clear target imaging.

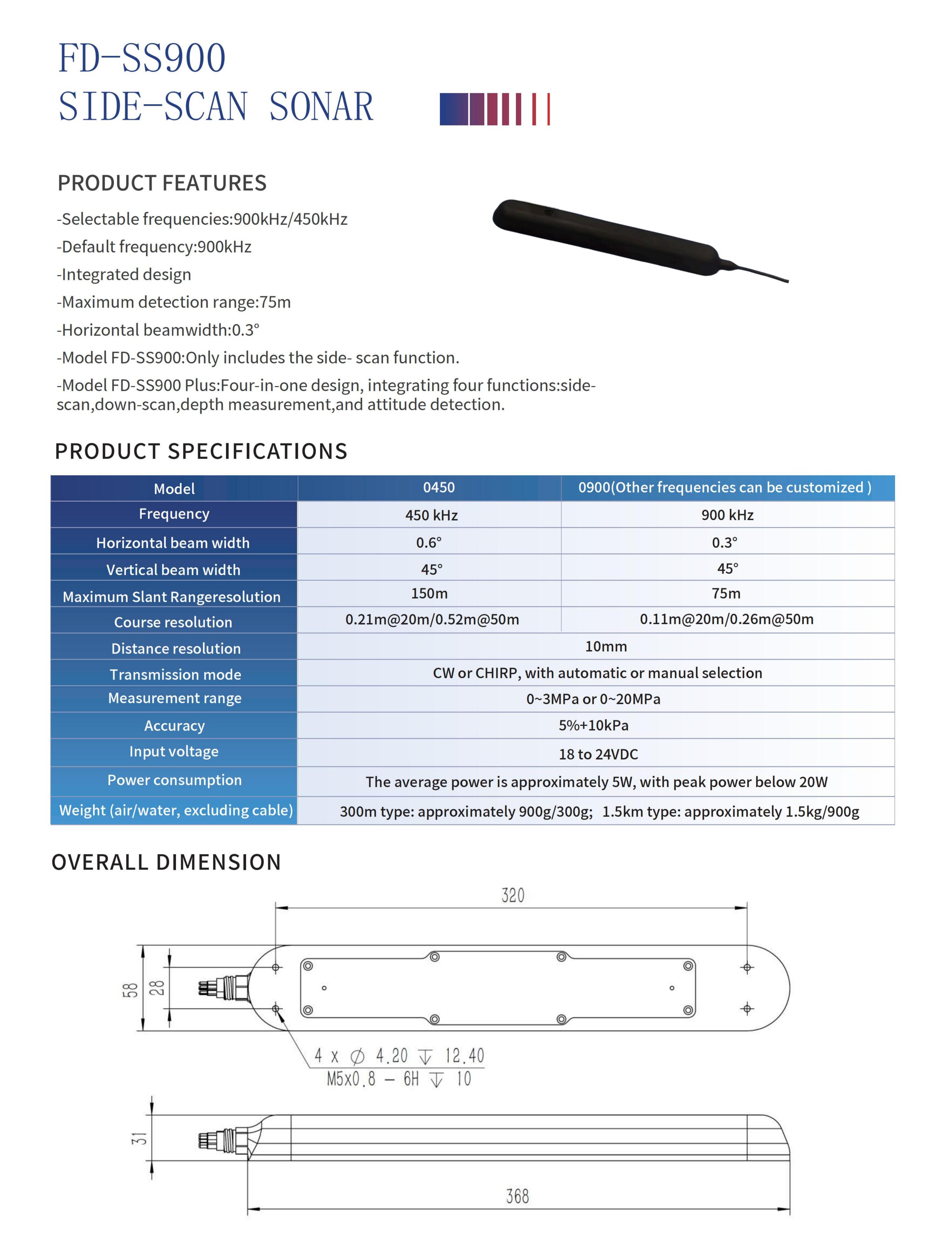

Core Specifications

Parameter 0450 (450kHz) 0900 (900kHz, customizable)

Max Slant Range 150m 75m

Horizontal Beam Width 0.6° 0.3°

Vertical Beam Width 45° 45°

Distance Resolution 10mm 10mm

Input Voltage 18-24VDC 18-24VDC

Power Consumption Avg ~5W, peak <20W Avg ~5W, peak <20W

Weight (air/water, no cable) 300m: ~900g/300g; 1.5km: ~1.5kg/900g 300m: ~900g/300g; 1.5km: ~1.5kg/900g

Application Scenarios

Ideal for port maintenance, underwater pipeline inspection, marine resource exploration, environmental monitoring, and search & rescue. Its low power consumption, robust design, and customizable options make it suitable for shallow coastal to deep offshore operations, delivering reliable, high-quality underwater data for professional users.
