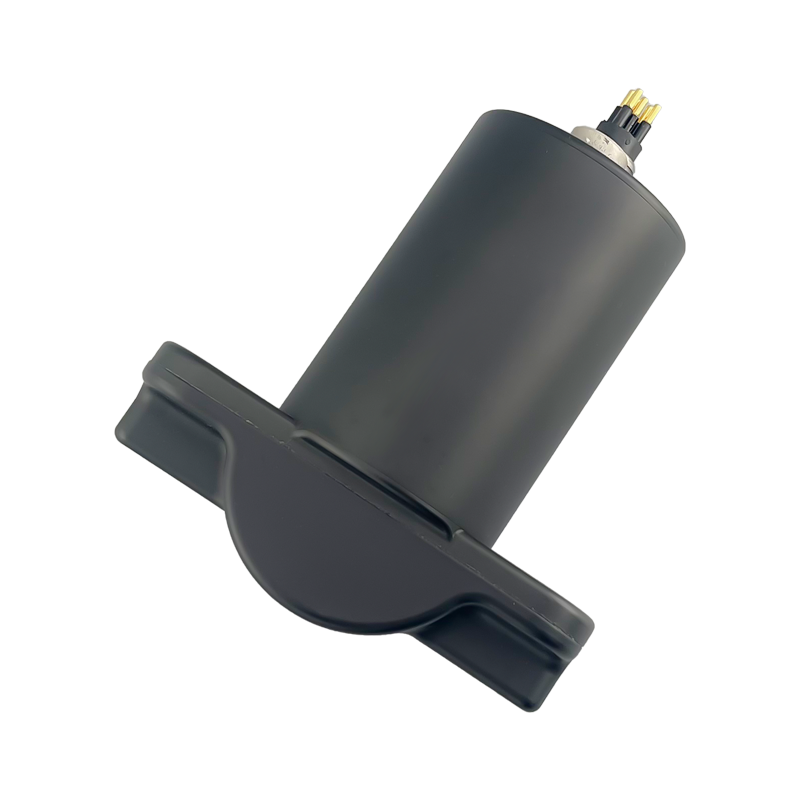

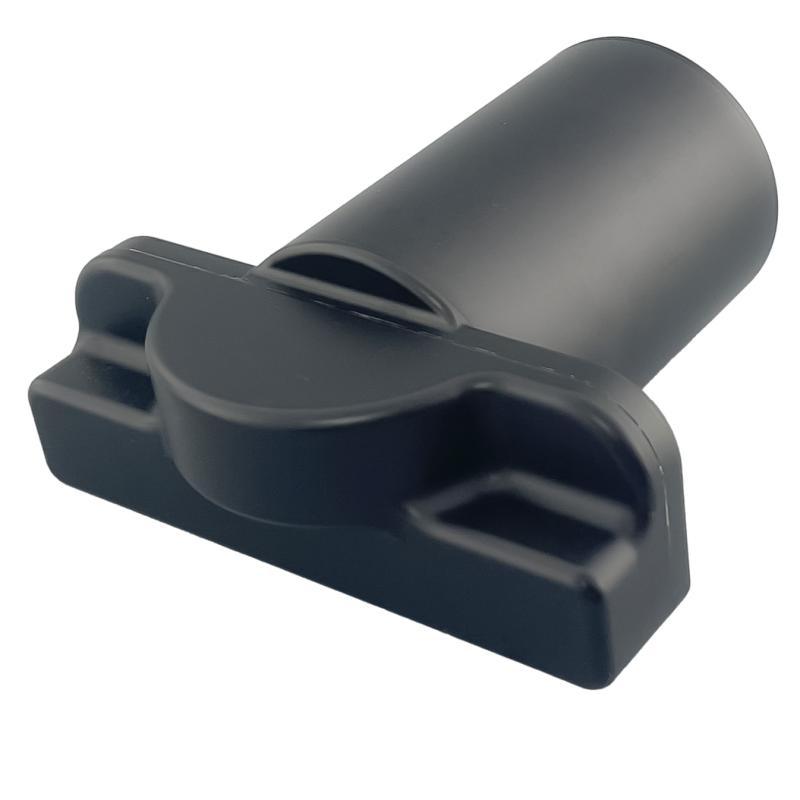

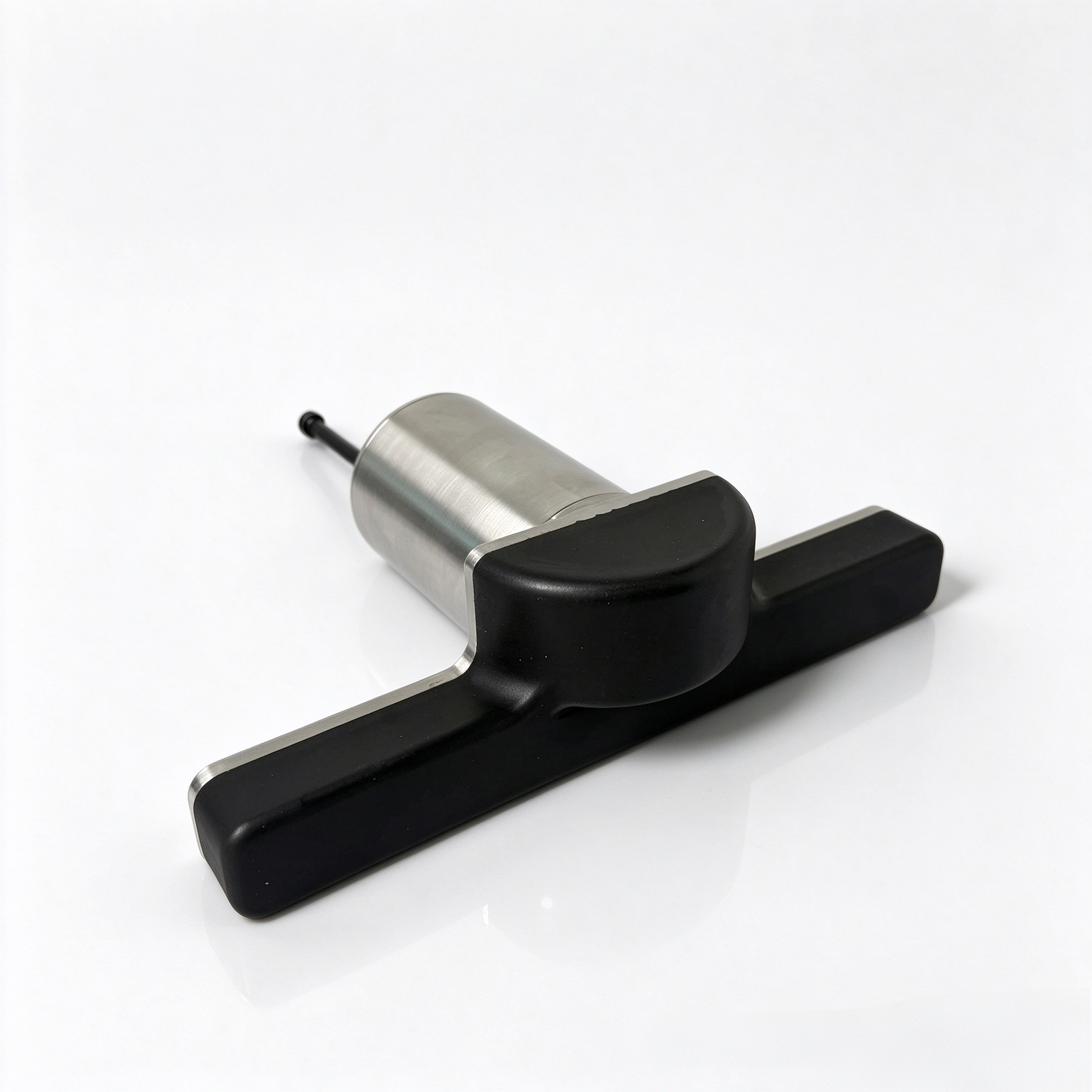

FD-F750M 、FD-F750-LR

Miniature Forward Looking Sonar

Technical Specification

1. General Description

       FD-F750M and FD-F750M-LR are miniature 2D forward-looking multi-beam imaging sonars, which deliver acoustic vision ahead of the vehicle platform in both clear and turbid water to realize target detection & identification, collision avoidance and obstacle probing functions.

       Both models are upgraded derivatives developed from our proven FD-F750EL forward-looking sonar. They maintain comparable core performance to FD-F750EL while featuring substantially reduced costs and selling prices, alongside reduced overall dimension, weight and power consumption.

        FD-F750M and FD-F750M-LR can be configured in either single-frequency or dual-frequency modes. The FD-F750M covers optional operating frequencies ranging from 375 kHz to 1.2 MHz, delivering a maximum detection range of 200 m at 375 kHz and 50 m at 1.2 MHz. Optimized for low-frequency long-distance deployment, the FD-F750M-LR supports selectable frequencies between 200 kHz and 700 kHz, with a maximum detection range of 300 m at 200 kHz and 130 m at 700 kHz; this variant comes with slightly larger dimensions and heavier weight. Apart from the above differences, the two models share nearly identical performance parameters, and adjustable vertical beamwidth is available for single-frequency configuration.

        Standard options feature maximum rated operating depths of 300 m, 500 m and 1,500 m. A 3,000 m-depth customized version is available upon request; please contact our sales team directly for details

2. Product Highlights

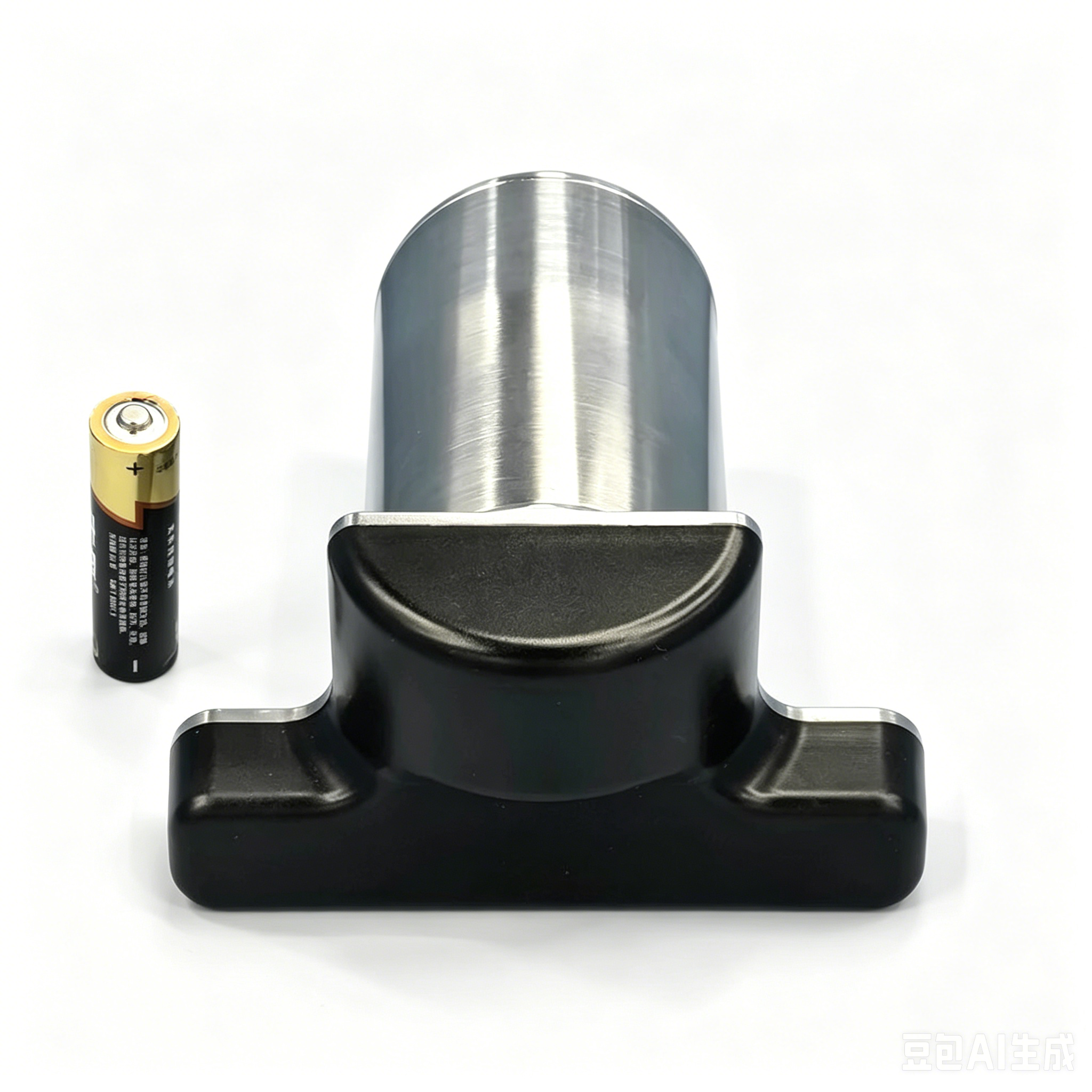

(1)Small form-factor and light-weight;

(2)Dual frequency and more frequency options;

(3)Adjustable vertical beamwidth for single frequency configuration;

(4)Long range;

(5)High acoustic resolution;

(6)Easy to use: APP and free SDK are provided.

3. What include in package:

(1)Sonar device;

(2)Cable (5m in standard; header included);

(3) 24V power adaptor;

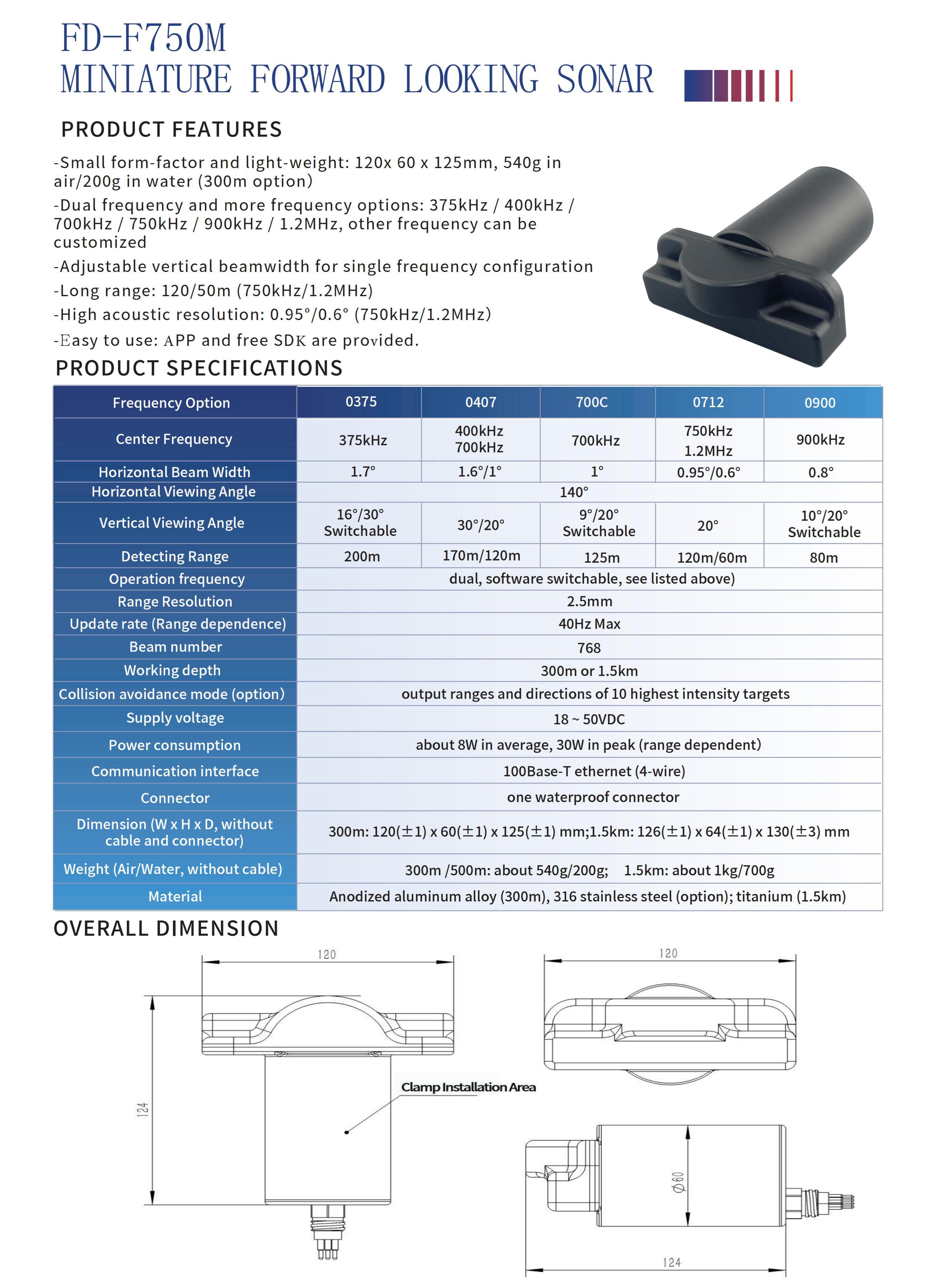

4. Technical specifications

4.1. Sonar technical specifications

FD-F750M：

FD-F750M-LR：

 (1)Operation frequency: dual, software switchable, see listed above;

(2)Range Resolution: 2.5mm;

(3)Update rate (Range dependence): 40Hz Max;

(4) Beam number: 768;

(5) Working depth: 300m or 1.5km;

(6)Collision avoidance mode (option): output ranges and directions of 10 highest intensity targets.

4.2. Electrical specification and interface

（1）Supply voltage: 18 ~ 50VDC;

（2）Power consumption: about 8W in average, 30W in peak (range dependent);

（3）Communication interface: 100Base-T ethernet (4-wire);

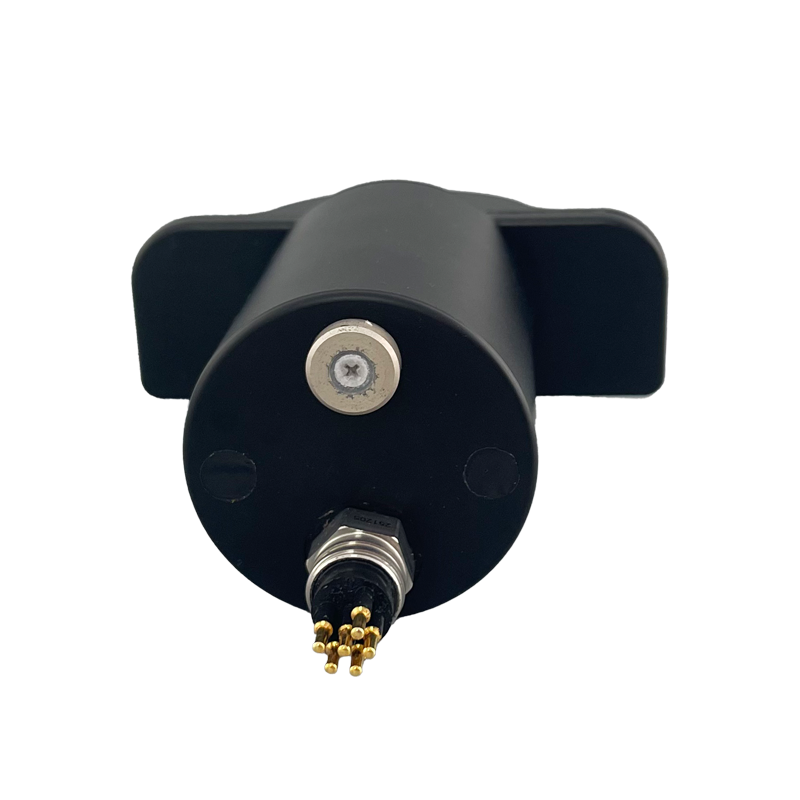

（4）Connector: one waterproof connector;

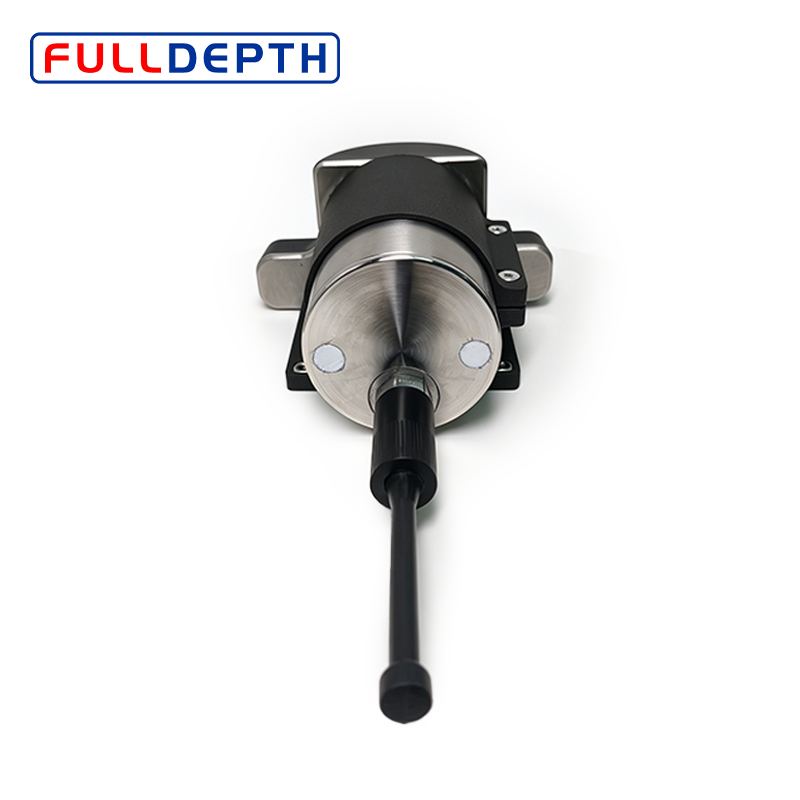

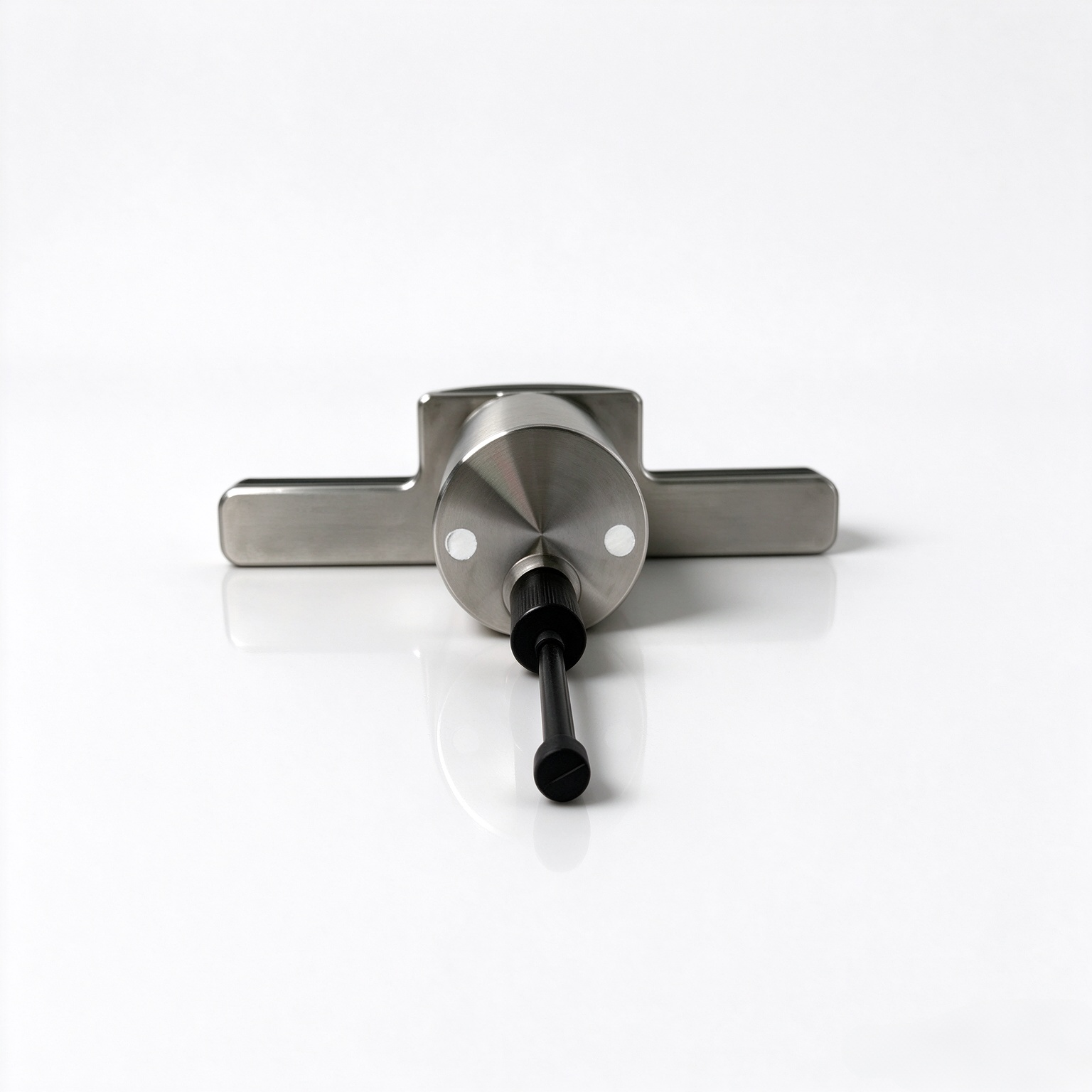

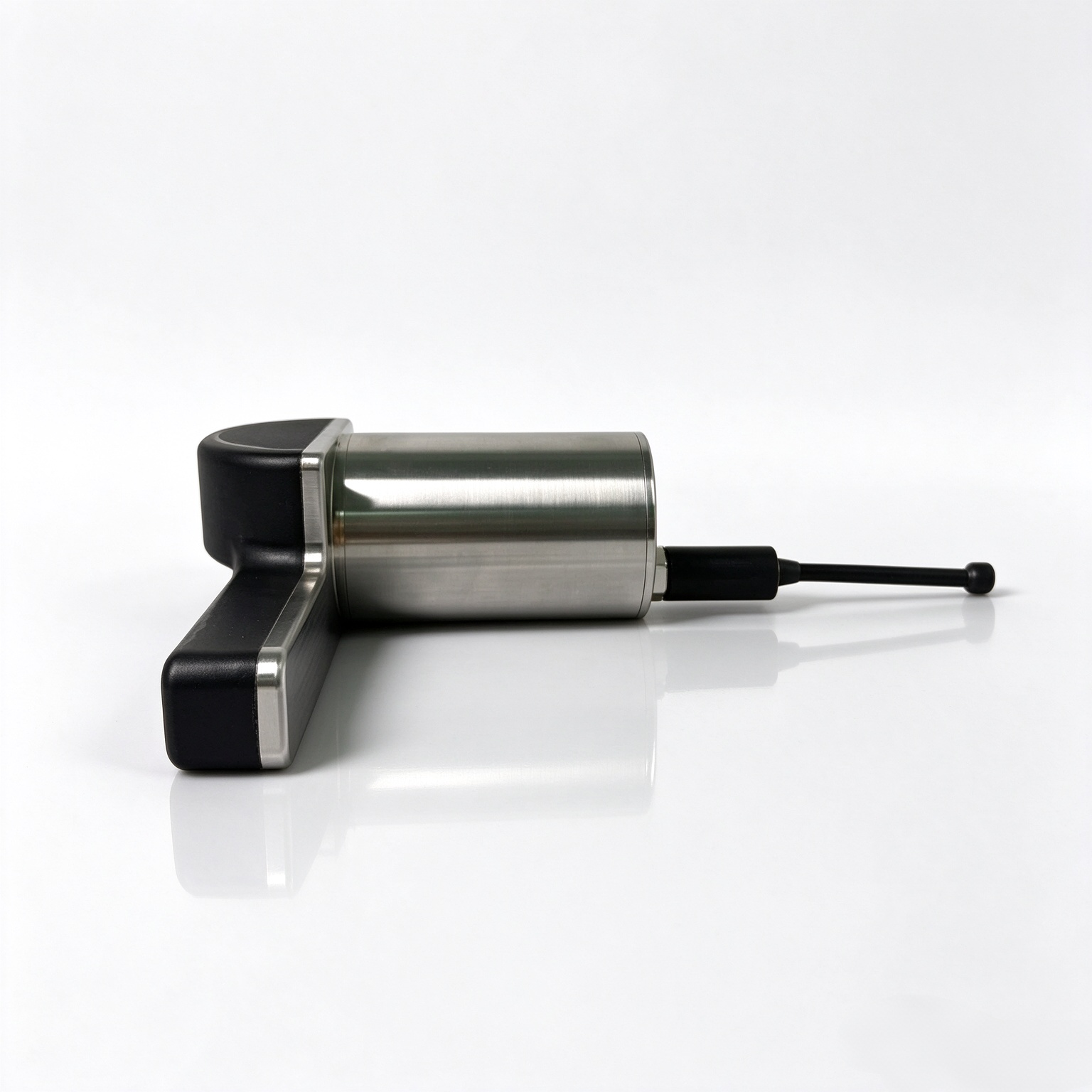

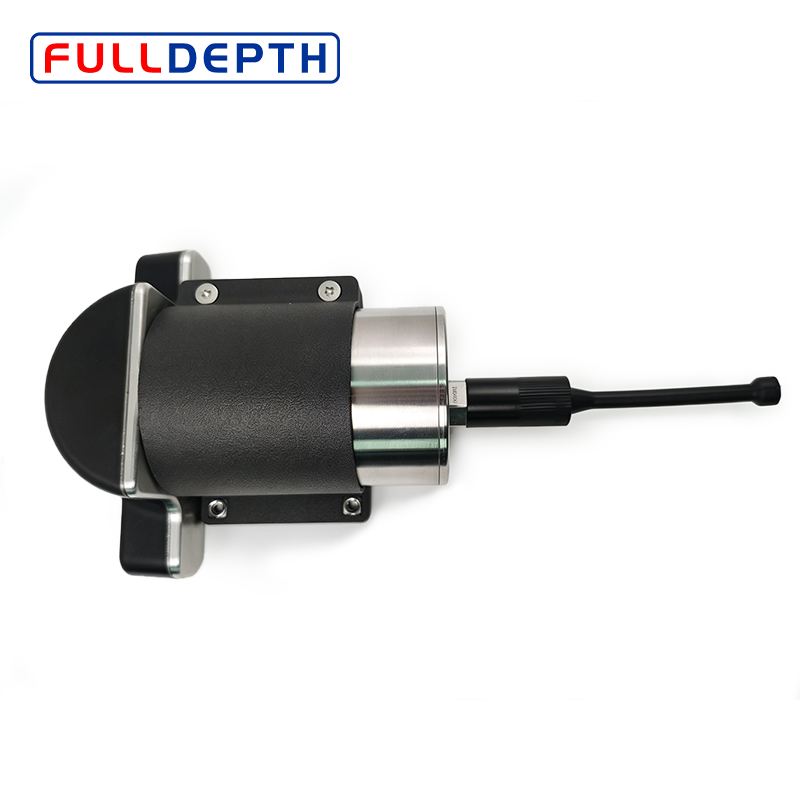

 4.3. Mechanical specification

（1）Dimension (W x H x D, without cable and connector)：

300m and 500m:

FD-F750M:120(±1) x 60(±1) x 125(±1)；

FD-F750M-LR:224(±1) x 60(±1) x 133(±1)；

1.5km:

FD-F750M:126(±1) x 64(±1) x 130(±3) mm；

FD-F750M-LR:230(±1) x 65(±1) x 138(±1)；

（2）Weight (Air/Water, without cable):

300m:FD-F750M:540g/200g；FD-F750M-LR:740g/350g；

500m:FD-F750M:950g/600g；FD-F750M-LR:1250g/800g；

1.5km:FD-F750M:1000g/700g；FD-F750M-LR:1300g/900g；

（3）Material: polyurethane, aluminum alloy, stainless steel or titanium alloy;

4.4. Operation and display

Sonar can be controlled by follow methods:

  (1) Our APP SaphireViewer, used for all our forward-looking sonar products. Windows, Linux and Mac OS are supported.

（2）Video streaming service using RTSP.

（3）We also provide SDK for free. Please contact factory or sales for request.

5. Mechanical drawing

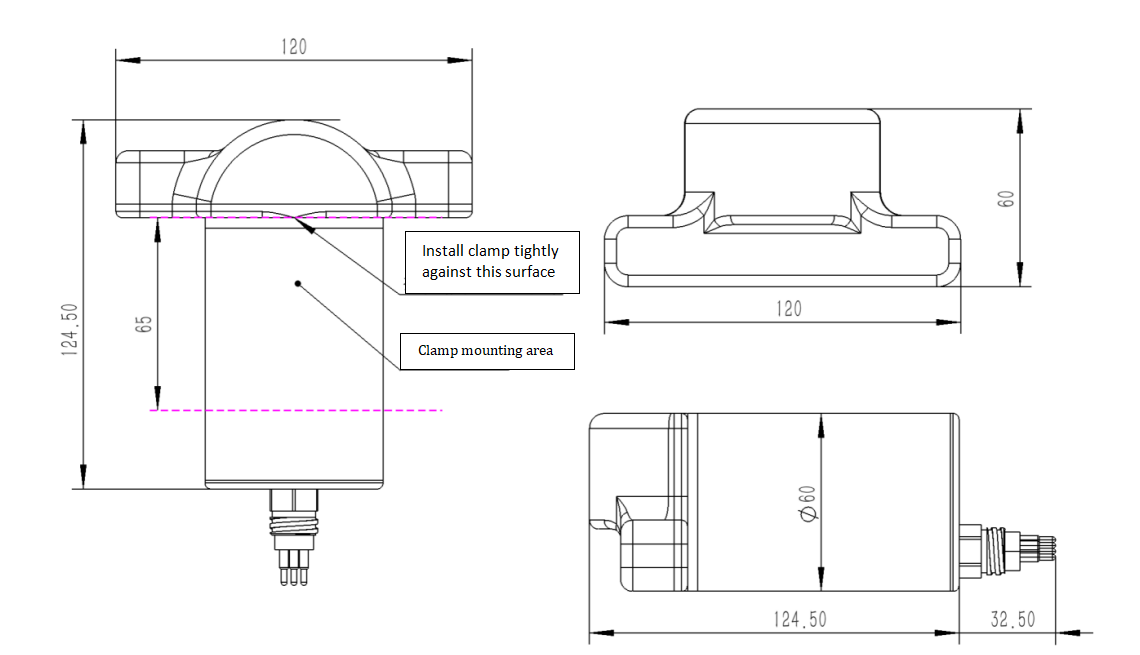

FD-F750M:

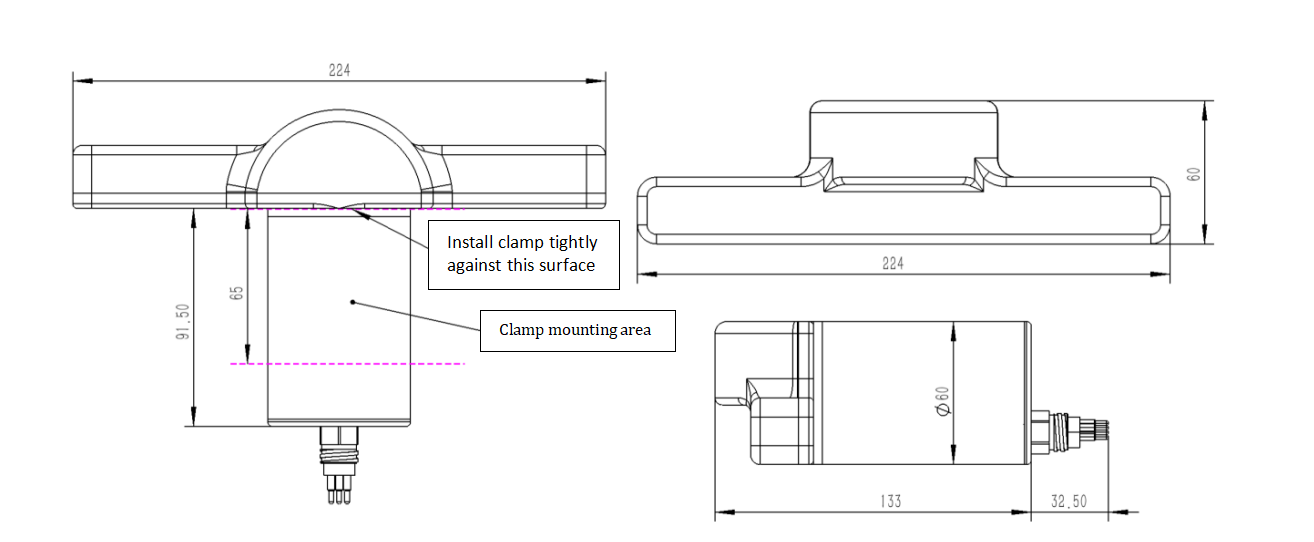

 FD-F750M-LR:
