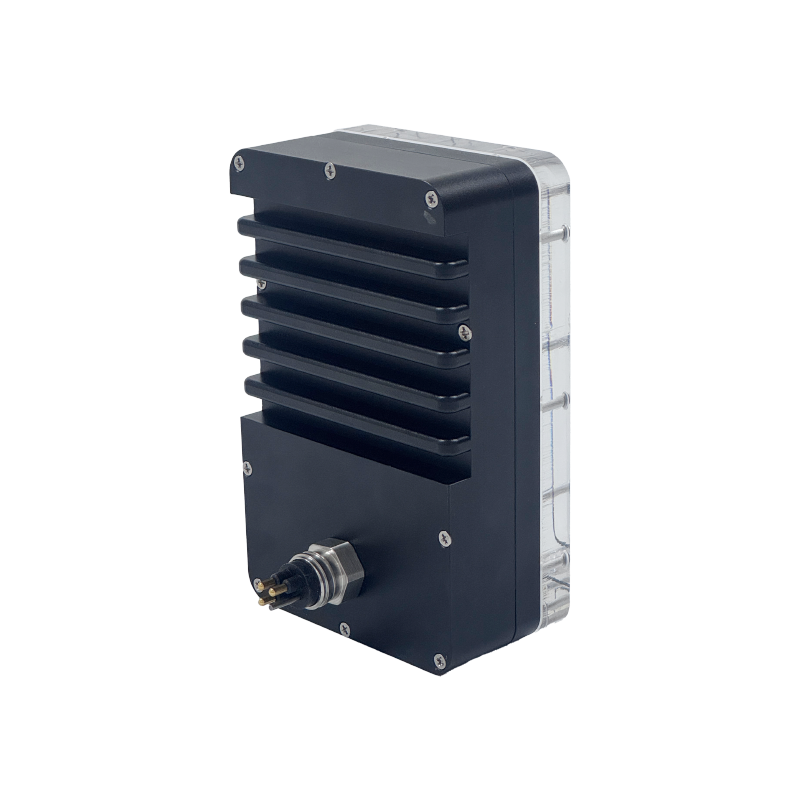

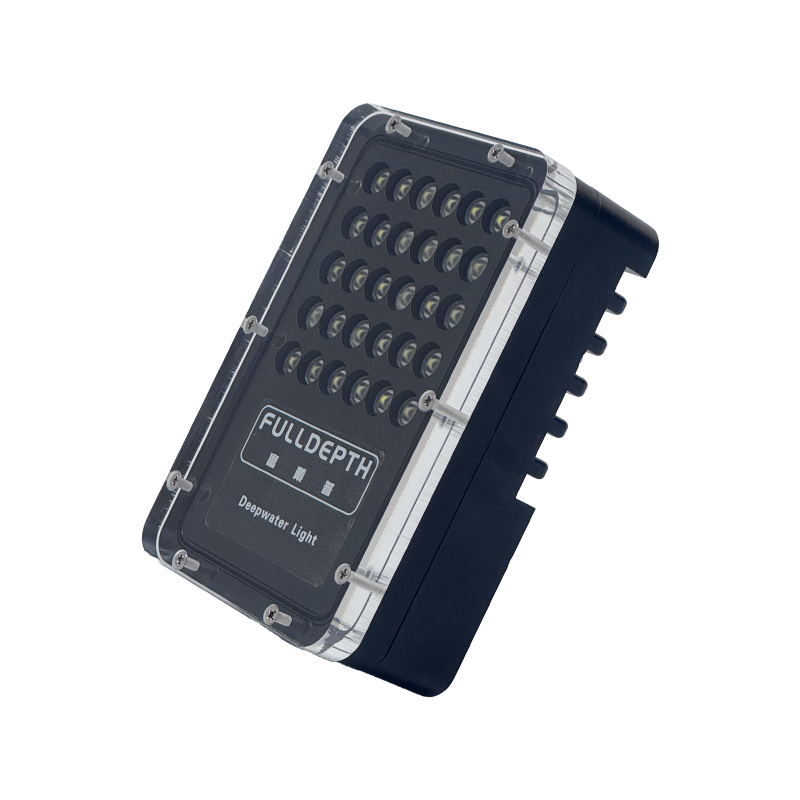

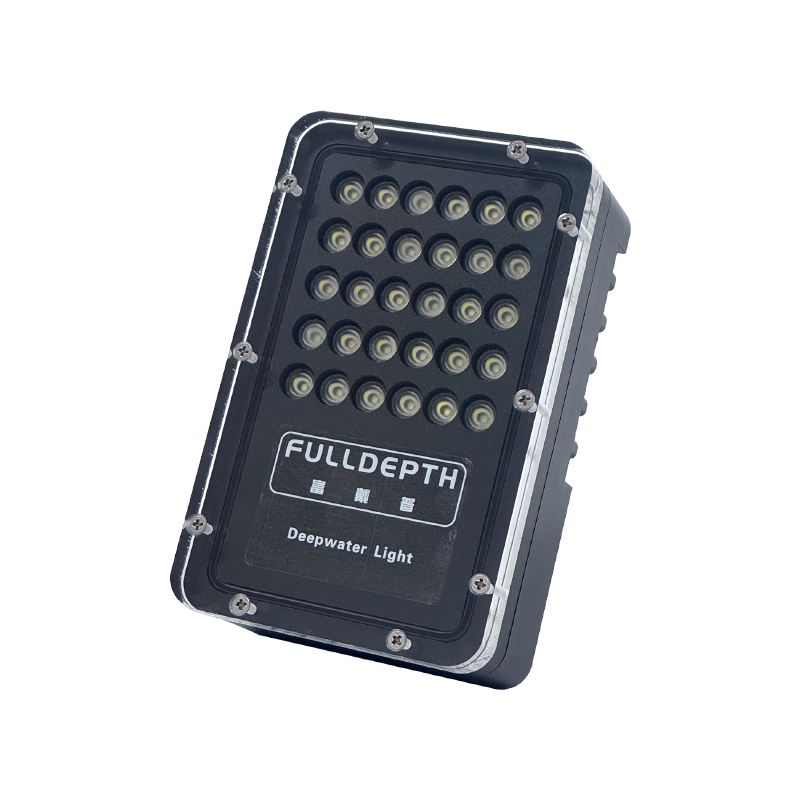

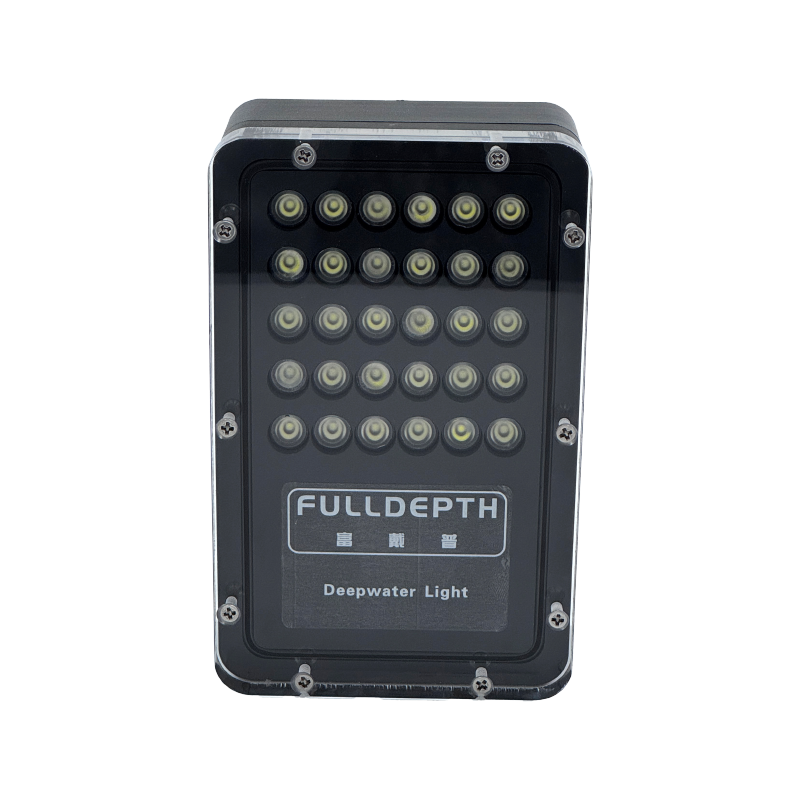

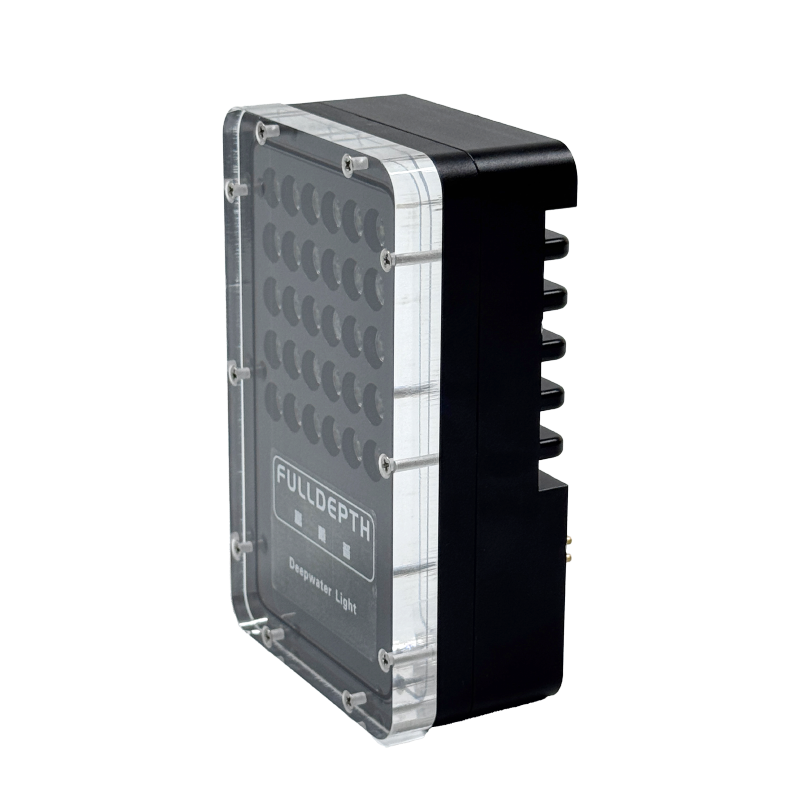

FD-DS6K-FL100 PANEL FLOODLIGHT

1、Product Introduction

-24V~48Vdc LED panel light
-Power 100W，10000 lumens
-Rated depth 6000m
- Aluminum alloy casing
-PWM or RS485 control

2、Product specifications

Product Model

FD-DS6K-FL100

Rated Depth

6000m

Shell mMaterial

aluminum alloy

Brightness

10000lm

Colour temperature

6500K

Beam Angle

120° in air

Voltage

24~48V DC

Power

100W

Control method options

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.
2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.
3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.
4. RS485 or analog control can be customized

Precautions

This light is specifically designed for underwater operation and must not be operated in air for extended periods

Weight

in air: 1850g； in water: 900g

Connector

MCBH3M+MCIL3F，cable length is 0.6 meter (default)

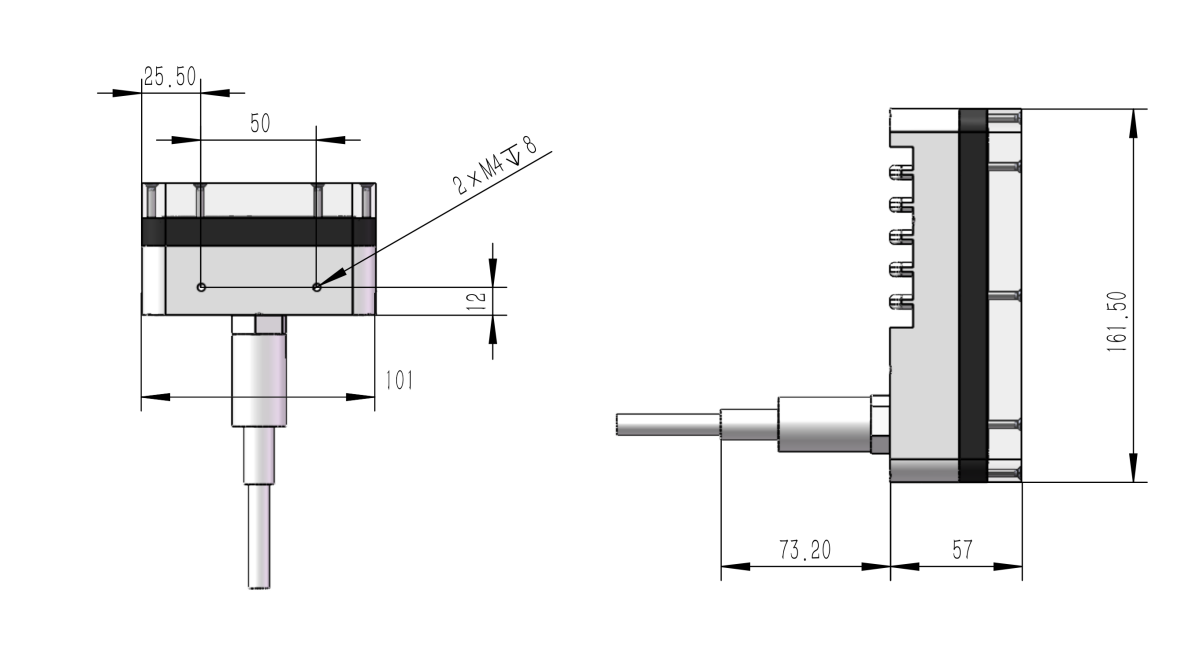

3、Overall dimension
