FD-POW-800-3500W-48-S02 Power Module

FD-POW-800-3500W-48-S02 Power Module
-3500W Isolated DC-DC Power Supply Module
-Peak Efficiency up to 97.2% @ 750Vin
-Comprehensive Protection: Input UVLO and OVP; Output OVP, OCP, and OTP
-Monotonic and Pre-bias Startup
-No Minimum Load Requirement
-Input-Output Isolation
-Default Output Voltage: 48V
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Model

FD-POW-800-48-3500-S02

Input

620~950V / 5.6A

Output

40~60V / 70A

Effective at 80% Load

97.2%@750V,50V

Default Output Voltage

48V


download FD-POW-800-48-3500-S02 Technical ManualV1.0(1).pdf

3500W Isolated DC-DC Power Supply Module Peak Efficiency up to 97.2% @ 750Vin Default Output Voltage: 48V

Random Products

M060 Underwater Thruster
M060 Underwater Thruster
FD-DS6K-IPCE Wide-angle Distortion-free Deep-water IP Camera
FD-DS6K-IPCE Wide-angle Distortion-free Deep-water IP Camera
FD-IPC-02B11 Underwater IP Camera
FD-IPC-02B11 Underwater IP Camera

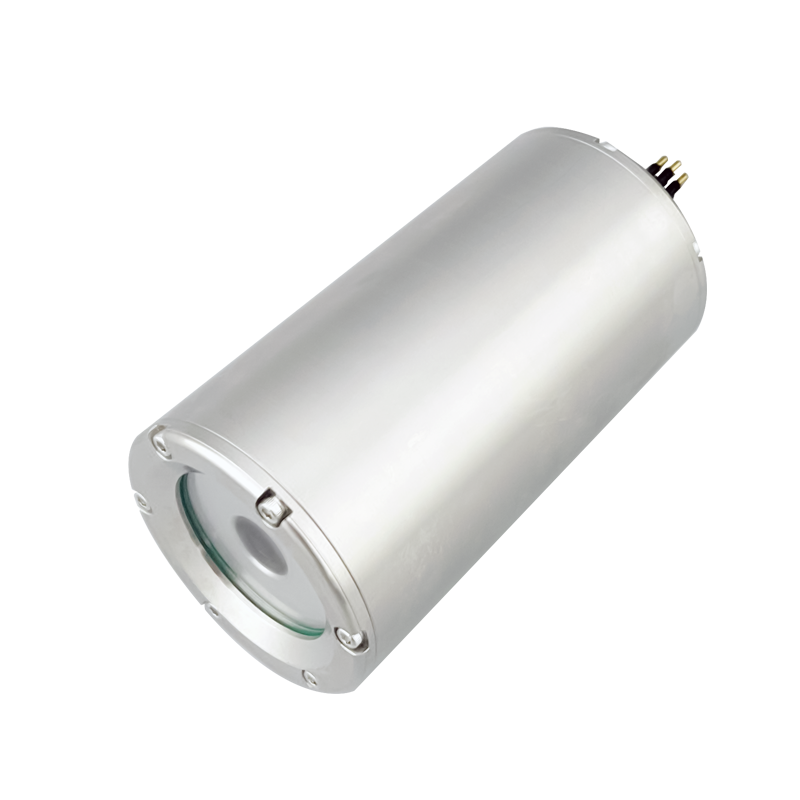

FD-IPC-19P11 Deep-water ultra-low-light web camera
