Underwater Connector PLUG-J08(2~10)

316 Stainless Steel Underwater Connector
-PLUG-J08(2~10)
-PLUG-J08E-F
-PLUG-J08E-M

-Underwater aviation plug, pluggable
-2-10 cores optional
-316L casing
-Rated depth 200m
-Fit 0~8mm OD cables
-Thread specification: M16×1

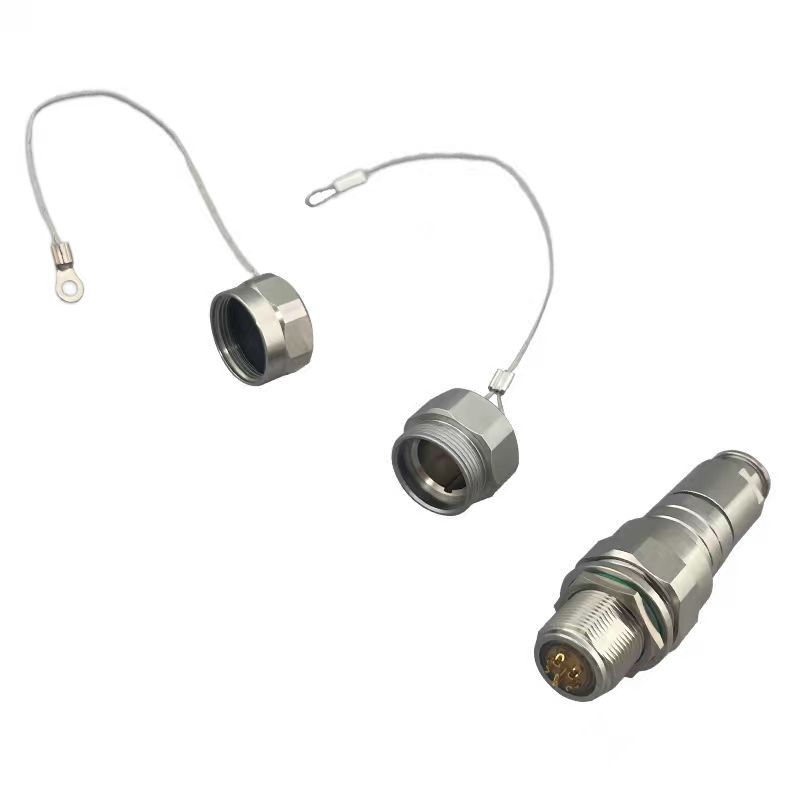

-PLUG-J08E-F: Receptacle blanking plug, 316L stainless steel ;PLUG-J08E-M: Connector blanking plug, copper material

Quantity:
Availability:





Inquire Add to Basket

316 Stainless Steel Underwater Connector

1、Product Characteristics
316 Stainless Steel Underwater Connector -PLUG-J08(2~10) -PLUG-J08E-F -PLUG-J08E-M -Underwater aviation plug, pluggable -2-10 cores optional -316L casing -Rated depth 200m -Fit 0~8mm OD cables -Thread specification: M16×1 -PLUG-J08E-F: Receptacle blanking plug, 316L stainless steel ;PLUG-J08E-M: Connector blanking plug, copper material
2、Product Specifications
Pins	Contact Resistance		Rated Current	Pins	Contact Resistance		Rated Current
2Pin	3.0 mΩ		25A	6Pin	3.5 mΩ		11A
3Pin	3.2 mΩ		16A	7Pin	3.5 mΩ		10A
4Pin	3.5 mΩ		14A	8Pin	4.5 mΩ		9A
5Pin	3.5 mΩ		13A	10Pin	4.5 mΩ		7A
Material		316L		Operating Temperature		-40℃,+150℃
Voltage Rating		250V		Rated depth		200m
Insulation Resistance		5000mΩ		Mating Cycles		times

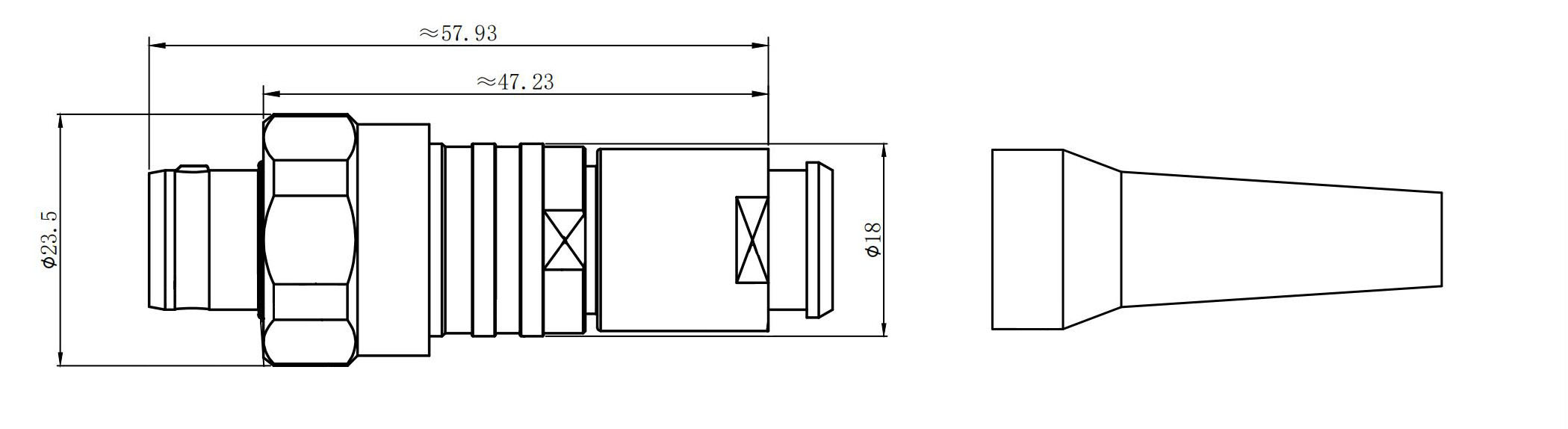

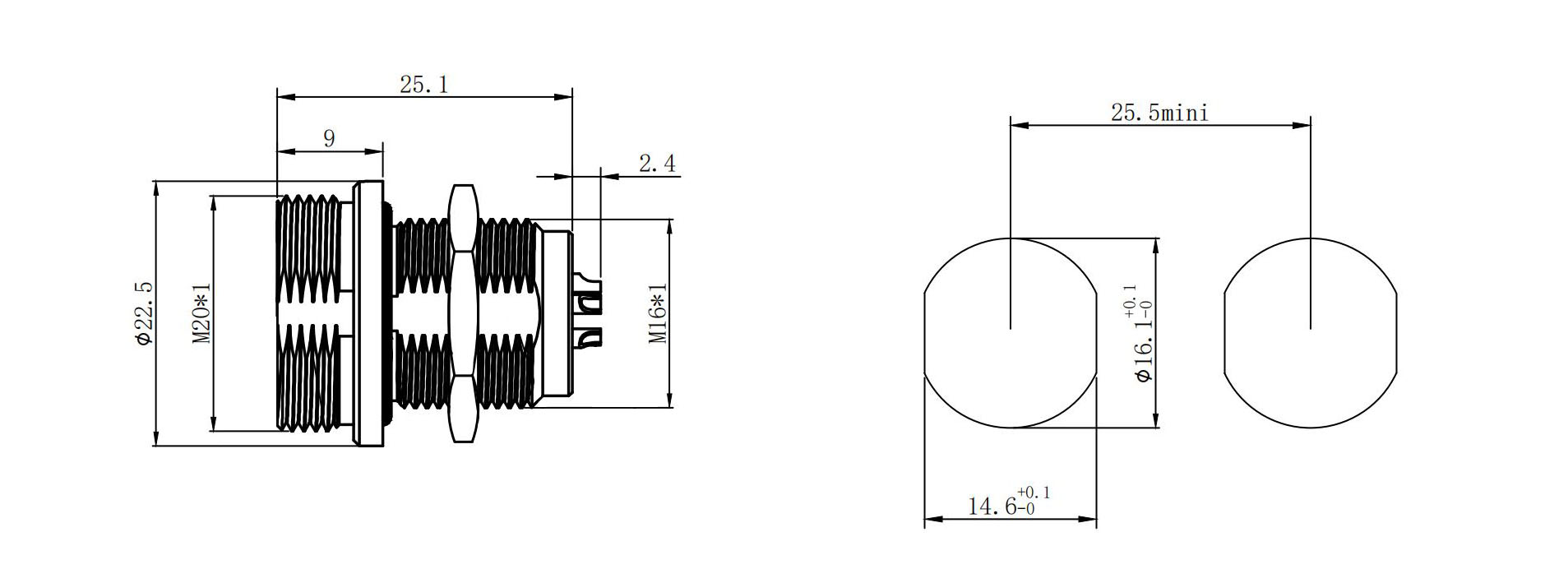

3、Overall Dimension
