You are here: Home / Product / Other Underwater Components / Controller / Triple Screen Console

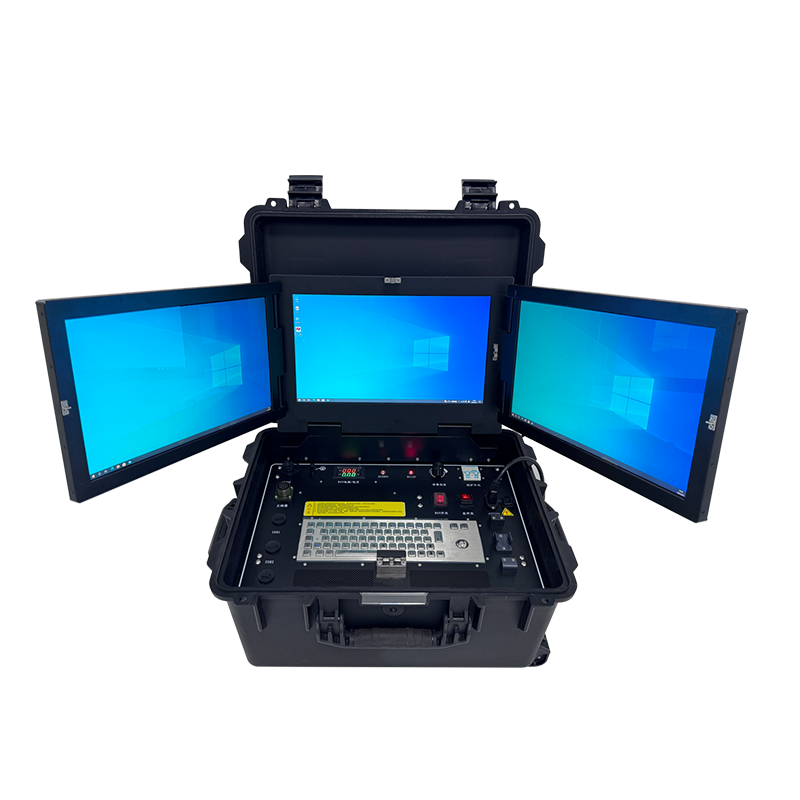

Triple Screen Console

3 × 17-inch displays,screen brightness 1000nit, with brightness adjustment knob
Interface information: AC220V power supply ×1, live cable interface ×1, USB3.0 ×3, RJ45 ×1; full-metal waterproof keyboard, integrated mouse; voltage / current meter;
Control host: I7 CPU, 16G RAM, 1T SSD, configured with Windows 10 system
Power supply configuration: AC220V input, DC800V output, power 4000W
Can be customized on demand
ROVCT01-3LCD:Contains only 3 screens

Quantity:
Availability:





Inquire Add to Basket

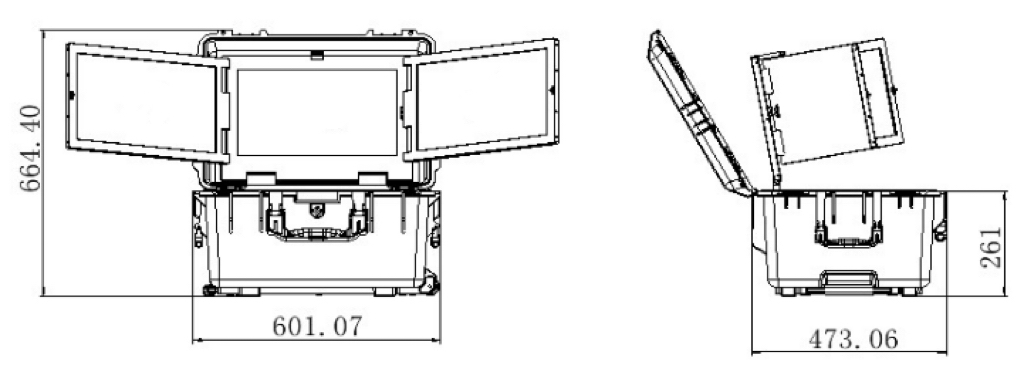

External Dimensions

Product Specifications
Product Model	ROVCT-N3S17
Material	PP material waterproof case
Monitor	17-inch high brightness LED 3-screen folding screen, screen brightness 1000nit, with brightness adjustment knob, suitable for indoor and outdoor different environments;
Host Computer	I7 CPU, 16G RAM, 1T SSD, WIN10 OS
Panel Interface	1 power supply interface, 1 main cable (ROV) interface, 1 RJ45 external output interface, 3 USB interfaces
Panel Indication	Real-time display of ROV supply voltage and current
Operation Keyboard	Full metal waterproof keyboard with integrated mouse
Size	610×475×320mm（L×W×H）
Weight	30kg
Power supply configuration	AC220V input, DC800V output, power 4000W

ROV Console Triple Screens Integrated with high-power AC-DC module Integrated with an industrial control computer AC220V input
