FD-IPC-07E11 Wide-angle distortion-free Underwater IP Camera

1、Product Features

-8M pixels，4K HD
-Rated depth 300m
-Underwater wide angle, up to 125 °, built-in image correction algorithm, no image distortion.
-IP camera,support standard ONVIF
-Built-in color restoration and underwater fog penetration algorithm
-316L Stainless steel casing

2、Product Specifications

Product Model

FD-IPC-07E11

Rated Depth

300m

Shell Material

316L stainless steel

Camera Sensor

1/1.8" Progressive Scan CMOS

Resolution

8M pixels，4k

Lens

1.85mm Fixed Focus

FOV

150° (in air)/125° (in water)

Near Focus

1m

Depth of Field

100 mm to infinity

Minimum Illumination

0.005Lux (color mode); 0.001Lux (black and white mode)

Image Enhancement

Automatic fog penetration + green light suppression

Video Compression Format

H.265+/H.265/H.264/MJPEG

Supporting Protocol

TCP/IP、UDP、RTP、RTSP、RTCP、RTMP、HTTP、
DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP;

Interface Protocol

ONVIF、PSIA、CGI、ISAPI、SDK

Interface

Standard network interface

Power

DC12-24V

Operating Temperature

-10~60℃

Power Consumption

5W(MAX)

Weight

In air: 1350g；in Water: 900g

Connector

MCBH6M+MCIL6F,cable length 1 m

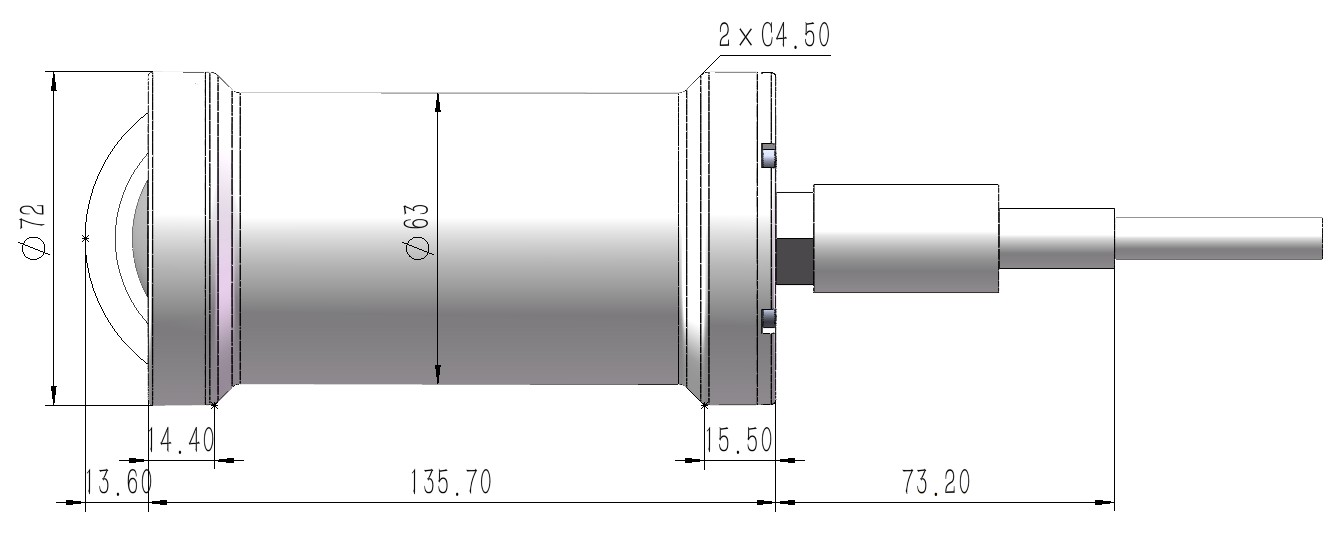

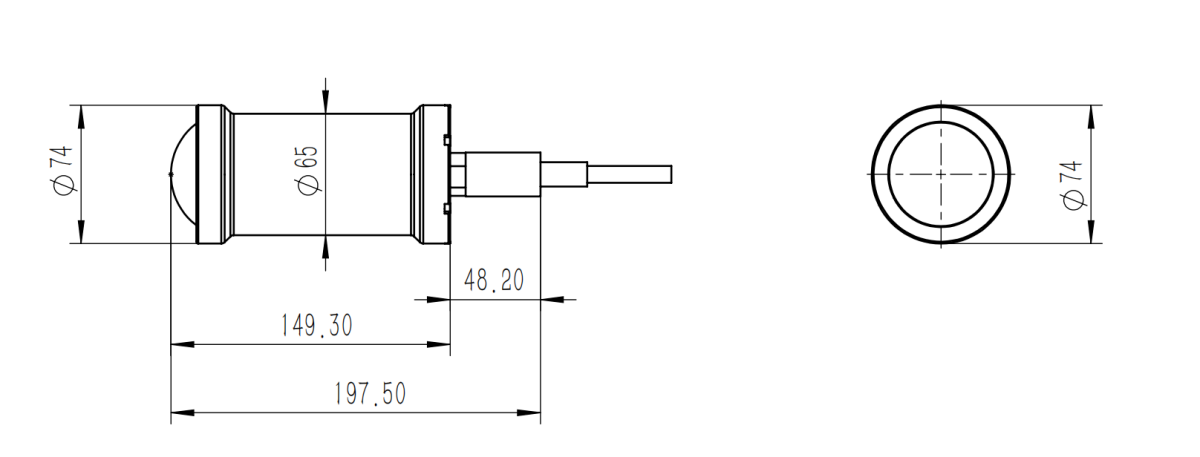

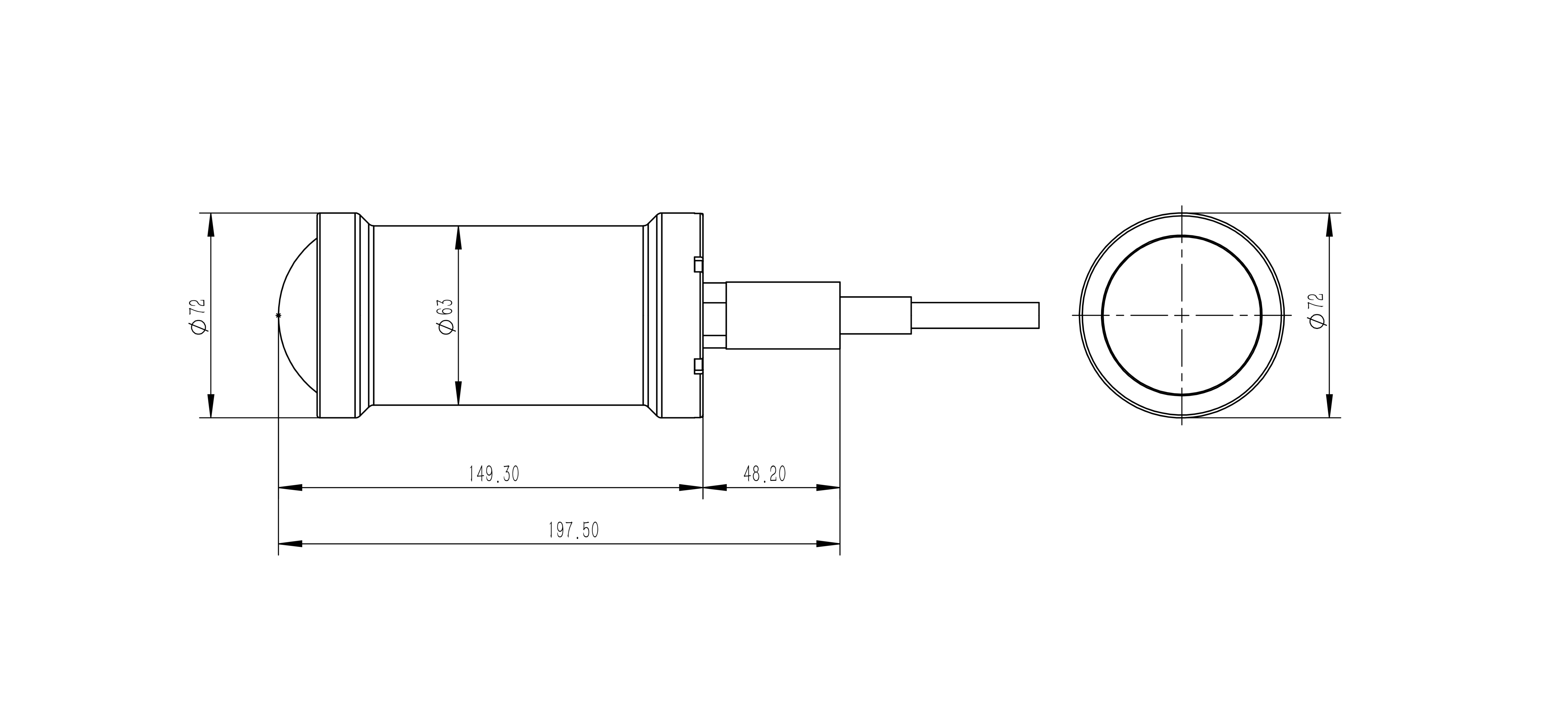

3、Overall Dimension
