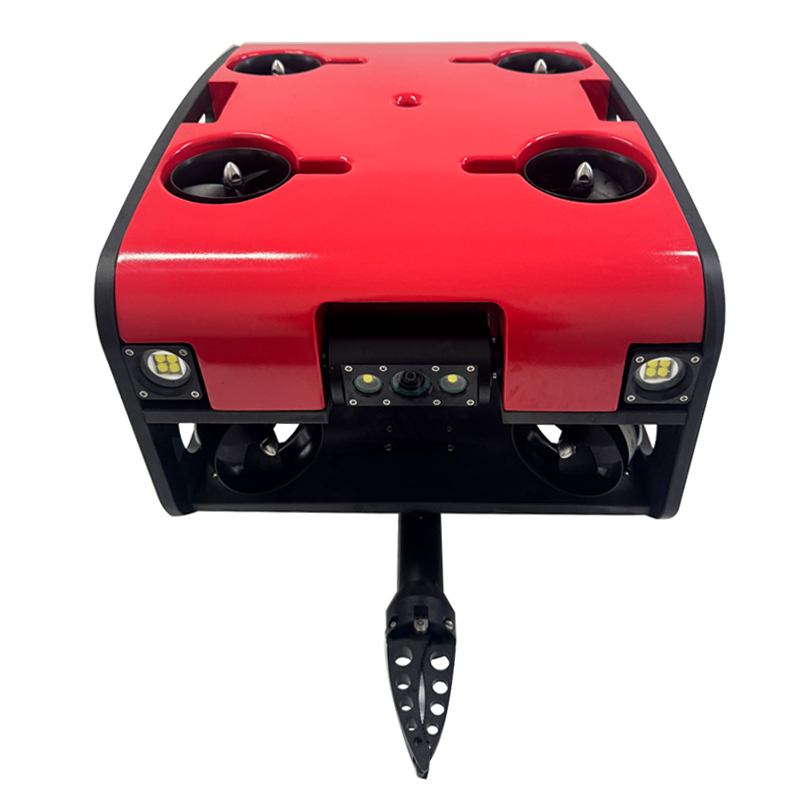

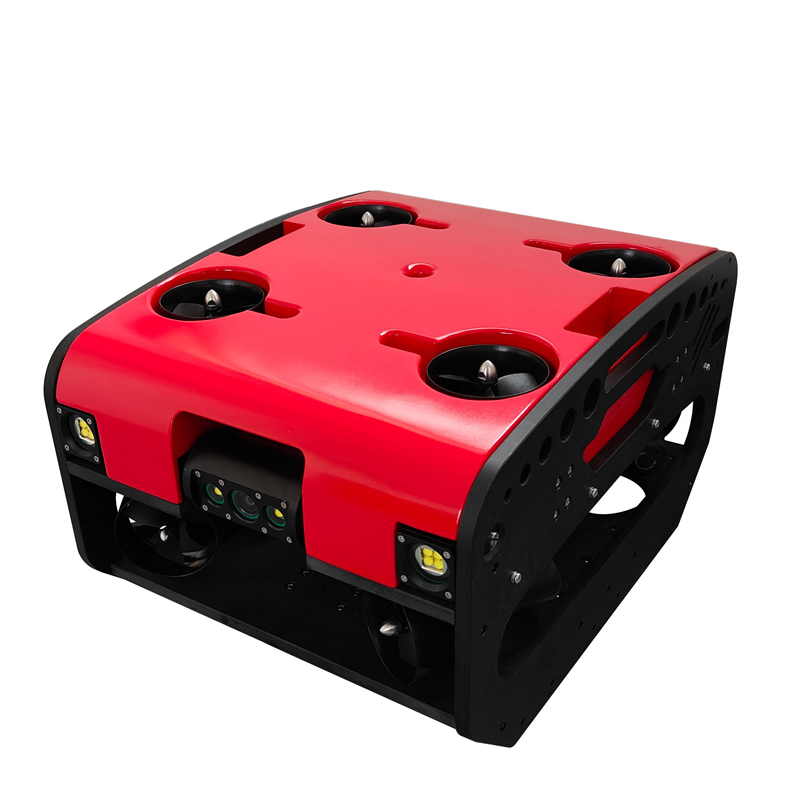

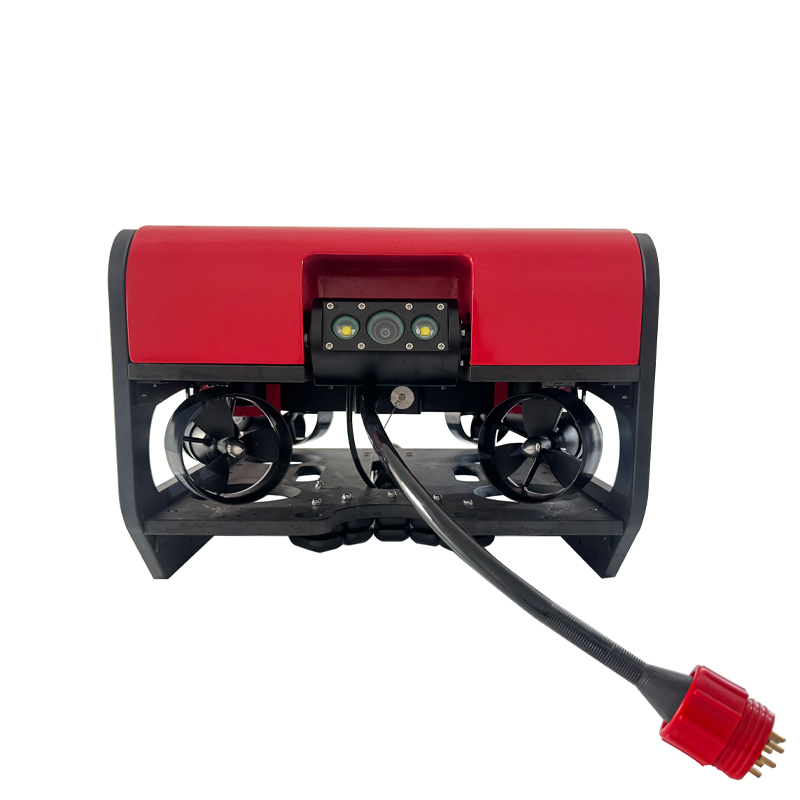

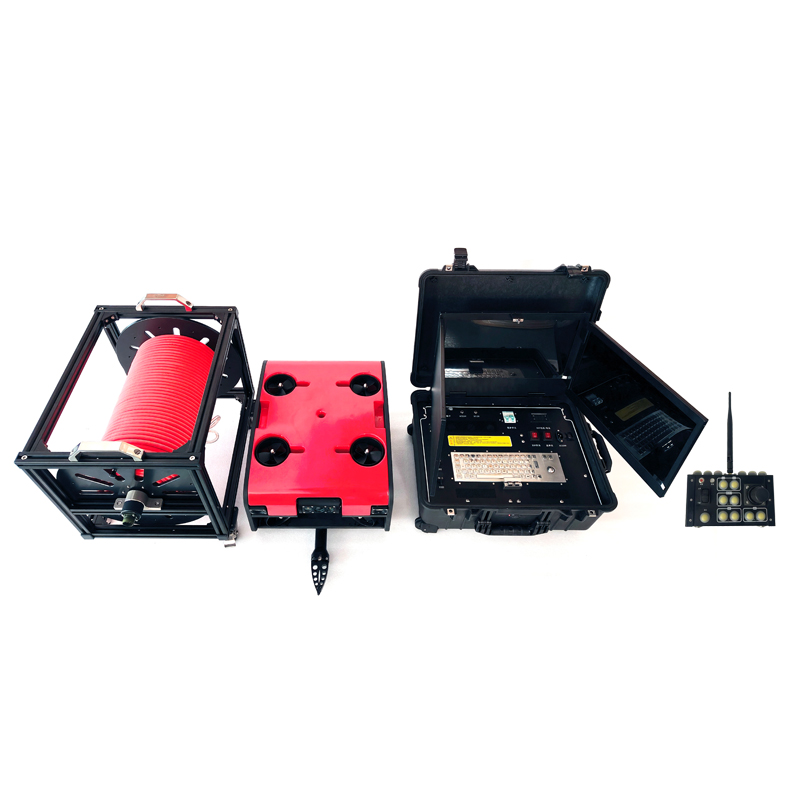

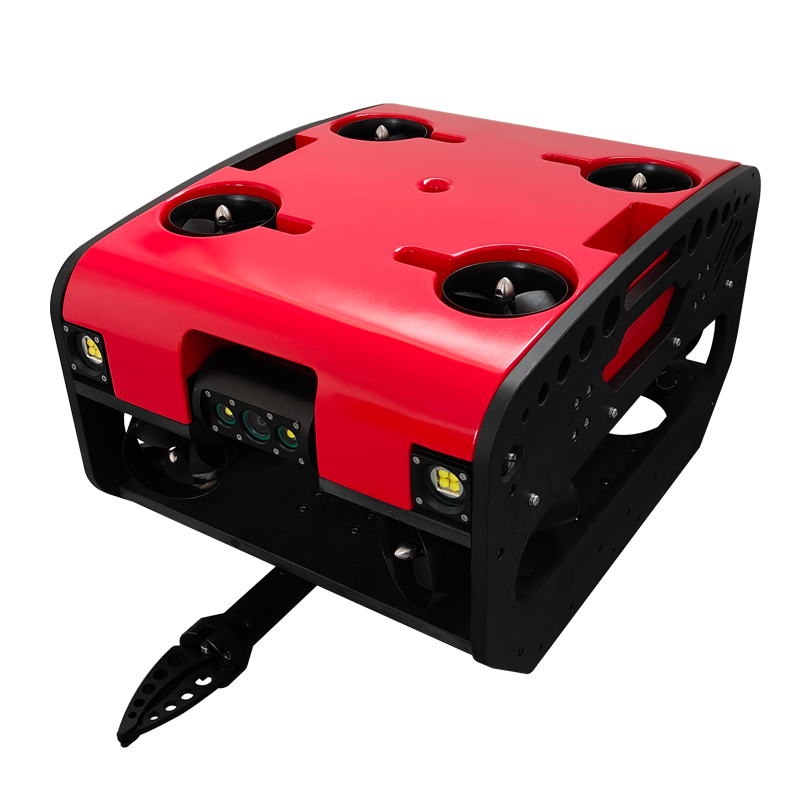

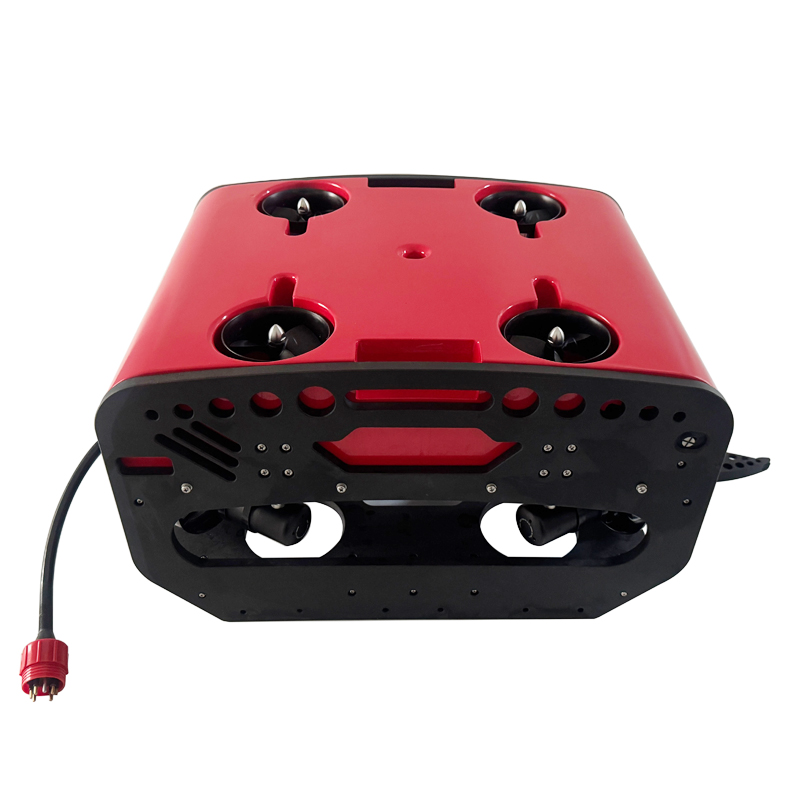

Smart 8T ROV

1.Rated depth 200m
2.Eight maintenance-free oil-filled thrusters, each with a thrust of 6.5kg
3.200 meters of neutral buoyancy cables
4.17-inch high brightness LED 3-screen folding screen, screen brightness 1000nit, with brightness adjustment knob, suitable for indoor and outdoor different environments;
5.AC220V power supply, unlimited range
6.One front-view camera with light PTZ, one rear-view camera with light PTZ; Effective pixel 200W; Support 1080P HD video real-time transmission; With underwater automatic fogging and shallow water adaptive green light suppression function

Quantity:
Availability:





Inquire Add to Basket

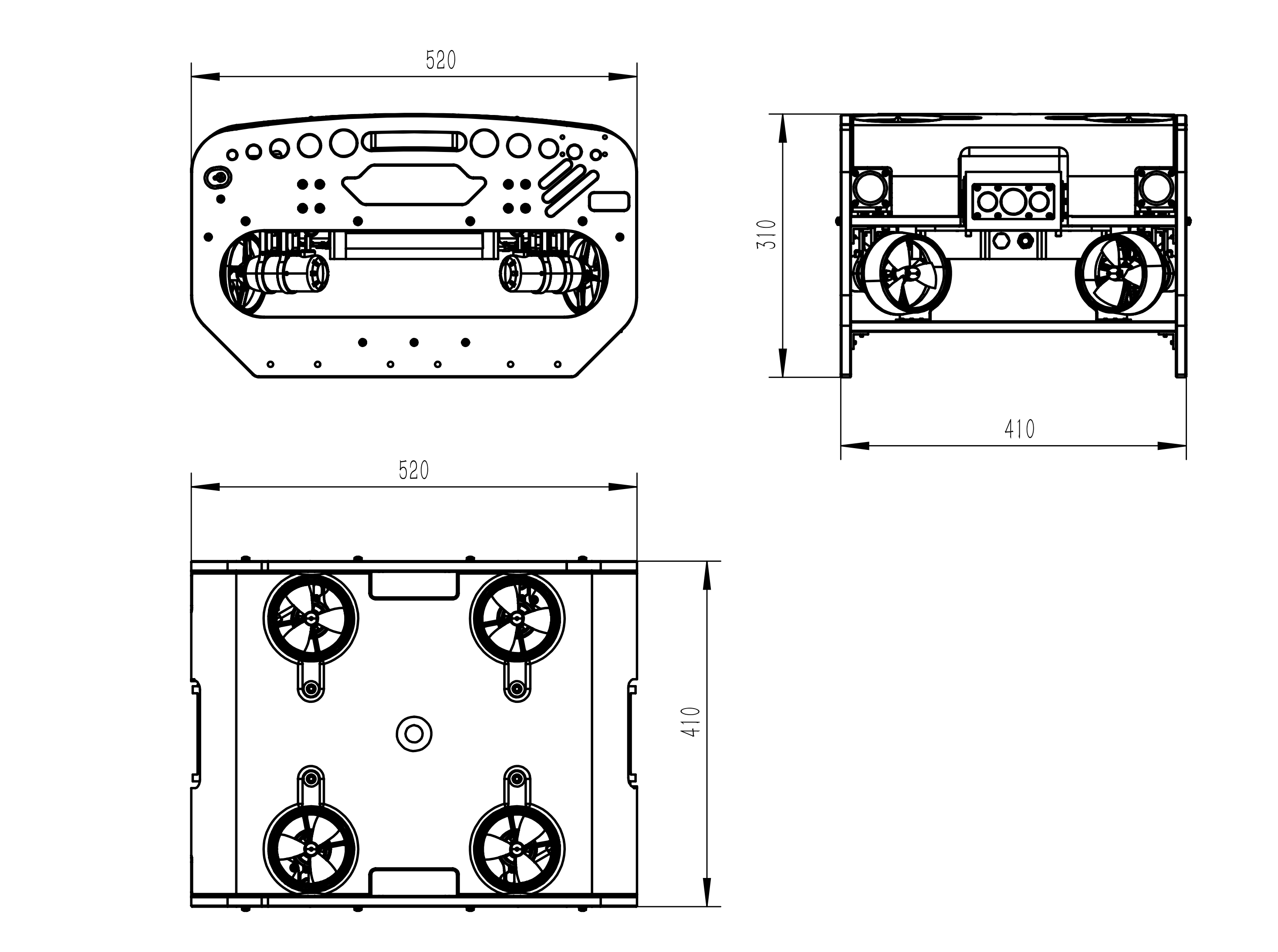

Overall Dimension

Product Specifications

Product Model	Smart8T
ROV	Rated Depth	200m
	Camera	one front-view camera with light PTZ, one rear-view camera with light PTZ; independent modular camera, aluminum alloy housing, quartz optical glass; effective pixel 200W; support 1080P HD video real-time transmission; viewing angle 110 °; tilt PTZ, ± 90 °; with underwater automatic fogging and shallow water adaptive green light suppression function
	Thruster	Maintenance-free, fully sealed deep-water oil-filled thrusters, 4 horizontal and 4 vertical, vectorized layout; individual thrust 6.5kg; Overall forward thrust 20kg, vertical thrust 25kg，maximum forword spdde 2.5 knots
	Sensors	Pressure/Depth、Compass heading、Pitch and roll、Dedicated leak sensors
	Automatic function	Fixed-depth hovering, directional navigation
	Lights	2 ×5000 lumens high brightness fill light; 2 × 1500 lumens front view PTZ fill light、 2 1500 lumens rear-view PTZ fill light (camera head follow-on light)
	Frame Material	HDPE material + aluminum alloy support bone
	Scalability	Can be equipped with manipulator, multibeam sonar, hydroacoustic positioning, etc.
	Power	Shore-based power supply up to approx. 2000 W
	Size	520×410×310mm（L×W×H）
	Weight	25kg
Tether	Tether Length	200m
	Tether Specifications	Neutral buoyancy composite cable for underwater use, polyurethane foam jacket, Kevlar fiber inside, tensile 100 kg
	Tether Spool	manual spool
	Size	525×400×525mm（L×W×H）
	Weight	26kg
Control System	Material	PP material waterproof case
	Monitor	17-inch high brightness LED 3-screen folding screen, screen brightness 1000nit, with brightness adjustment knob, suitable for indoor and outdoor different environments; Real-time display of underwater images, underwater robot depth, attitude and other information.
	Host Computer	I5 CPU, 16G RAM, 1T SSD, WIN10 OS
	Panel Interface	1 power supply interface, 1 main cable (ROV) interface, 1 RJ45 external output interface, 3 USB interfaces
	Panel Indication	Real-time display of ROV supply voltage and current
	Operation Keyboard	Full metal waterproof keyboard with integrated mouse
	Safety	With air switch and earth leakage protector, with earth terminal for reliable grounding with generator in field operation. The main cable connector contains a protective earth wire for connection to the ROV body.
	Controller	Adopting remote control handle control, connecting with the host computer via wireless/wired
	Size	610×475×320mm（L×W×H）
	Weight	32kg
	Power	32kg
