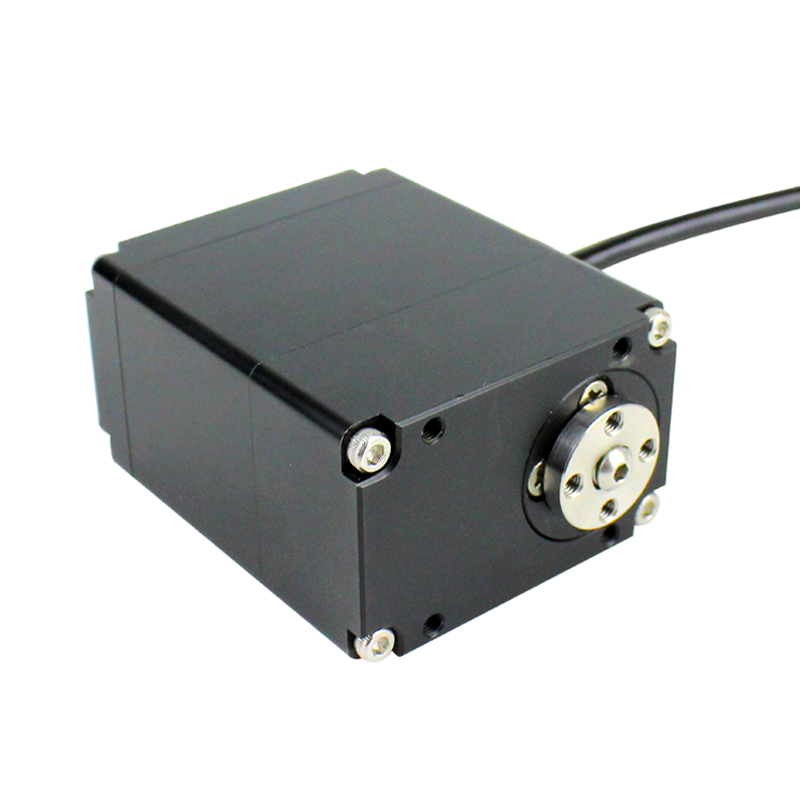

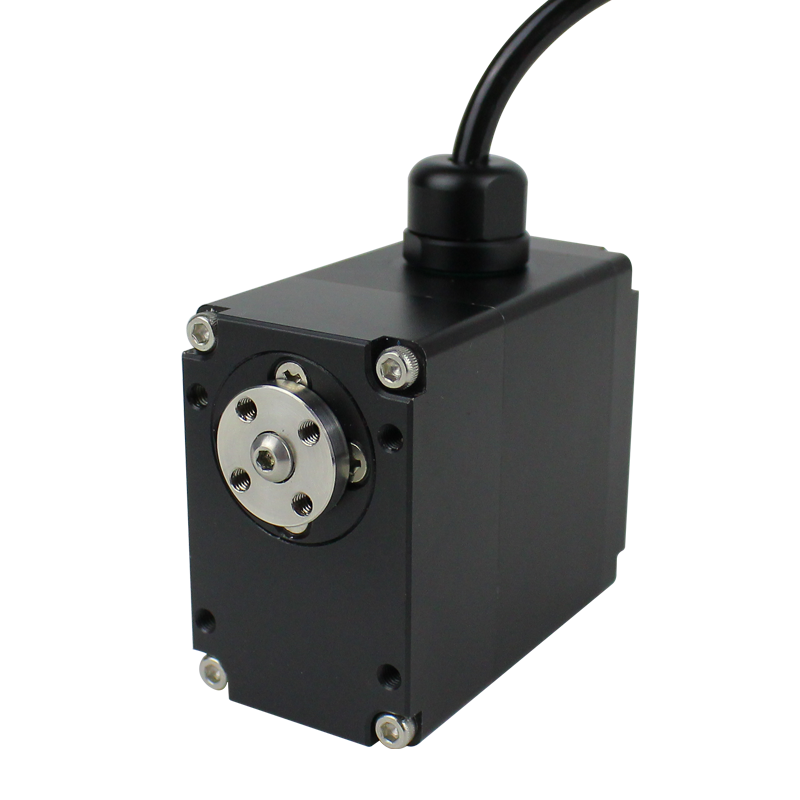

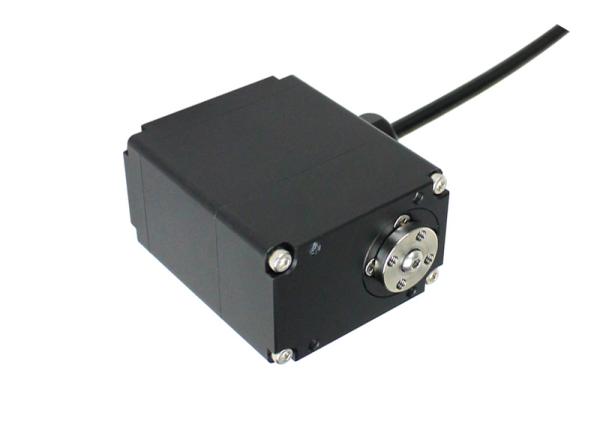

FD-ROT104 Underwater Servo

-Rated torque 21 kg.cm（16VDC），maximum blocked torque 70kg.cm
-Rated depth:300m
-Support voltage 8.4~16V, effective angle 360°
-Fully machined aluminum alloy housing and stainless steel gears
-With an easy-to-install wheel output shaft and a second false shaft

Quantity:
Availability:





Inquire Add to Basket

Product Specifications
Sealing method	Static seal + dynamic seal
Sealing structure	Sealing ring + gasket ring
Rated voltage	8.4-16V
Angle range	360°
Signal frequency	50HZ
Signal range	800→2200μsec
Motor type	Brushless
Spindle diameter	6mm
Spindle material	316L
Gear material	316L
Servo housing material	Hard oxidation of aluminum alloy
Cable cover material	TPU

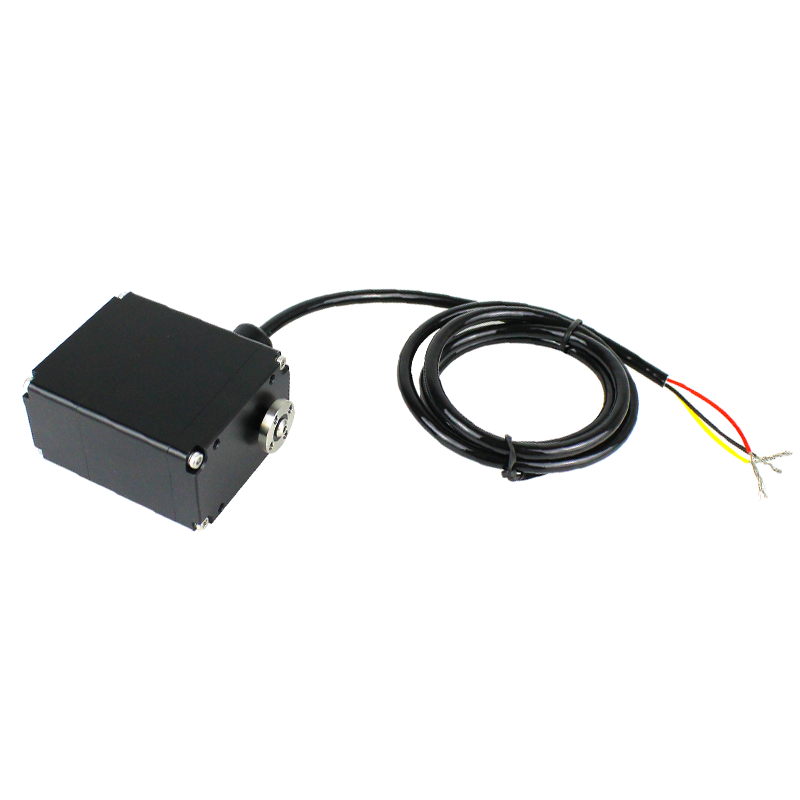

Cable specification	Outside diameter：6.5mm；Length：1m；Cored wire：0.75mm²
Wiring Color Codes	Red：VCC+；Black：GND；Yellow：PWM
Operating life	＞50000sub/load
Pressure Rating	300m
Operating temperature	-10~50℃
Weight	in air：265g；in water：60g
Electrical Specification	Item	8.4V	12V	16V
	Operatingspeed (at no load)	0.18S/60°	0.12S/60°	0.09S/60°
	Runningcurrent (at no load)	600mA	900mA	1200mA
	Stall torque (at locked)	36.5kg.cm	52.0kg.cm	70.0kg.cm
	Stall current (at locked)	2.3A	3.3A	4.5A
	Rated working torque	11.0kg.cm	15.5kg.cm	21.0kg.cm
	Idlecurrent (atstopped)	10mA	10mA	10mA
