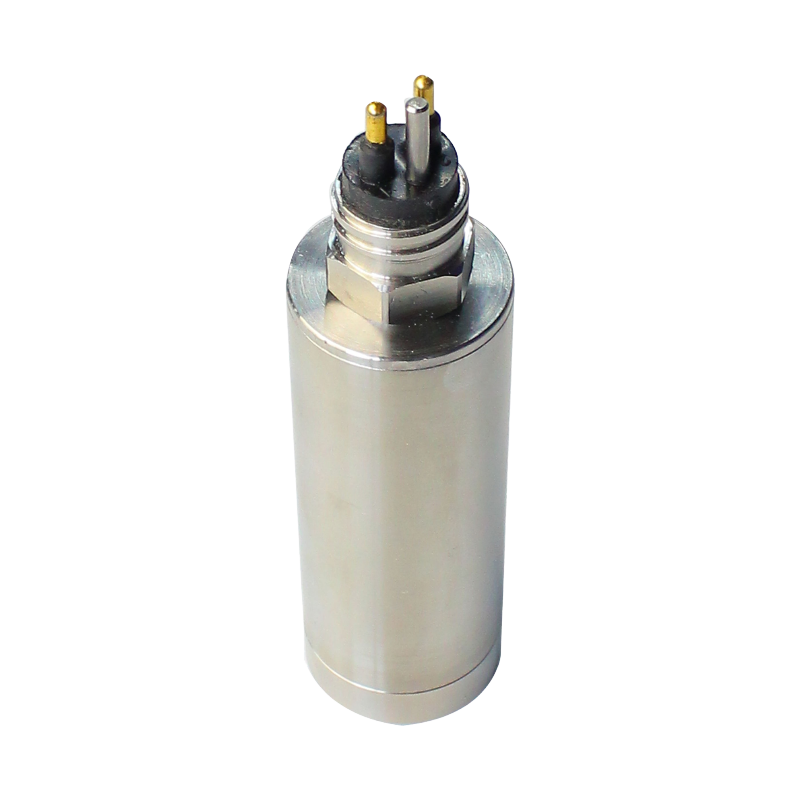

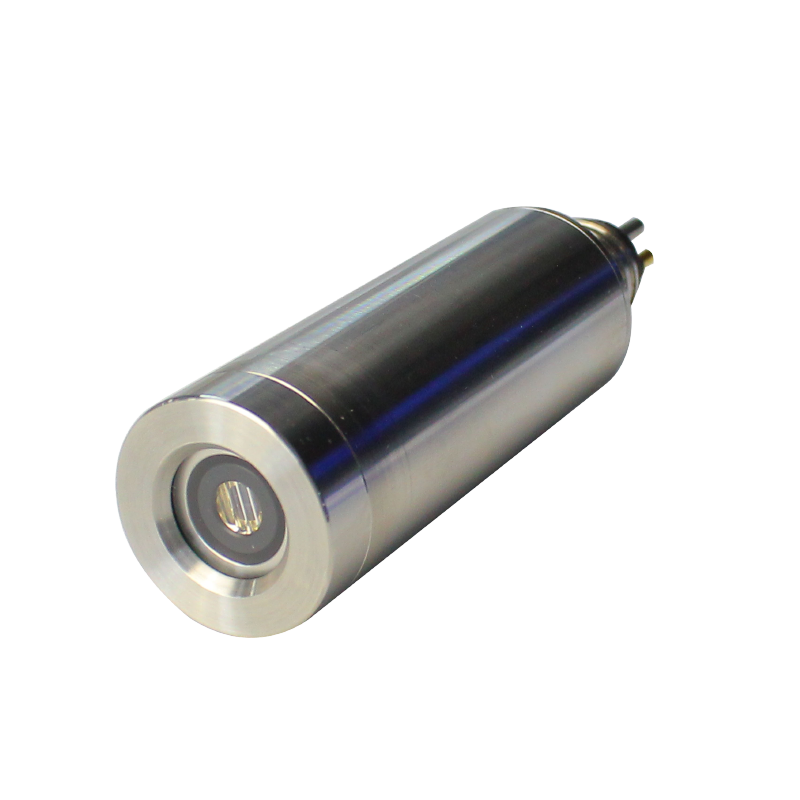

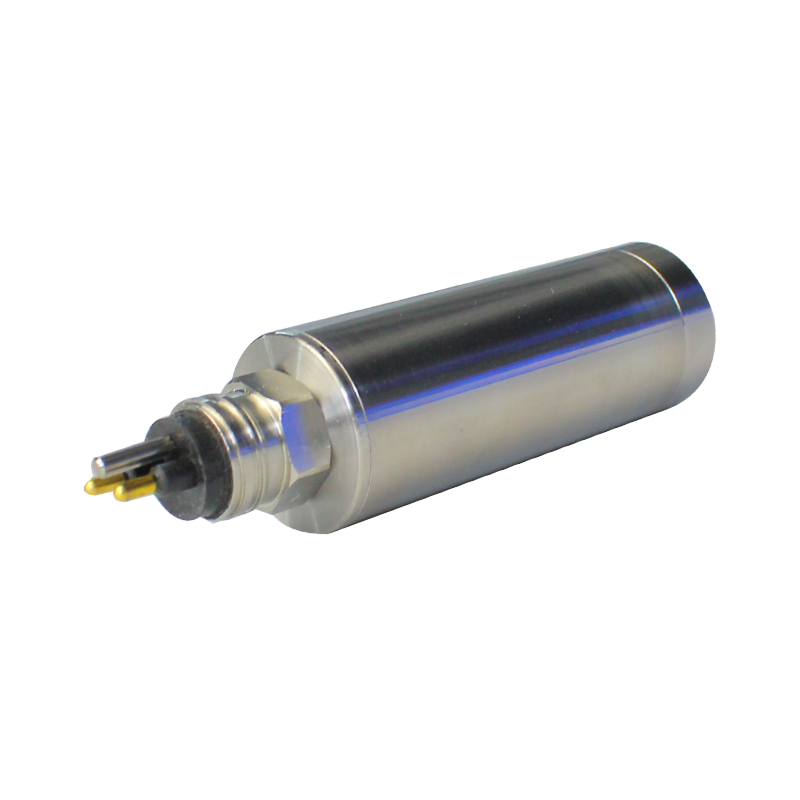

FD-S-L01 Underwater Laser

1.Product Characteristics

-Laser color and wavelength: red 650nm
-Laser Shape: point, line, cross
-Laser class: Class IIIB
-Rated depth 150m
-316L Stainless steel casing

2. Product Specification

Product Model

FD-S-L01

Input Voltage

5-24V DC

Operating Current

＜20mA@12V DC

Circuit Control

APC (constant power)

Laser Color

Red/GREEN

Laser Wavelength

red：650nm ；green：520nm

laser Class

Class IIIB

Wavelength Drift (nn/°C)

0.25nn

Angle Of Divergence

Pointer: <0.7mard collimation
Line Generator: <90°
Cross Generator: <90°

Output Power

red：50mW ；green：10nW

Rated Depth

150 meters

Material

Stainless Steel 316L

Weights

in air：316g ； in water：240g

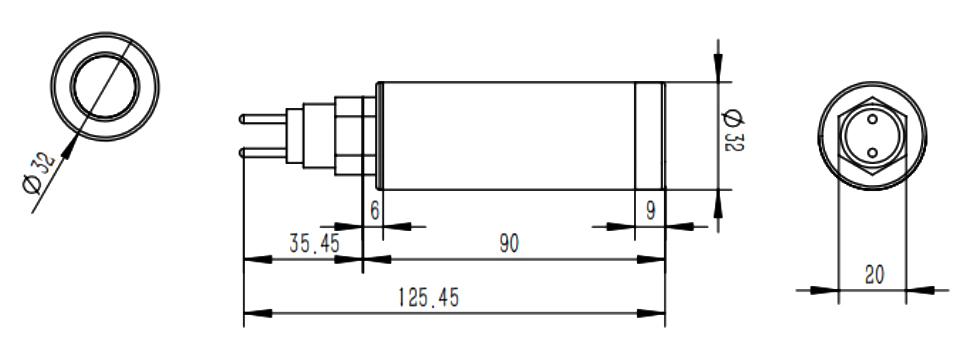

3. External Dimensions
