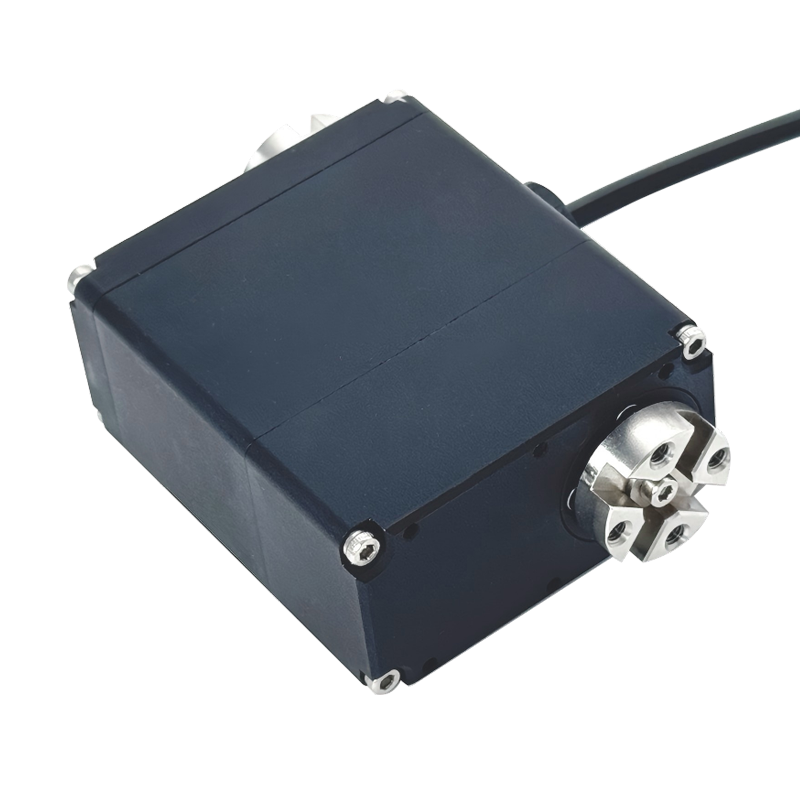

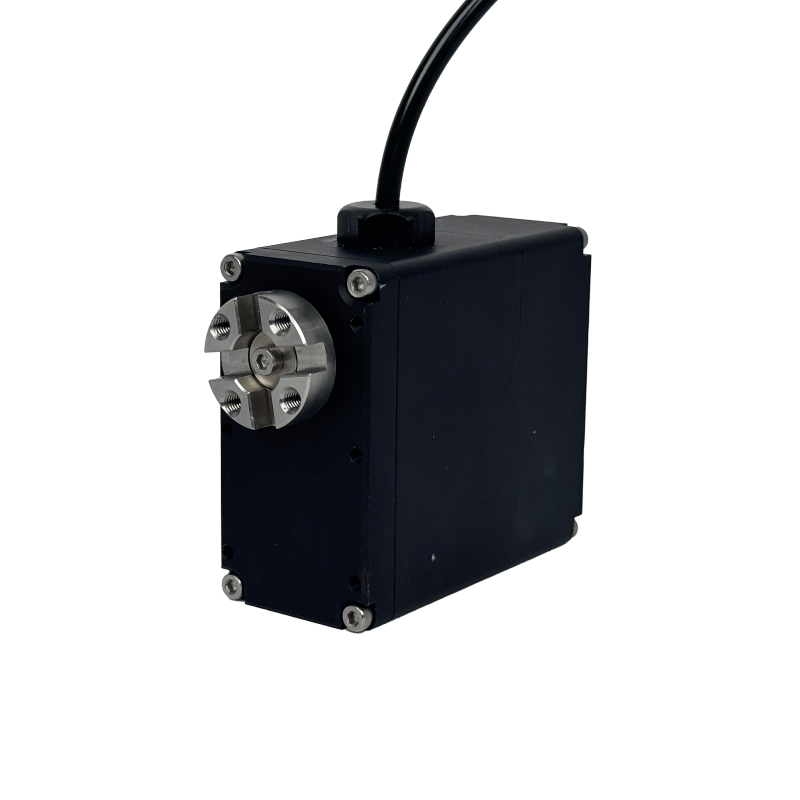

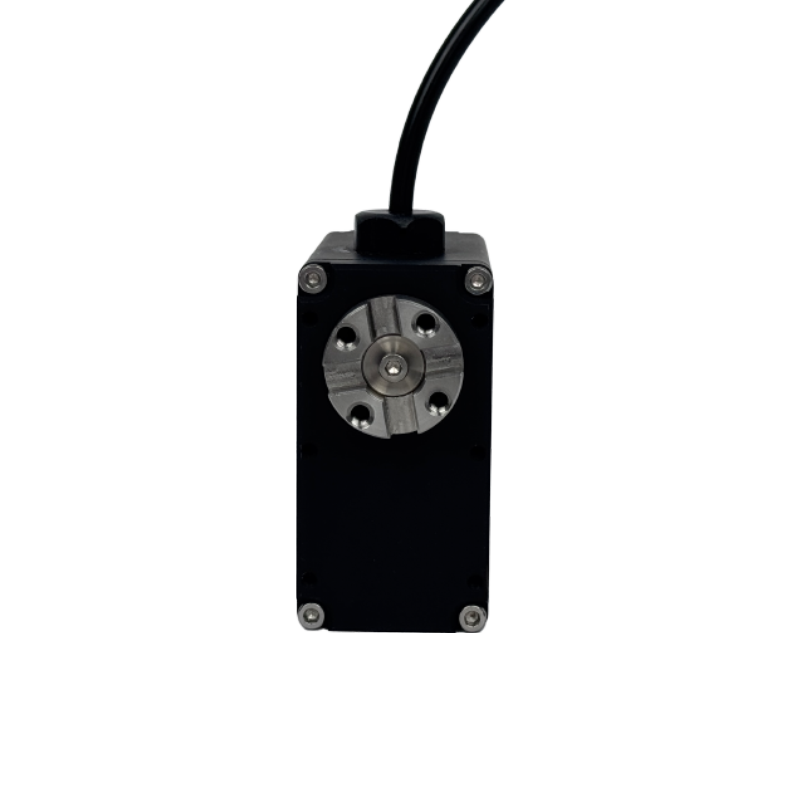

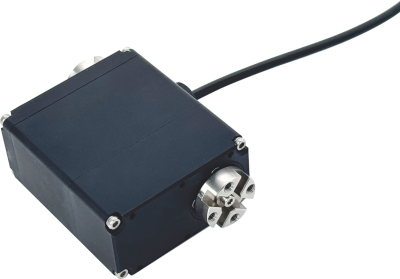

FD-ROT103 Underwater Servo

-Rated torque 72 kg.cm（15VDC），maximum blocked torque 180kg.cm
-Rated depth:300m
-Support voltage 7.4~15V, effective angle 180°
-Fully machined aluminum alloy housing and stainless steel gears
-With an easy-to-install wheel output shaft and a second false shaft

Quantity:
Availability:





Inquire Add to Basket

1、Product Specifications
Product Model			FD-ROT103
Sealing method			Static seal + dynamic seal
Sealing structure			Seal ring
Rated running torque			65.0kg.cm @12V
Stall torque			160kg.cm @12V
Rated voltage			12V
Peak current			8.5A @12V
Angle range			180°
No-load speed			0.18S/60°@12V
Signal frequency			50HZ
Signal range			800→2200μsec
Motor type			Brushless motor
Spindle diameter			10mm
Spindle material			316L
Gear material			316L
Servo housing material			Hard oxidation of aluminum alloy
Cable cover material			TPU
Cable specification			Outside diameter 6.5mm, length 1m, core 0.75mm²
Wiring Color Codes			red: power positive; black: power negative; white or yellow: PWM signal
Operating life			＞100000 times / load (sub/load)
Pressure Rating			300m
Operating temperature			-10~50℃

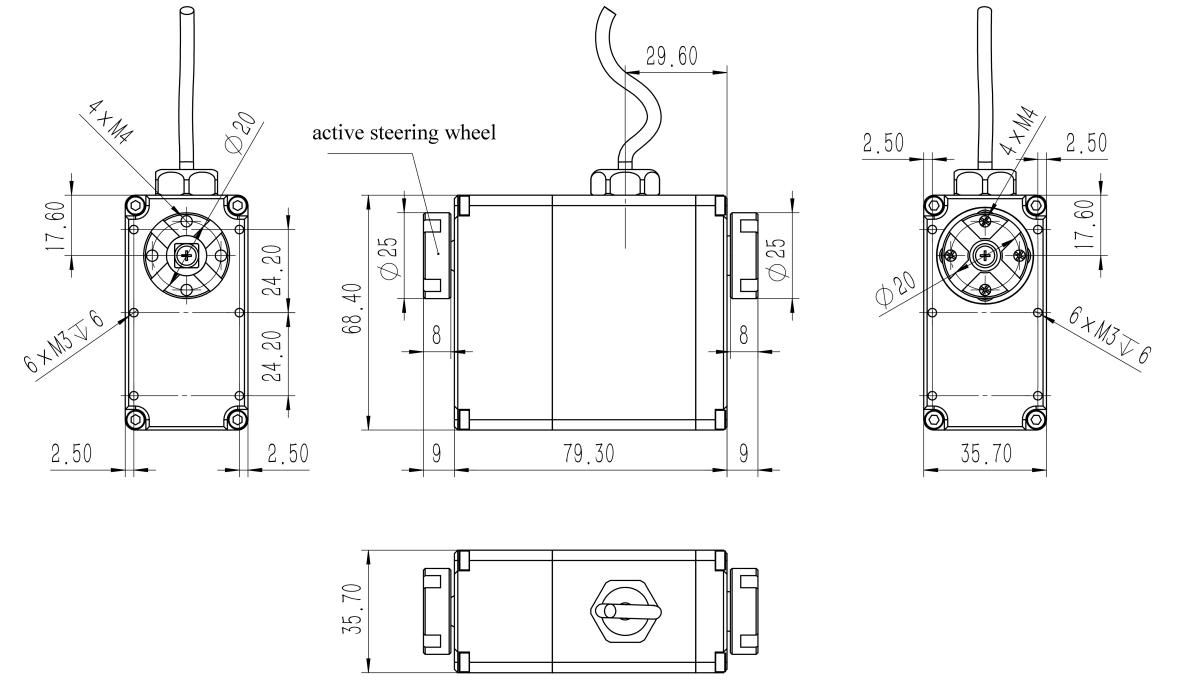

2、Overall Dimension

3、Electrical Specification (Function of the Performance)

No.	Item	7.4V	8.4V	12V	15V
1	Operating speed (at no load)	0.30S/60°	0.26S/60°	0.18S/60°	0.14S/60°
2	Running current (at no load)	200mA	300mA	500mA	600mA
3	Stall torque (at locked)	100kg.cm	110kg.cm	160kg.cm	180kg.cm
4	Stall current (at locked)	6.0A	6.7A	9.3A	10.5A
5	Maximum working torque	62.0kg.cm	74.0kg.cm	102kg.cm	123kg.cm
6	Maximum working current	5.3A	5.9A	8.5A	10A
7	Rated working torque	35.0kg.cm	45.0kg.cm	65.0kg.cm	72.0kg.cm
8	Rated working current	2.8A	4.0A	5.4A	6.0A
9	Idle current (at stopped)	10mA	10mA	10mA	10mA
