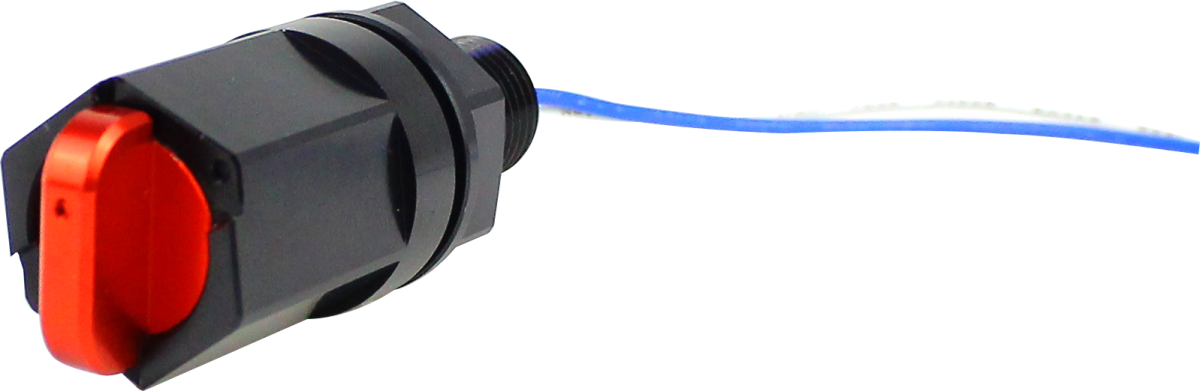

Rotary subsea switch ELEC-RS1

1、Product Introduction

An M10x1 rotary subsea switchh with 8 position and 360° rotary, allows multiple functions and customizable travel angle. No risk of knob falling off and clear feedback of each position. Standard version has been tested 1000m water depth with 2000 rotary cycles.
Features:
-simple bulkhead interface
-2-8 position and 360° rotary
-locknut & scratch proof flange
-2000 rotary cycles tested
-position feedback

2、Specifications

Depth rating

1000m

Operating life

2000 cycles

Electrical rating

0.5A 24VDC;
0.2A 48VDC

Contact resistance

100mΩ MAX

Insulation resistance

100mΩ MIN.500VDC

Operating Temperature range

-20℃~70℃

Thread dimension

M10×1

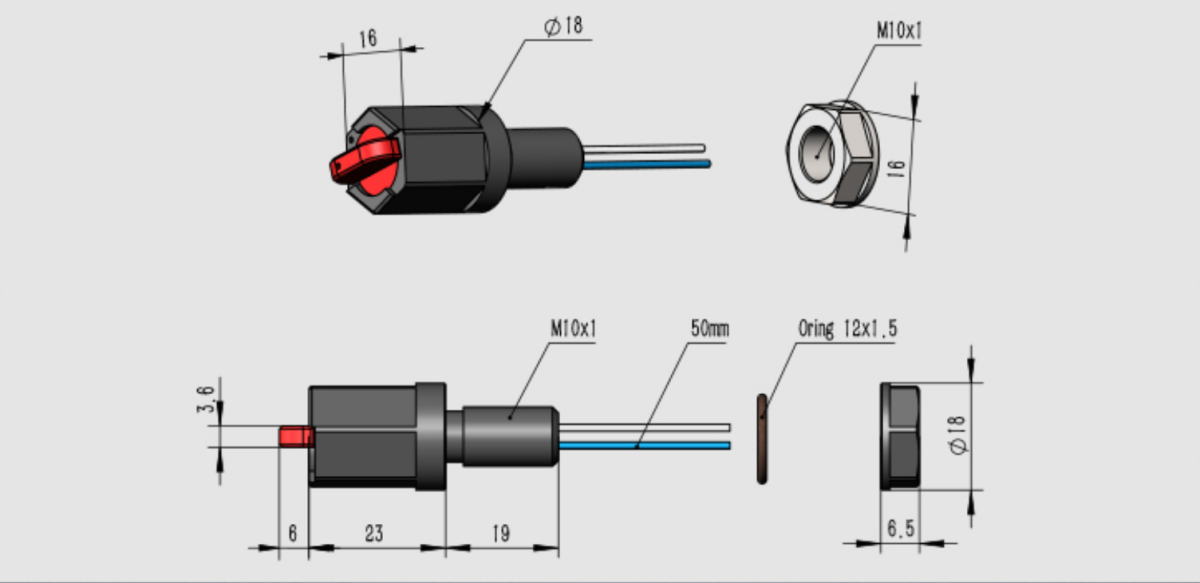

3、Overall Dimension
