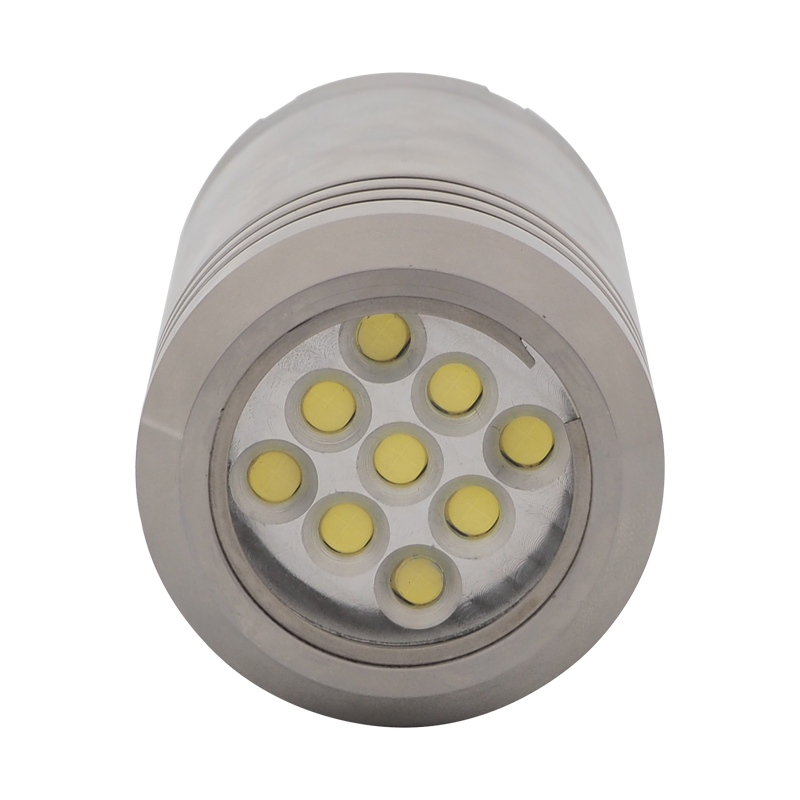

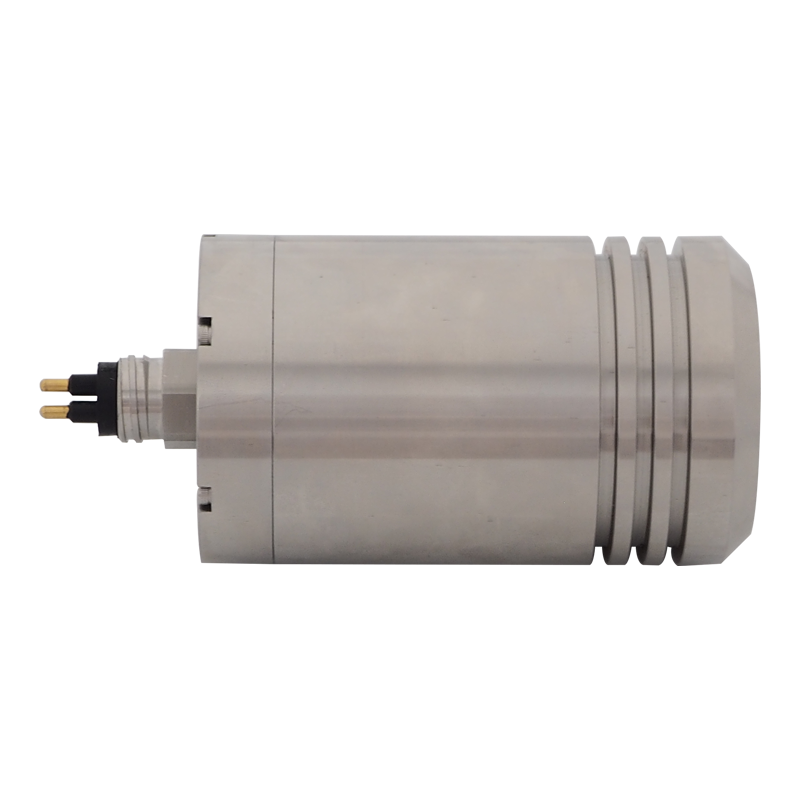

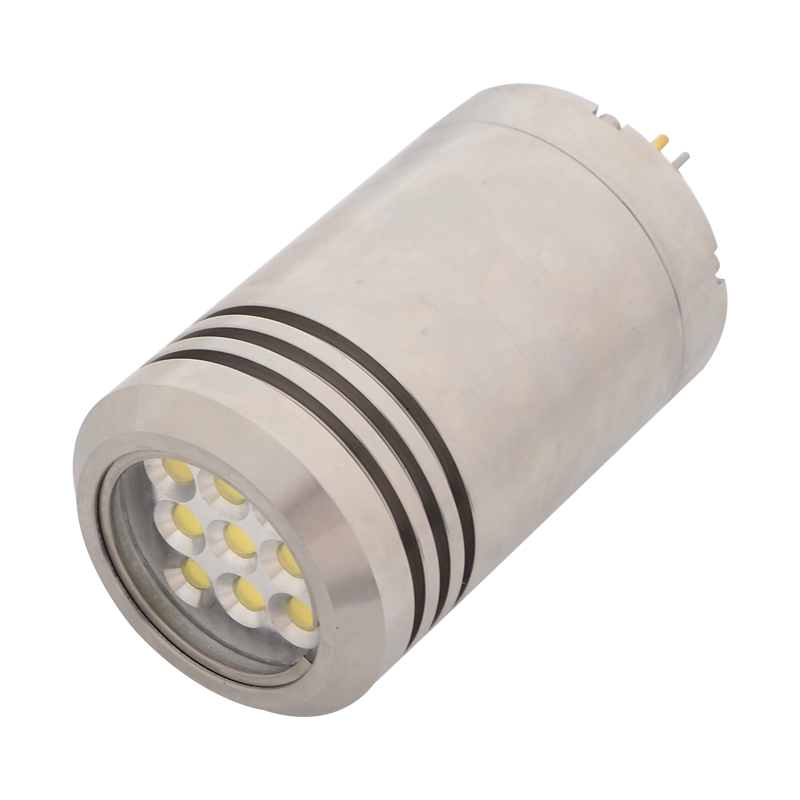

FD-DS6K-L100 Deep-water LED Light

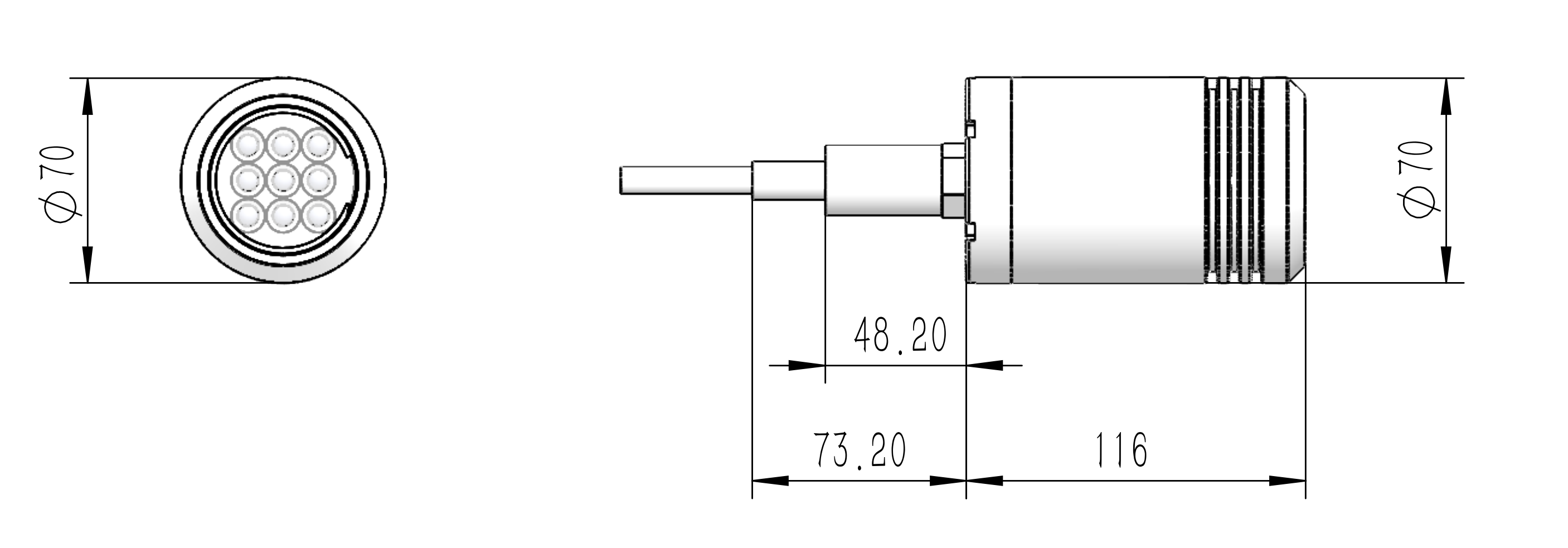

External Dimensions

Product specifications

Product Model

FD-DS6K-L100

Rated Depth

6000m

Shell mMaterial

316L stainless steel

Brightness

10000lm, white light

Temperature

6000K

Beam Angle

120° in air

Power

36~48V DC

Power Consumption

100W

Weight

in air 1300g; in water: 1050g

Working Mode

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.
2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.
3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.

Precautions

This light is specifically designed for underwater operation and must not be operated in air for extended periods

Connector

MCBH3M+MCIL3F，cable length 0.6 m

Wiring Definitions

1-Vcc+ ；2-GND；3-PWM
