FD-LL-052A Underwater LED Light

1、Product Introduction

-Power 50W， 5000 lumens
-Rated depth 300m
-Support voltage 24~36VDC
-316L Stainless steel casing
-PWM or RS485 control

2、Product specifications

Product Model

FD-LL-052A

Rated Depth

300m

Shell Material

316L stainless steel

Brightness

5000lm, white light

Temperature

6000K

Beam Angle

120° in air

Power

DC24-36V

Power Consumption

50W

Weight

Weight in air:1100g ；Weight in water: 890g

Working Mode

1. PWM mode: the brightness is continuously adjustable, and the PWM frequency is recommended to be 1000~10000HZ (recommended)
2. Forced switch mode: the yellow wire is connected to the positive pole of the power supply, and it is lit with the highest brightness; the yellow wire is connected to the negative pole of the power supply and is closed.

Precautions

This light is specifically designed for underwater operation and must not be operated in air for extended periods

Connector

Penetrator,cable length 1 m

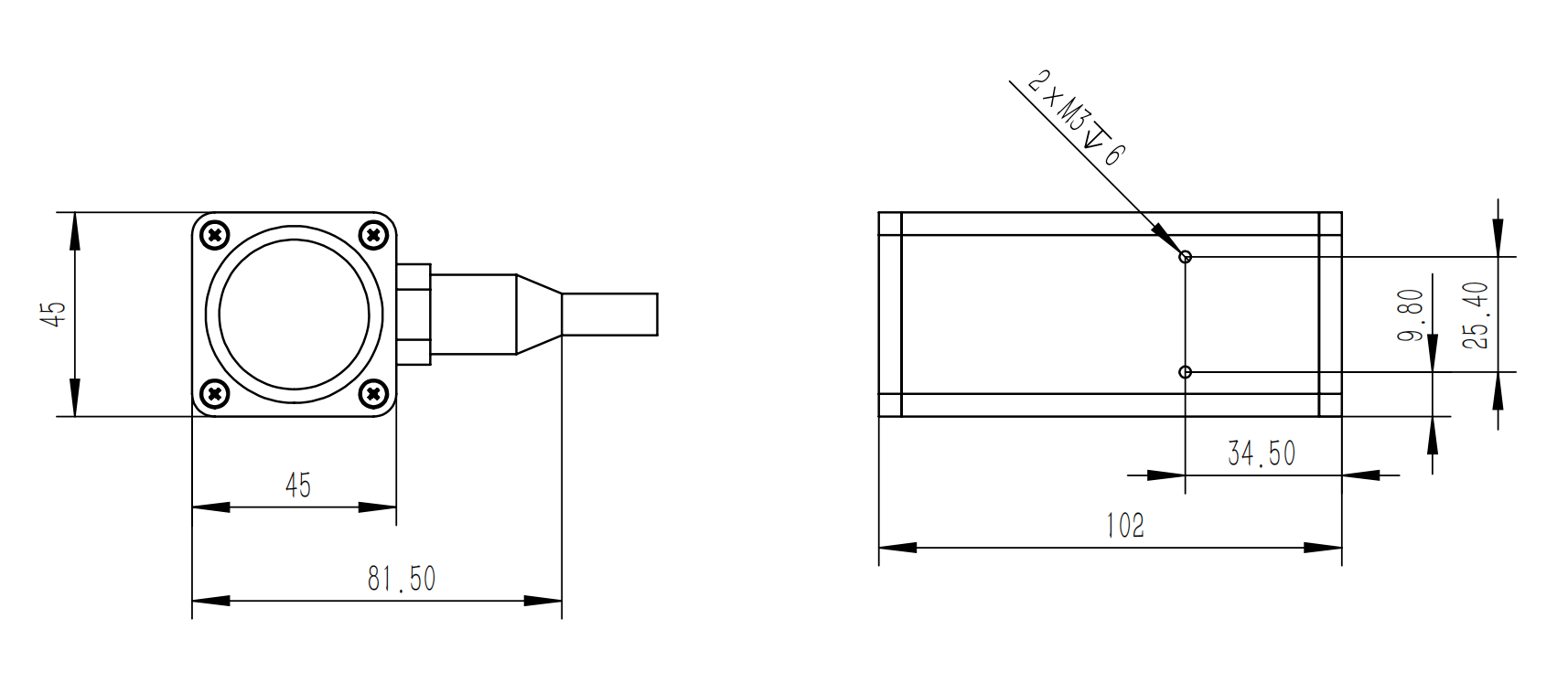

3、Overall Dimension
