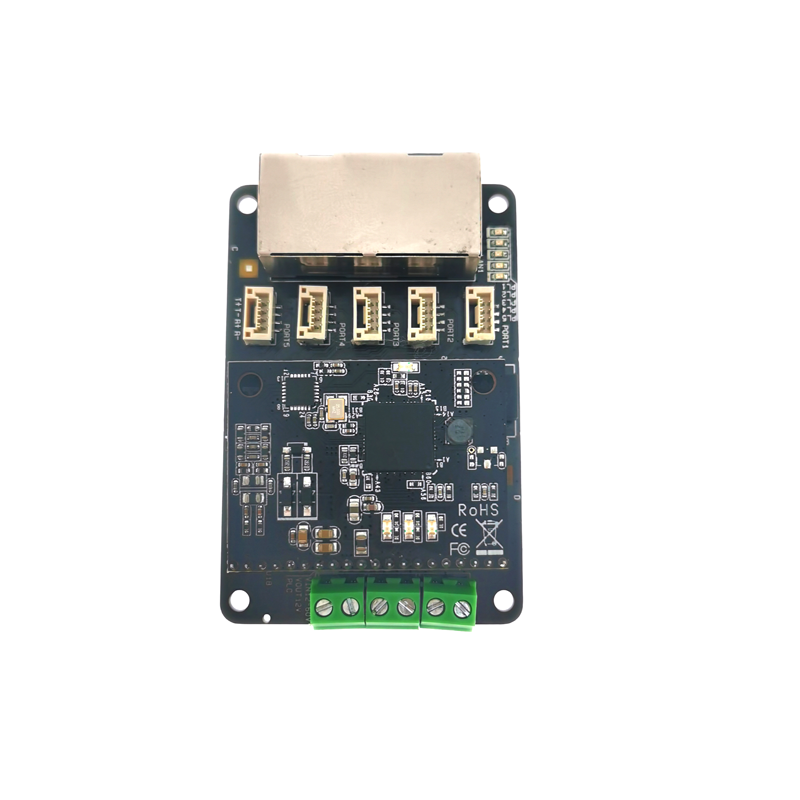

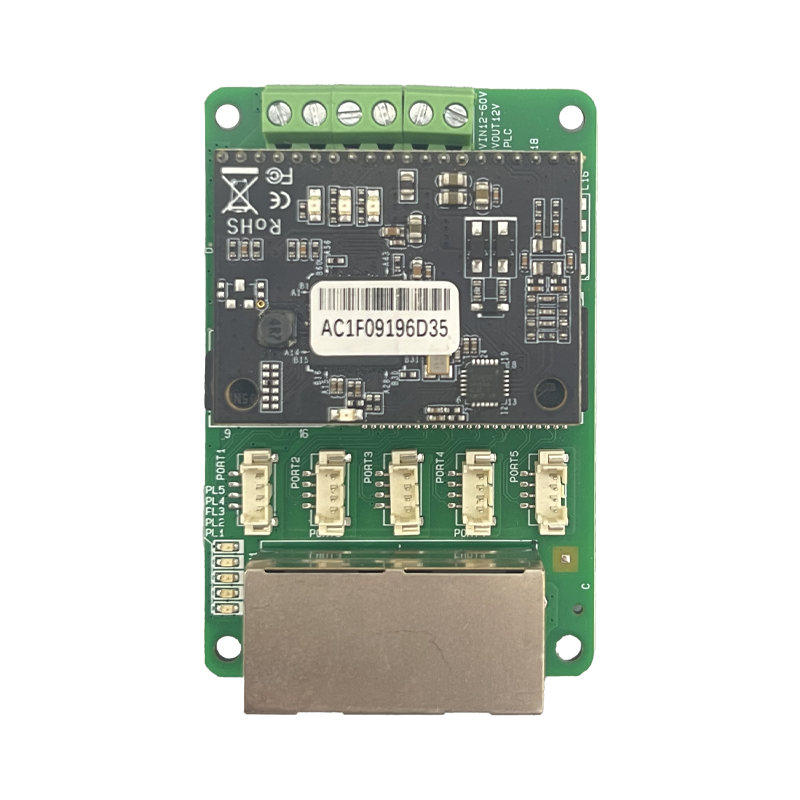

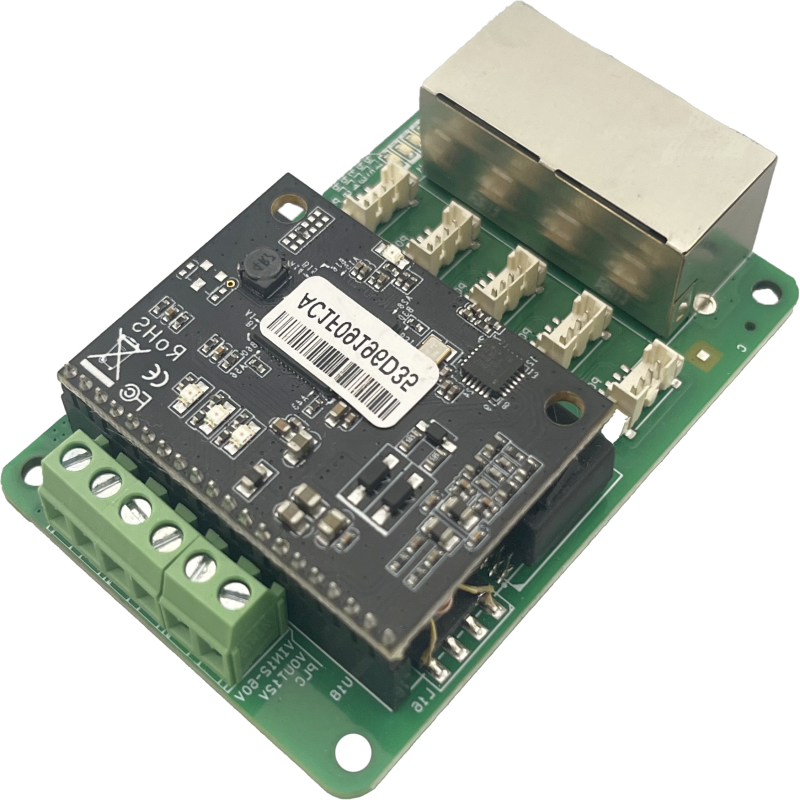

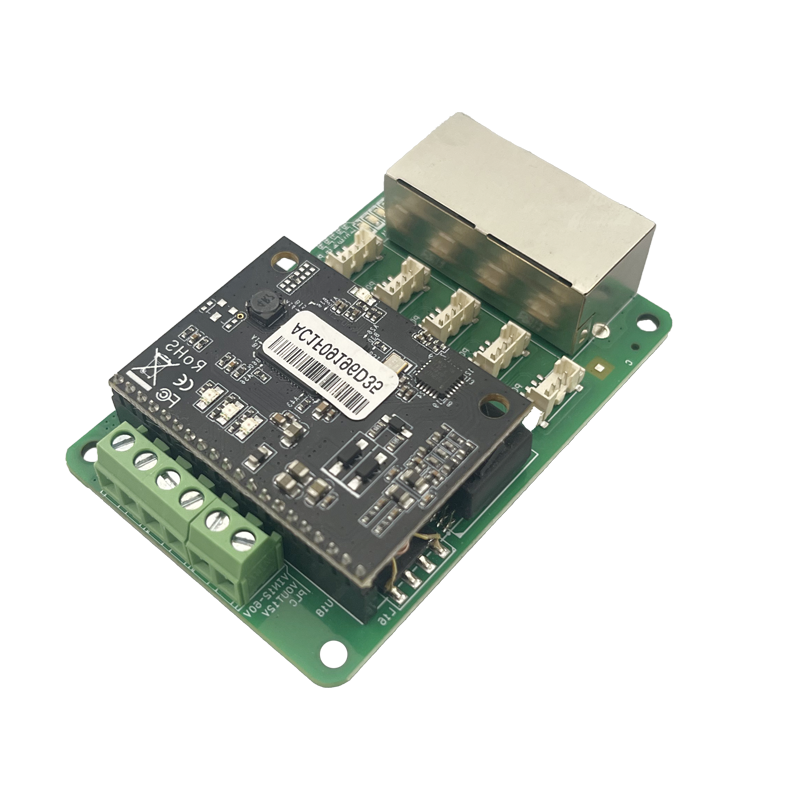

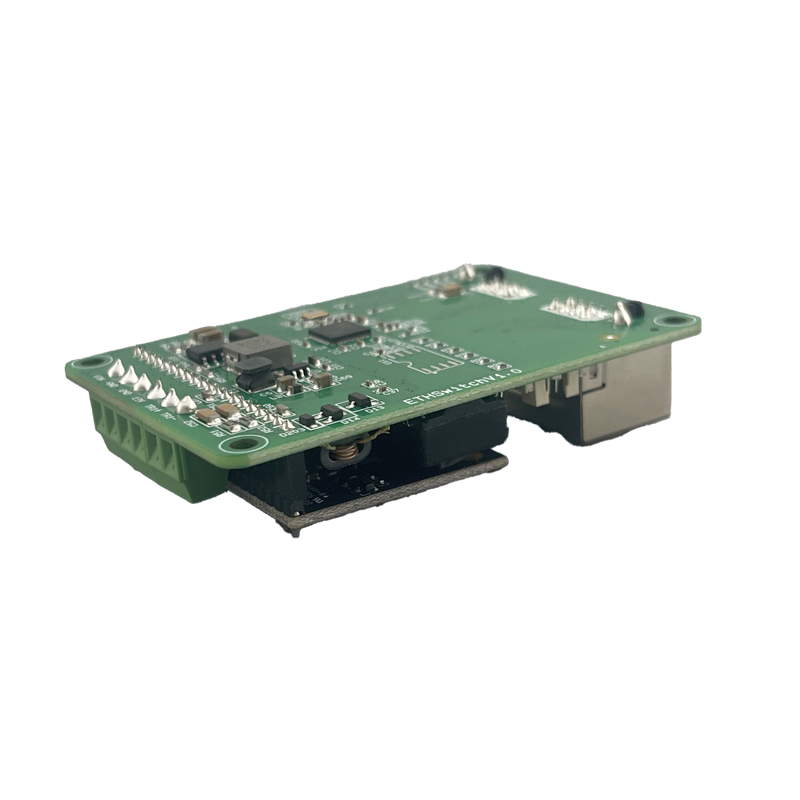

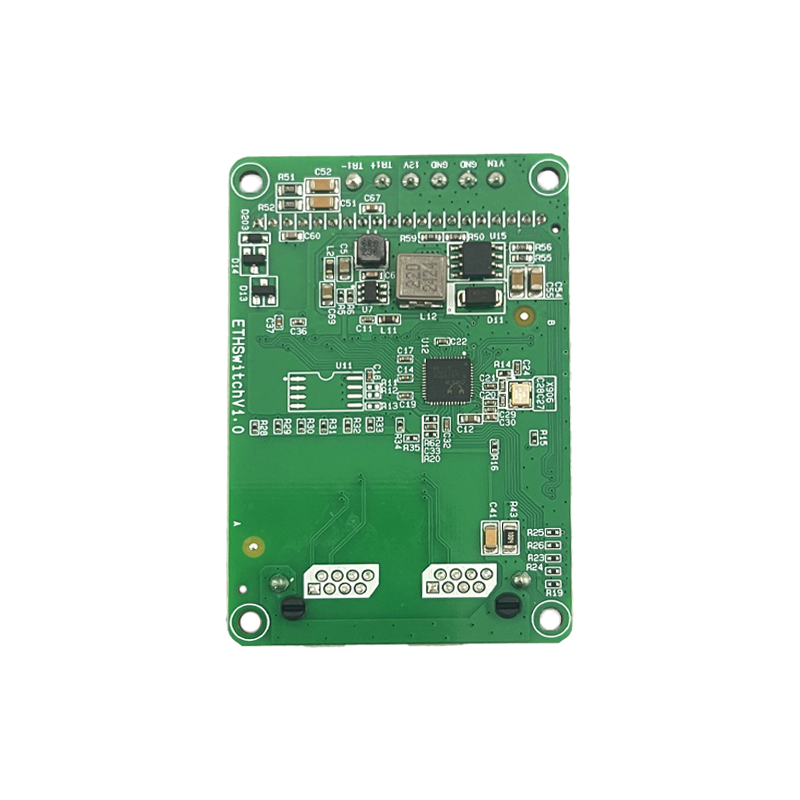

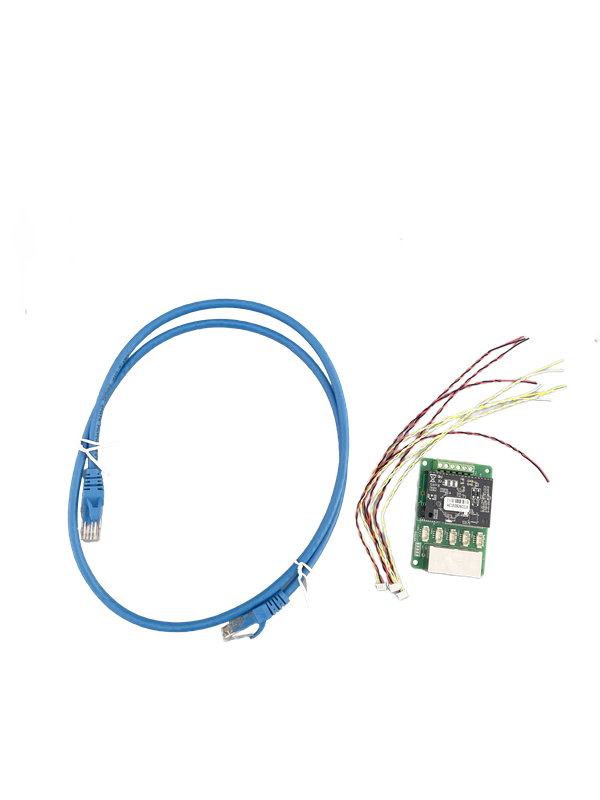

PLC&SWITCH Integration Board -ETHSwitchV1.0

1、Product Function

PLC & SWITCH Integration Board, the compact design enhances the scalability for your ROV or other systems, and provides the possibility of integrating multiple network devices and long-distance wired transmission. It is easy to use, requires no configuration and has good reliability under various conditions. It is mainly used in cable communication for underwater robots.

2、Product Characteristics

1) Media (supports multiple transmission media)
- Powerline method to complete the last 300 meters of IP access;
- Twisted pair method to complete the last 600 meters of IP access;
- The coaxial cable method completes the last 2000 meters of IP access.
2)Tempo
- Theoretical transmission rates are up to 500 Mbps;
- Smoothly transmit audio and video signals such as IPTV, HDTV, etc.
3)Reliably
- Supports 128bit AES encryption to ensure network communication security;
- Occupies 2-68 MHz band for communication and has no impact on existing CATV signals or cable broadcasting;
- Complies with IEEE 1901 and HomePlug AV standards with up to 7 modules.
4)Simpler
- Switch carrier all-in-one design, compact and convenient
- 5 × 100 Mbps ports to provide support for up to 4 external network devices
- No user configuration required, wired and ready to use;
- Modular design for easy integration into customer products and accelerated time-to-market.

3、Product specifications

Power connector

Input Voltage

12~36V

Output Voltage

12V 500mA

Power Carrier

bandwidths

500Mbps

Maximum Voltage on Power Line

250VAC/400VDC

Indicator Light

PWR LED: Power Indicator;
ETH LED: Network Port ACT LED, flashes when there is data traffic;
PLC LED: Signal Transmission Indicator

Ethernet interface

Ethernet

100Mbps

Number of ports

5 (1 occupied by power carriers)
