FD-IPC-43J11 Underwater Wiper Binocular IP Camera

FD-IPC-43J11 Underwater Wiper Binocular IP Camera

1、Product Features

-2-channel 2M/4M pixels high-definition
-Rated depth 200m
-IP camera,support standard ONVIF
-Built-in color restoration and underwater fog penetration algorithm
-316L Stainless steel casing
-High synchronization, the binocular delay is less than 1ms.
-Two 15W adjustable brightness fill lights
-The wiper frequency is adjustable.

2、Product Specifications

Product Model

FD-IPC-43J11

Rated Depth

200m

Shell Material

316L stainless steel

Resolution

2 channels 1920*1080, 2 channels resolution 3840*1080 after splicing/
2 channels 2560*1440, 2 channels resolution 5120*1440 after splicing

Minimum Illumination

0.005Lux(color mode);0.001Lux(black and white mode)

Lens

2.8mm fixed focus

Image Enhancement

Automatic fog penetration + green light suppression

perspective

101°×92°×60°（D×H×V）

Binocular Spacing

60mm

Supporting Protocol

TCP/IP、UDP、RTP、RTSP、 RTCP、RTMP、HTTP、
DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP

Interface Protocol

ONVIF

External Interface

Standard network interface

Fill Light Brightness

1500 lumens/unit, brightness adjustable

Wiper Cleaning Cycle

Adjustable

Power

DC12-24V

Operating Temperature

-20~60℃

Power Consumption

Camera: ≤3W; fill light: 15W/set；Wiper ：≤10W

Connector

MCBH8M+MCIL8F,cable length 1 m

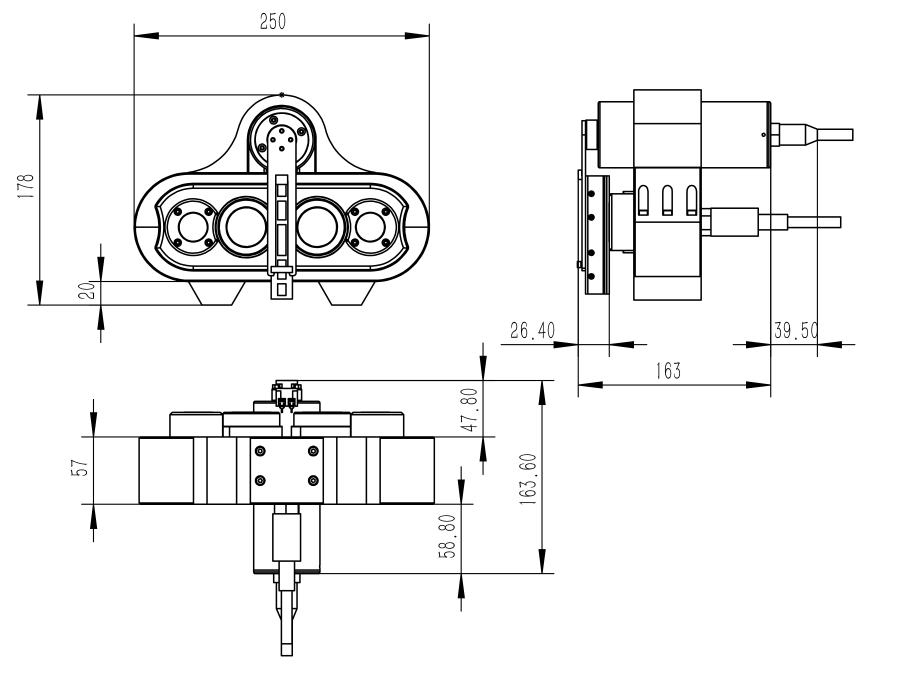

3、Overall Dimension
