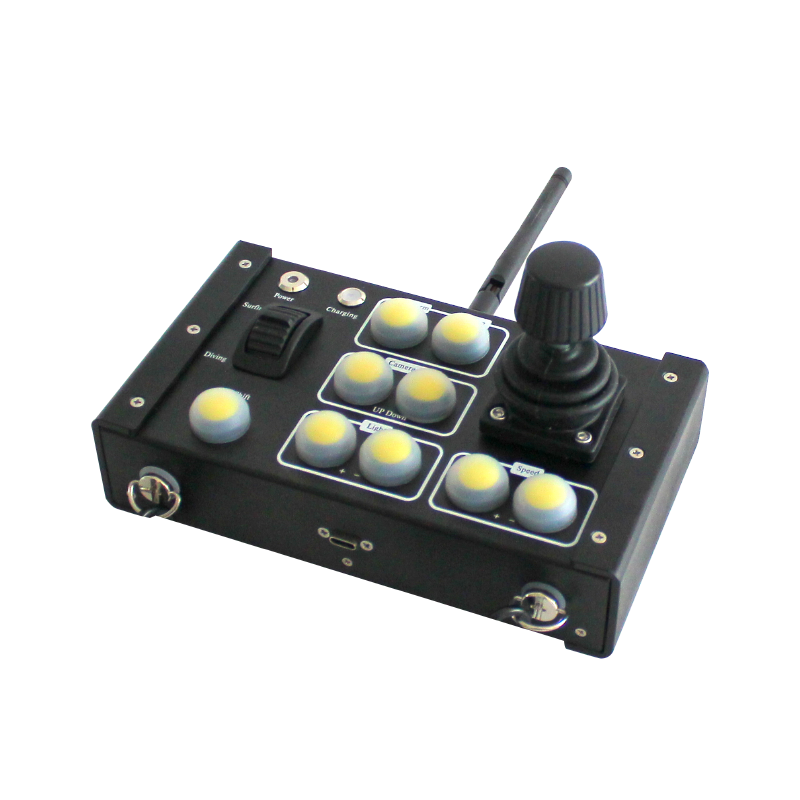

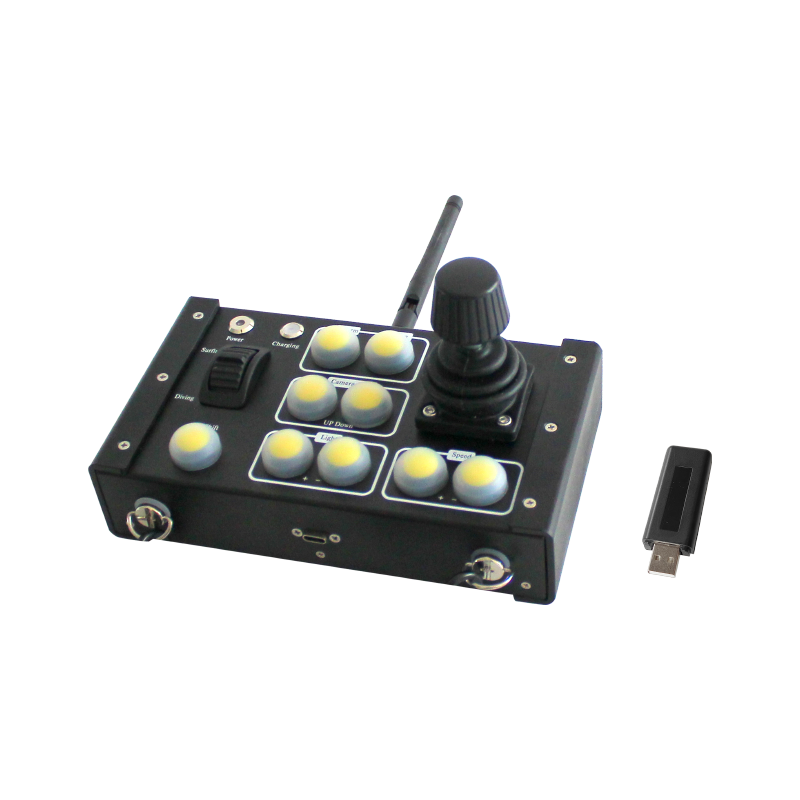

Wireless Hand Controller

Wireless Hand Controller

1、Product Specifications

Options

Function

Parameters

Electrical parameter

Radio frequency

2.4G

Transmission range

≥30m （wireless mode without shelter）

Battery life

≥5 hours

Charging interface

USB TypeC

Charging voltage

5V DC

System compatibility

compatibility with the ArduSub open-source ROV control platform

Man-machine interface

Controls

one 3D rocker
one wheel
one power button (red)
14 operation buttons (yellow)

Status light

illuminates upon device startup

Charging light

Charging: Red
Filled with: Green

Physical parameter

dimension

Controller：176*100*41mm
（Housing size, excluding antennas, buttons, and joysticks）
Receiver：175*20*15mm(Maximum)

weight

570g

Connection mode

Wireless mode

Turn off the power button of the remote control. After long press the button on the side of the receiver for 2 seconds, the red and blue indicator light of the receiver will flash alternately. After opening the power button of the remote control, the blue light of the receiver will keep on, and the pairing is successful

Wired mode

USB cable connects the remote control to the USB end of the computer
