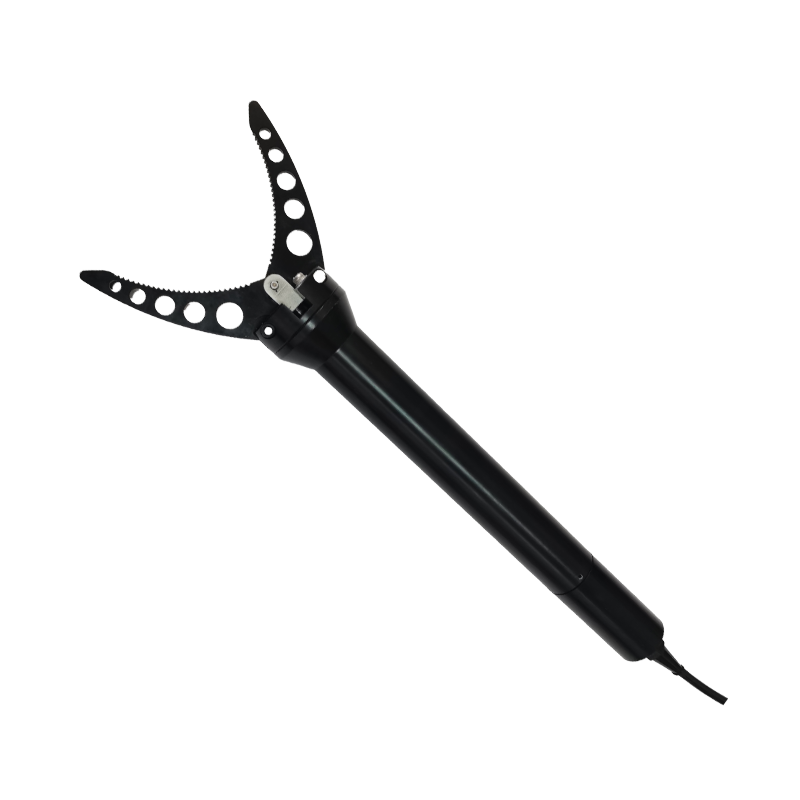

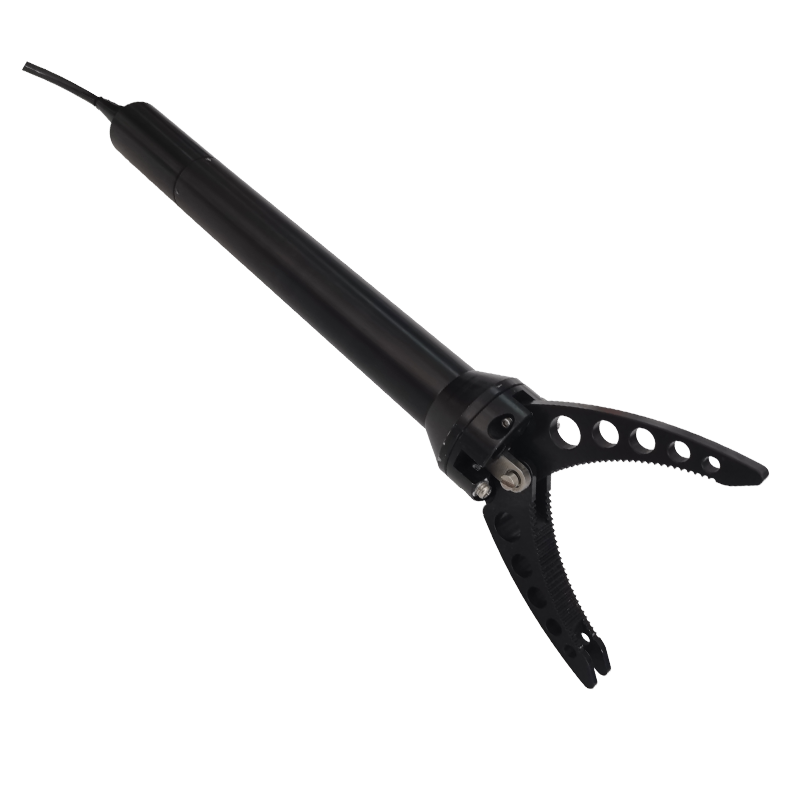

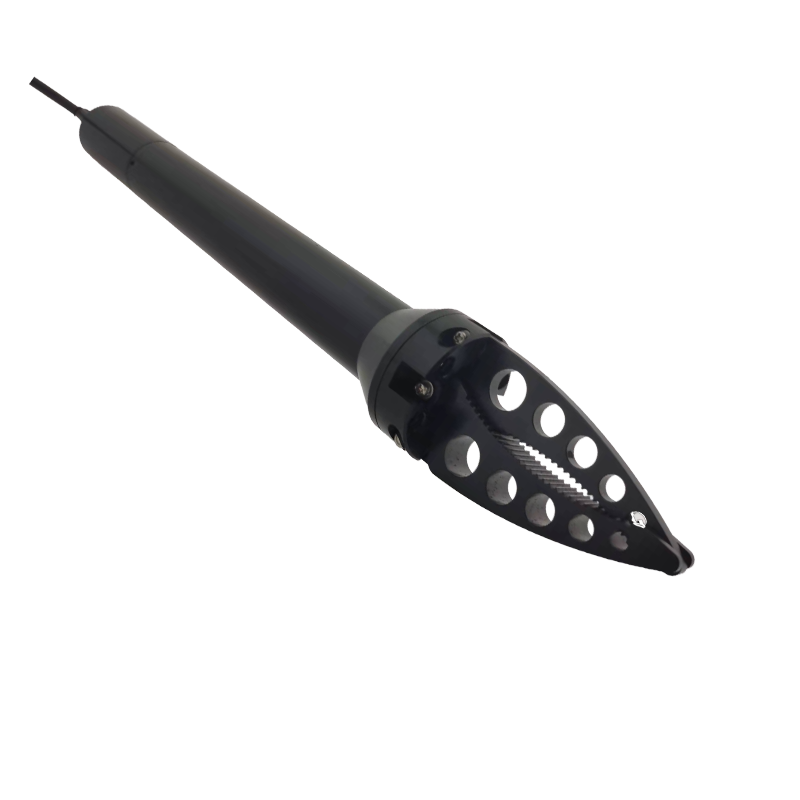

FD-H101 1-Function Manipulator

1、Product specification

Depth waterproofing

100m

Material

aluminum alloy

Power supply

24V

Maximum working current

0.3A

Maximum gripping force

20kg（at tip）； 10kg（at middle）

Maximum opening size

126mm

Opening/closing time

1.5s

Control type

PWM

PWM frequency

50HZ

PWM signal range

0.8~1.2ms：close
1.2~1.8ms：stop
1.8~2.2ms：open

Weight

0.92kg

Connector

Penetrator,cable length 1 m

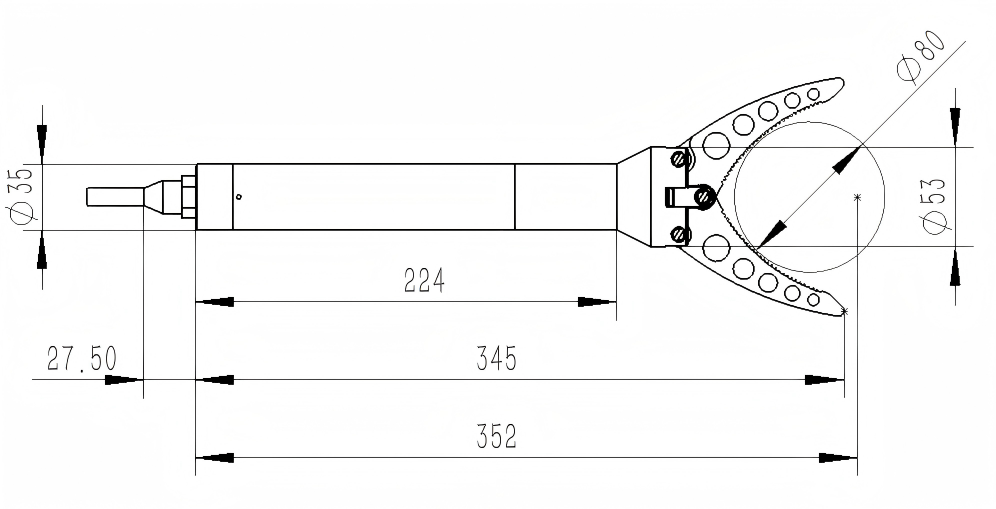

2、Overall dimension
