1. Product Overview

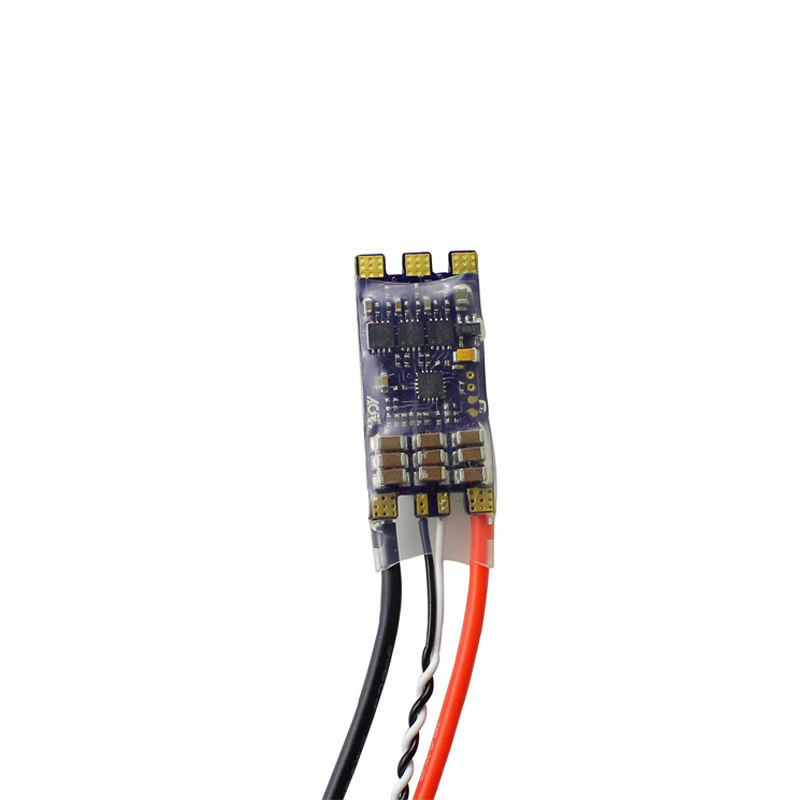

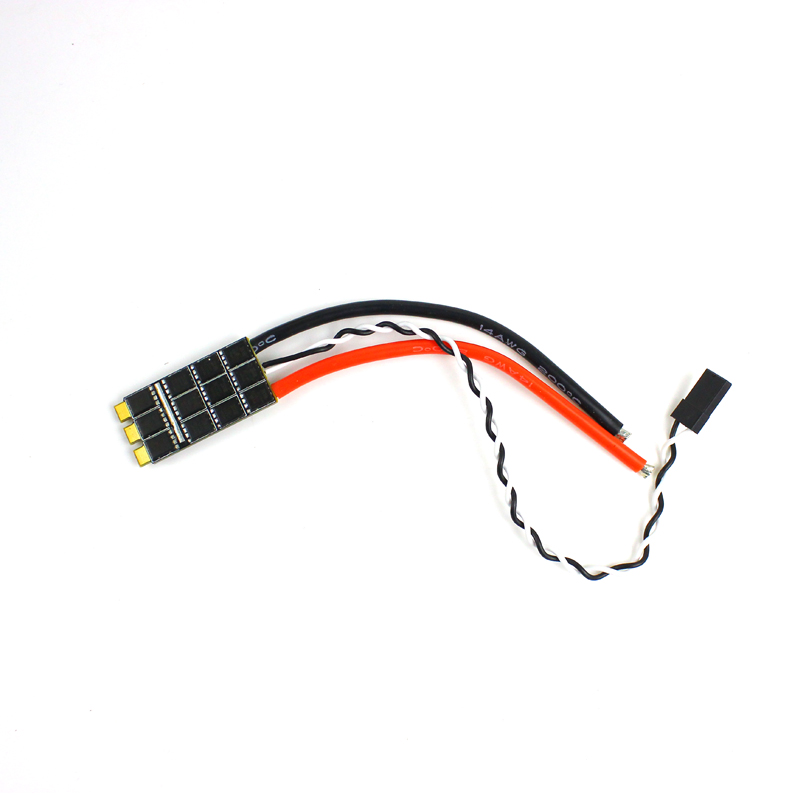

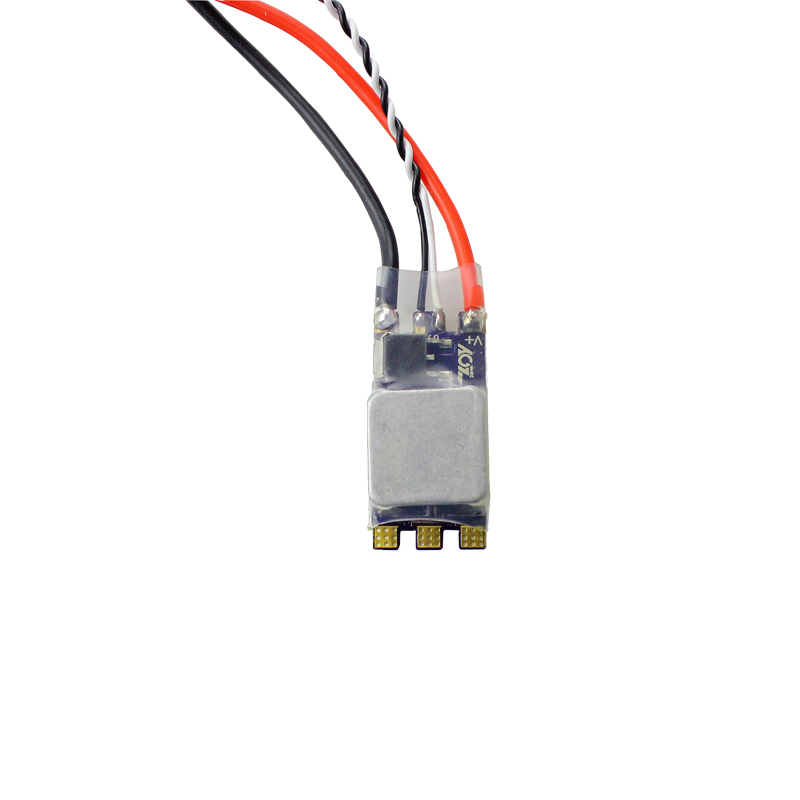

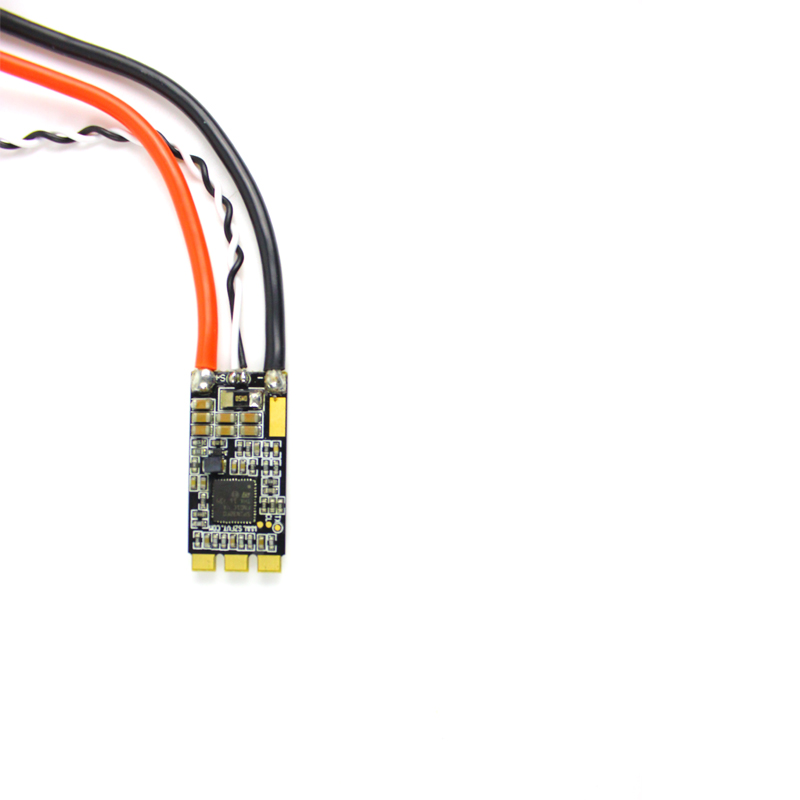

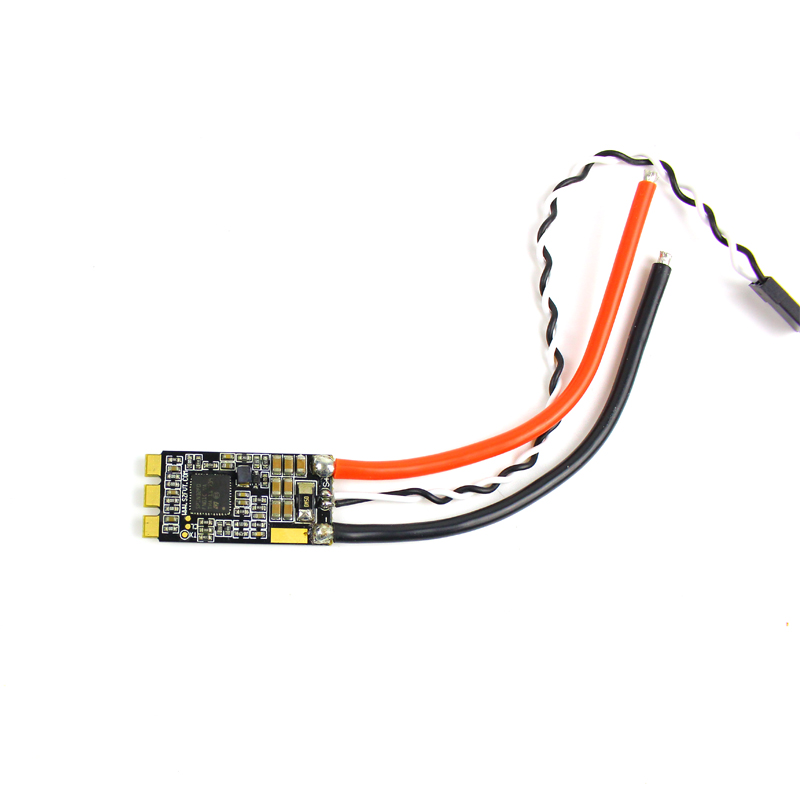

This Electronic Speed Controller (ESC) is designed for brushless motors, providing
precise control over motor speed, direction, and braking functions. It is suitable
for underwater robots, underwater propulsion equipment, and similar applications.
2. Technical Specifications
Parameter | 30A ESC | Remarks |
Continuous Current | 30A | Requires adequate cooling |
Burst Current | 40A | - |
Input Voltage | 3S-6S LiPo /7V-28V | Do not exceed rated voltage |
Weight | 3g | Including wires |
Dimensions | 35×16×6mm | - |
