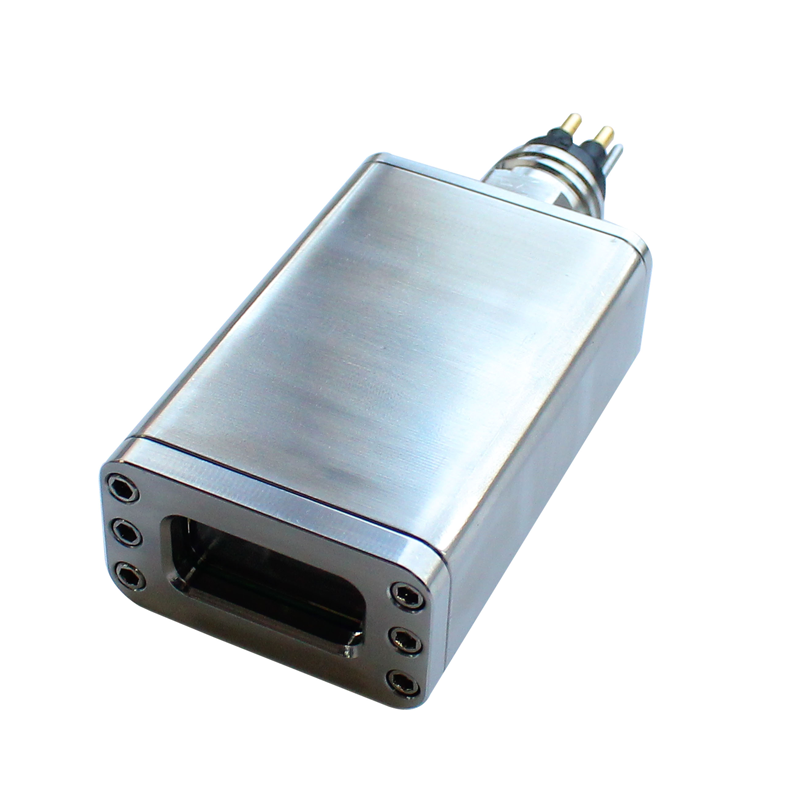

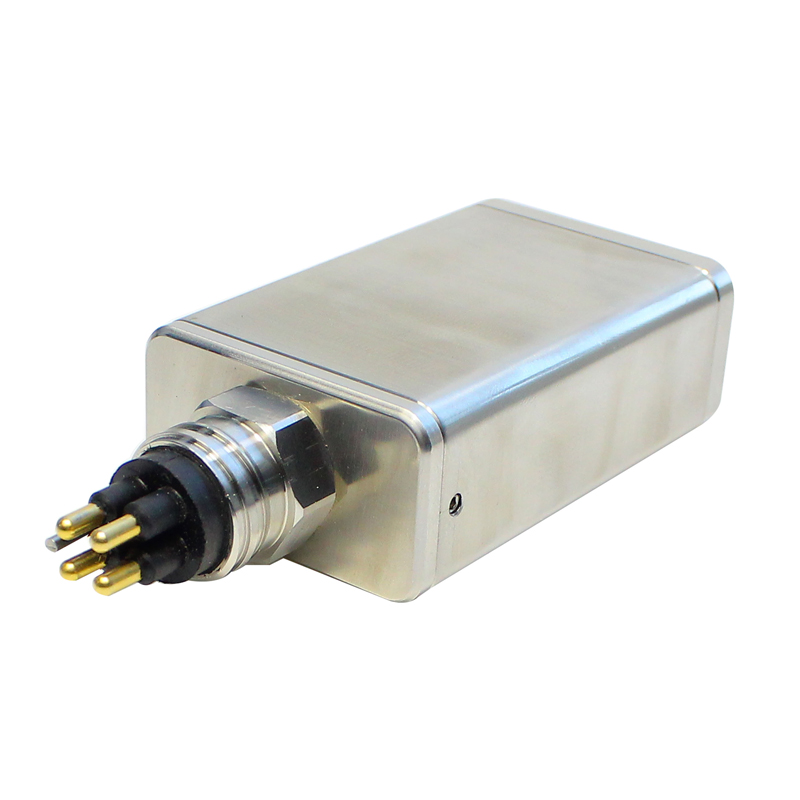

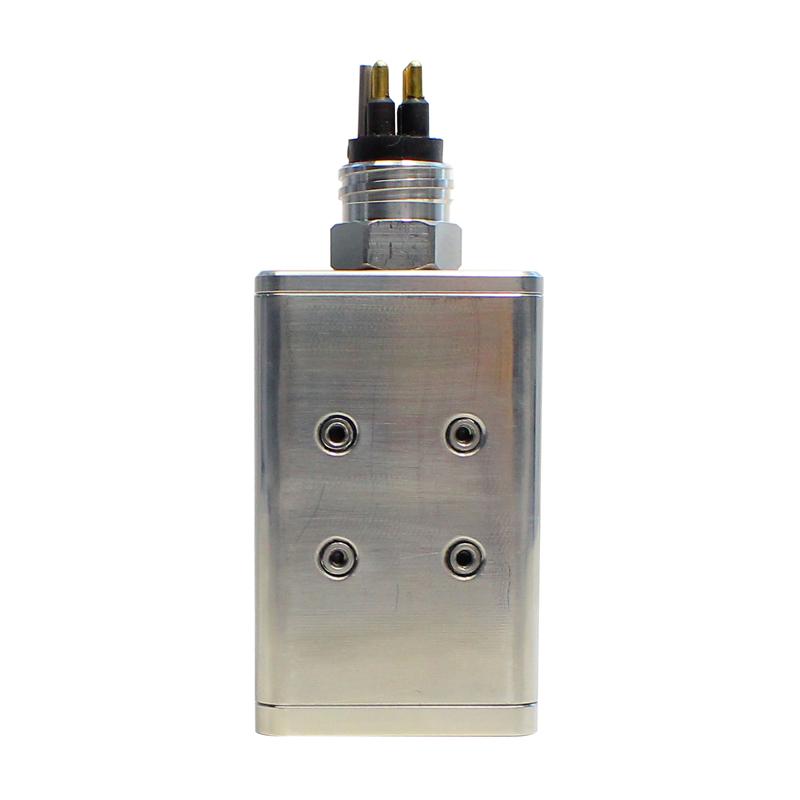

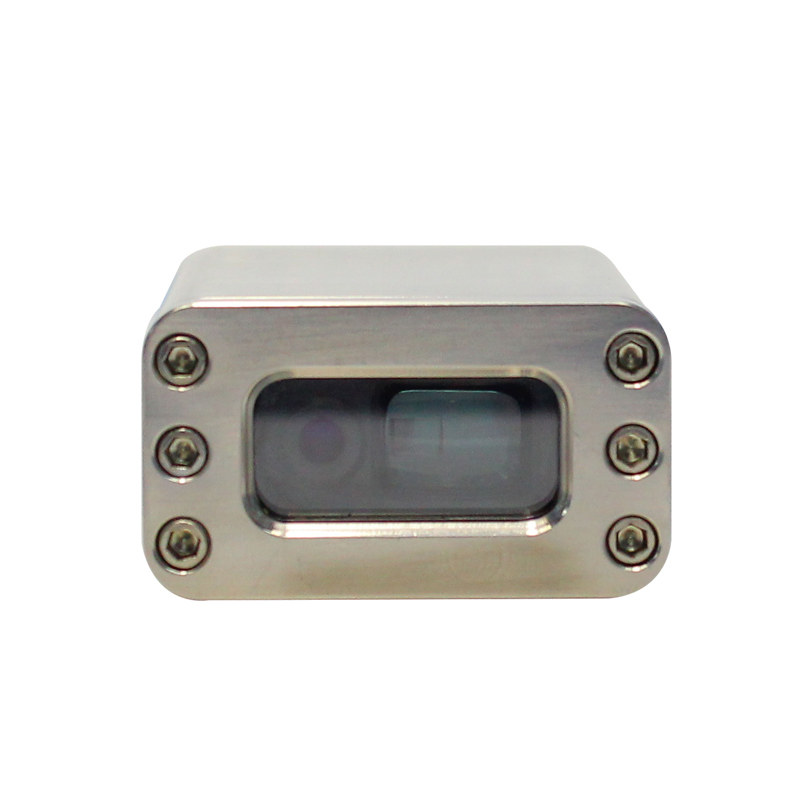

FD-S-L02 Underwater Laser Rangefinder

Distance measurement range: 0.05m~40m
Resolution: 0.001m
Data interface: RS485
Rated depth: 200m
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

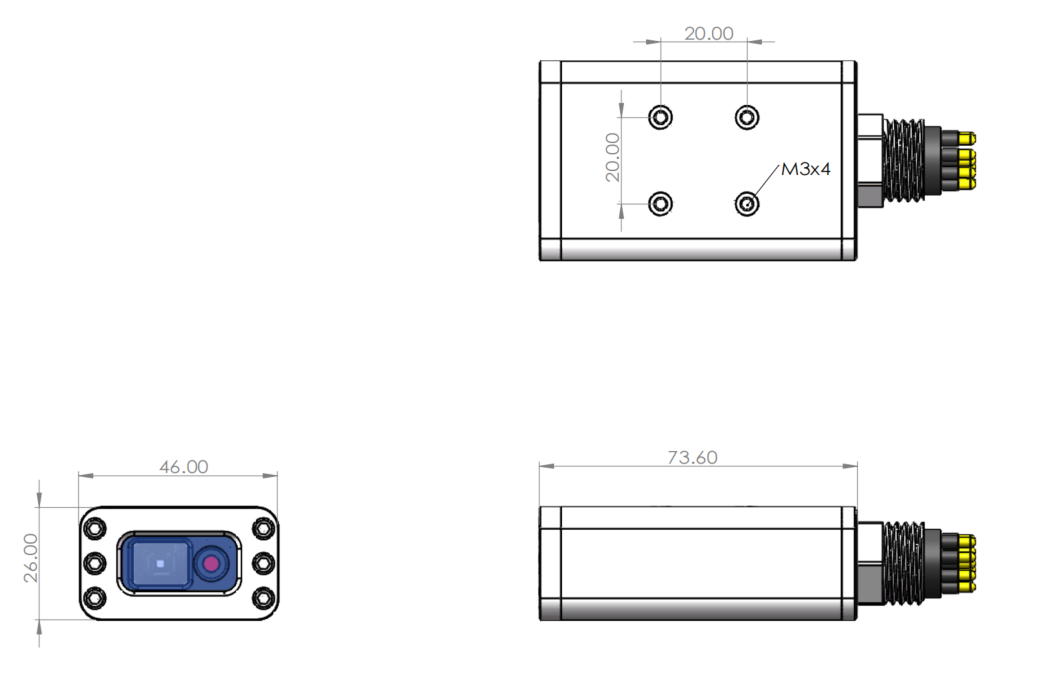

External Dimensions


Product Specification

Product Model

FD-S-L02

Material

316L Stainless Steel

Rated Depth

200m

Measuring Range

0.05m ~ 40m (in air，affected by target reflectivity)

Resolution

0.001m

Repeatability

±0.001m

Accuracy

±(0.0015m + 0.0005×D)

Data Output Rate

Continuous Mode: 10Hz
Rapid Continuous Mode: 10Hz ~ 20Hz

Input Voltage

12-24V DC

Power

＜1W

Data Interface

RS485

Connector

MCBH4M+MCIL4F,cable length is 0.6 meter (default)

Weight

in air：360g；in water：270g

download FD-S-L02 Underwater Laser Rangefinder.pdf

Underwater Laser Rangefinder 40m Long-Range Detection in air High-Precision Measurement Rated depth 200m RS485 Interface
