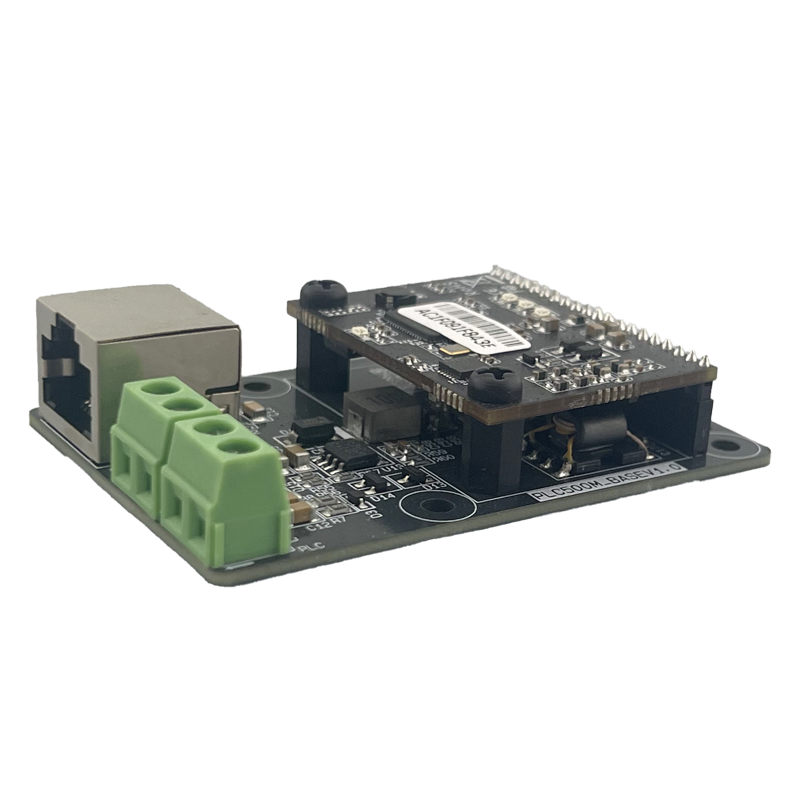

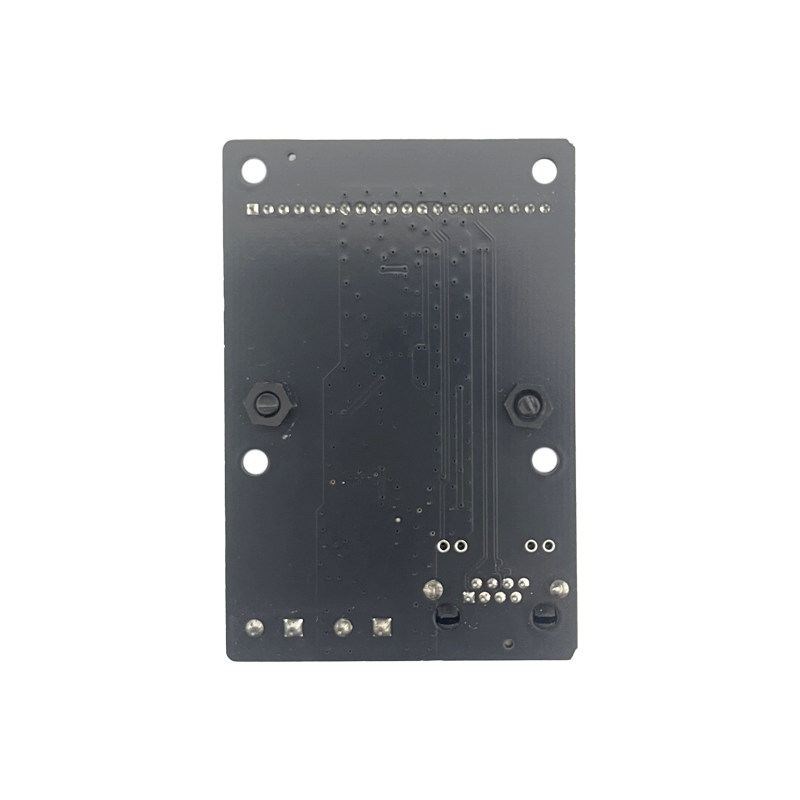

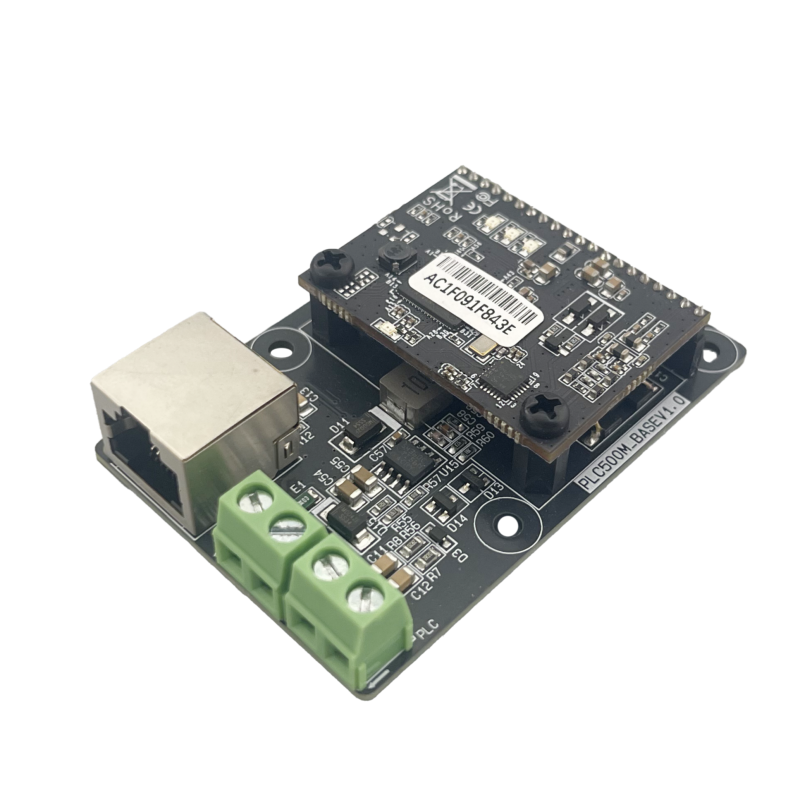

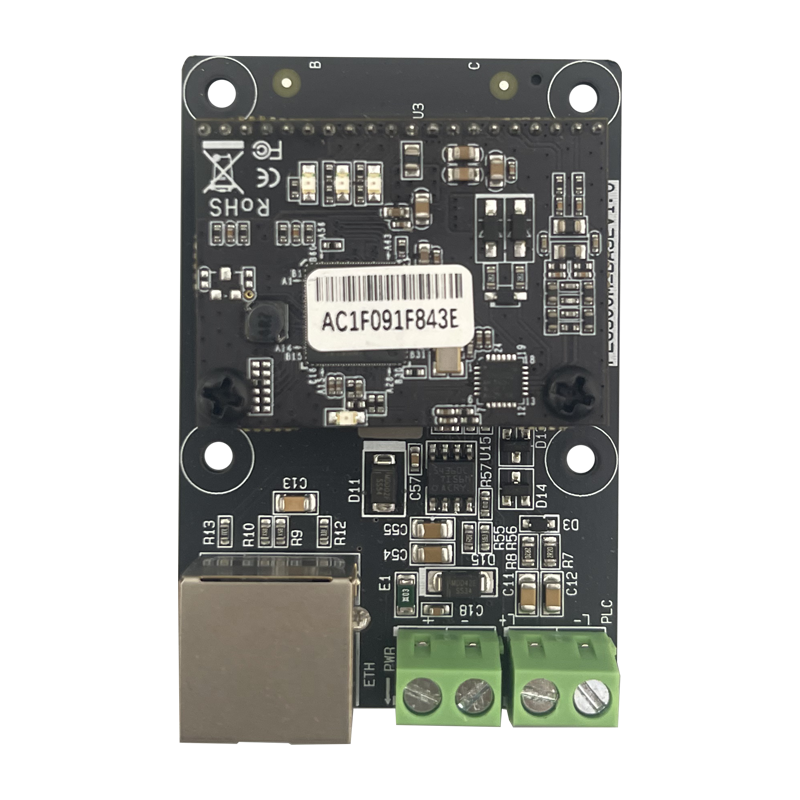

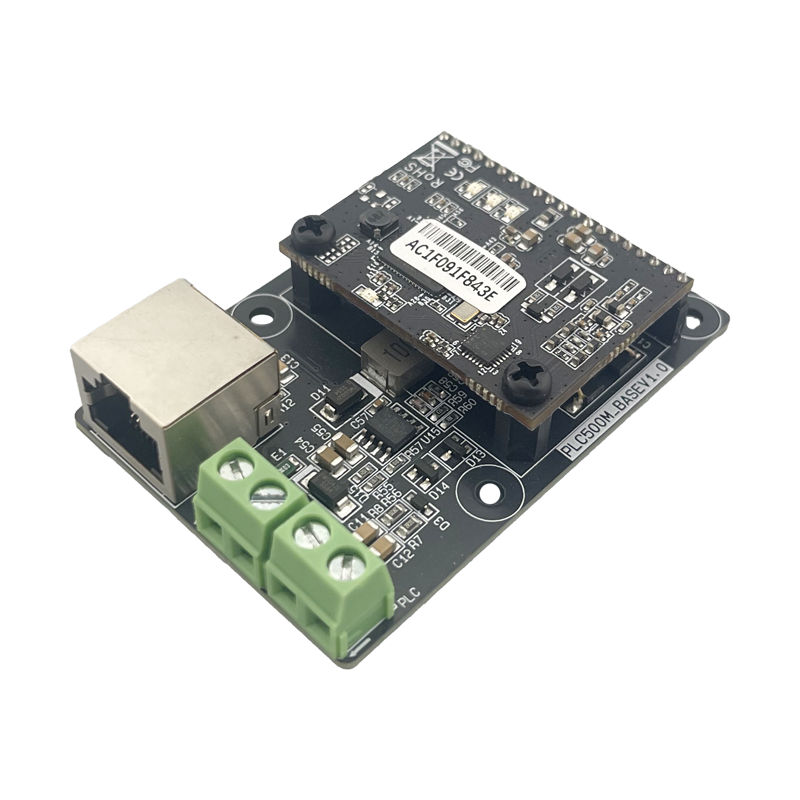

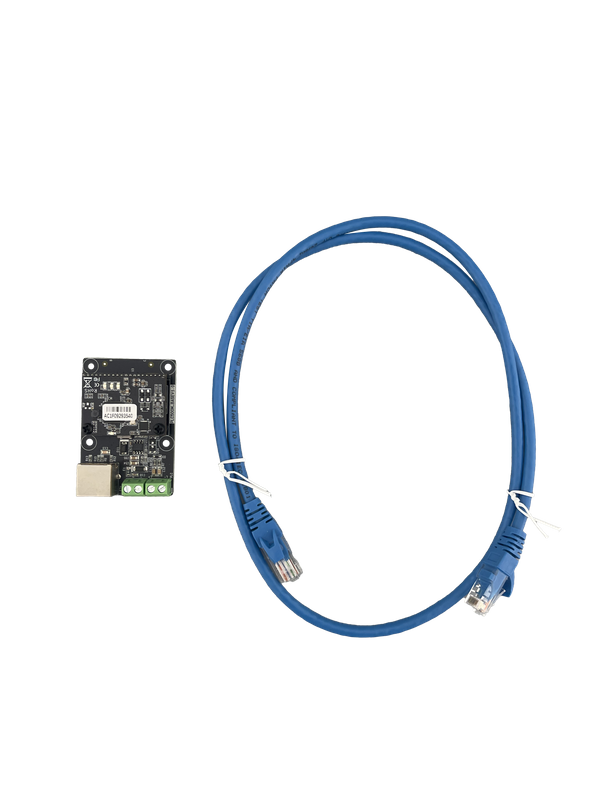

ELEC-PLC-500M Ethernet through module powerline

1、Product Function

A new type of data transmission product based on OFDM (Orthogonal Frequency Division Multiplexing) modulation technology. It is mainly applied to tethered communication of underwater robots, featuring plug-and-play operation without configuration required

2、Product Characteristics

1) Media (supports multiple transmission media)
- Powerline method to complete the last 300 meters of IP access;
- Twisted pair method to complete the last 600 meters of IP access;
- The coaxial cable method completes the last 2000 meters of IP access.
2)Tempo
- Theoretical transmission rates are up to 500 Mbps;
- Smoothly transmit audio and video signals such as IPTV, HDTV, etc.
3)Reliably
- Supports 128bit AES encryption to ensure network communication security;
- Occupies 2-68 MHz band for communication and has no impact on existing CATV signals or cable broadcasting;
- Complies with IEEE 1901 and HomePlug AV standards with up to 7 modules.
4)Simpler
- No user configuration required, wired and ready to use;
- Modular design for easy integration into customer products and accelerated time-to-market.

3、Product specifications

Parameter Item

Parameter Value

Bandwidths

500Mbps

Power Supply Voltage

12-36V

Power Consumption

<2W

Maximum Voltage on Power Line

250VAC/400VDC

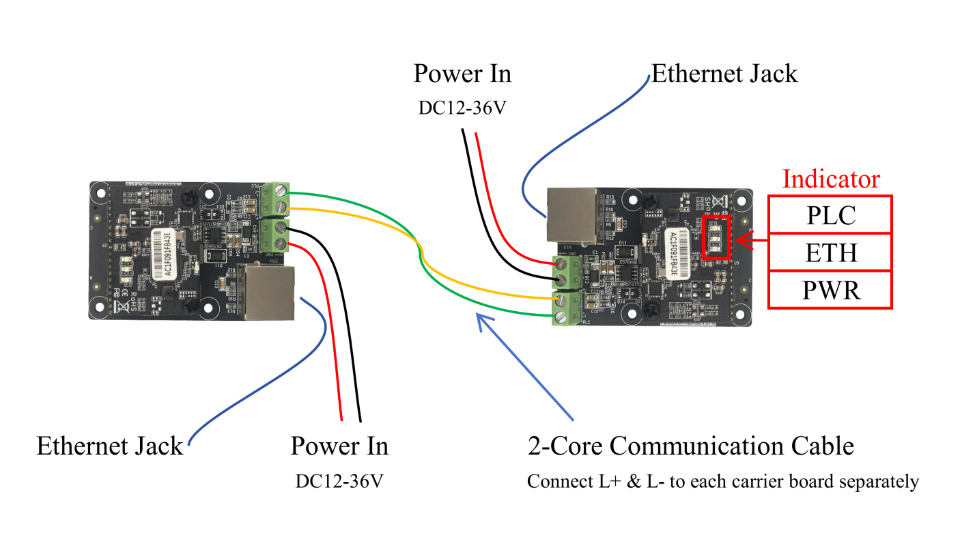

Indicator Light

PWR LED: Power Indicator;
ETH LED: Network Port ACT LED, flashes when there is data traffic;
PLC LED: Signal Transmission Indicator
