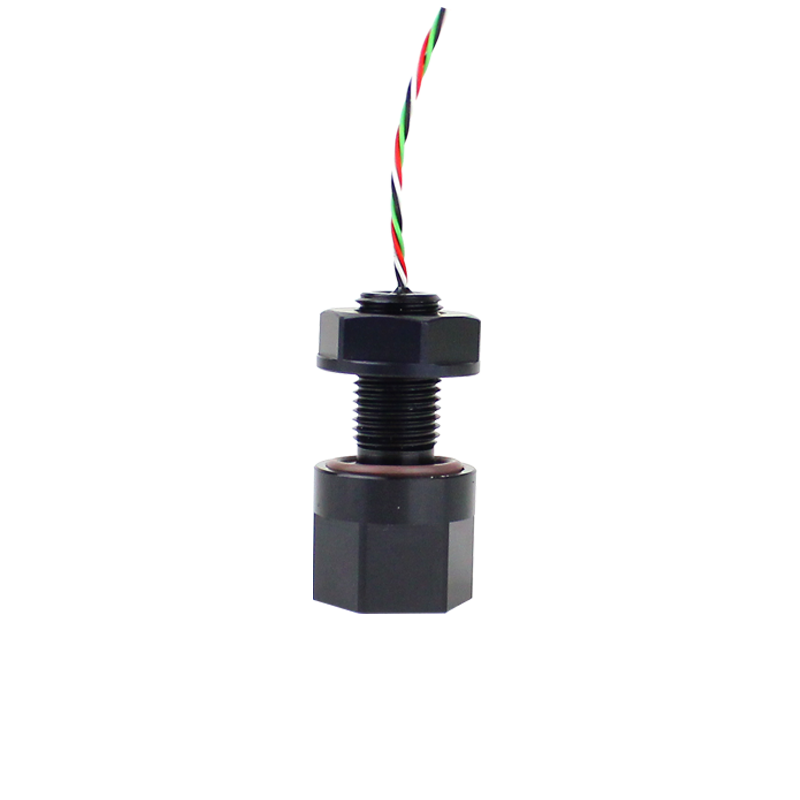

ELECDS1-3050 300m absolute depth sensor

1、Product Introduction

This pressure/depth sensor is packaged and integrated with TE’s MS5837 series sensor. A protective cover is added to the fragile sensor film while ensuring fluid flow (Still need to be completely dried once per day to prevent drift of reading). Internal suspension and insulation design prevent electrochemical corrosion. This sensor can measure up to 30bar/300m/1000ft depth and communicates over I²C with temperature sensor accurate to ±1℃ to calibration pressure.
Features:

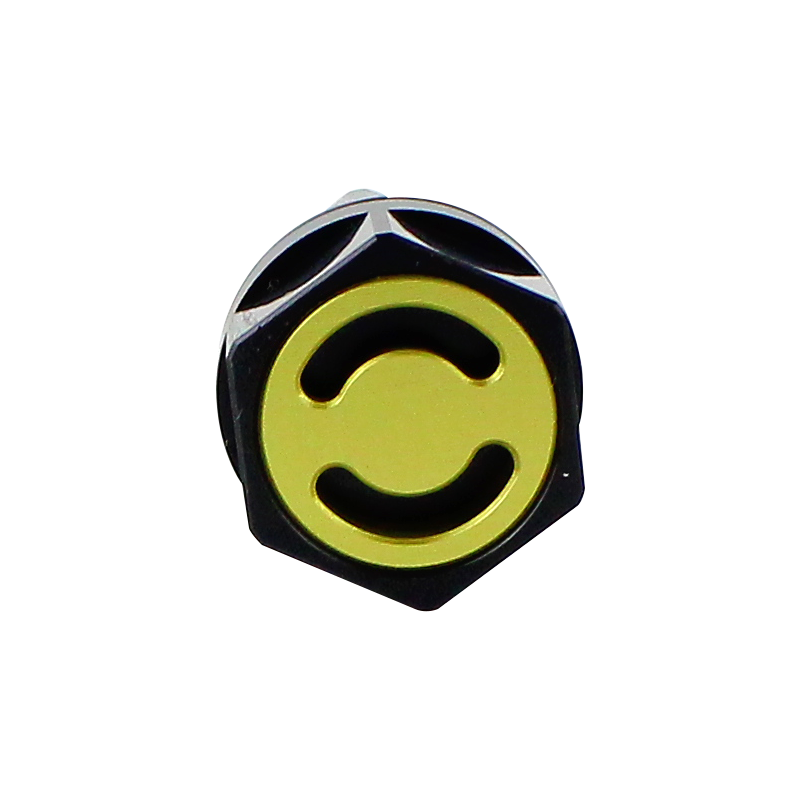

-protect cover for gel-filled sensor
-minimization Electrochemical corrosion
-Specification of package welding process
-locknut & scratch proof flange

2、Specifications

Supply voltage

5v

I²C logic voltage

3.3v

Peak Current

1.25mA

Mating connector

1.25mm-4P

Connector pin configuration

RD- POSITIVE SUPPLY； GR- I2C CLOCK
WH-I2C DATA ； BK- GROUND

Length of connector wire

~350mm

Operating depth

300m

Maximum mechanical pressure

50bar

Operating temperature

-20~85℃

Absolute accuracy

±1.5℃ when used between 0-60℃

Weight

12.1g

Sensor

TE MS5837-30BA50 *Compatible with Ardusub.

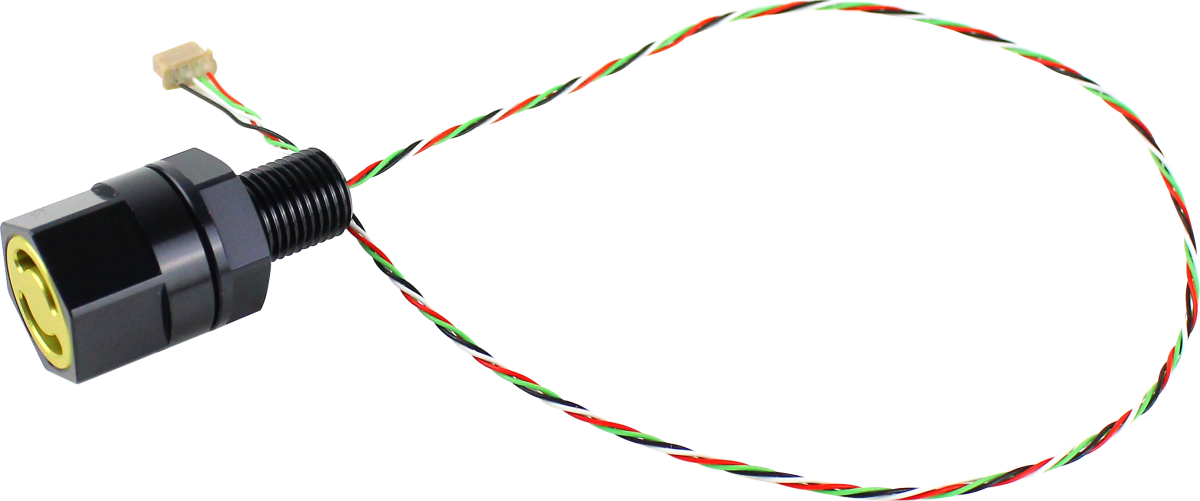

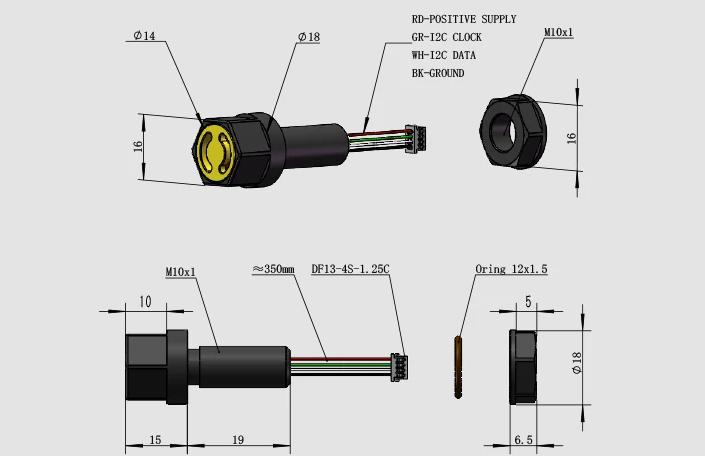

3、Overall Dimension
