FD-IPC-22N31 Underwater IP Camera

1、Product Features

-8M pixels
-Rated depth 300m
-IP camera,support standard ONVIF
-Built-in color restoration and underwater fog penetration algorithm
-316L Stainless steel casing
-Can be customized with a 2.8–12mm 4x zoom lens

2、Product Specifications

Product Model

FD-IPC-22N31

Rated Depth

300m

Shell Material

316L stainless steel

Resolution

4K(8M pixels)

Sensor

1/2.8” CMOS

Minimum Illumination

0.01Lux (color mode); 0.005Lux (black and white mode)

Lens

2.8mm fixed focus

Image Enhancement

automatic fog penetration + green light suppression

Connector

MCBH6M+MCIL6F,cable length 1 m

Supporting Protocol

TCP/IP、UDP、RTP、RTSP、 RTCP、RTMP、HTTP、
DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP

Interface Protocol

ONVIF

Interface

Standard network interface

Power

DC12-24V

Operating Temperature

-20~60℃

Power Consumption

≤4.5W

Weight

in air：1200g ；in water：750g

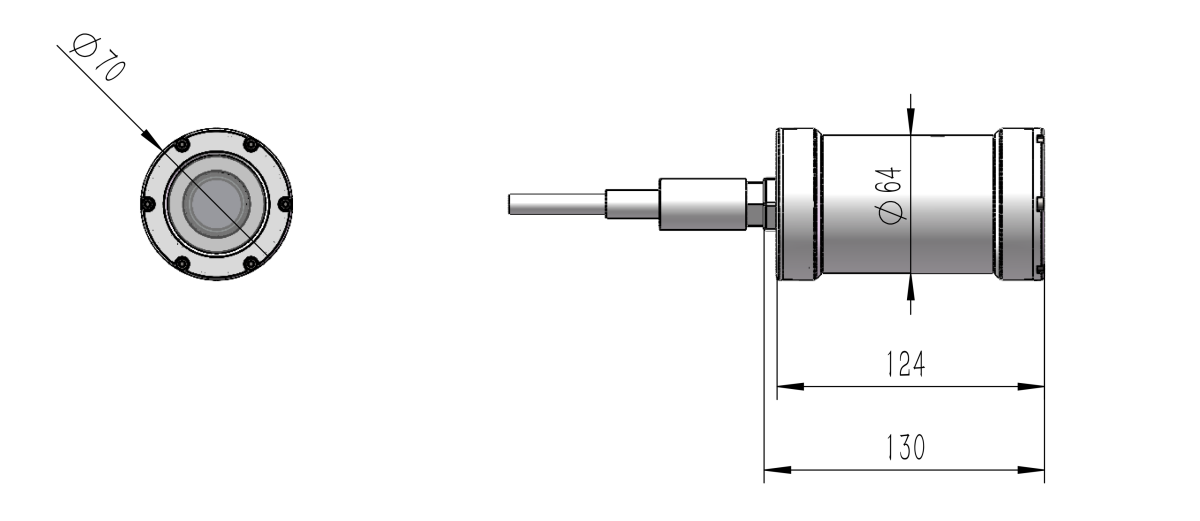

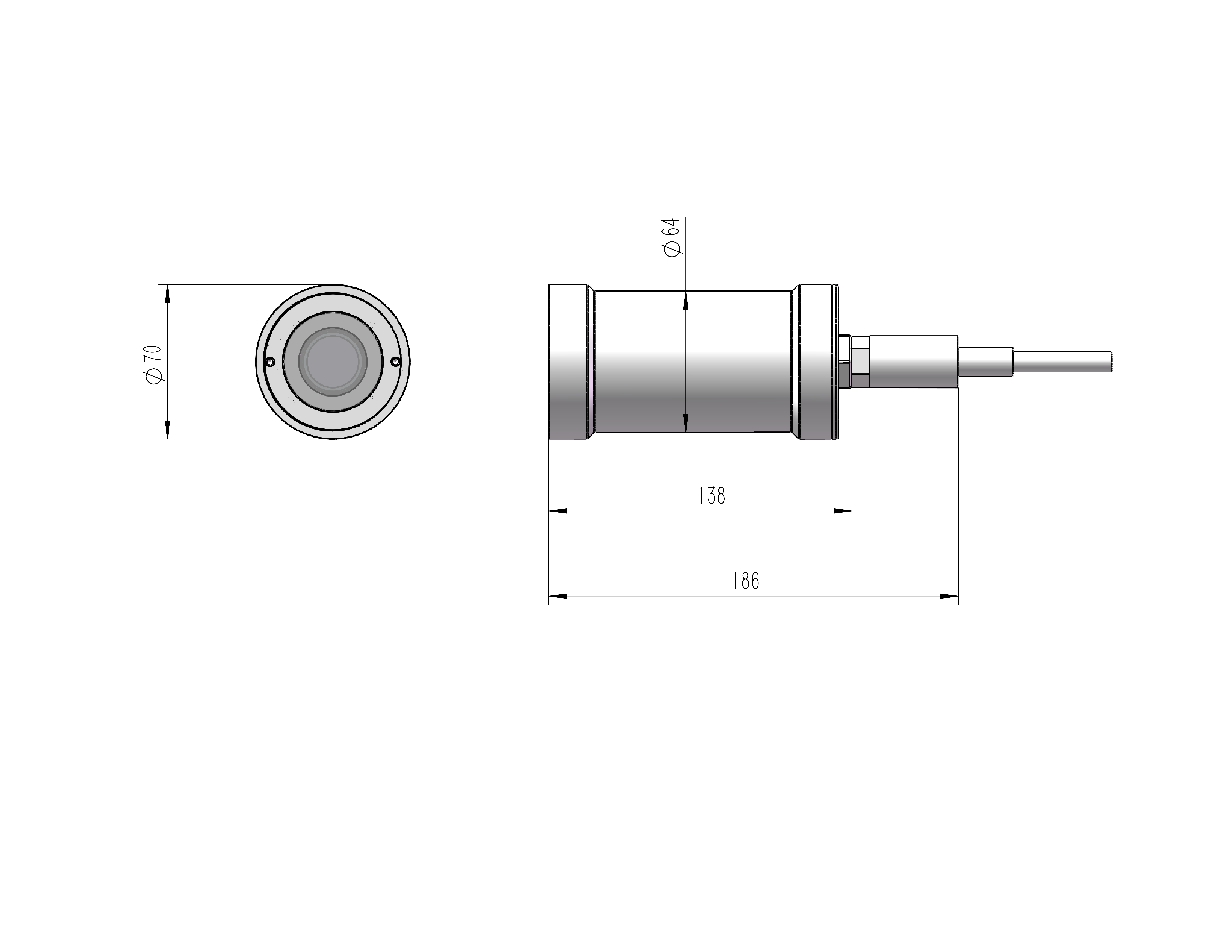

3、Overall Dimension
