T180 Underwater Thruster

Product Specifications

Index

Parameter

Model number and naming schemes

T180-500-5255-300-STS-ROV-EI-AS
①“300”is Rated voltage configuration
②“ROV”is the wiring method，“ROV”is standard side wiring method
③“EI”is built-in electrical configuration
④“AS”is modified configuration for winding preventing

Model version

T180-500-5255-300-STS-ROV-EI-AS（2023V1.0）

Model description

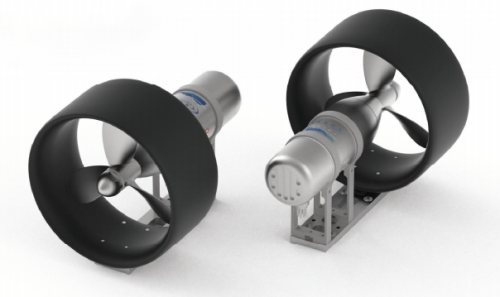

It is an underwater thruster with a propeller diameter of 180mm and a thrust of about 500N.

Sealing method

maintainable fully sealed(The maintenance period is 2000 hours of cumulative working hours or 1 year,depending on the working status of the thruster.)

Sealing structure

double compensation low resistance type rotary dynamic seal structure.

Oil pressure compensation

With

Nominal voltage

300VDC

Maximum mooring thrust
(Nominal voltage)

51kgf（forward） 52kgf（reverse）

Maximum power
(Nominal voltage)

2800W

Operating voltage range

300~400VDC

Motor type

brushless motor with external rotor

Number of motor poles

11

Principal axis diameter

12mm

Principal axis texture

316L stainless steel

Propeller diamete

180mm

Propeller configuration

CW/CCW

Propeller texture

316L stainless steel

Deflector texture

POM（polyformaldehyde)

Thruster shell texture

316L stainless steel

Cable sheath material

TPU(polyurethane)

Cable specification

external diameter：10mm length：1.5m inner core：2×2.5+2×2×0.5mm²
Cable definition：（contact our company to acquire the details of definition ）

Base material

316L stainless steel

Other parts material

316L stainless steel

Driver

built-in

Maximum underwater
working depth

300m

Weight with base

in the air:6570g in the water:4550g

Temperature

Storage temperature:0-40°C
Working temperature:0-35°C
