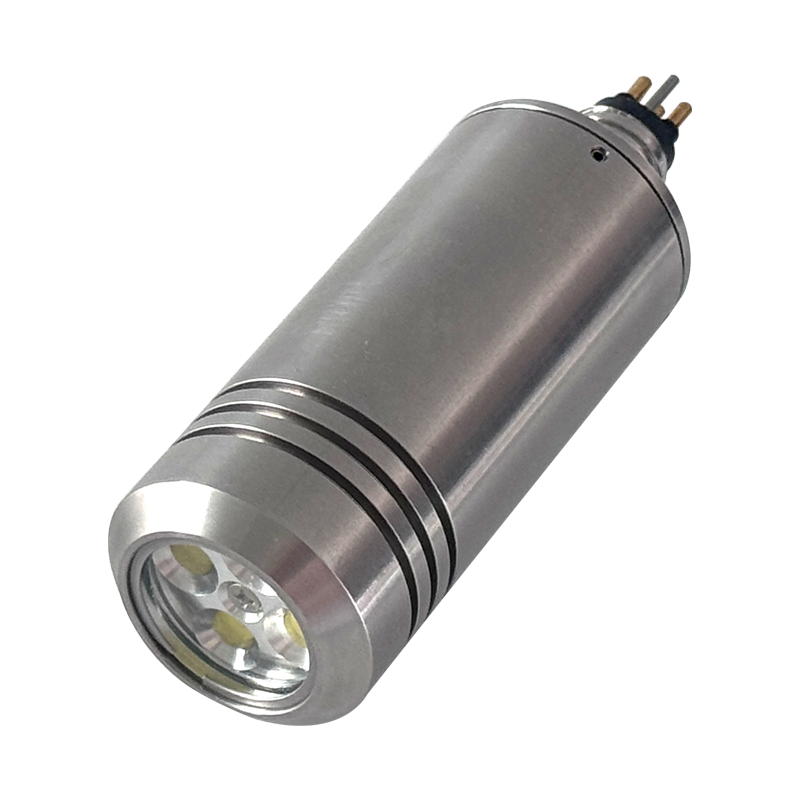

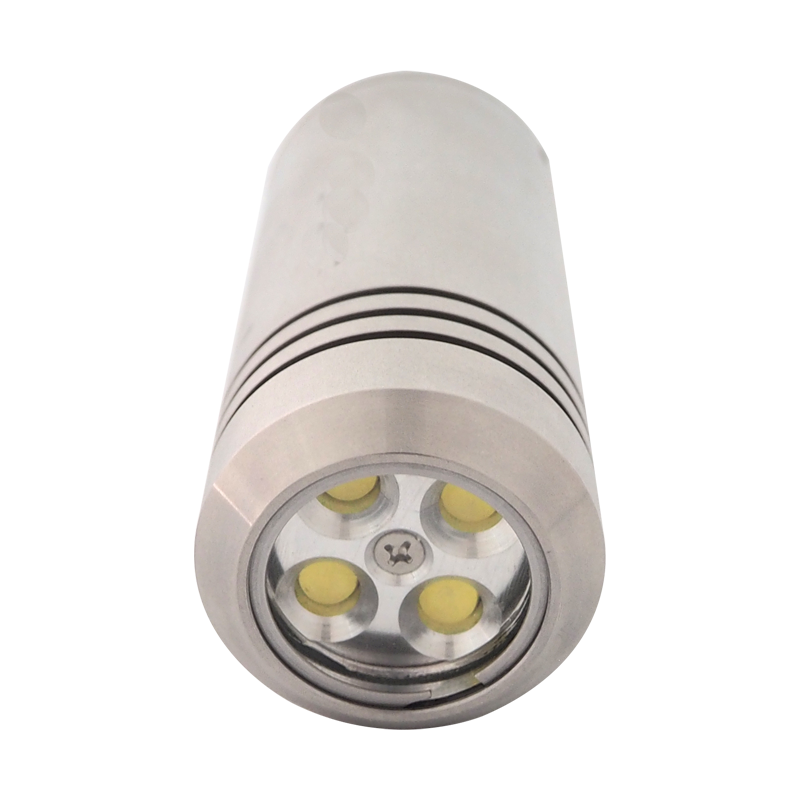

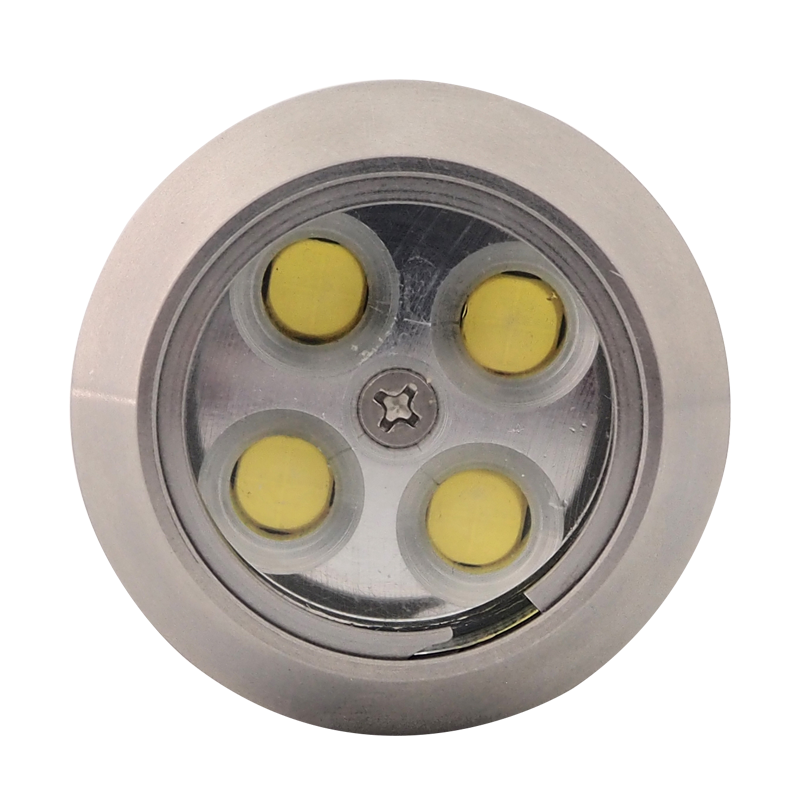

FD-DS6K-L50 Deep-water LED Light

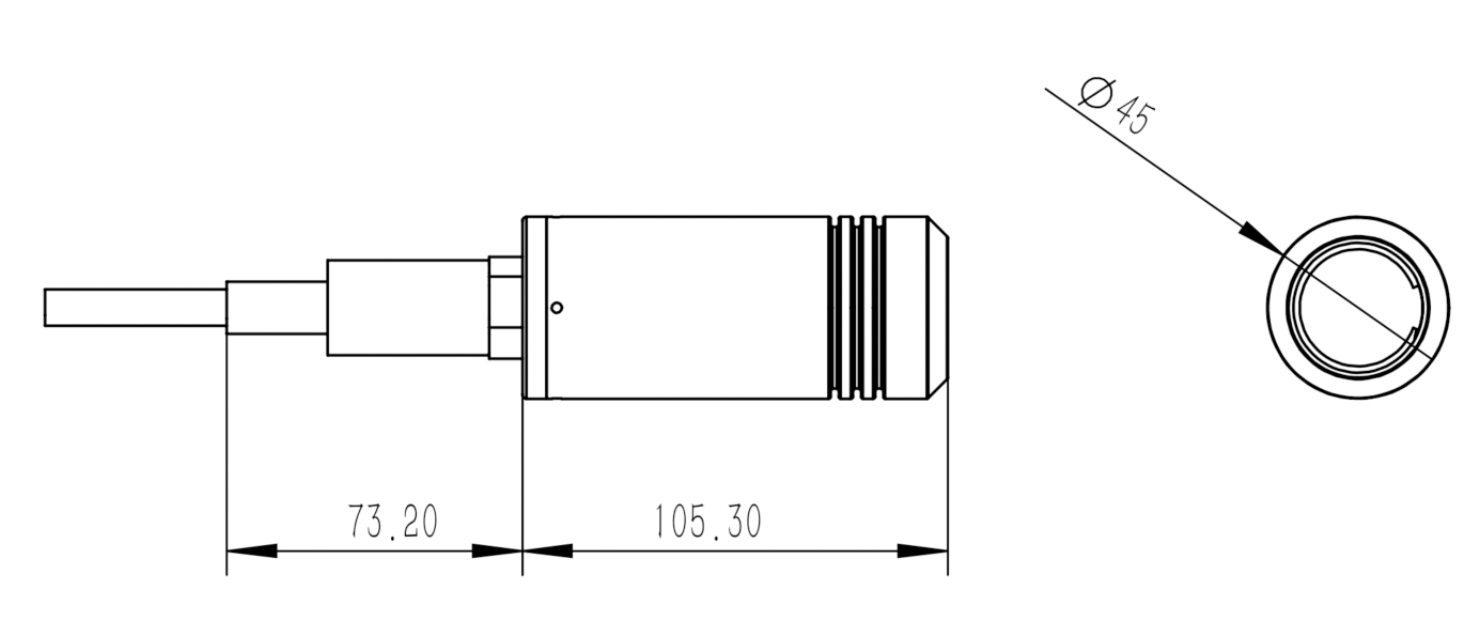

External Dimensions

Product specifications

Product Model

FD-DS6K-L50

Rated Depth

6000 meters

Shell Material

316L stainless steel

Brightness

5000lm, white light

Temperature

6000K

Beam Angle

120° in air

Power

DC24-36V

Power Consumption

50W

Wiring Definitions

1：VCC+； 2：GND ；3：PWM

Weight

in air : 860g；in water : 690g

Working Mode

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.
2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.
3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.

Precautions

This light is specifically designed for underwater operation and must not be operated in air for extended periods

Connector

MCBH3M+MCIL3F，cable length 0.6 m
