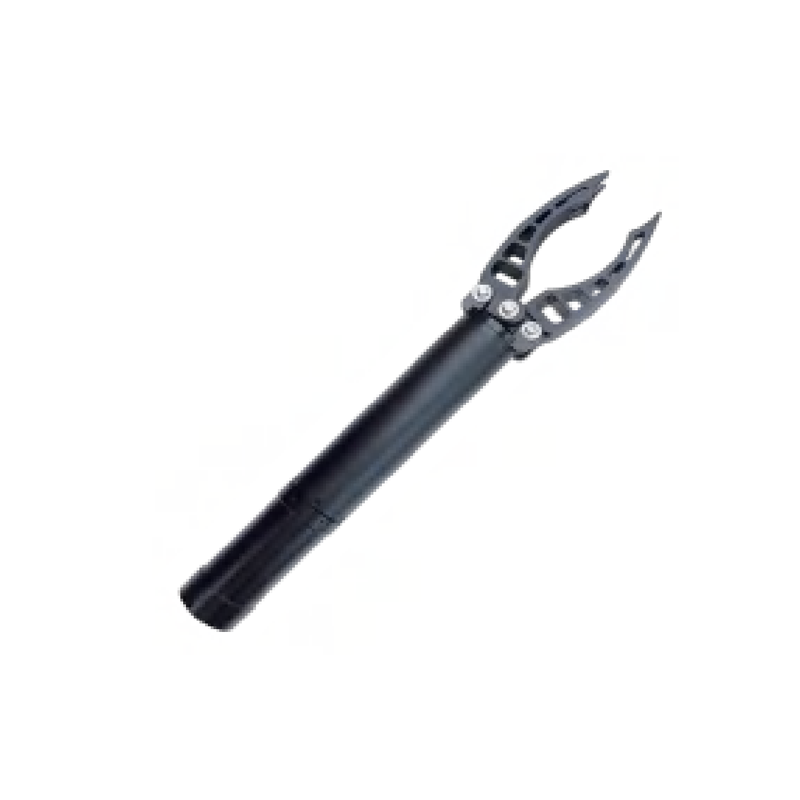

FD-H201 2-Function Manipulator

-Depth Rating:300m
-Material:aluminum alloy
-Dexterity:2 DOF (Rotation + Gripping)
-Clamping force:250N
-Rotation Angle:±360°
-Control Interface:RS485/PWM
-Connector:MCBH4M+MCIL4F

-FD-H201-Gripping
-FD-H201-Cutter
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

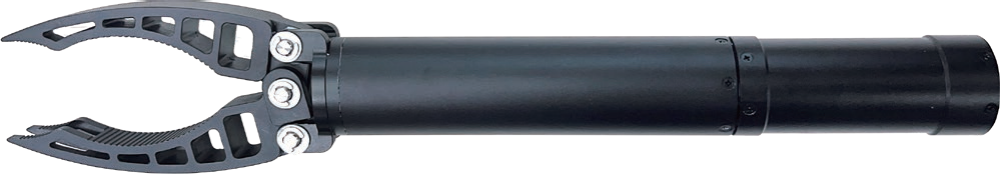

FD-H201 2-Function Manipulator

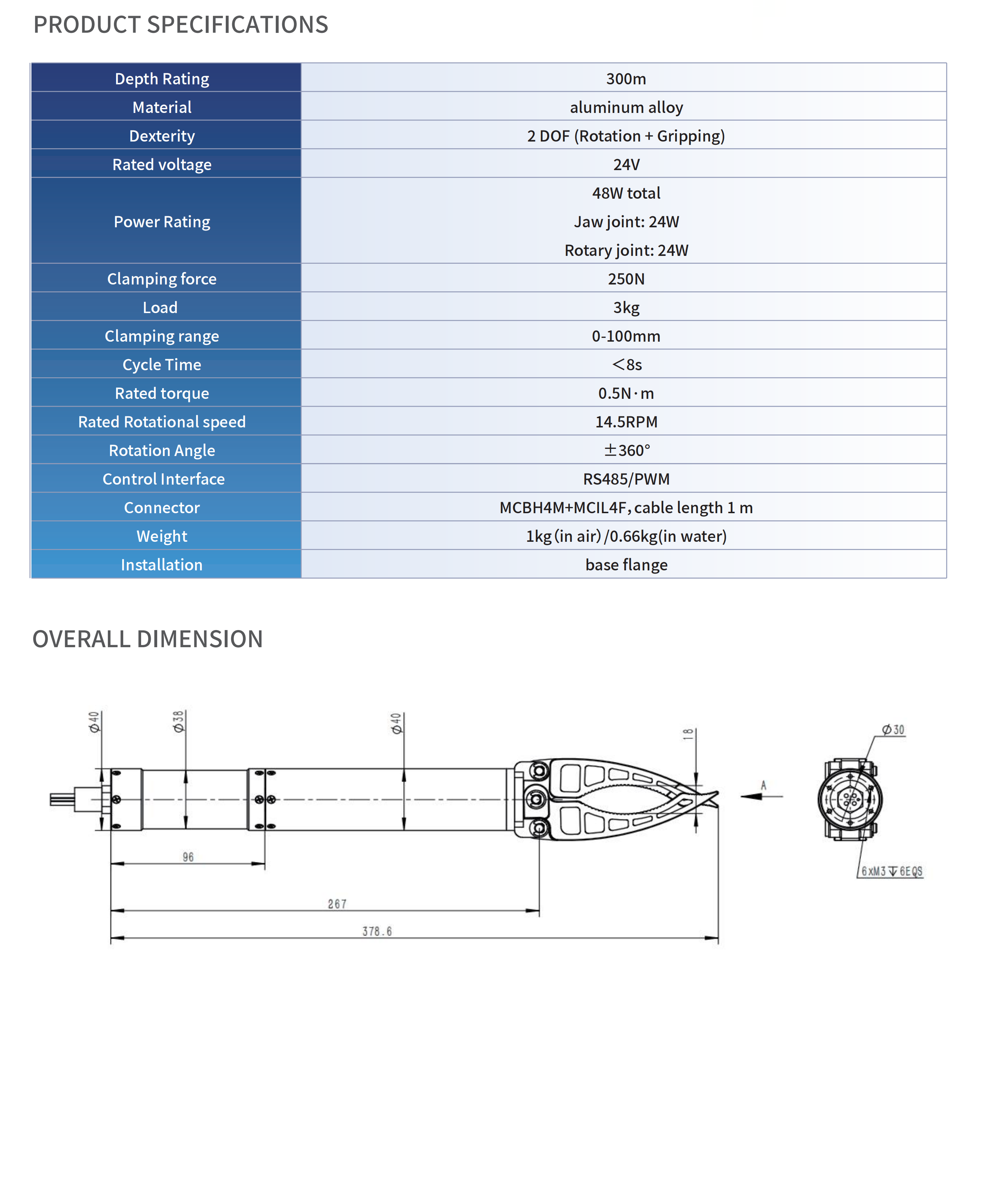

1、Product specification

Depth Rating

300m

Material

aluminum alloy

Dexterity

2 DOF (Rotation + Gripping)

Rated voltage

24V

Power Rating

48W total；Jaw joint: 24W；Rotary joint: 24W

Clamping force

250N

Load

3kg

Clamping range

Gripping：0-100mm；Cutter：0-80mm

Cycle Time

＜8s

Rated torque

0.5N·m

Rated Rotational speed

14.5RPM

Rotation Angle

±360°

Control Interface

RS485/PWM

Connector

MCBH4M+MCIL4F，cable length 1 m

Weight

1kg（in air）/0.66kg(in water)

Installation

base flange

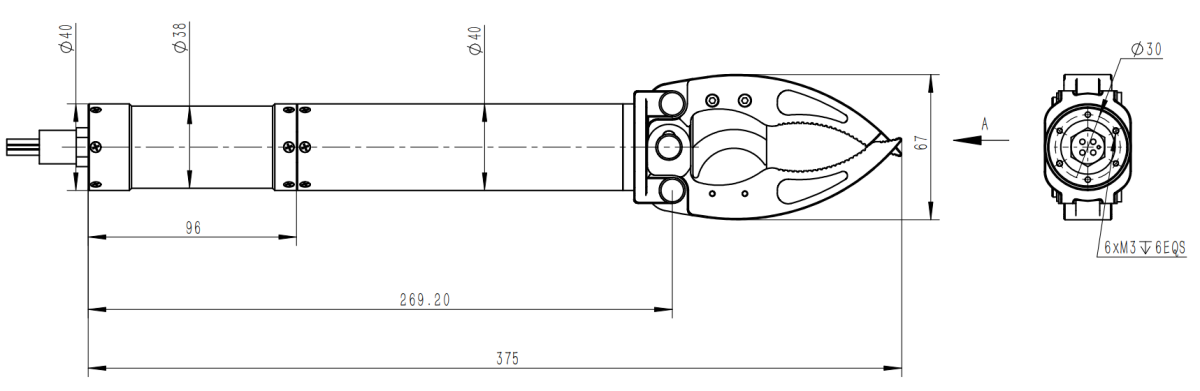

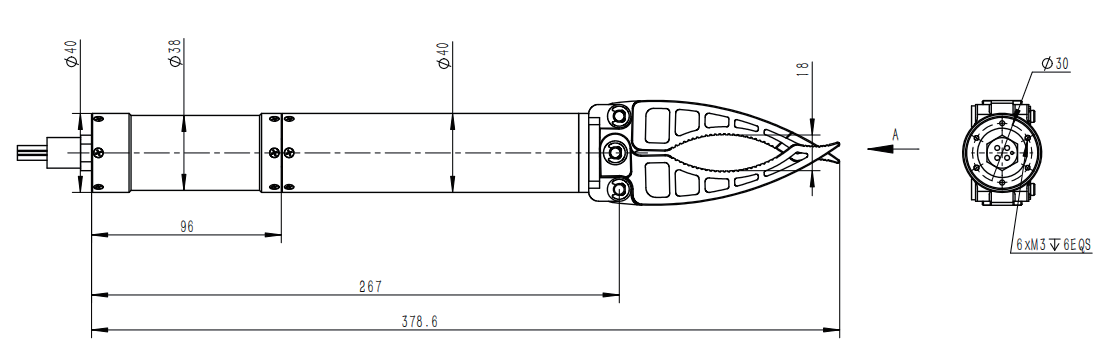

2、Overall dimension

2-Function Manipulator Rated depth 300m Maximum clamping force 250N Rotation + Gripping RS485/PWM control
