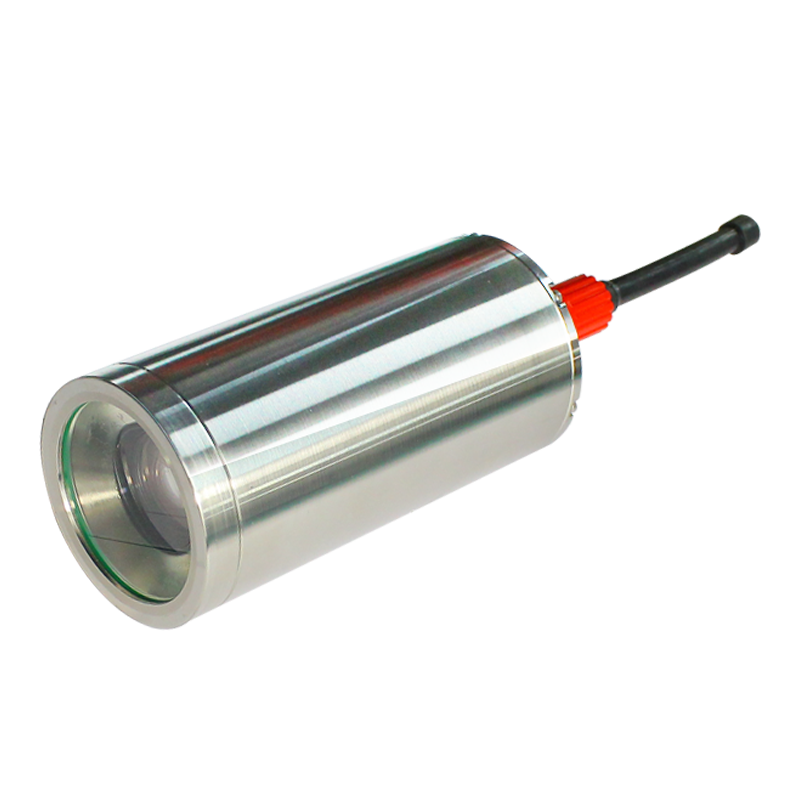

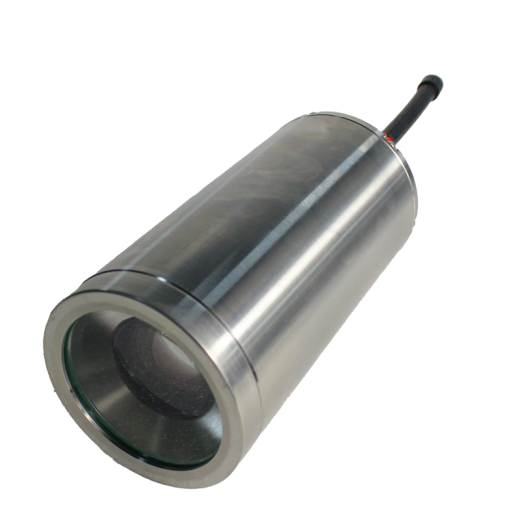

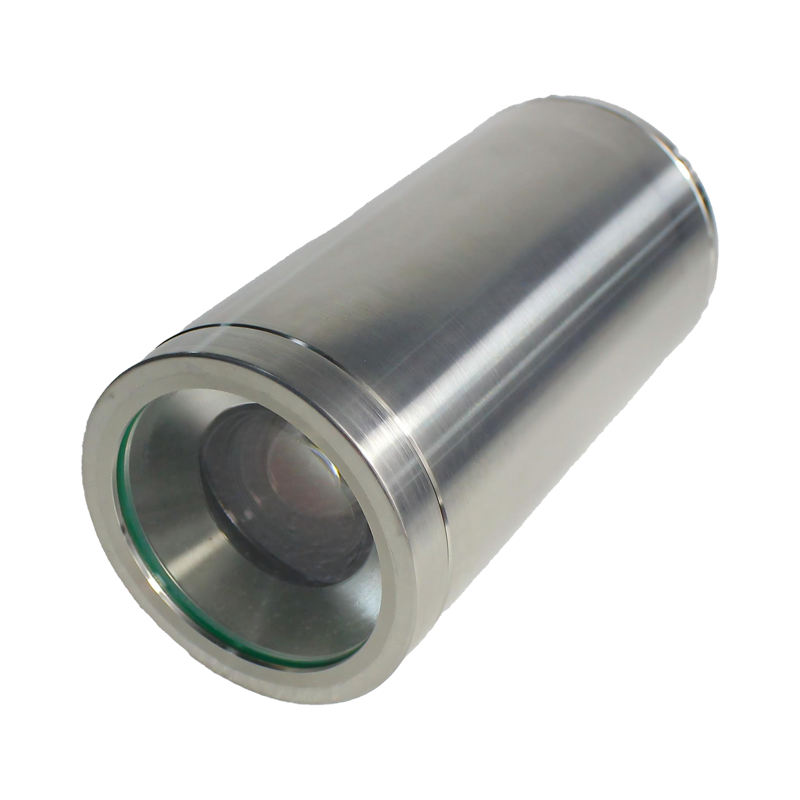

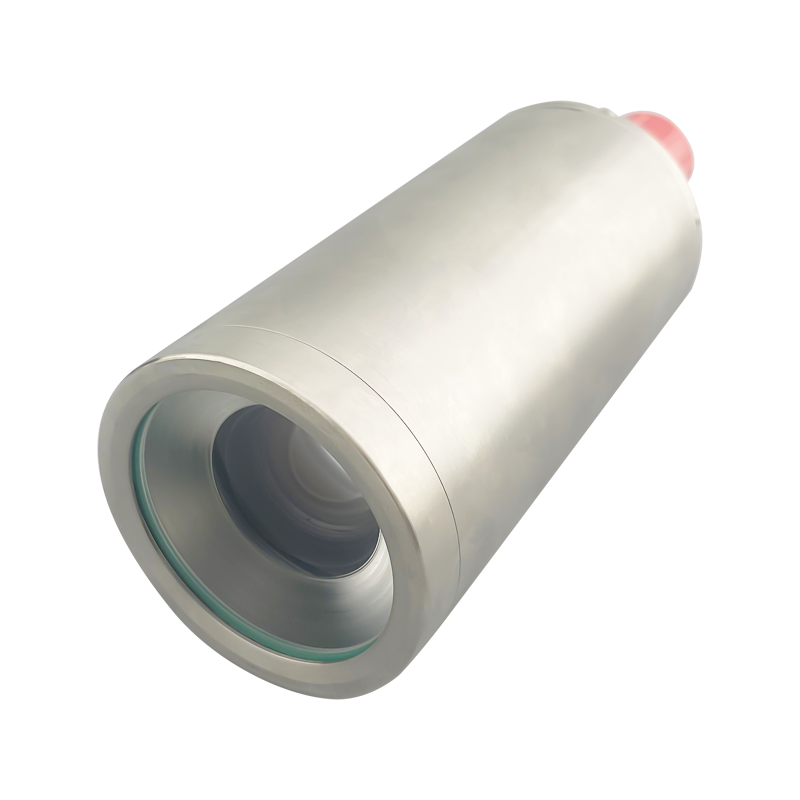

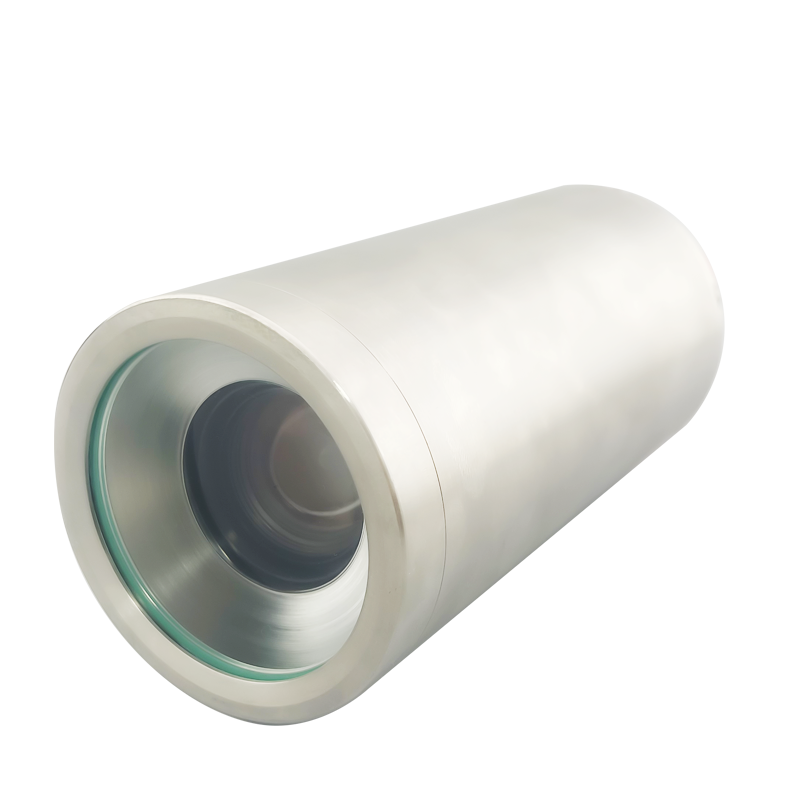

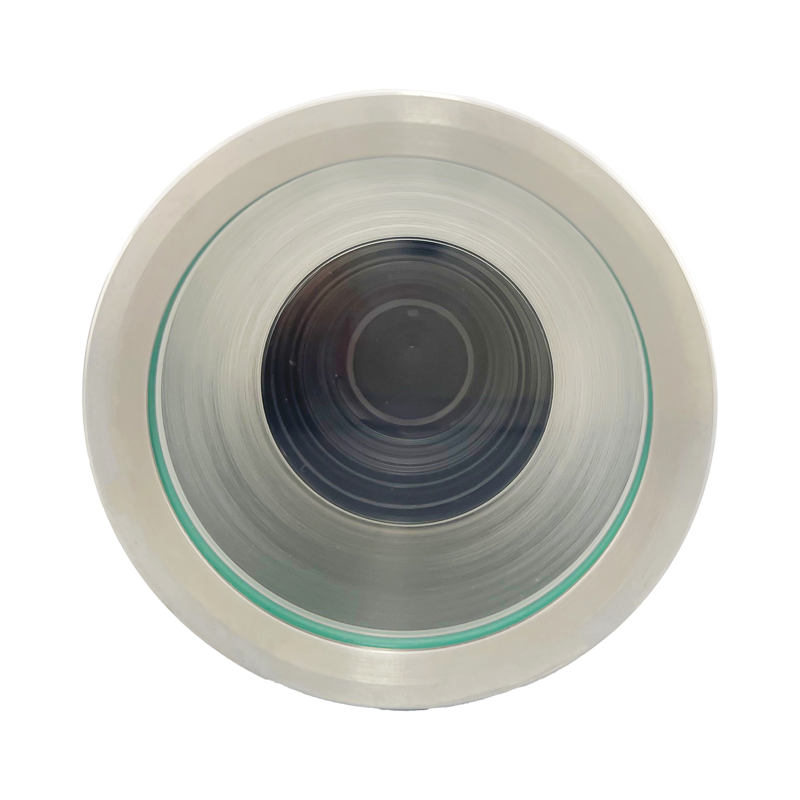

FD-AC-02B21 Deep Water Zoom SDI Camera

-Effective pixel 1920 × 1080, horizontal resolution 1000TVL
-SDI signal transmission
-Coaxial cable and BNC interface connection
-4.7-47mm 10x optical zoom, 12x digital zoom
-Titanium alloy housing,
-the maximum working depth of 3000 meters

Quantity:
Availability:





Inquire Add to Basket

Product specifications
Product Model	FD-AC-02B21
Rated Depth	3000m
Shell Material	Titanium alloy
Image Sensor	1/3"Progressive CMOS
Lens	4.7-47mm (10x optical zoom, 12x digital zoom)
Horizontal perspective	60.9°-6.4°(in air)
Minimum visible distance	1mm
Scanning system	16:9 line by line scan
Synchronization system	Internal synchronization
Resolution	1920×1080
Horizontal resolution	1000TVL
Minimum Illumination	0. 2Lux (daytime)，0. 005Lux ( DSS ON)
Signal type	SDI
Control mode	RS485
数据	8 bits, 1 stop bit, no parity, 2400 ~ 115200bps
Power	DC12V-24V
Operating Temperature	-10~50℃
Power Consumption	MAX 5W
Connector	Dual-headed 4-pin power + coaxial waterproof connector， Socket thread specification: 1/2-20 UNF internal
Weight	in air：1430g；in water：730 g
