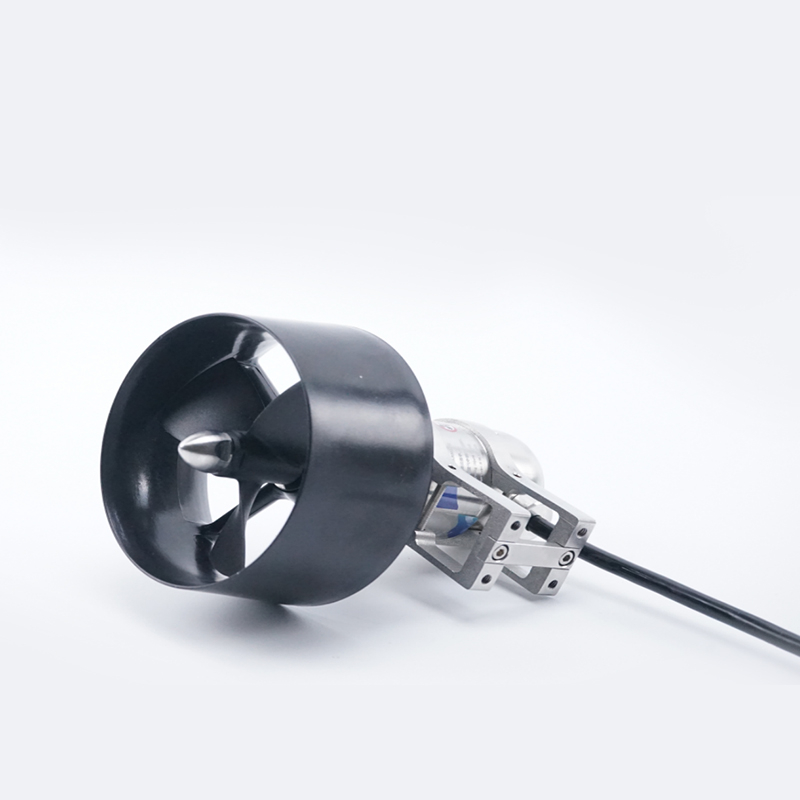

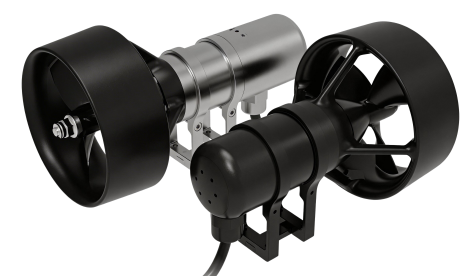

T080 Underwater Thruster

-6.7 kgf thrust，maximum power 325W
-Fully sealed with oil pressure compensation ,rated depth 300m
-Brushless motor,，support voltage11.1~25.2VDC
-Aluminum alloy or 316L ss pressure shell
-Customizable built-in ESC version

Quantity:
Availability:





Inquire Add to Basket

T080 Underwater Thruster

Product Specifications
Index	Parameter
Model	T080-60-AL/T080-60-316L
Sealing method	maintenance-free full-sealing
Sealing Structure	Double-compensated low-resistance rotary dynamic seal structure
Oil pressure compensation	With

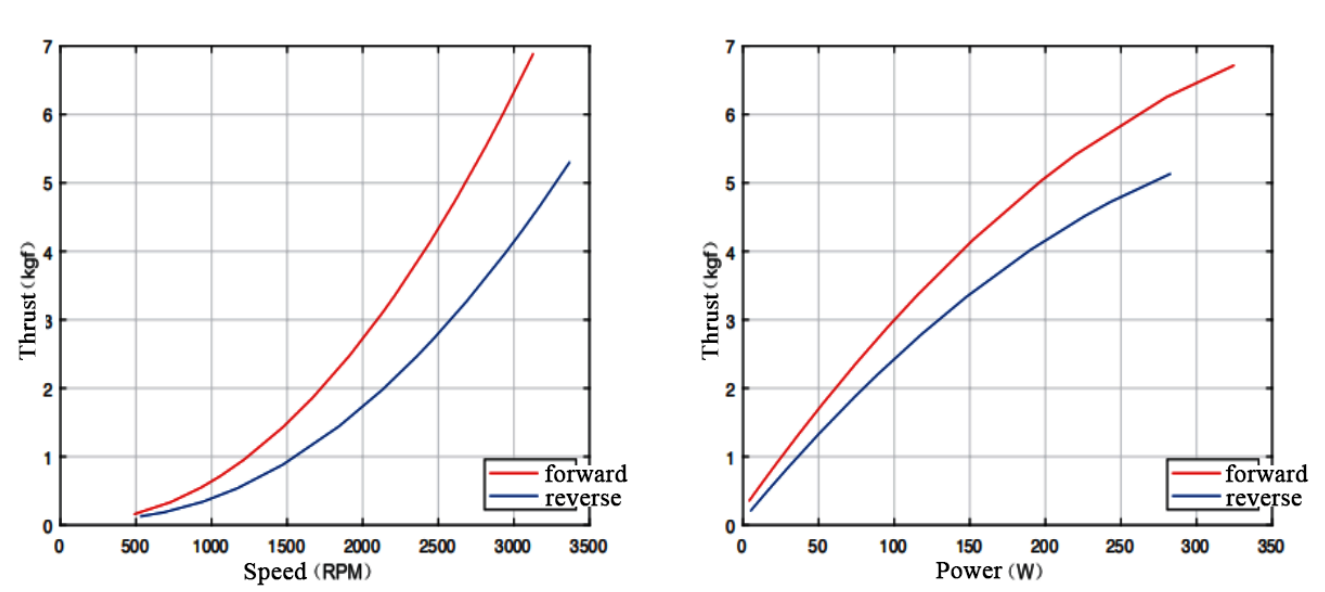

Rated thrust	6.7kgf（forward） 5.2kgf（reverse）
Rated power	325W
Rated voltage	24VDC
Working voltage	11.1-25.2VDC
Moto type	exterior rotor brushless motor
Motor pole pairs	7
Main shaft diameter	5mm
Main shaft material	316L stainless steel
Blade diameter	80mm
Blade configuration	CW/CCW
Blade material	Carbon fiber nylon
Shroud material:	PC
Thruster shell material	aluminum alloy or 316L stainless steel
Cable iacket material	TPU
Cable specification	external diameter:6mm;length:1m ;inner core:3x1.0mm²
Base material	aluminum alloy or 316L stainless steel
. Other parts material	316L stainless steel
Driver	external
Rated depth	300m
Weight	T080-60-AL：in air :560g ;in water :330g T080-60-316L：in air :750g; in water:505g
Temperature	storage:0-40C working:0-35°C
