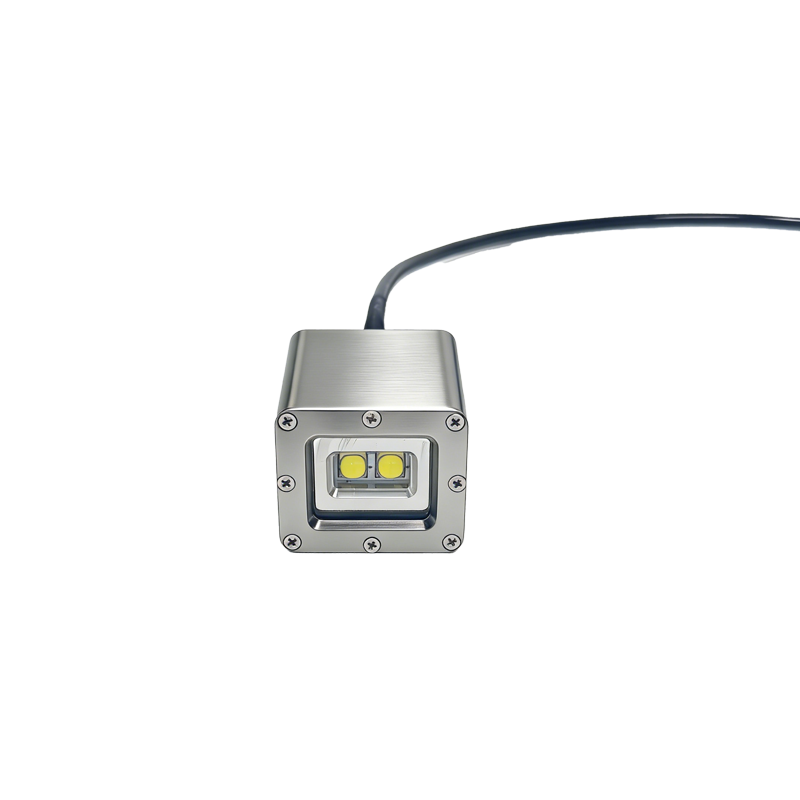

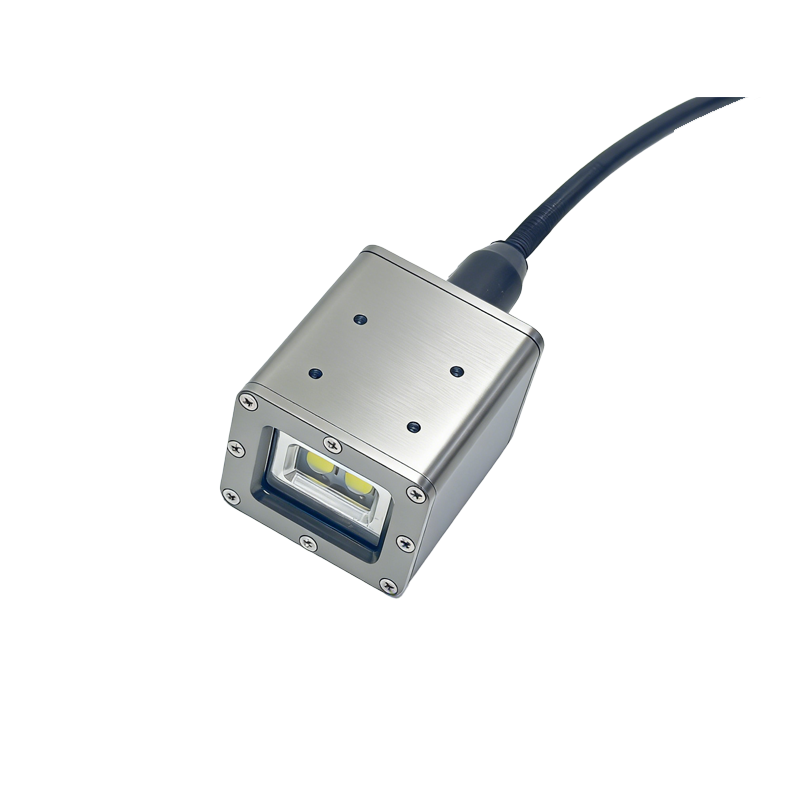

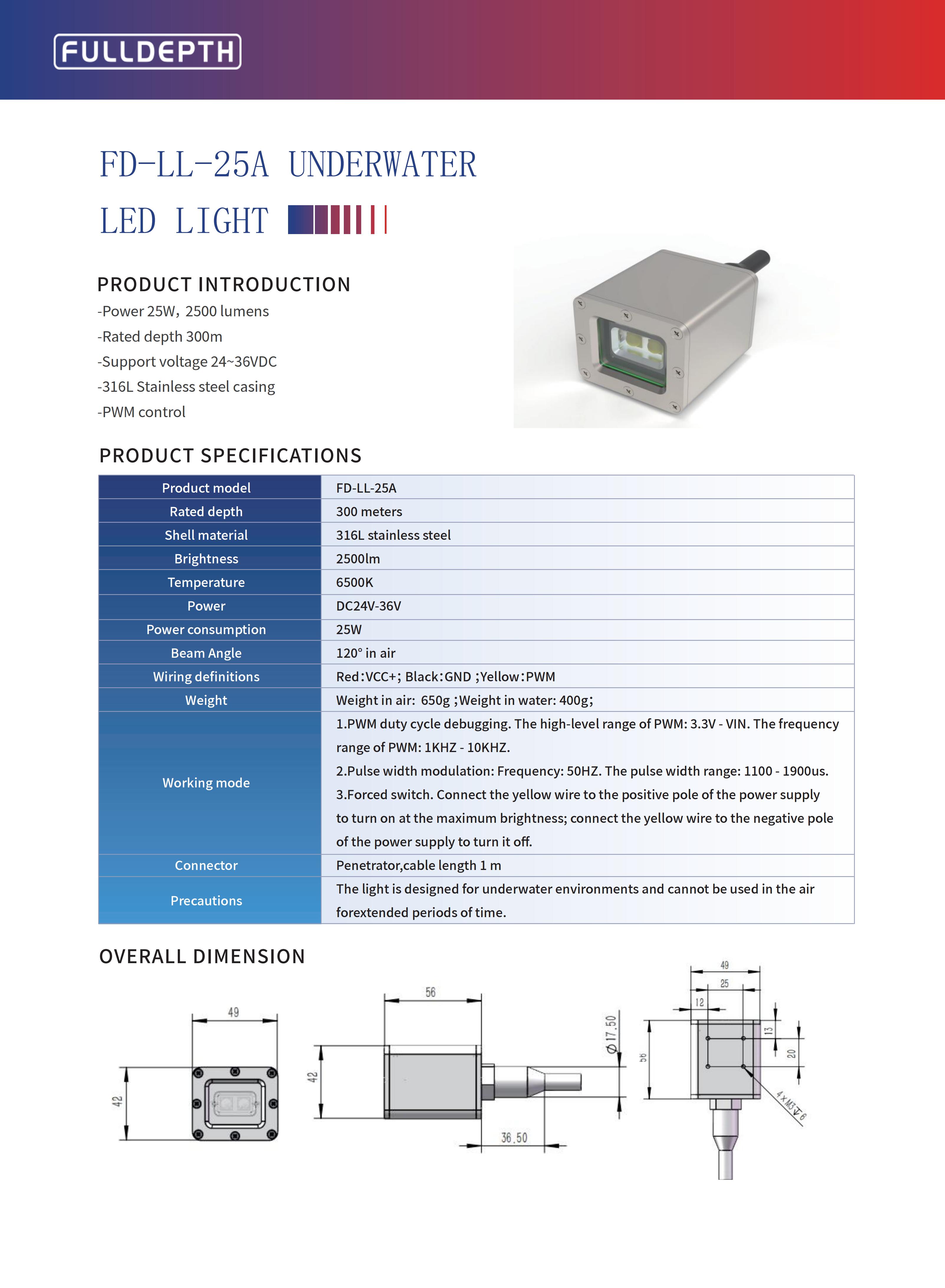

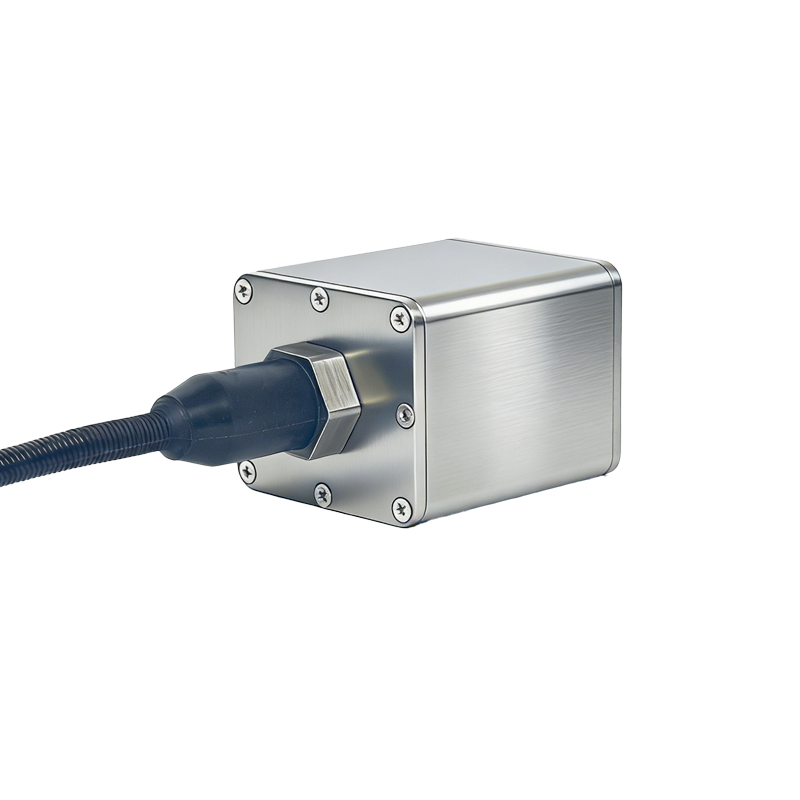

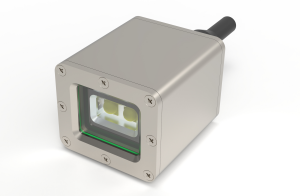

FD-LL-25A Underwater LED Light

1、Product Introduction

-Power 25W， 2500 lumens
-Rated depth 300m
-Support voltage 24~36VDC
-316L Stainless steel casing
-PWM control

2、Product Specifications

Product model

FD-LL-25A

Rated depth

300 meters

Shell material

316L stainless steel

Brightness

2500lm

Temperature

6500K

Power

DC24V-36V

Power consumption

25W

Beam Angle

120° in air

Wiring definitions

Red：VCC+； Black：GND ；Yellow：PWM

Weight

Weight in air: 650g ；Weight in water: 400g；

Working mode

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.
2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.
3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.

Connector

Penetrator,cable length 1 m

Precautions

The light is designed for underwater environments and cannot be used in the air for extended periods of time.

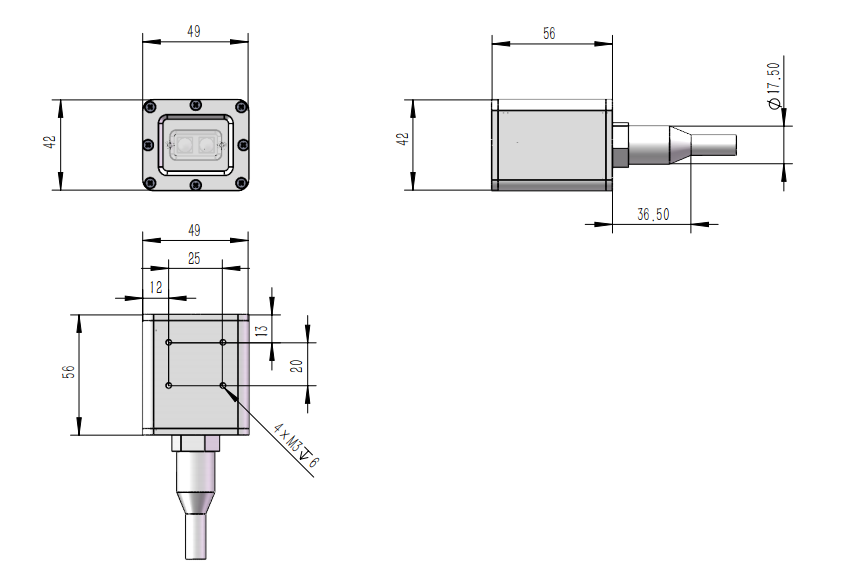

3、Overall Dimension
