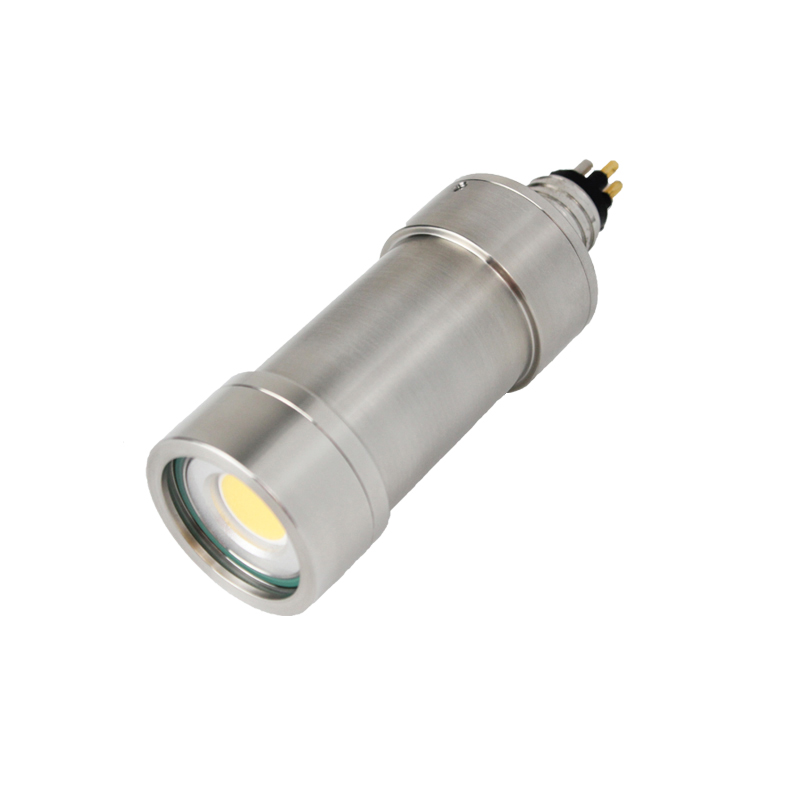

FD-LL-035 Underwater LED Light

1、Product Introduction

-Power 35W，3500 lumens
-Rated depth 300m
-Support voltage 24~36VDC
-Mandatory lighting mode, PWM control

2、Product specifications

Product Model

FD-LL-035

Rated Depth

300m

Shell Material

FD-LL-035-AL：aluminum alloy
FD-LL-035-SS：316L

Brightness

3500lm, white light

Temperature

6000K

Power

DC24V-36V

Power Consumption

35W

Beam Angle

120° in air

Wiring Definitions

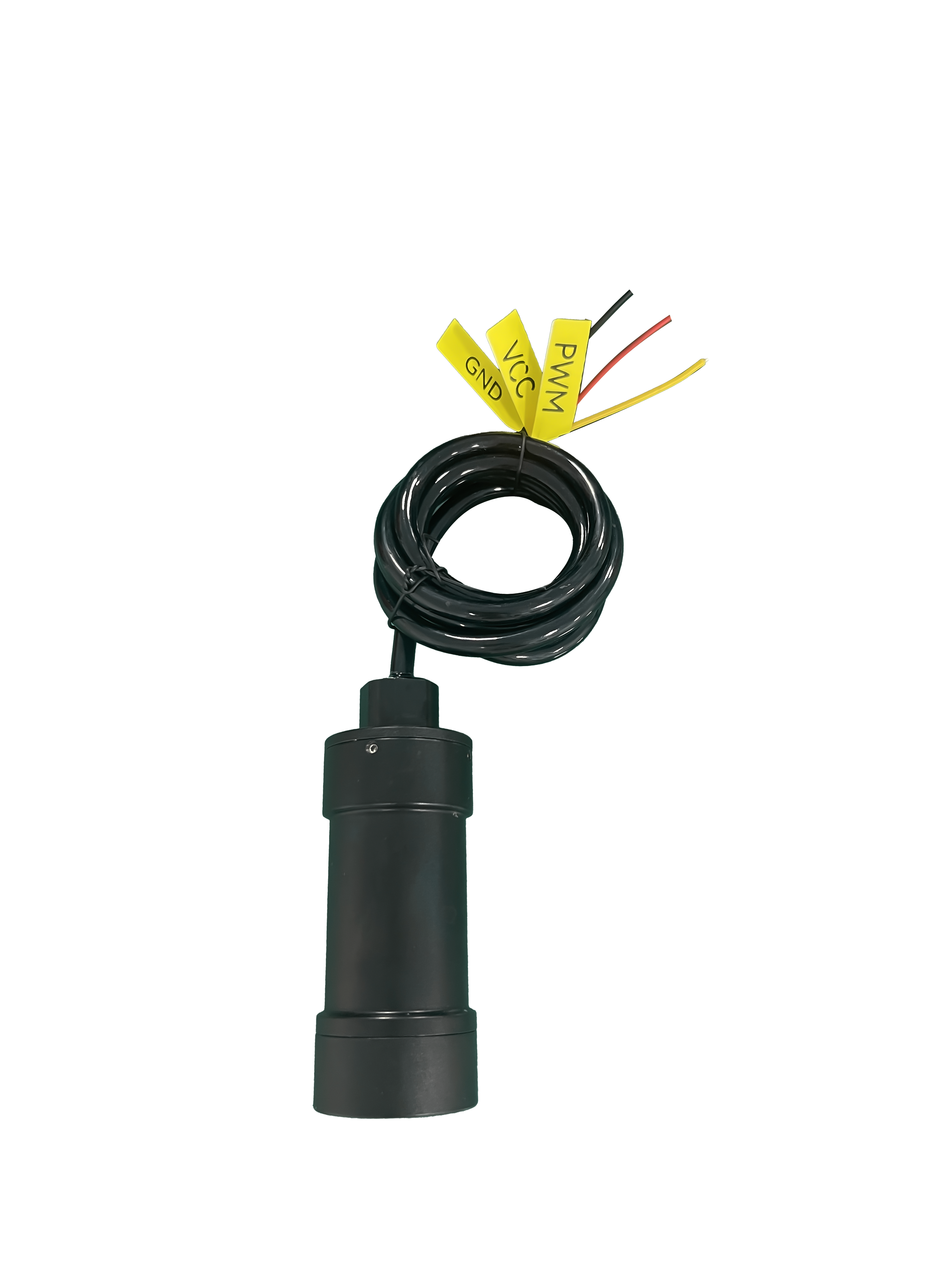

Red：VCC+； Black：GND ；Yellow：PWM

Weight

FD-LL-035-AL：in air：240g；in water 130g
FD-LL-035-SS：in air：490g；in water：380g

Working Mode

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.
2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.
3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.

Precautions

This light is specifically designed for underwater operation and must not be operated in air for extended periods

Connector

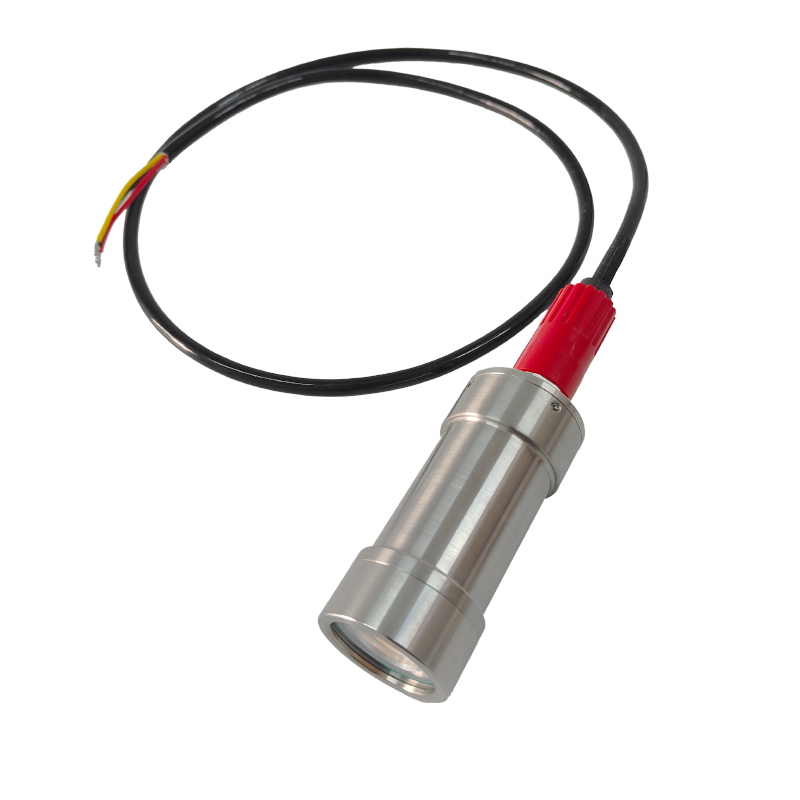

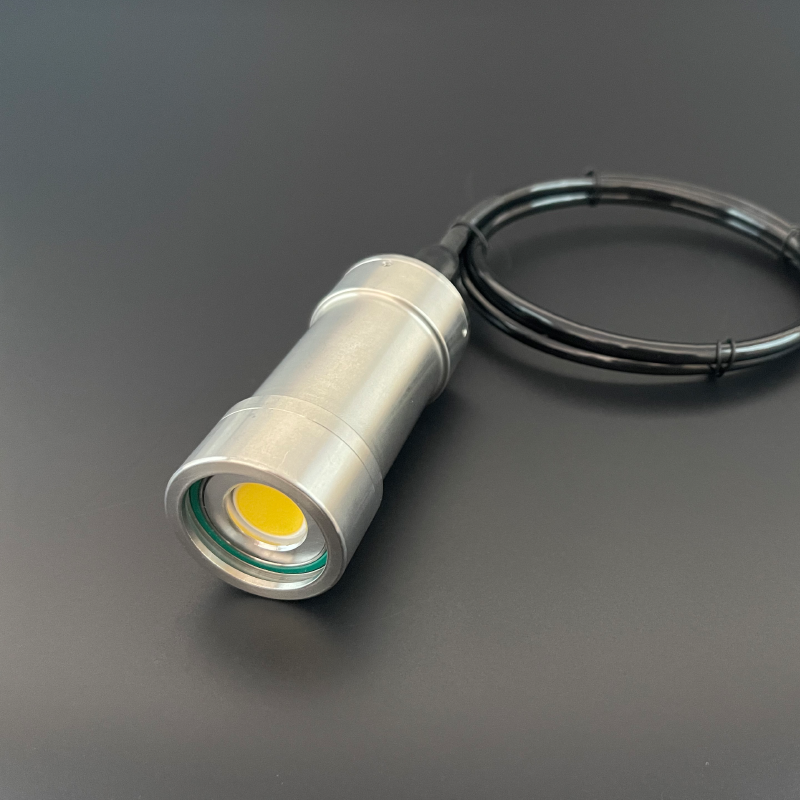

FD-LL-035-AL：Penetrator,cable length 1 m

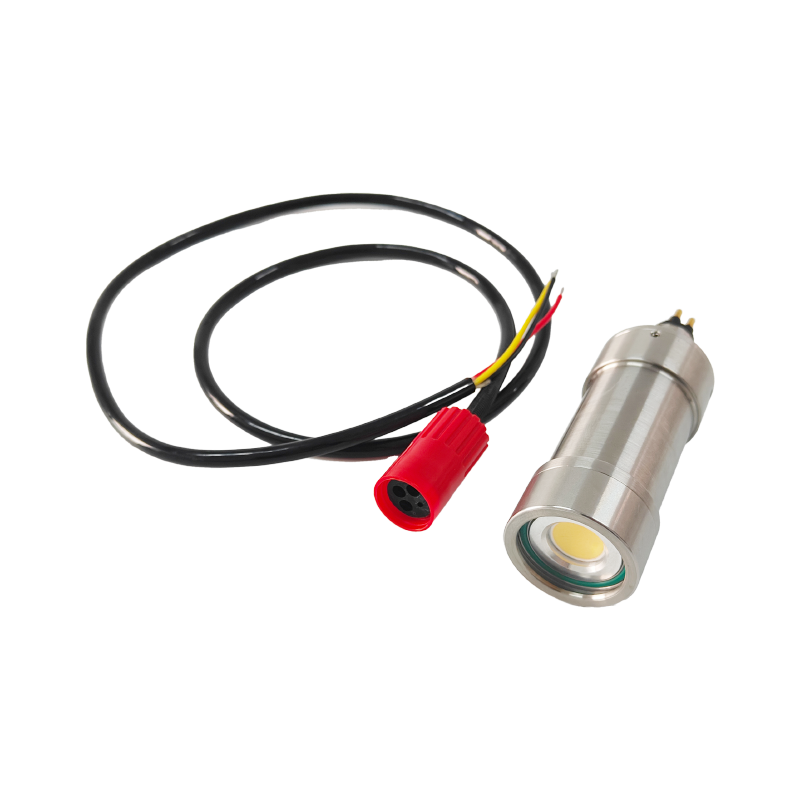

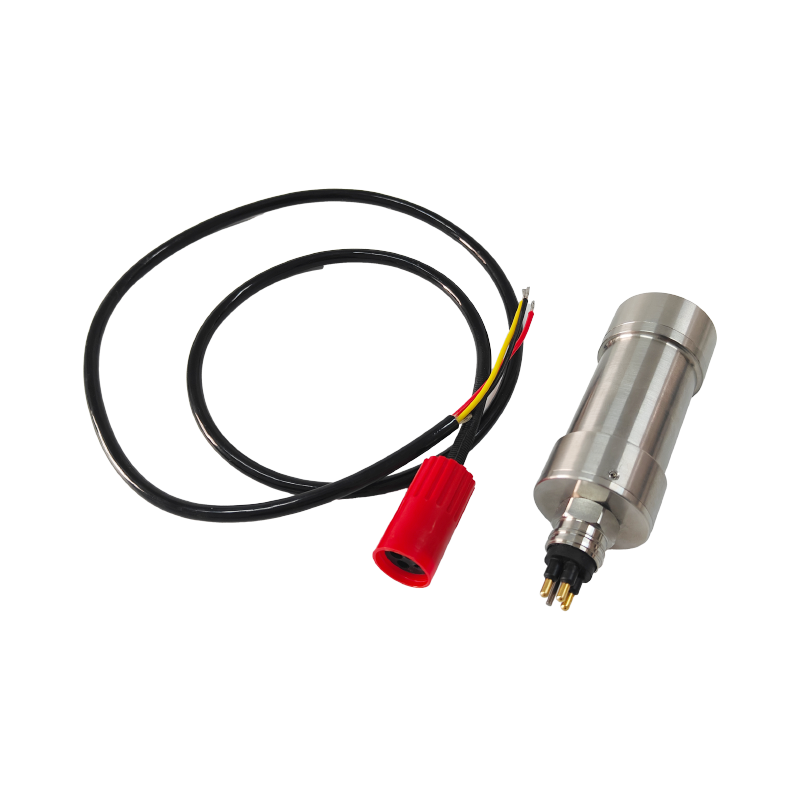

FD-LL-035-SS：MCBH3M+MCIL3F，cable length 1 m

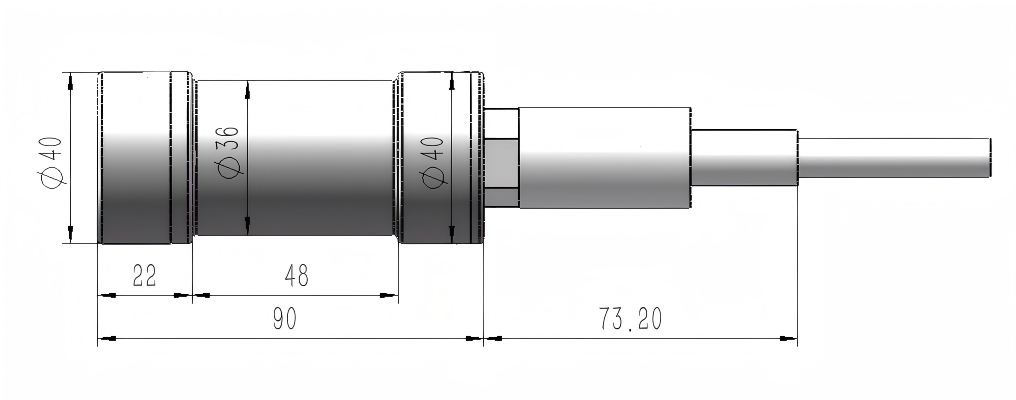

3、Overall Dimension
