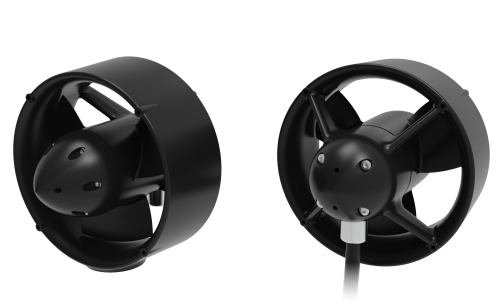

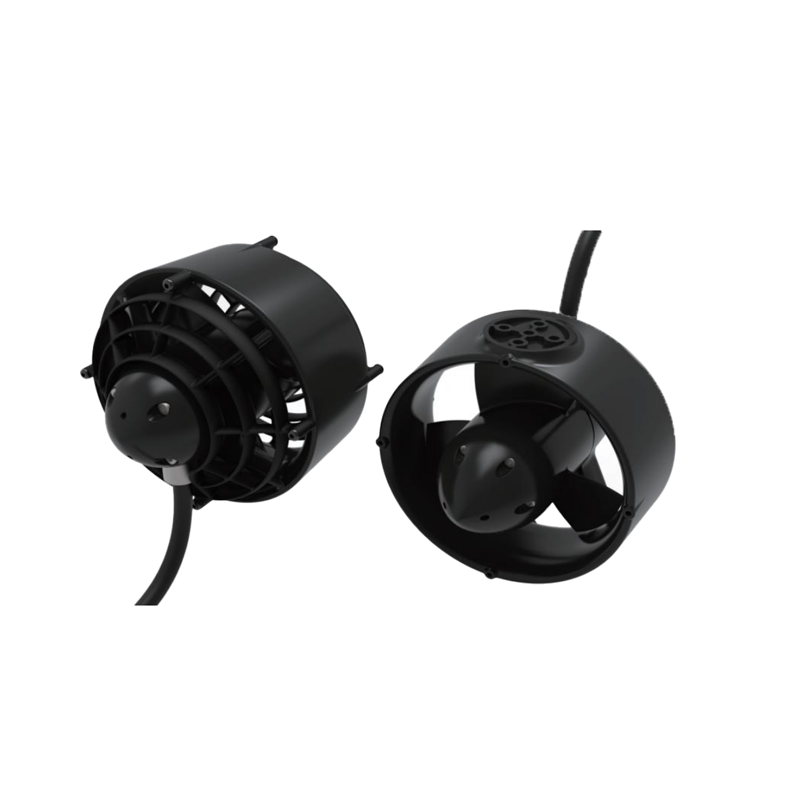

FD-M022 Underwater Thruster

-Rated super thrust 22kgf(48V) / 19.2kgf(24V)
-Maximum power: 1500W(48V) / 1200W(24V)
-Fully sealed; Rated depth: 300m
-Brushless motor; Supply voltage: 11.1~25.2 VDC
-316L stainless steel (SS) pressure shell

Quantity:
Availability:





Inquire Add to Basket

FD-M022 Underwater Thruster

1、Product Specifications
Index	Parameter
Model	FD-M022
Sealing Method	maintenance-free full-sealing
Sealing Structure	Double-compensated low-resistance rotary dynamic seal structure
Oil Pressure Compensation	with
Rated voltage	24VDC/48VDC

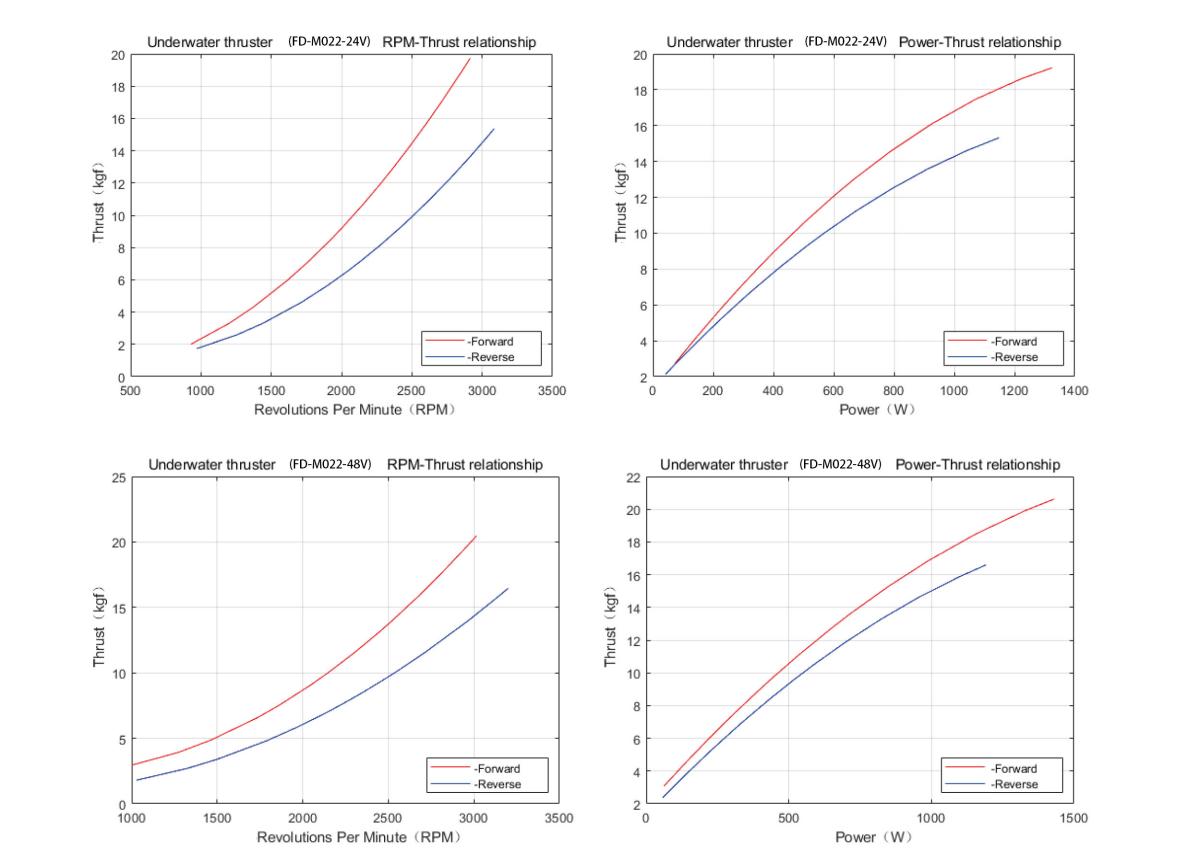

Maximum thrust（Rated voltage）	FD-M022-24V： 19.2kgf（forward） 16kgf（reverse）； FD-M022-48V： 22kgf（forward） 17kgf（reverse）；
Maximum power（Rated voltage）	FD-M022-24V：1200w FD-M022-48V：1500w
Working voltage	FD-M022-24V：11.1-25.2VDC FD-M022-48V：22.2-50.4VDC
Moto type	exterior rotor brushless motor
Motor pole pairs	7
Main shaft diameter	10mm
Main shaft material	316L stainless steel

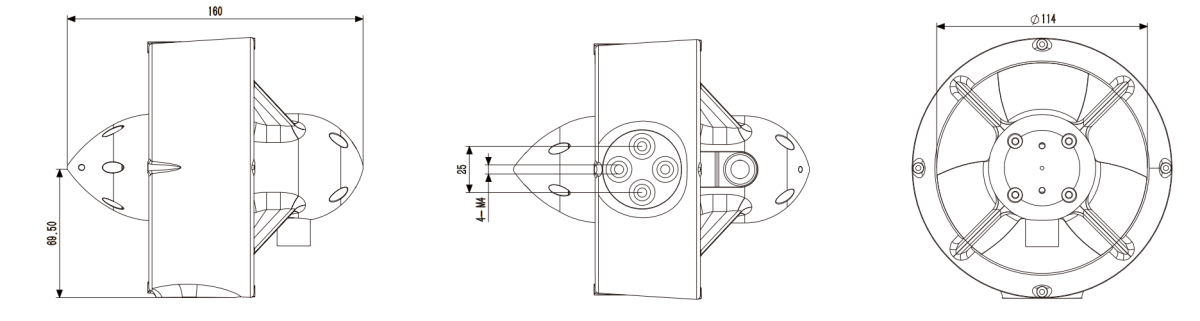

Blade diameter	114mm
Blade configuration	CW/CCW
Blade material	US：Aluminum alloy BE：Carbon fiber nylon
Shroud material:	Fiberglass nylon
Thruster shell material	Aluminum alloy
Cable iacket material	TPU
Cable specification	CHT200-（US/BE）：external diameter：6mm ； length：1m inner core：3×1.0mm² CHT200-（US/BE）-PRO：external diameter：6mm ； length：1m inner core：2×1.0mm²+2×0.5mm²
. Other parts material	316L stainless steel
Driver	external
Rated depth	300m
Weight without base	in air :1860g ;in water 1230g
Temperature	storage:0-40C working:0-35°C
