Mini ROV

1. Small and light, easy to use
2. Modular design, simple disassembly and assembly, easy to expand
3. Adopt open source system, rich network tutorial resources and easy to get started
4. Real-time online technical guidance

Quantity:
Availability:





Inquire Add to Basket

Product Specifications
Index	Parameter
Max Depth	50m
Thruster Configuration	4T：2 horizontal 2 vertical 6T：4 horizontal 2 vertical 8T：4 horizontal 4 vertical
Single Thruster Thrust	1~3kg
Camera	1080P 2M Pixel IP Camera，tilt ±25°
Lights and Control	two 1500 lumens fill lights, PWM light and shade adjustment
Remote Control	xbox or compatible controller
Buoyant Material	solid buoyant material
Material Structure	HDPE frame, PC injection molding waterproof compartment, aluminum alloy flange
Counterweight	single 200g
Piercing Joint	Aluminium alloy pass through joint
Cable Standard	50m Zero Buoyancy Cable
Battery Parameters	4S power battery, 9Ah, with charger
Total Weight	about 5kg

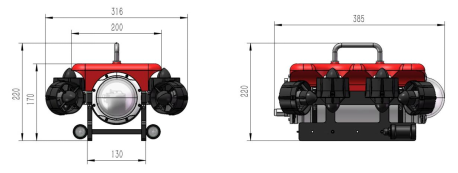

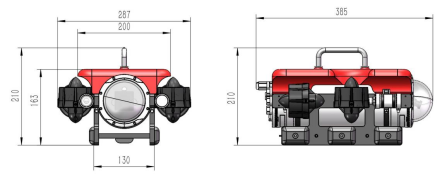

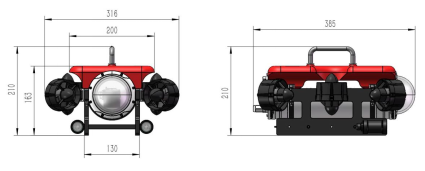

Overall Dimension

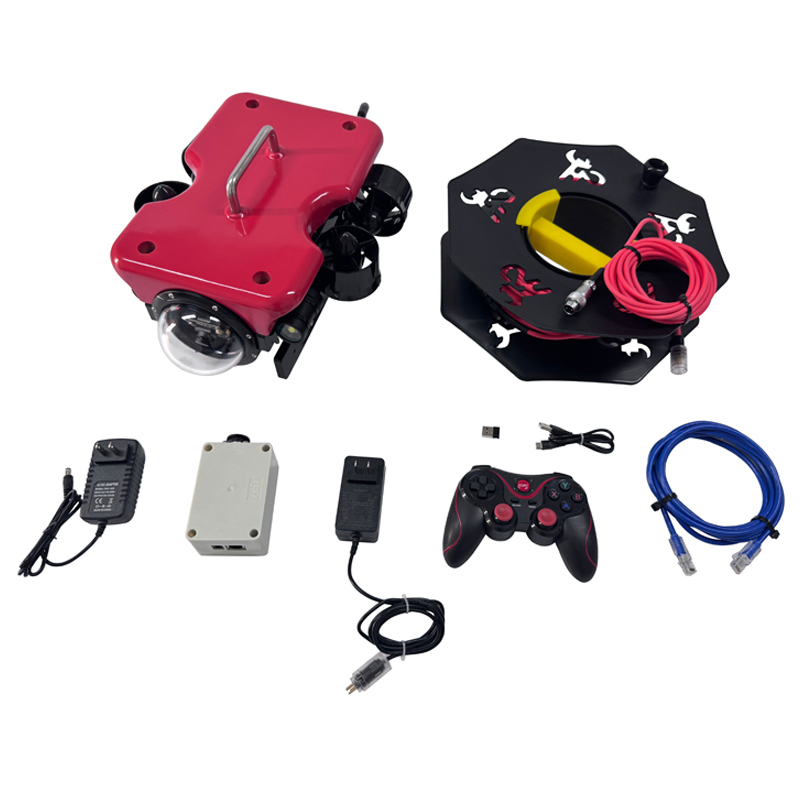

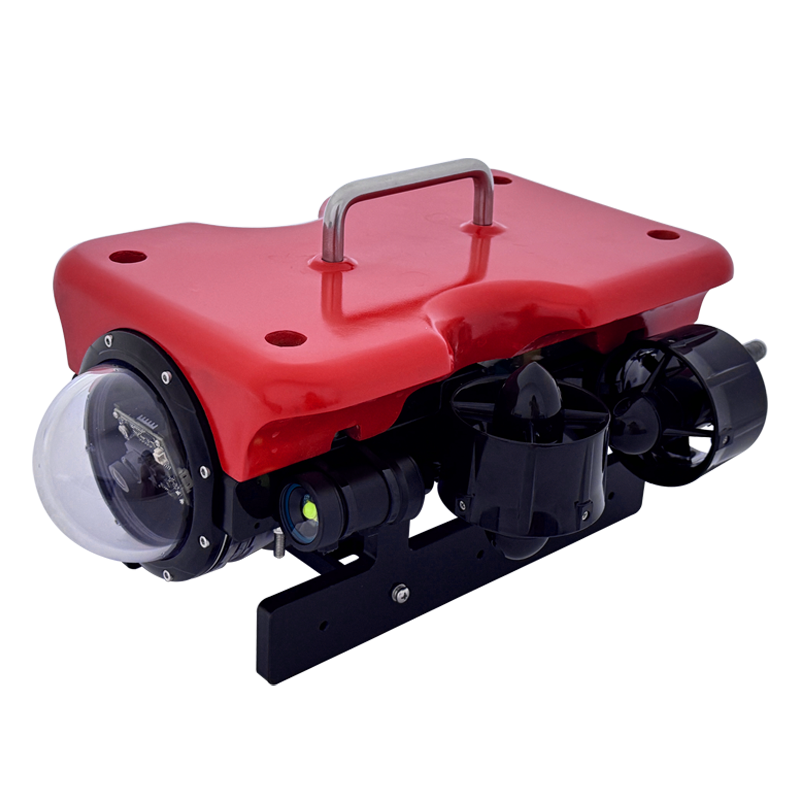

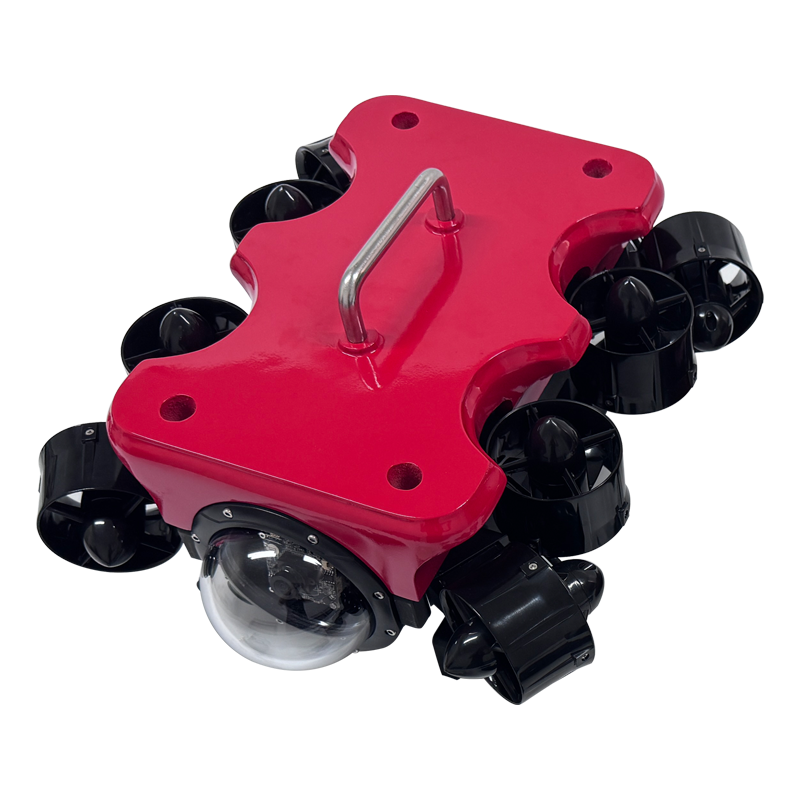

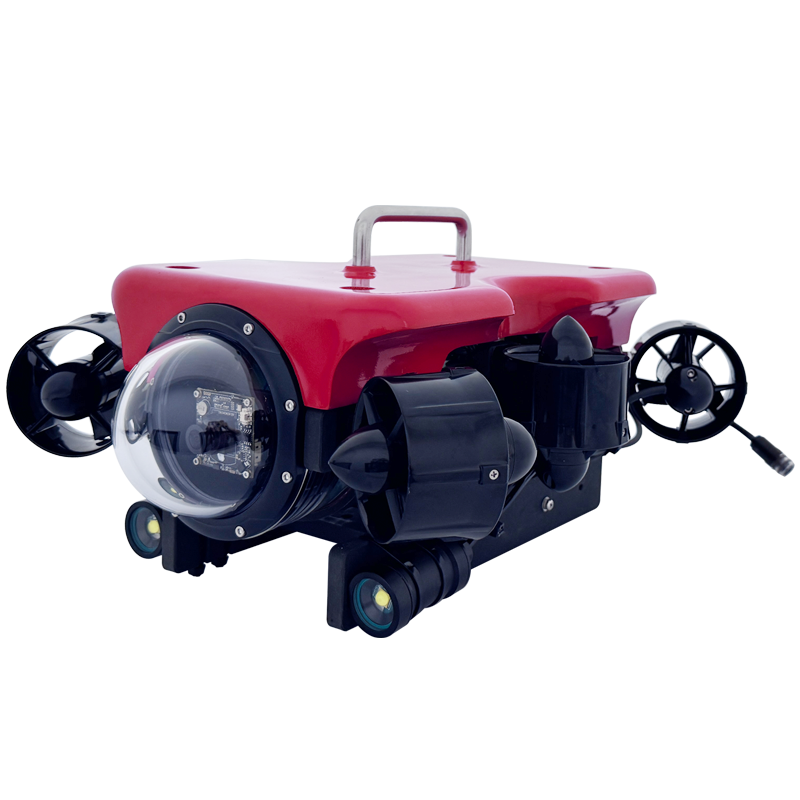

Photos of the whole machine

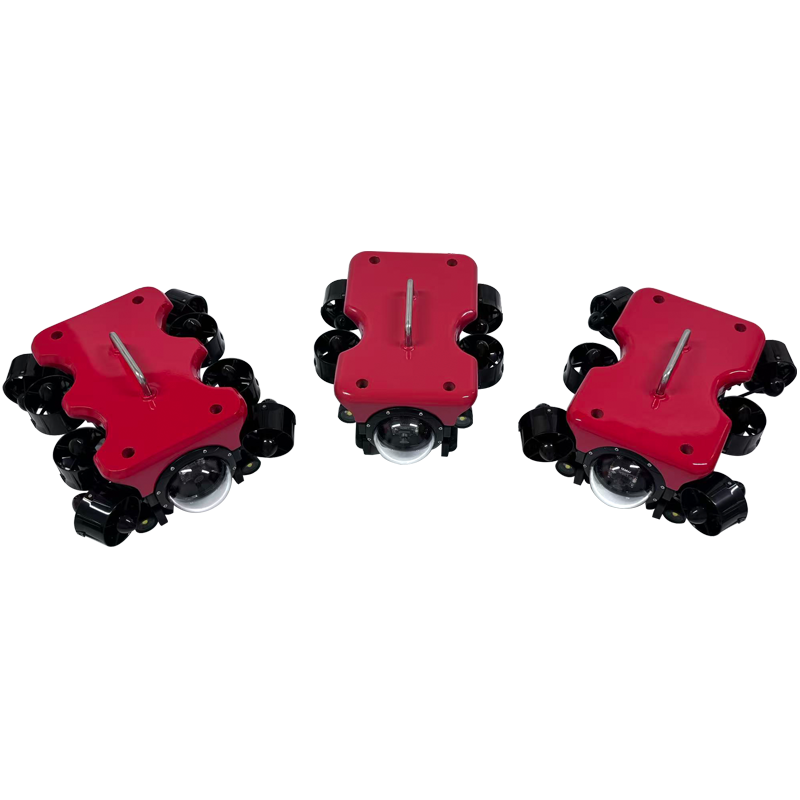

MiniROV4T	MiniROV6T	MiniROV8T

Small and light easy to use Rated depth 50m Battery power supply Small and light easy to use Modular design Open source system Image Enhancement Algorithm ROV
