High-voltage DC-DC module power

High-voltage DC-DC module power

-FD-POW-400-2000W-24-S01
-FD-POW-400-2000W-28-S01
-FD-POW-400-2000W-48-S01
-FD-POW-800-2000W-24-S01
-FD-POW-800-2000W-28-S01
-FD-POW-800-2000W-48-S01

-Input over voltage and under-voltage protection (Automatic recovery). -Output over voltage protection (Automatic recovery). -Output over current and short circuit protection (Automatic recovery). -Over temperature protection (Automatic recovery). -Output voltage adjustment, adjustment range: -20% ~ 10%. -Working substrate temperature: - 40℃ ~ + 100℃.

Quantity:
Availability:





Inquire Add to Basket

High-voltage DC-DC module power

1、Product Introduction

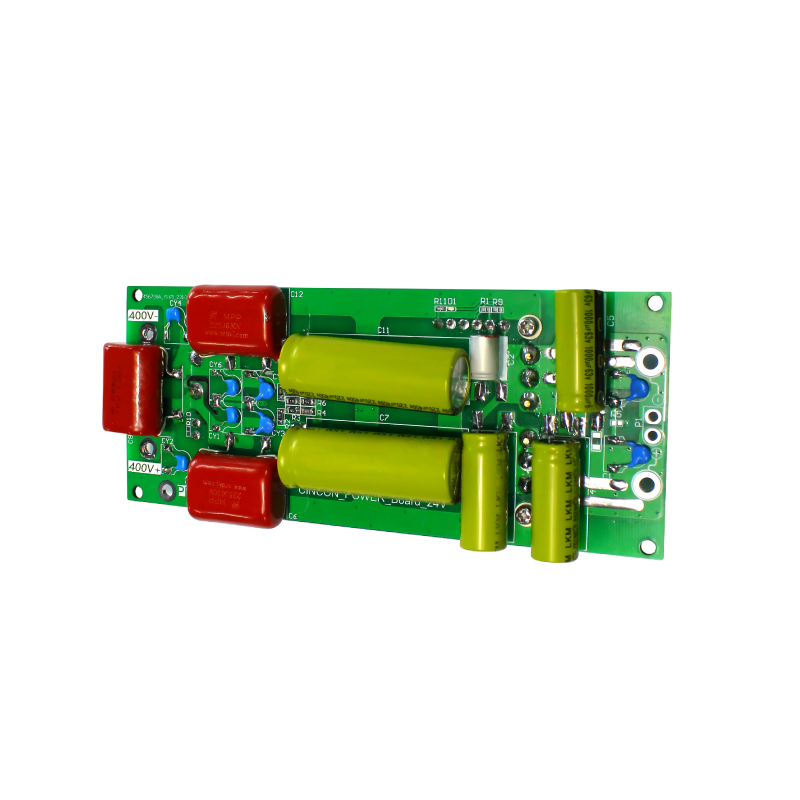

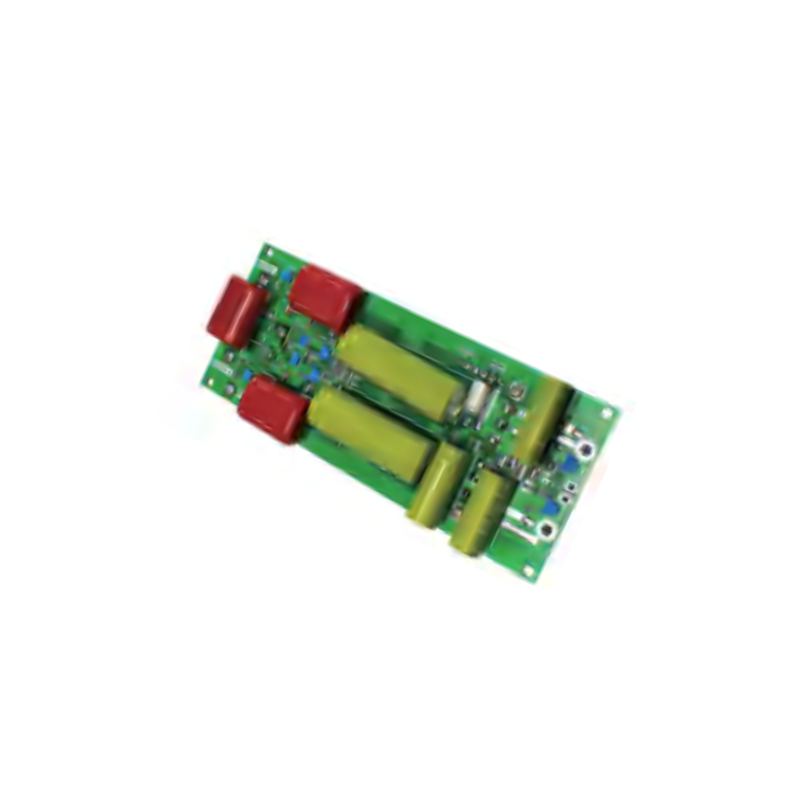

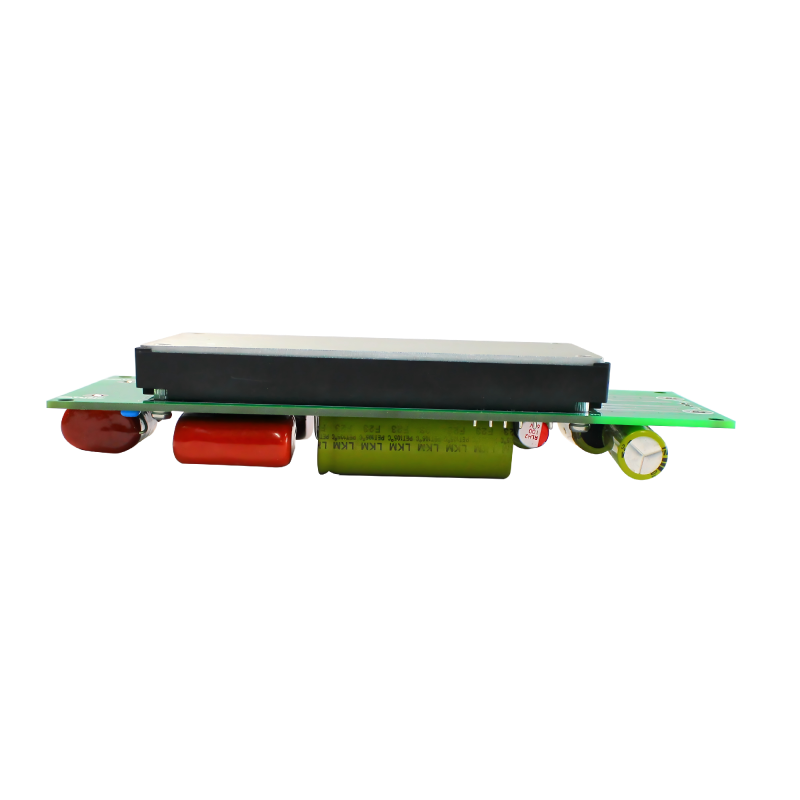

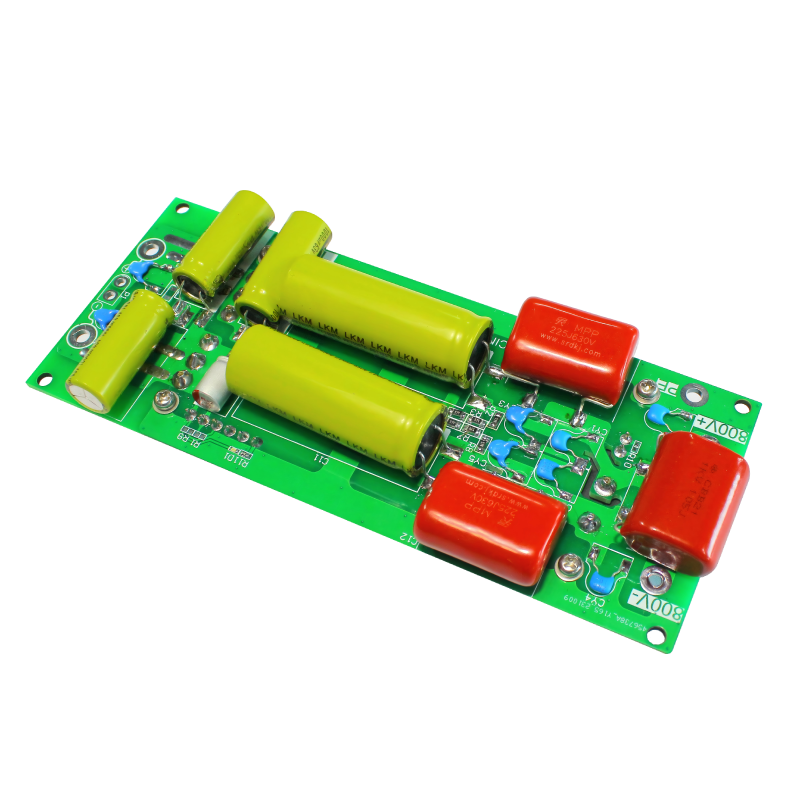

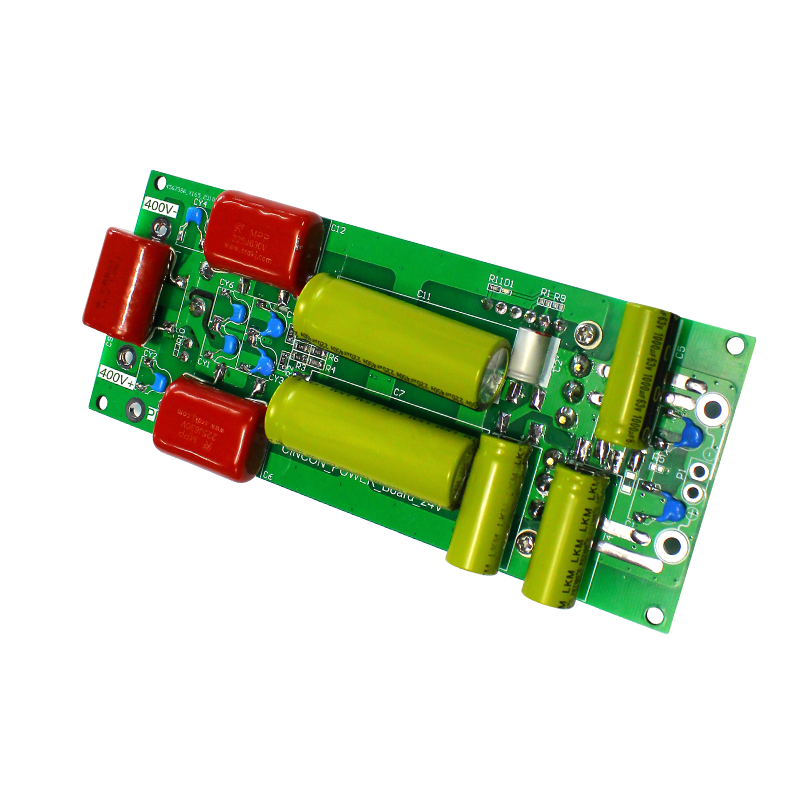

This series includes 6 models of 2000W high-voltage full-brick DC-DC module power supplies, equipped with built-in standard full-brick power cores. Featuring compact overall dimensions and high power density, all models are integrated with auto-recovery protection circuits, including input under/overvoltage protection, output overvoltage protection, output overcurrent & short-circuit protection, and overtemperature protection.

2、Main Electrical Parameters

Model No.	DC Input Voltage Range	Rated DC Output Voltage	Max Output Current	Max Typical Full-Load Efficiency
FD-POW-400-2000W-24-S01	200～400 Vdc	24.0 Vdc	0～83.33 A	96.00%
FD-POW-400-2000W-28-S01	200～400 Vdc	28.0 Vdc	0～71.43 A	96.00%
FD-POW-400-2000W-48-S01	200～400 Vdc	48.0 Vdc	0～41.67 A	96.00%
FD-POW-800-2000W-24-S01	400～800 Vdc	24.0 Vdc	0～83.33 A	96.00%
FD-POW-800-2000W-28-S01	400～800 Vdc	28.0 Vdc	0～71.43 A	96.00%
FD-POW-800-2000W-48-S01	400～800 Vdc	48.0 Vdc	0～41.67 A	96.00%
