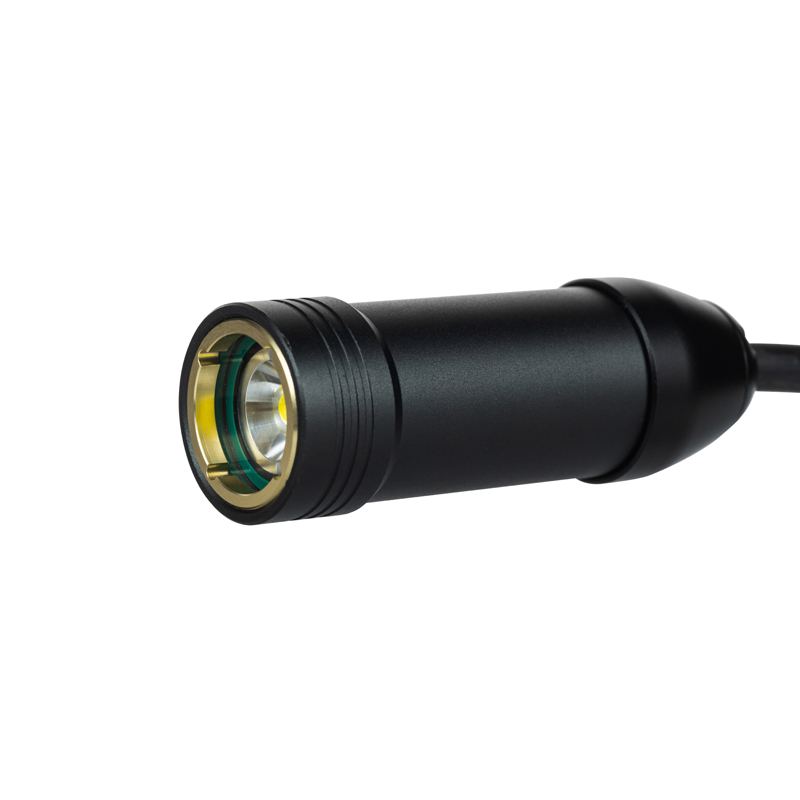

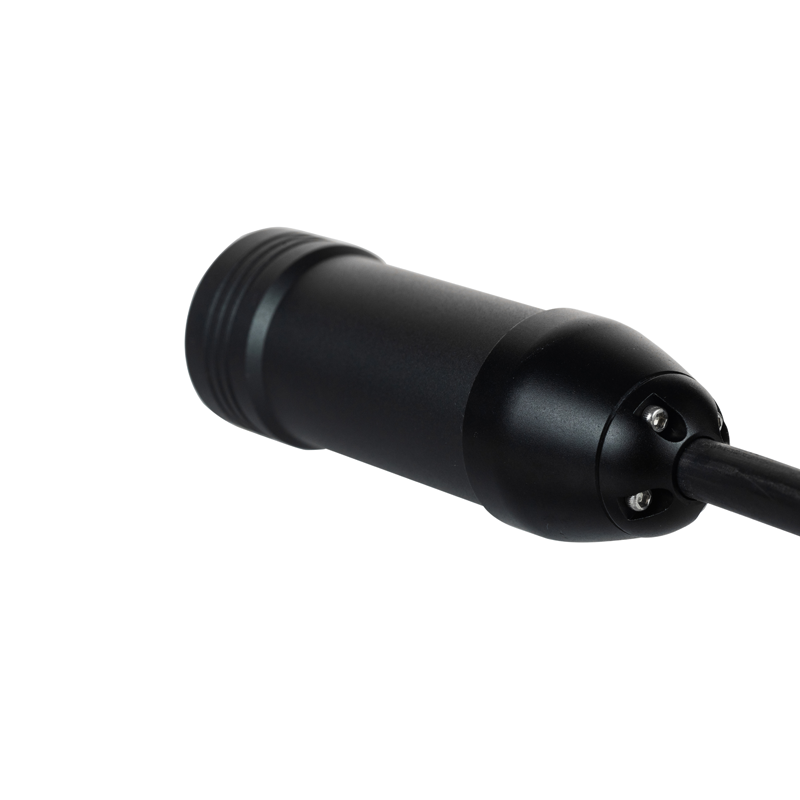

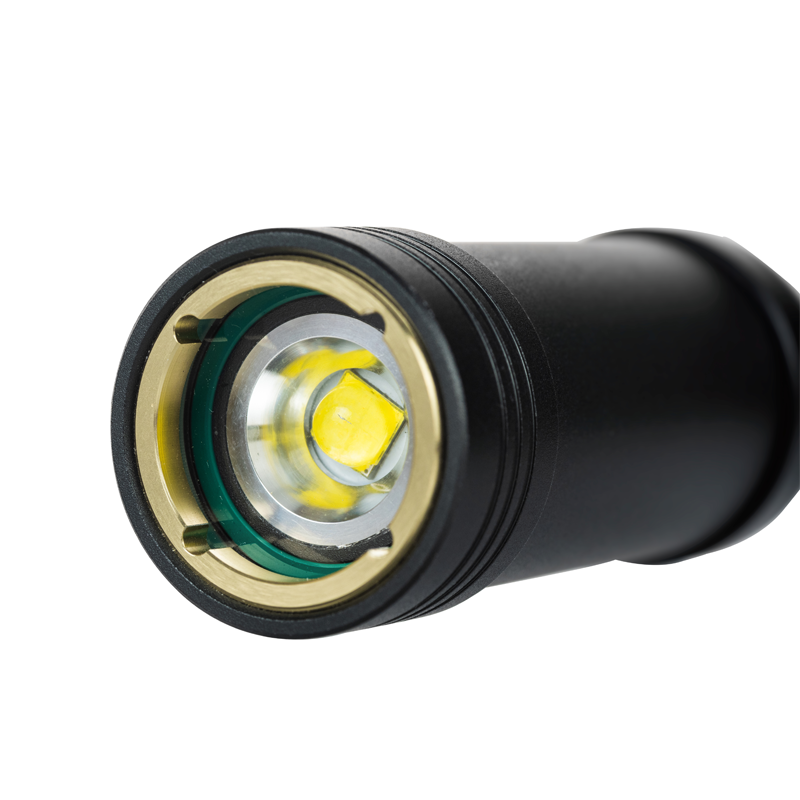

1200 Lumen Compact Subsea Light

1、Product Features

-Power 15W，1200 lumens
-Support voltage 12~28VDC
-Rated depth 500m
-Aluminium alloy casing
-Mandatory lighting mode, PWM control
-Overheating protection
-Small size, easy to deploy in narrow space.

2、Product Specifications

ELEC-L1200-15

1200 lumen underwater light

Maximum depth

500m

Supply voltage

12-28V

Power

15W（MAX）

PWM logic voltage

3.3-5V

Dimming method

PWM dimming, need to continuously input pwm signal

PWM dimming range

1100us(off)-1900us(brightest)

Cable outer diameter

5.4mm

Cable core

3*20AWG

Maximum brightness

1300 Lumens

Color temperature

5700K

Beam Angle

120° in air

Wiring Definition

Red

Power

Black

Ground

Yellow

Signal

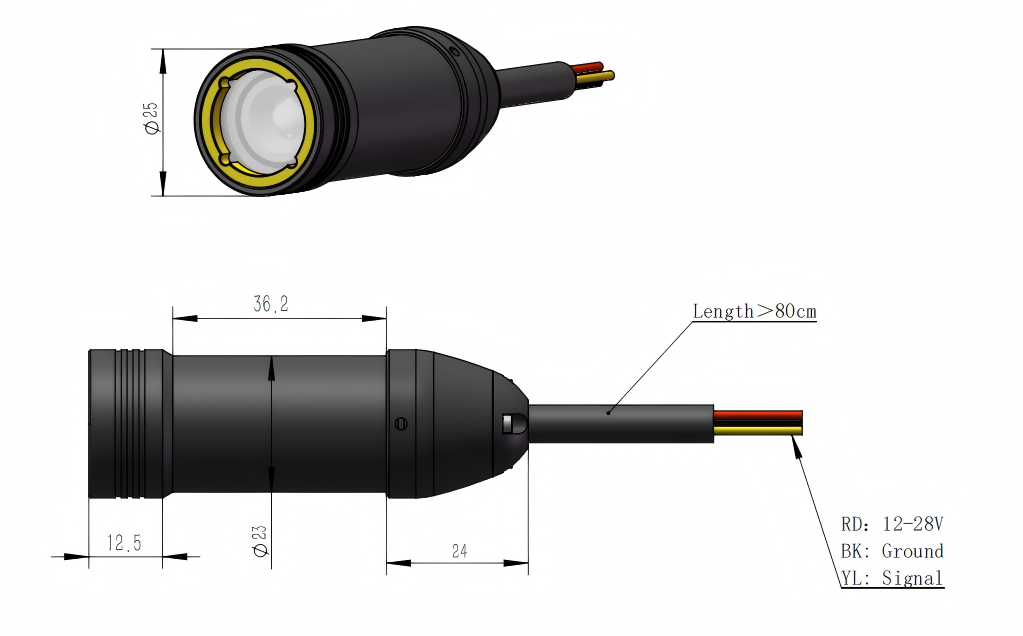

3、Overall Dimension
