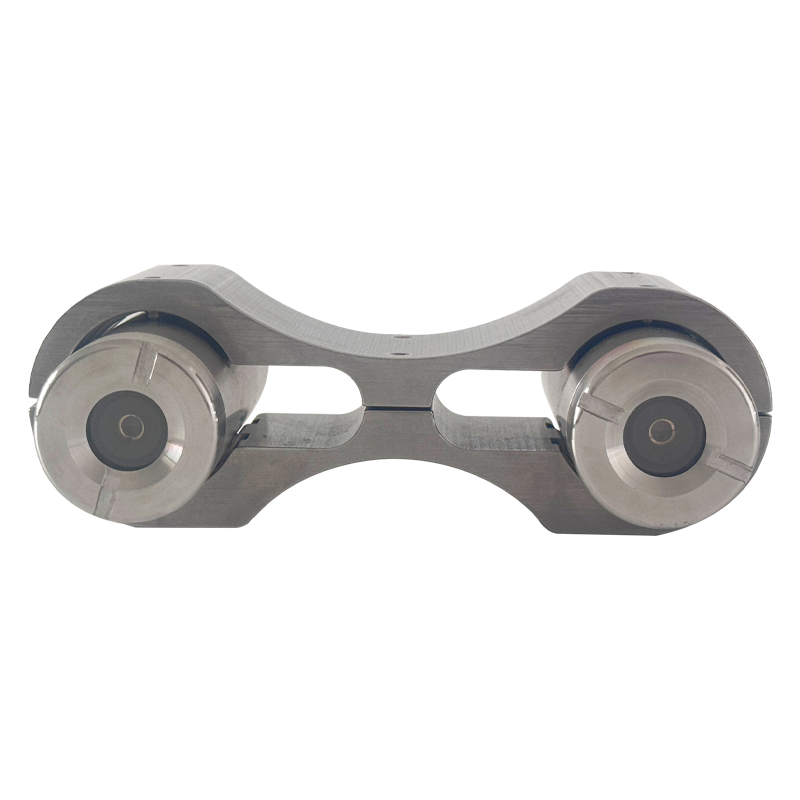

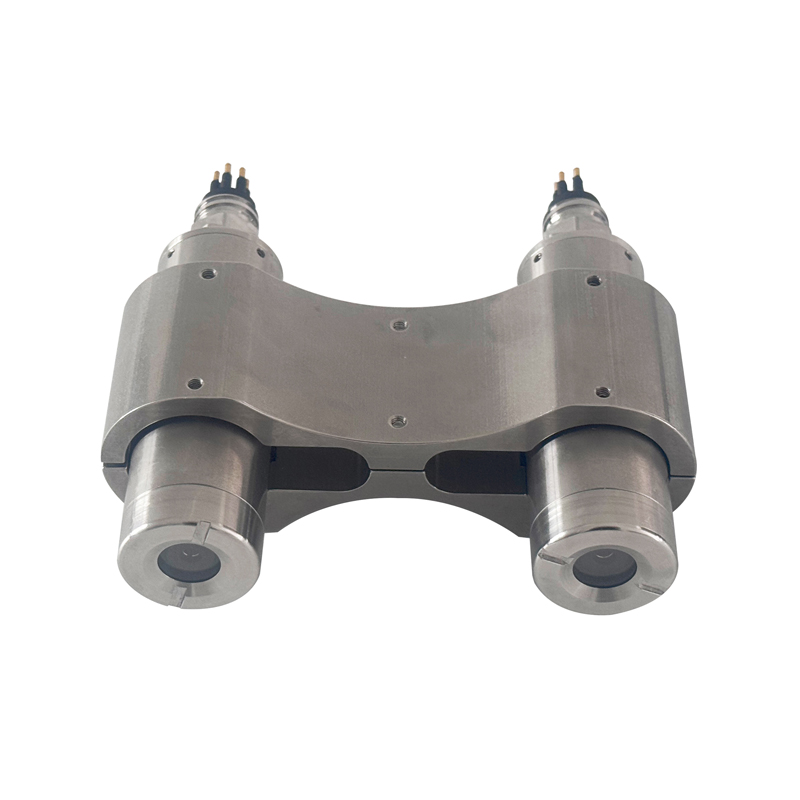

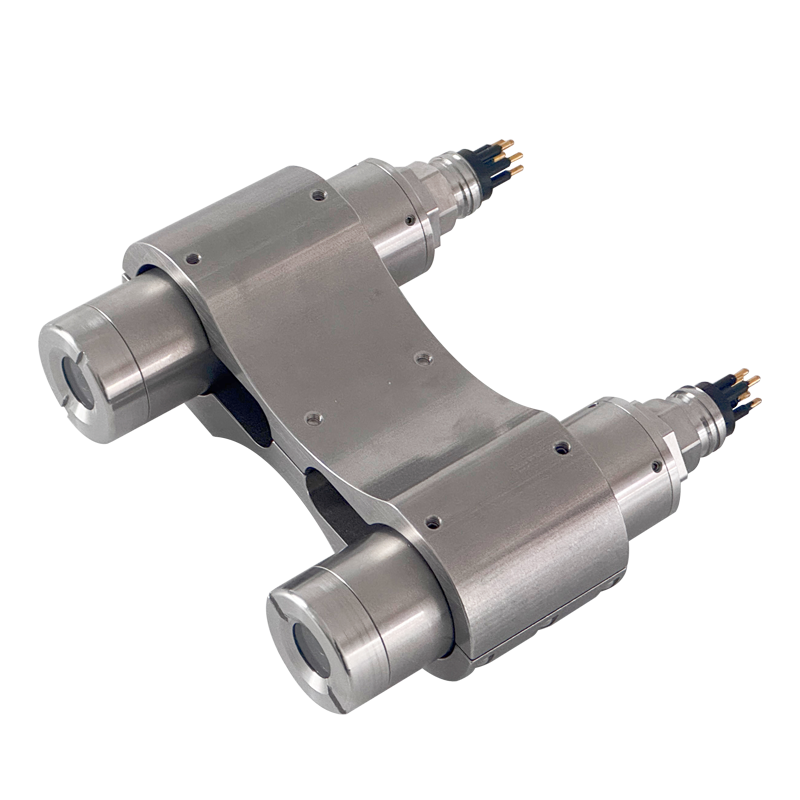

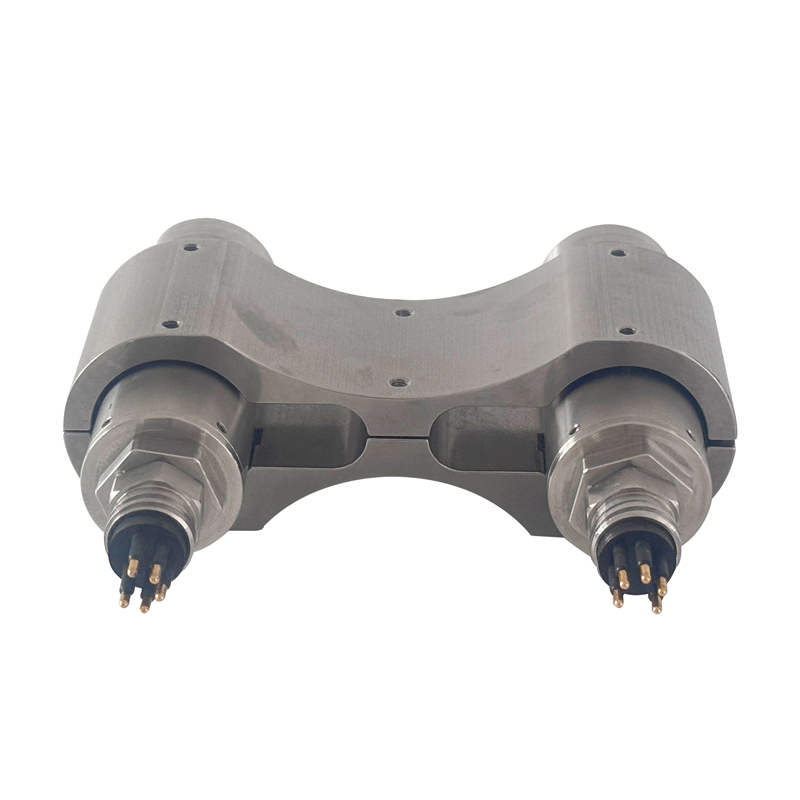

FD-S-PL01 Underwater Parallel Laser

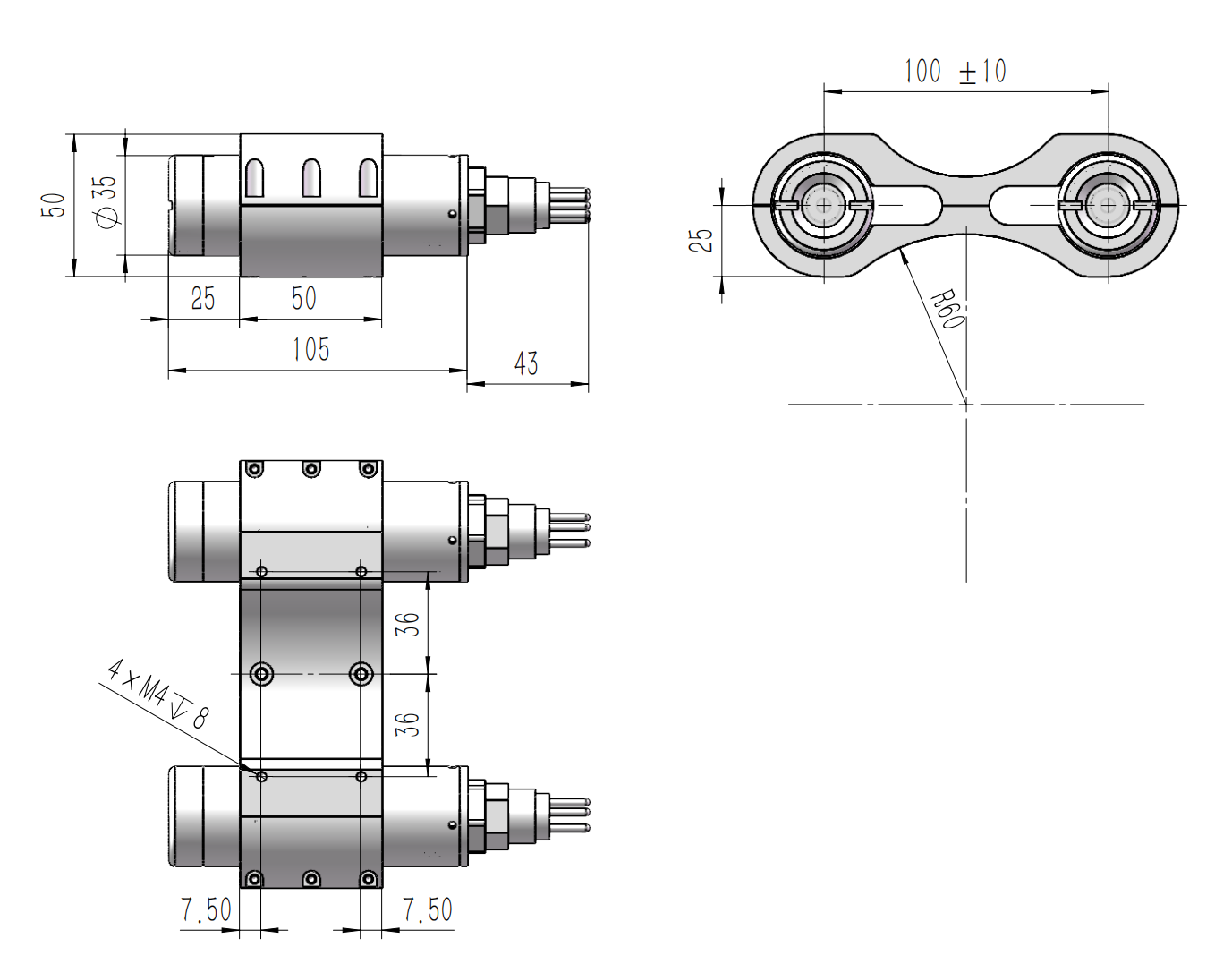

External Dimensions

Product Specification

Product Model

FD-S-PL01

Rated Depth

300 meters

Wavelength

Green

Laser Wavelength

520±5nm

Excited Mode

Electrically excited laser

Angle Of Divergence

＜1mard°

Output Power

＜10mW

Input Voltage

5-36V DC

Control

1.The laser is disabled by default when power is applied.

To enable, apply 5 - 36VDC to pin 3

2.When Pin 3 is left open or connected to GND, the output is disabled.

Material

Stainless Steel 316L

Weights

in air：2.1kg ； in water： 1.85kg

Connector

Y-splice MCBH5M to 2× MCBH5F cable with locking sleeves
