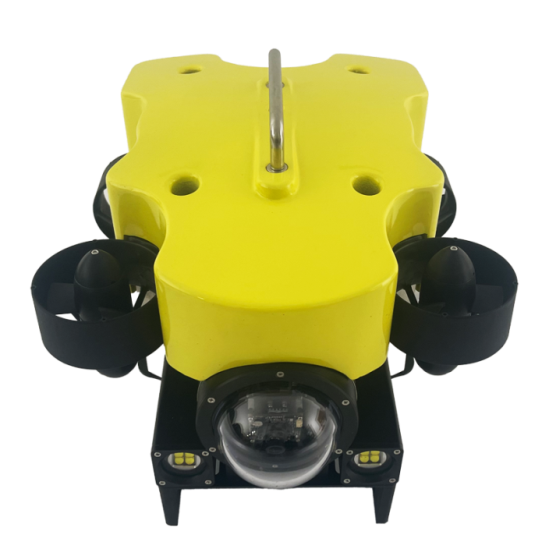

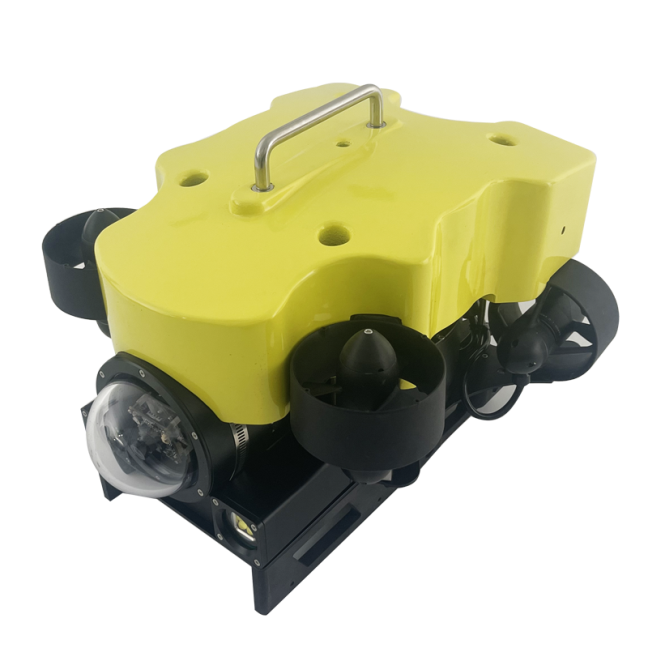

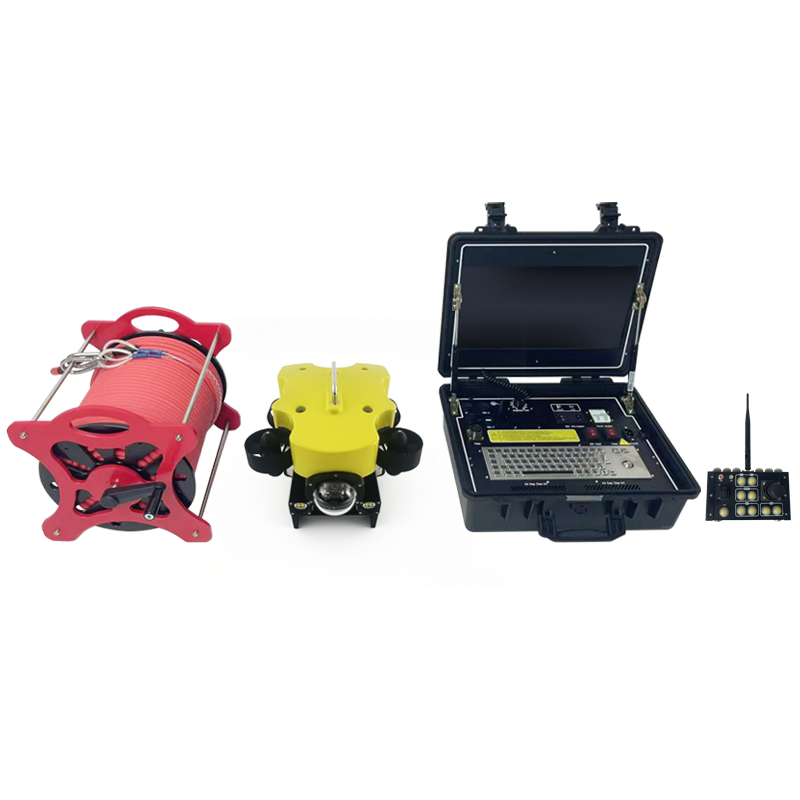

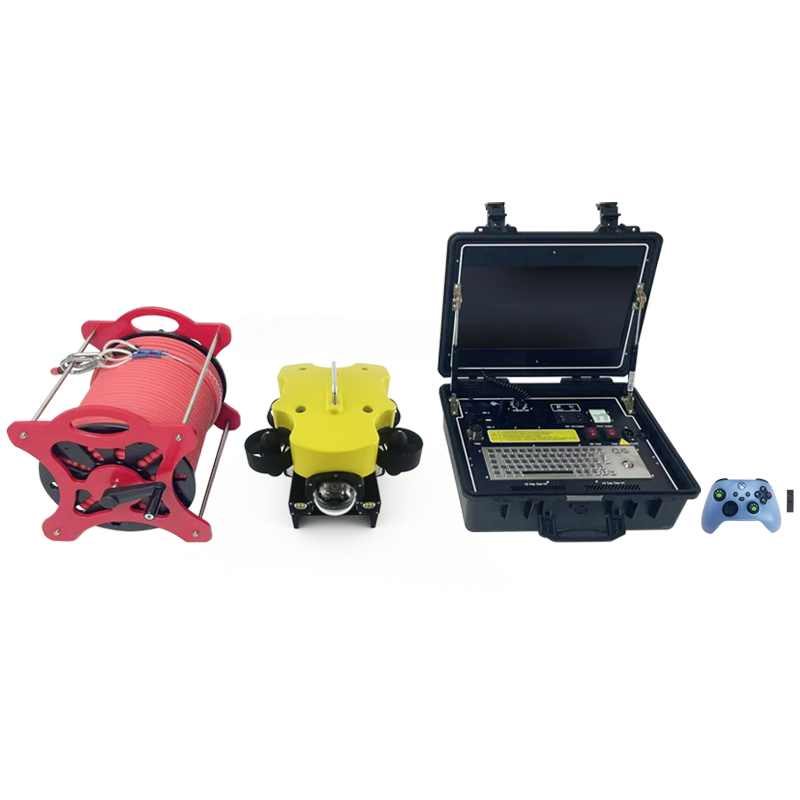

Smart5T ROV

1.Compact size and easy to carry
2.Rated depth 100m
3.Five maintenance-free oil-filled thrusters, each with a thrust of 5.5kg
4.150 meters of neutral buoyancy cables
5.17-inch single-screen console, screen brightness 1000nit, with brightness adjustment knob, suitable for indoor and outdoor different environments;
6.AC220V power supply, unlimited range

Quantity:
Availability:





Inquire Add to Basket

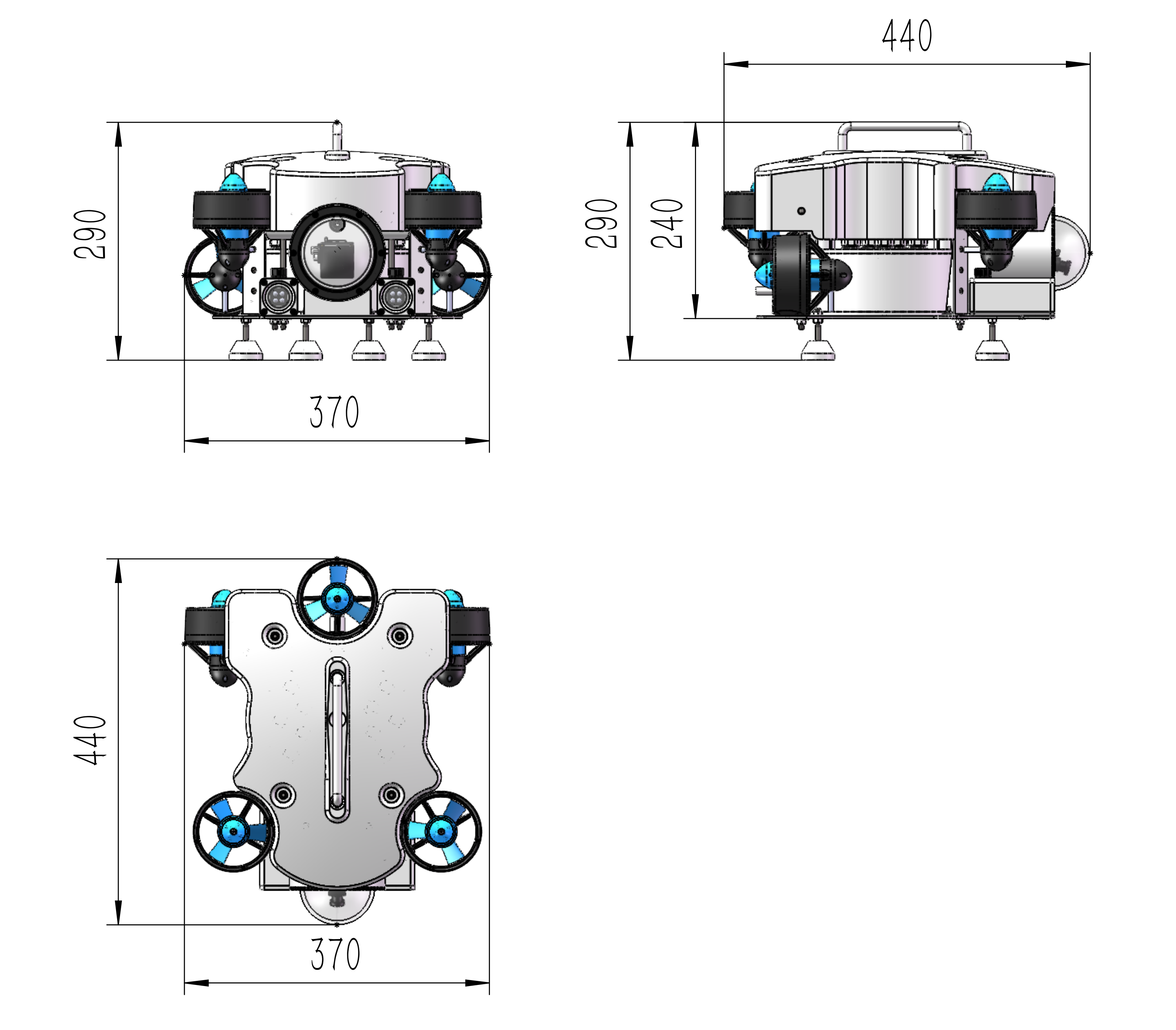

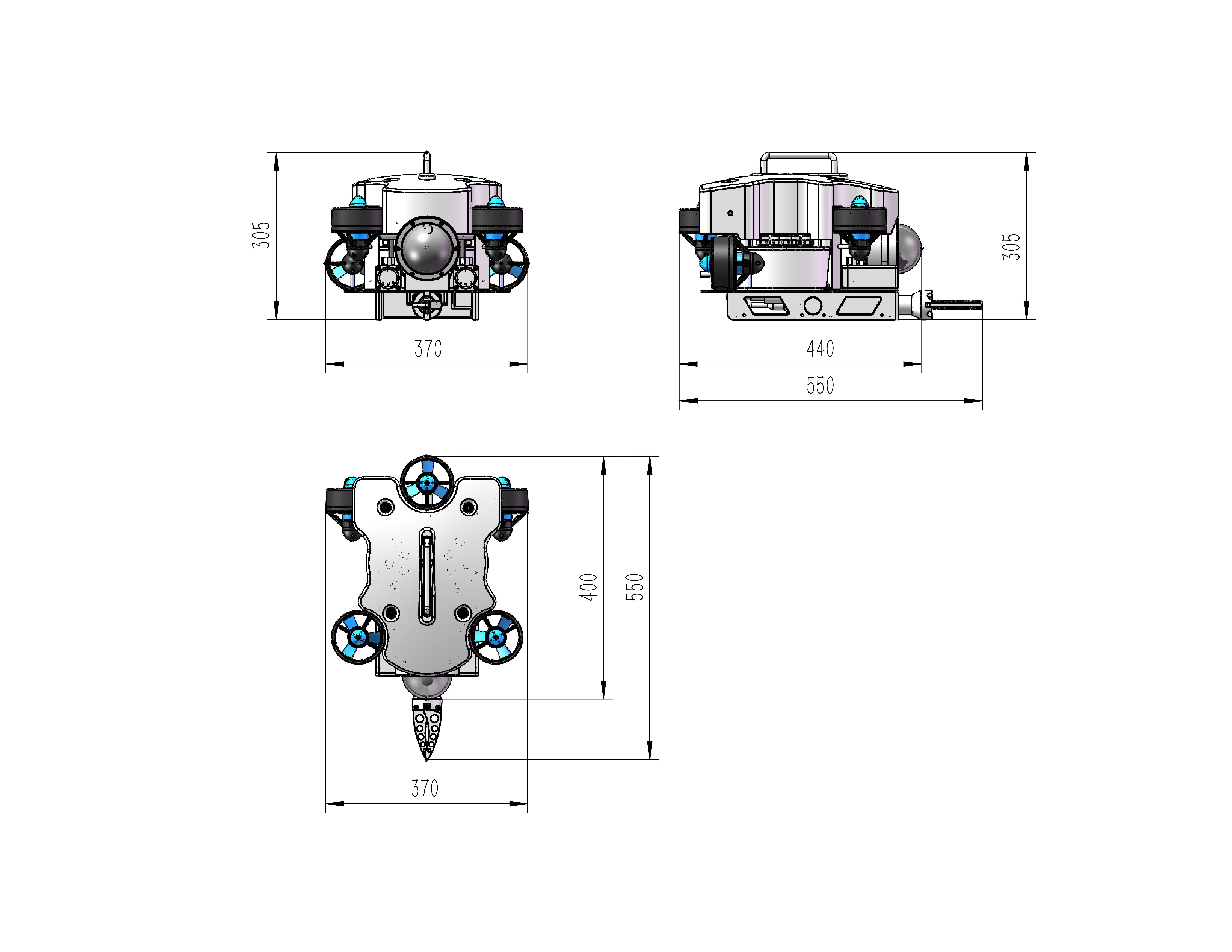

Overall Dimension

Product Specifications

Product Model	Smart5T
ROV	Rated Depth	100m
	Camera	pixel 2M; support 1080P HD video real-time transmission; viewing angle 110 °; tilt PTZ, ± 35 °; with underwater automatic fogging and shallow water adaptive green light suppression function
	Thruster	Maintenance-free, fully sealed deep-water oil-filled thrusters, 2 horizontal and 3 vertical; individual thrust 5.5kg; Overall forward thrust 11kg, vertical thrust 16.5kg
	Sensors	Pressure/Depth、Compass heading、Pitch and roll、Dedicated leak sensors
	Automatic function	Fixed-depth hovering, directional navigation
	Lights	2 ×5000 lumens high brightness fill light;
	Frame Material	HDPE material + aluminum alloy support frame

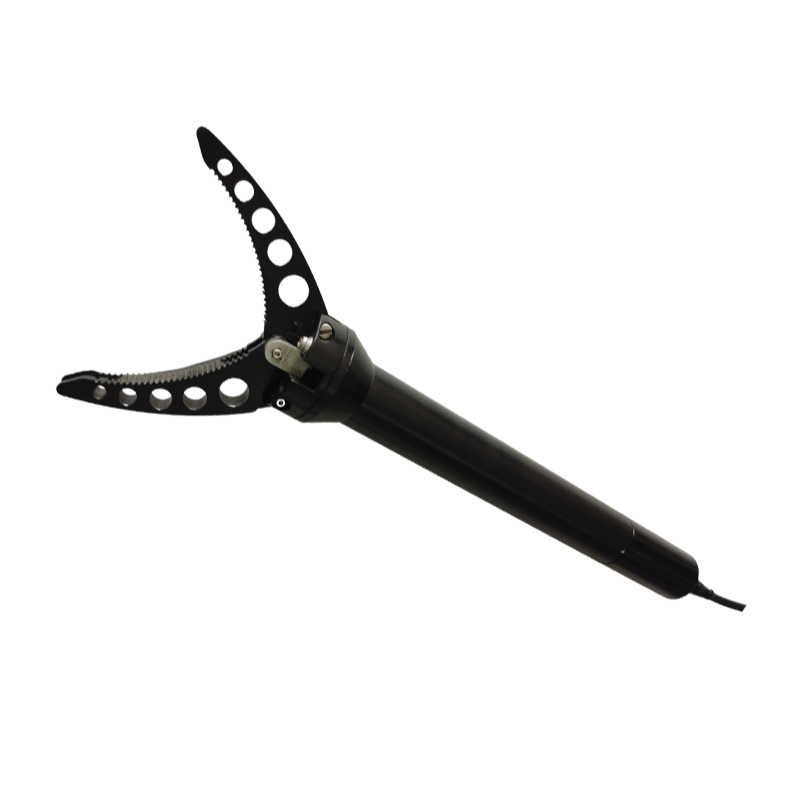

	Scalability	Can be equipped with manipulator, multibeam sonar, hydroacoustic positioning, etc.
	Power	Shore-based power supply up to approx. 2500 W
	Size	440×370×290mm（（L×W×H）
	Weight	about 10.5kg
Tether	Tether Length	150m
	Tether Specifications	Neutral buoyancy composite cable for underwater use, polyurethane foam jacket, Kevlar fiber inside, tensile 100 kg
	Tether Spool	manual spool
	Size	455×340×370mm（L×W×H）
	Weight	15kg
Control System	Material	PP material waterproof case
	Monitor	17-inch single-screen console, screen brightness 1000nit, with brightness adjustment knob, suitable for indoor and outdoor different environments; Real-time display of underwater images, underwater robot depth, attitude and other information.
	Host Computer	I5 CPU, 16G RAM, 1T SSD, WIN10 OS
	Panel Interface	1 power supply interface, 1 main cable (ROV) interface, 1 RJ45 external output interface, 3 USB interfaces
	Panel Indication	Real-time display of ROV supply voltage and current
	Operation Keyboard	Full metal waterproof keyboard with integrated mouse
	Safety	With air switch and earth leakage protector, with earth terminal for reliable grounding with generator in field operation. The main cable connector contains a protective earth wire for connection to the ROV body.
	Controller	Adopting remote control handle control, connecting with the host computer via wireless/wired
	Size	475×415×215mm（L×W×H）
	Weight	15.3kg
	Power	AC220V
