Spool

-Manual winding and unwinding
-Aluminum alloy frame, POM material bobbin winder
-Including slip-ring
-Can be customized according to the number of cable cores and length

Product Model
-R111-D11L200
-R112-D11L300
-R113-D11L400
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Fulldepth Manual Spooler

1.Product Features:

Aluminum alloy frame, POM material bobbin winder
Manual winding and unwinding
Including slip ring, specifications for: 6-way, single 10A，Voltage: 300V
Four universal wheels for easy transportation

2.Model & Configuration

Serial number

Model number

Dimensions

（X×Y×Z）

Take-up length

(Cable O.D. 11mm)

Weight

（KG）

Tire

1

R110

475×330×395mm

150m

10

Without

2

R111

525×400×525mm

250m

15

With

3

R112

555×450×575mm

350m

17

With

4

R113

625×470×595mm

480m

18

With

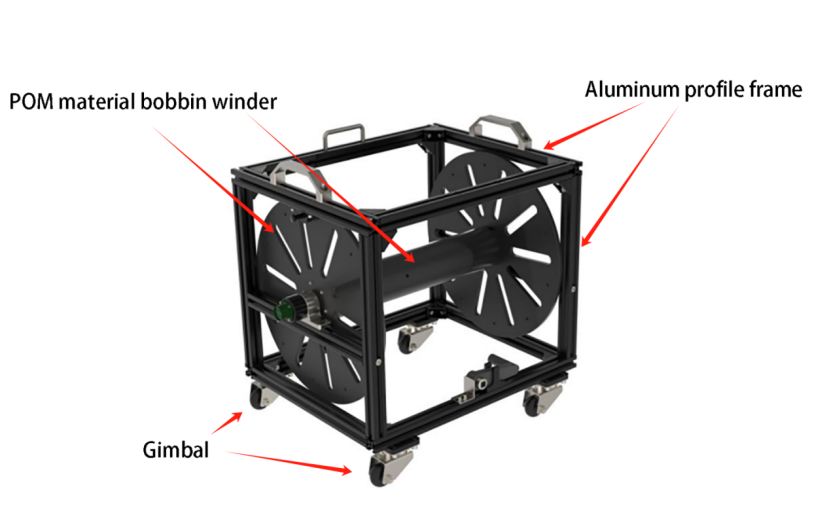

3.Composition Schematic

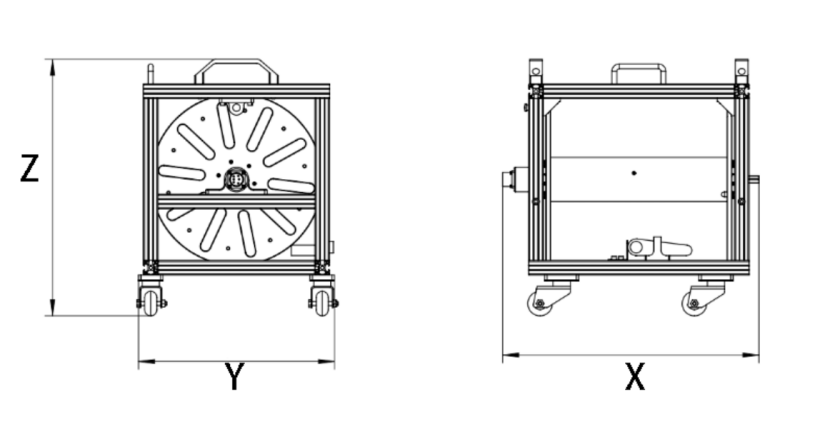

4.Product Size

download Fulldepth Manual Spooler Product Introduction(1).pdf

Spool Manual winding and unwinding Frame made of POM Including slip-ring Support parts made of 316L stainless steel
