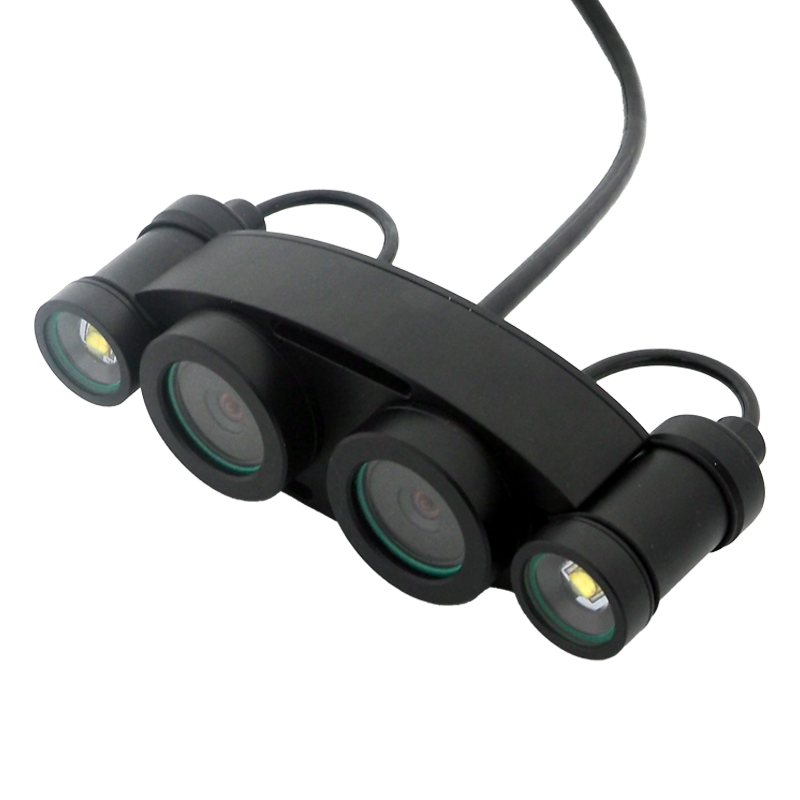

FD-USB-02B10 Underwater Binocular USB Camera

-Maximum resolution 3040*1520
-Rated depth 100m
-UVC is free of drive and has a wide range of adaptation systems.
-Aluminium alloy casing
-Self-contained two lights

Quantity:
Availability:





Inquire Add to Basket

Product specifications
Product Model	FD-USB-02B10
Rated Depth	100 meters
Shell Material	Aluminum alloy
Light	Two 1500 lumen LED fill lights, optional
Lens Size	1/3"
Output Image Format	MJPEG/ YUV2
Focal Length	3.0mm
Angle	Horizontal 86°, vertical 56°
Binocular Spacing	60mm
Frame Rate	YUY2： 5FPS MJPEG: 30FPS
Highest Pixel	MJPEG 1920960 30FPS / YUV2 15201520 5FPS MJPEG 15201520 30FPS / YUV2 26881520 1FPS MJPEG 26881520 30FPS MJPEG 30401520 30FPS
Interface Protocol	USB2.0
External Interface	Camera：Standard USB interface / Light：Bare lines
Connector	Penetrator,cable length 1m
Power	Camera：5V / Light：DC12V
Operating Current	Camera＜250MA/Light：3A
Weight	weight in air: 650g weight in water: 320g
Support System	Win XP/Vista/Win7/Win8 / Linux with UVC/mac
