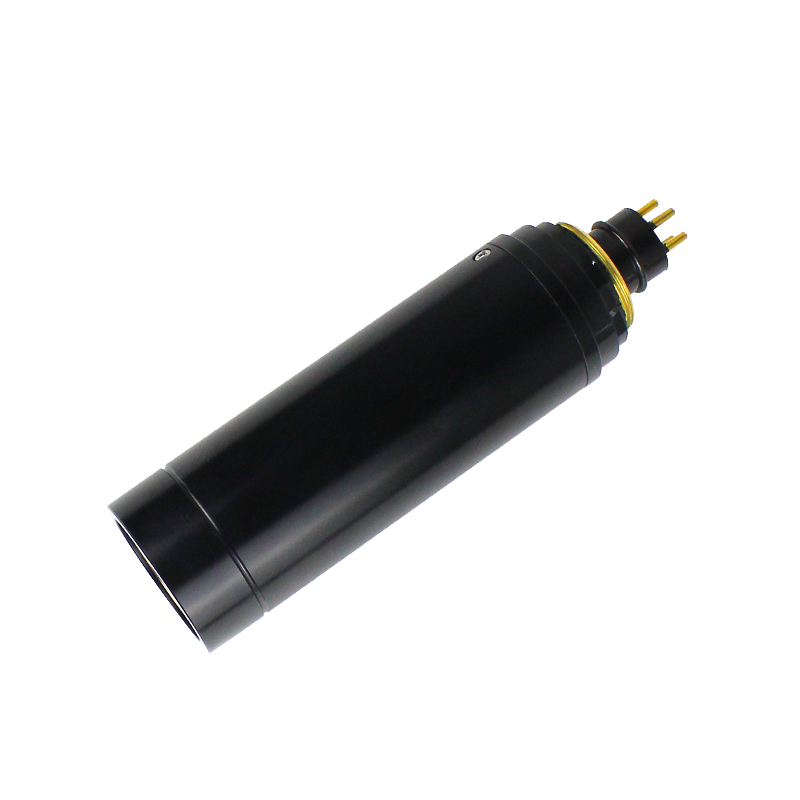

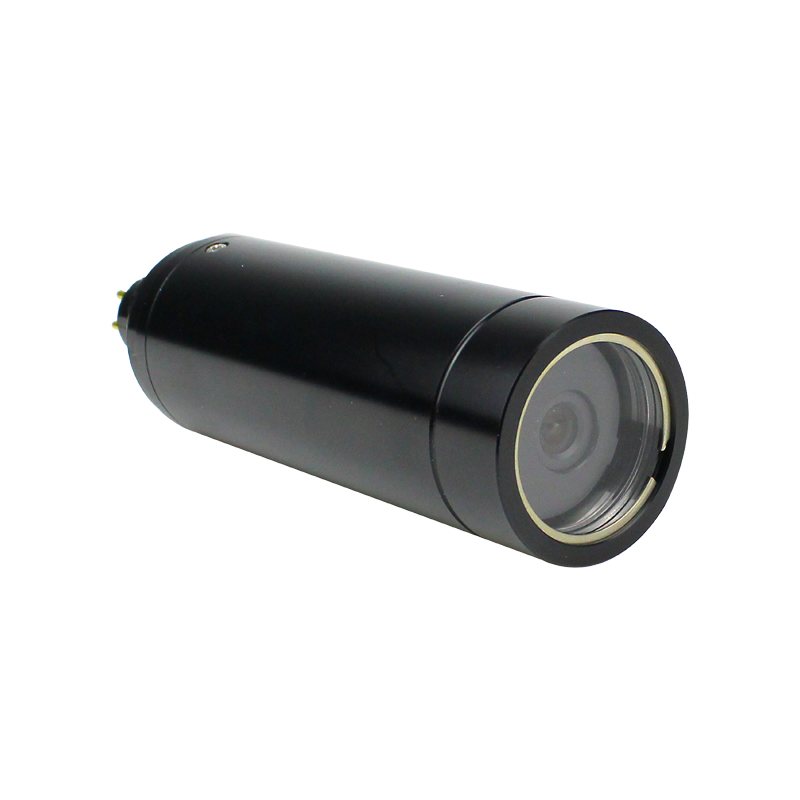

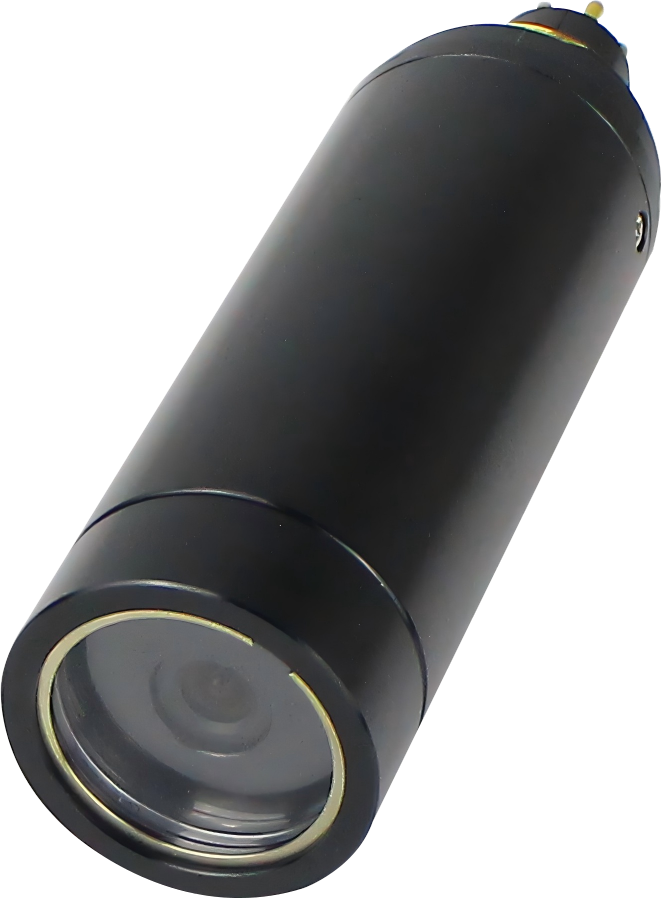

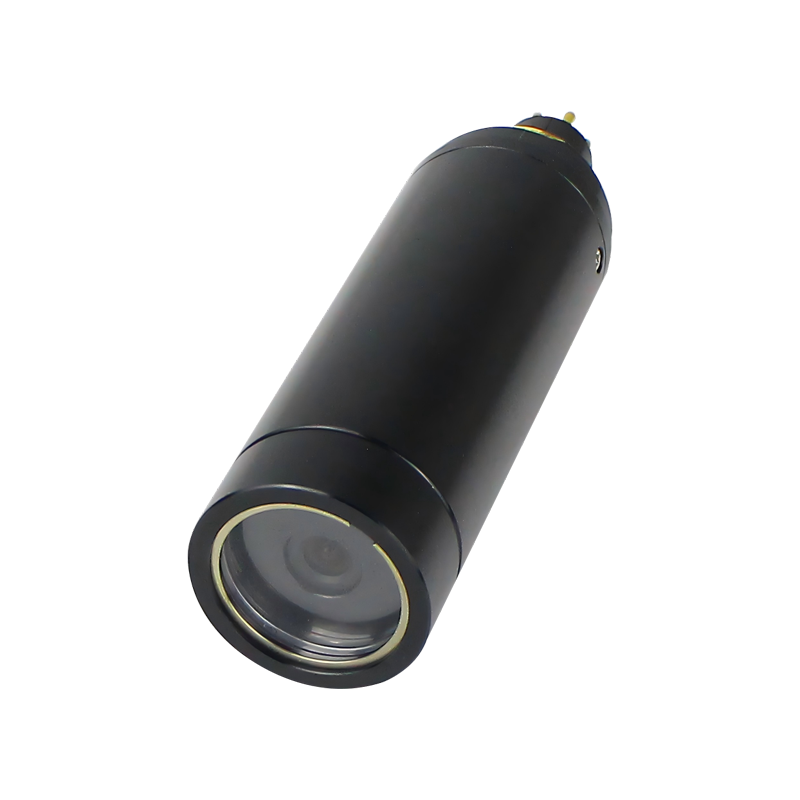

Diver’s Camera

Diver’s Camera

1. Product features

-Underwater analog camera, equipped with MCBH3M+MCIL3F connector
-Rated depth 300m
-Effective pixel 1280(H)*720(V), horizontal definition 1000TVL
-Aluminium alloy casing
-Support voltage 12~24VDC

2. Product parameters

Model

FDDC-H401

Rated Depth

300m

Shell Material

Aluminium alloy

Resolution

1280（H）* 720（V）

Minimum Illumination

0.08LUX/F1.2

Image Sensor

1/3”CCD

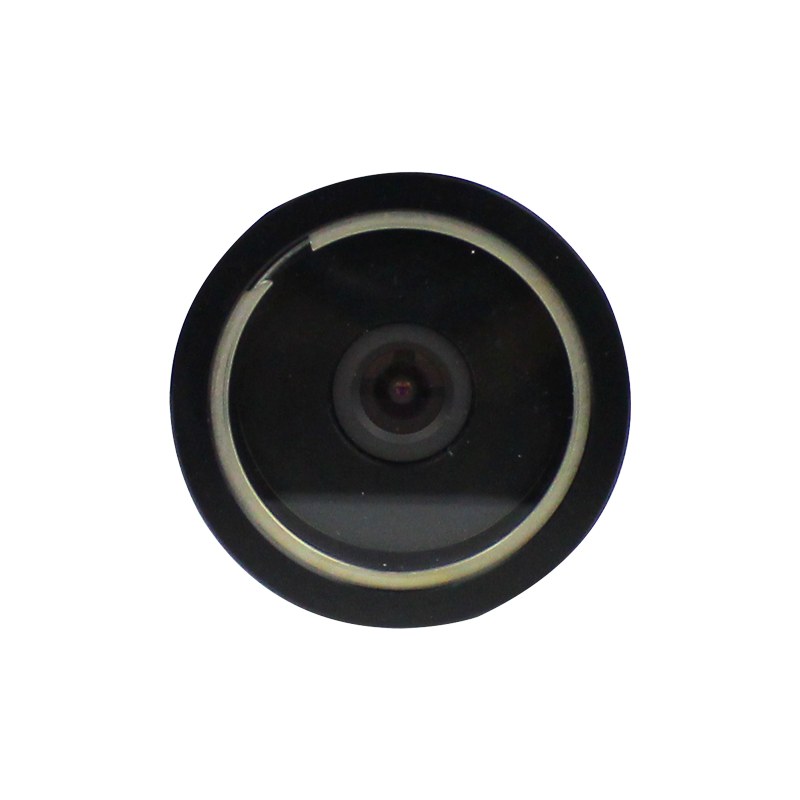

Lens

2.8mm Fixed Focus

FOV

110°（In air）

Measured Resolution

1000TVL

Signal to Noise

≥50dB

Vdieo Format

PAL/NSTC

Video Output

1.0Vp-P75Ω

Power

6-20VDC

Connector

MCBH3M+MCIL3F，cable length 1 m

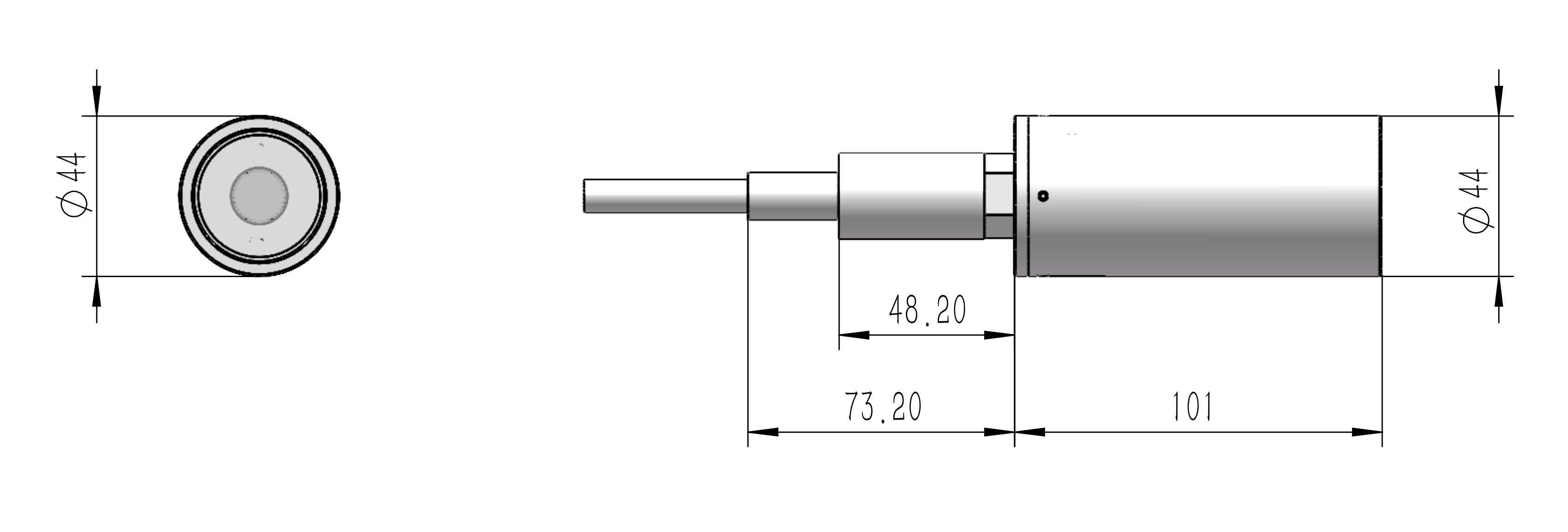

3. Physical Dimension
