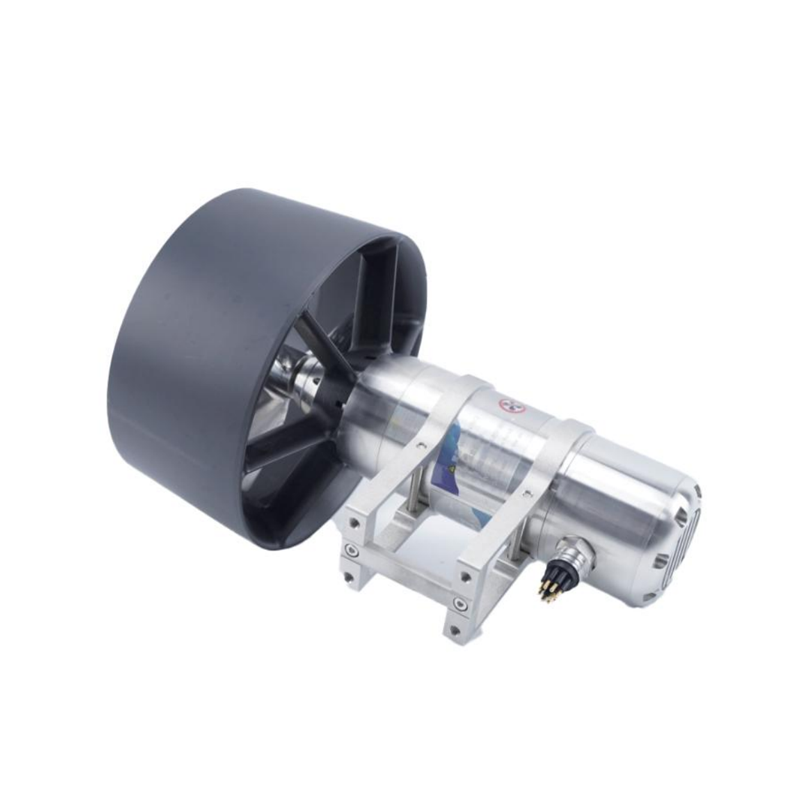

T150 Underwater Thruster

-56kgf thrust; maximum power: 2450W
-Fully sealed with oil pressure compensation; Rated depth: 300m
-Brushless motor; Supply voltage: 250~350 VDC
-316L SS (Stainless Steel) pressure shell
-Built-in DC300V ESC

Quantity:
Availability:





Inquire Add to Basket

T150 Underwater Thruster

1、Product Introduction
-51kgf thrust,maximum power 2250W -Fully sealed with oil pressure compensation,rated depth 300m -Brushless motor，support voltage250~350VDC -316L SS pressure shell -Built-in DC300V ESC
2、Product Specifications
Index	Parameter
Model	T150-500-300EI
Sealing method	maintenance-free full-sealing
Sealing structure	Double-compensated low-resistance rotary dynamic seal structure
Oil pressure compensation	With
Rated thrust	51.6kgf（forward）32.5kgf（reverse）
Rated power	2250W
Rated voltage	300VDC
Working voltage	DC250-350V
Moto type	exterior rotor brushless motor
Motor pole pairs	7
Main shaft diameter	12mm
Main shaft material	316L stainless steel
Blade diameter	150mm
Blade configuration	CW/CCW
Blade material	316L stainless steel
Shroud material:	pom
Thruster shell material	316L stainless steel
Cable iacket material	TPU
Cable specification	external diameter:10mm;length:1.5m ;inner core:2×1.5+3×2×0.5mm²
Base material	316L stainless steel
. Other parts material	316L stainless steel
Driver	Built-in
Rated depth	300m
Weight	in air :3735g ;in water :2150g
Temperature	storage:0-40C working:0-35°C

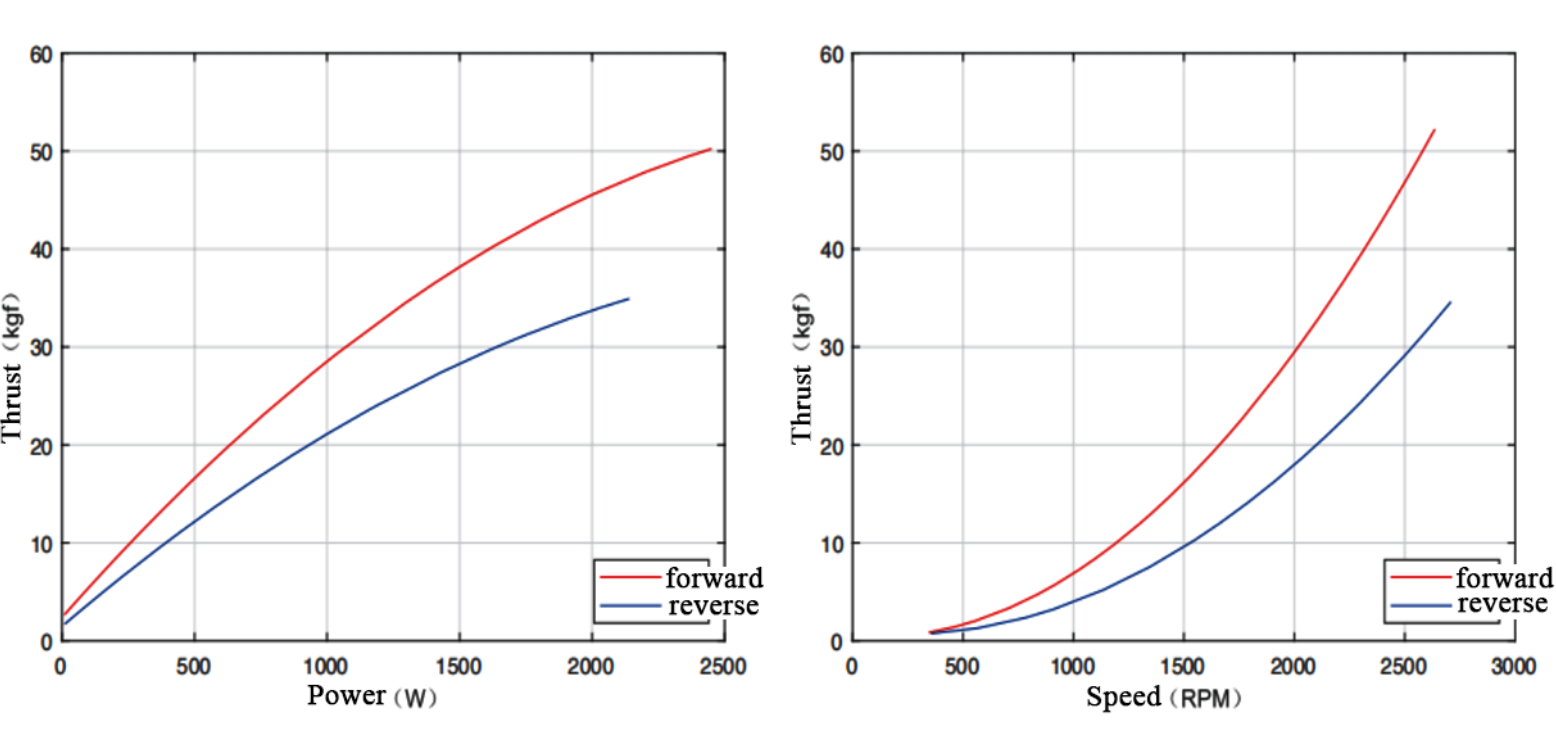

3、Thrust Curve
