T120 Underwater Thruster

1、Product Introduction

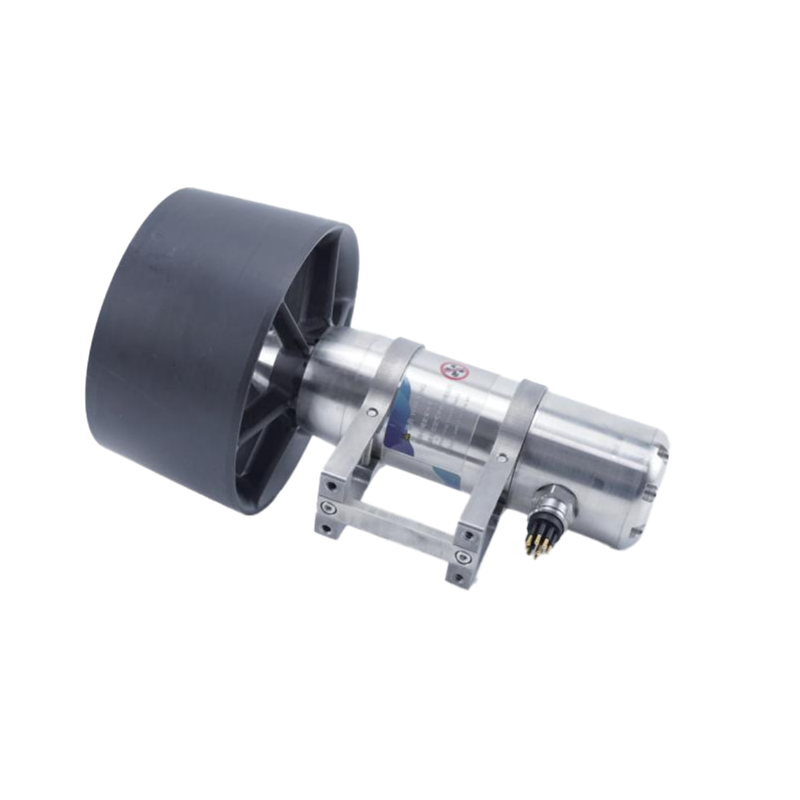

T120 Underwater Thruster

-T120-250-300EI-CW

-T120-250-300EI-CCW

-26kgf thrust; maximum power: 1280W

-Fully sealed with oil pressure compensation; Rated depth: 300m

-Brushless motor; Rated voltage: 48 VDC

-316L SS (316L Stainless Steel) pressure shell

-Built-in DC300V ESC

2、Product Specifications

Index

Parameter

Model

T120-250-DC300EI

Sealing method

maintenance-free full-sealing

Sealing structure

Double-compensated low-resistance rotary dynamic seal structure

Oil pressure compensation

With

Rated thrust

25.5kgf（forward）16.0kgf（reverse）

Rated power

1160W

Rated voltage

300VDC

Working voltage

DC250-350V

Moto type

exterior rotor brushless motor

Motor pole pairs

10

Main shaft diameter

10mm

Main shaft material

316L stainless steel

Blade diameter

120mm

Blade configuration

CW/CCW

Blade material

316L stainless steel

Shroud material:

pom

Thruster shell material

316L stainless steel

Cable iacket material

TPU

Cable specification

external diameter:10mm;length:1.5m ;inner core:2×1.5+3×2×0.5mm²

Base material

316L stainless steel

Other parts material

316L stainless steel

Driver

Built-in

Rated depth

300m

Weight

in air :2700g ;in water :1950g

Temperature

storage:0-40C working:0-35°C

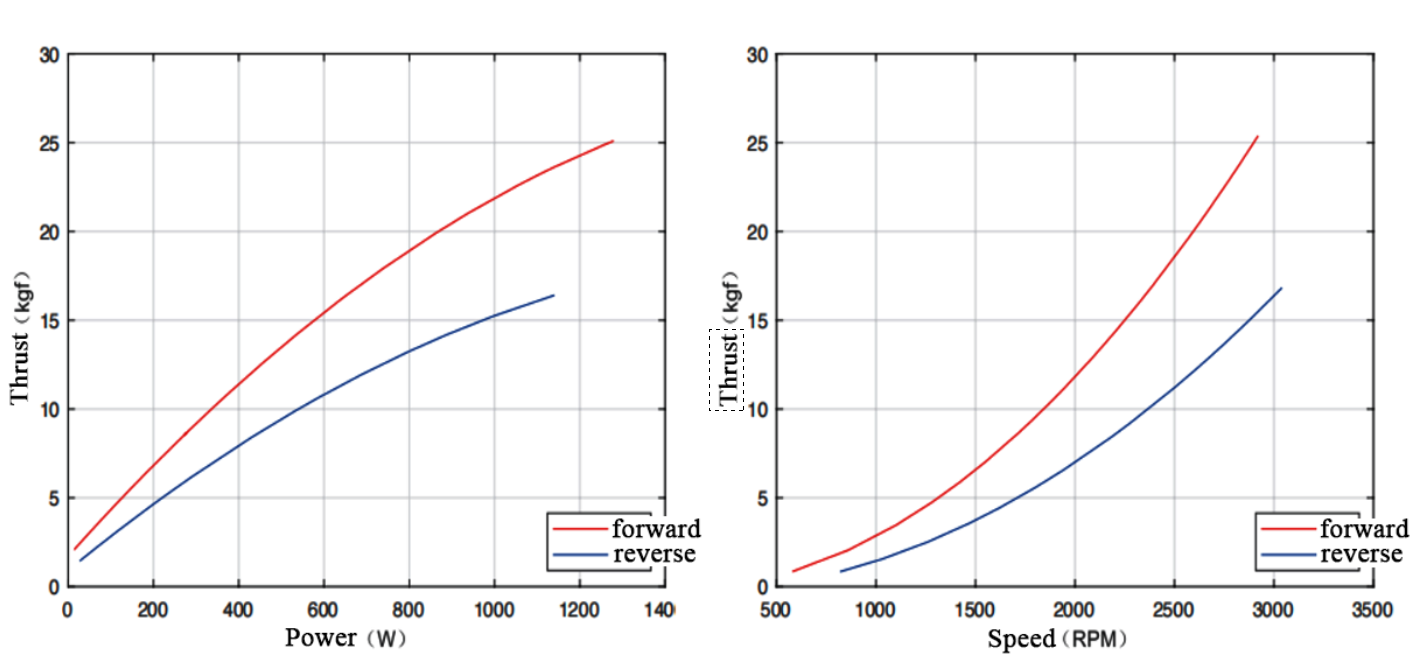

3、Thrust Curve
