FD-LL-011 Underwater LED Light

1、Product Introduction

-Power 15W，1500 lumens

-Rated depth 200m

-Support voltage 12~36VDC

-Aluminium alloy casing

-Mandatory lighting mode, PWM control

-Small size, easy to deploy in narrow space.

2、Product Specifications

Product model

FD-LL-011

Rated depth

200 meters

Shell material

aluminum alloy

Brightness

1500lm

Temperature

6500K

Power

12~36V

Power consumption

15W

Beam Angle

120° in air

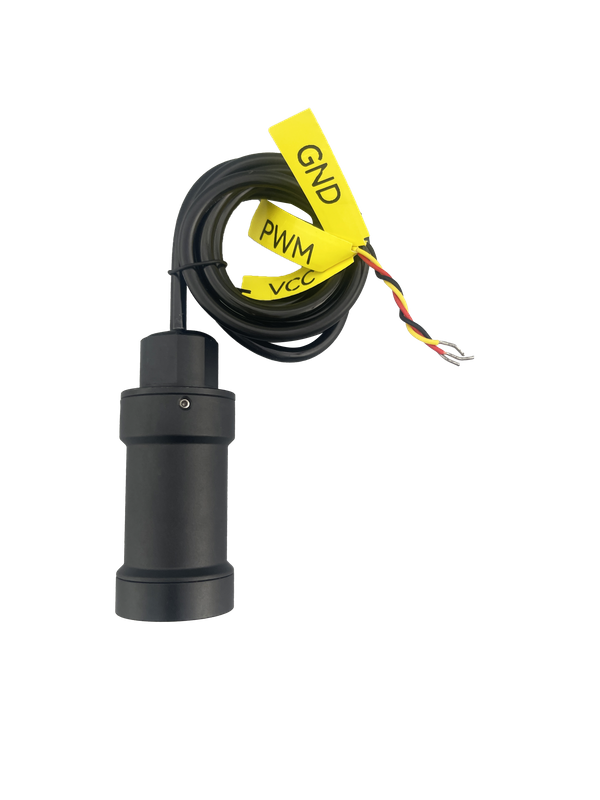

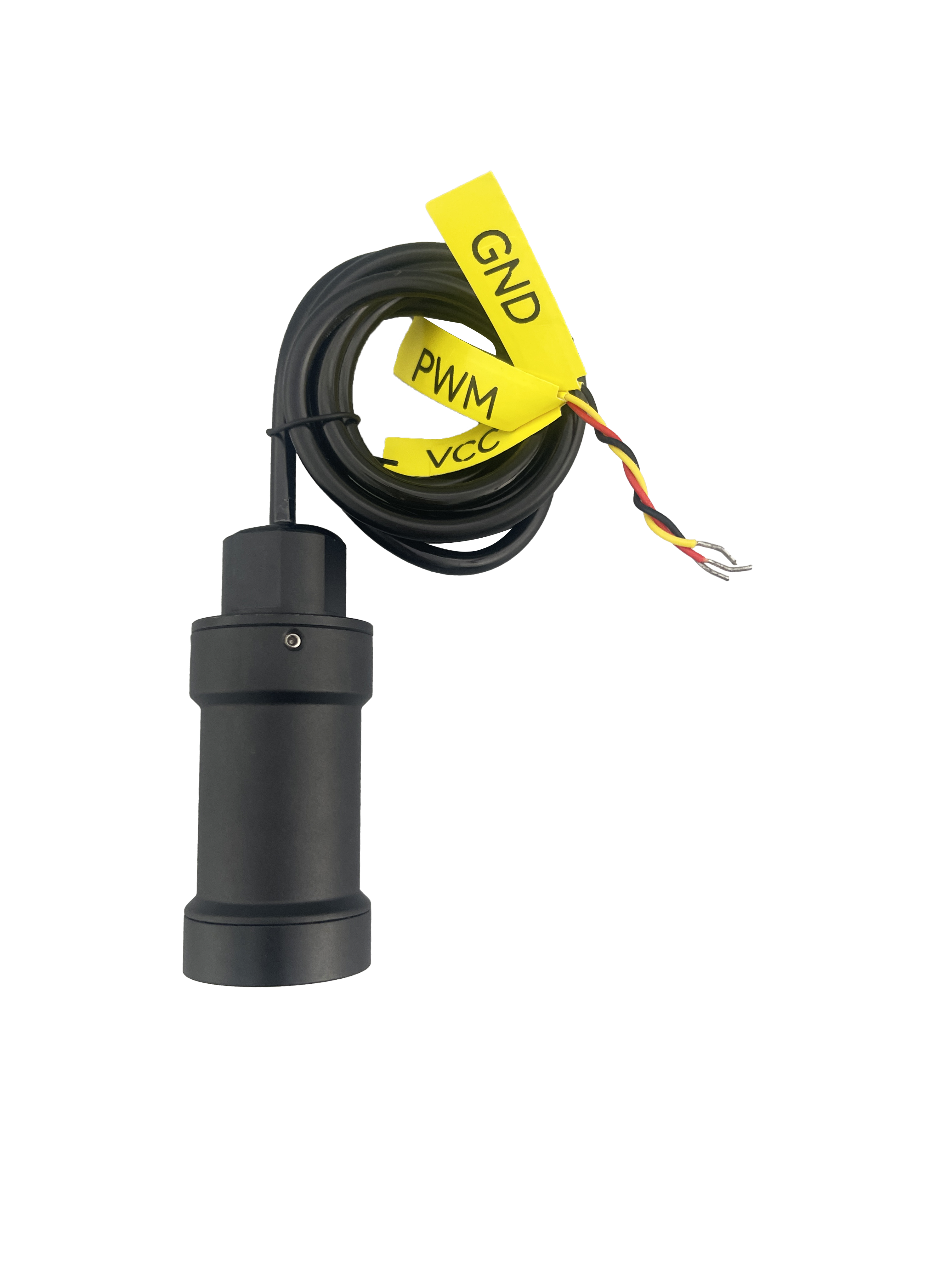

Wiring definitions

Red：VCC+； Black：GND ；Yellow：PWM

Weight

Weight in air: 100g ；Weight in water: 45g；

Working mode

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.

2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.

3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.

Connector

Penetrator,cable length 1 m

Cable specification

Waterproof cable made of polyurethane, 3*0.3mm², OD 4.5mm

Precautions

The light is designed for underwater environments and cannot be used in the air for extended periods of time.

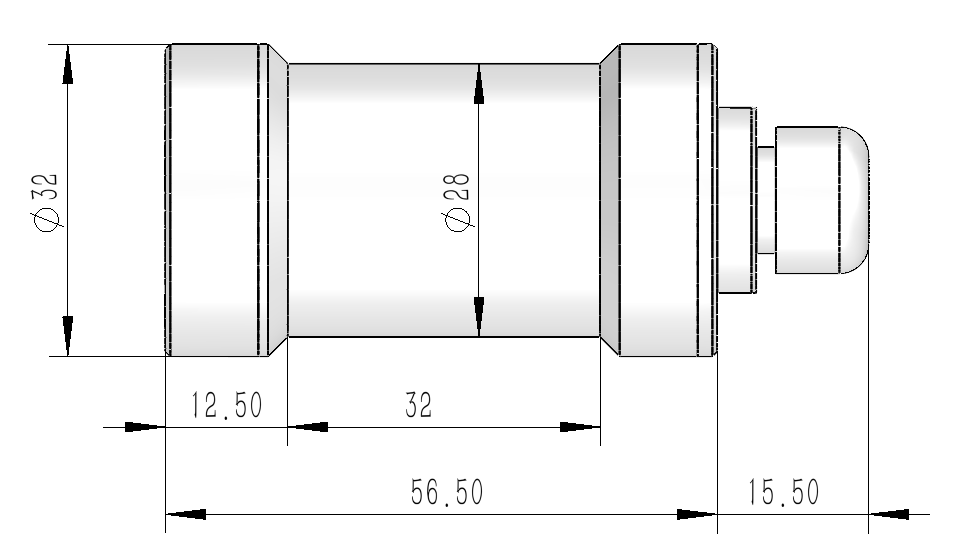

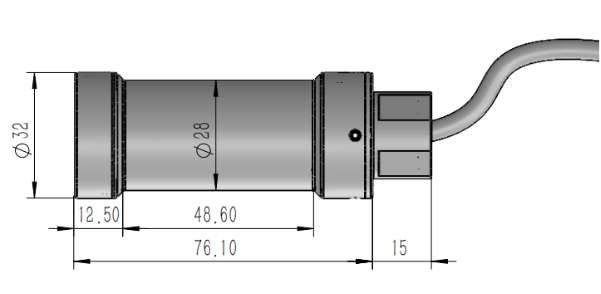

3、Overall Dimension
