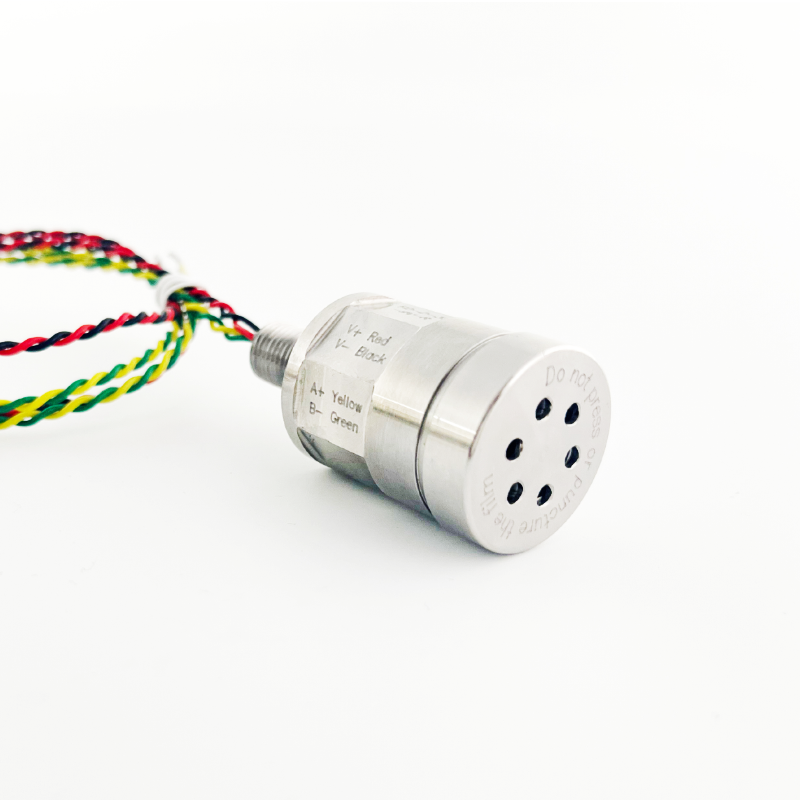

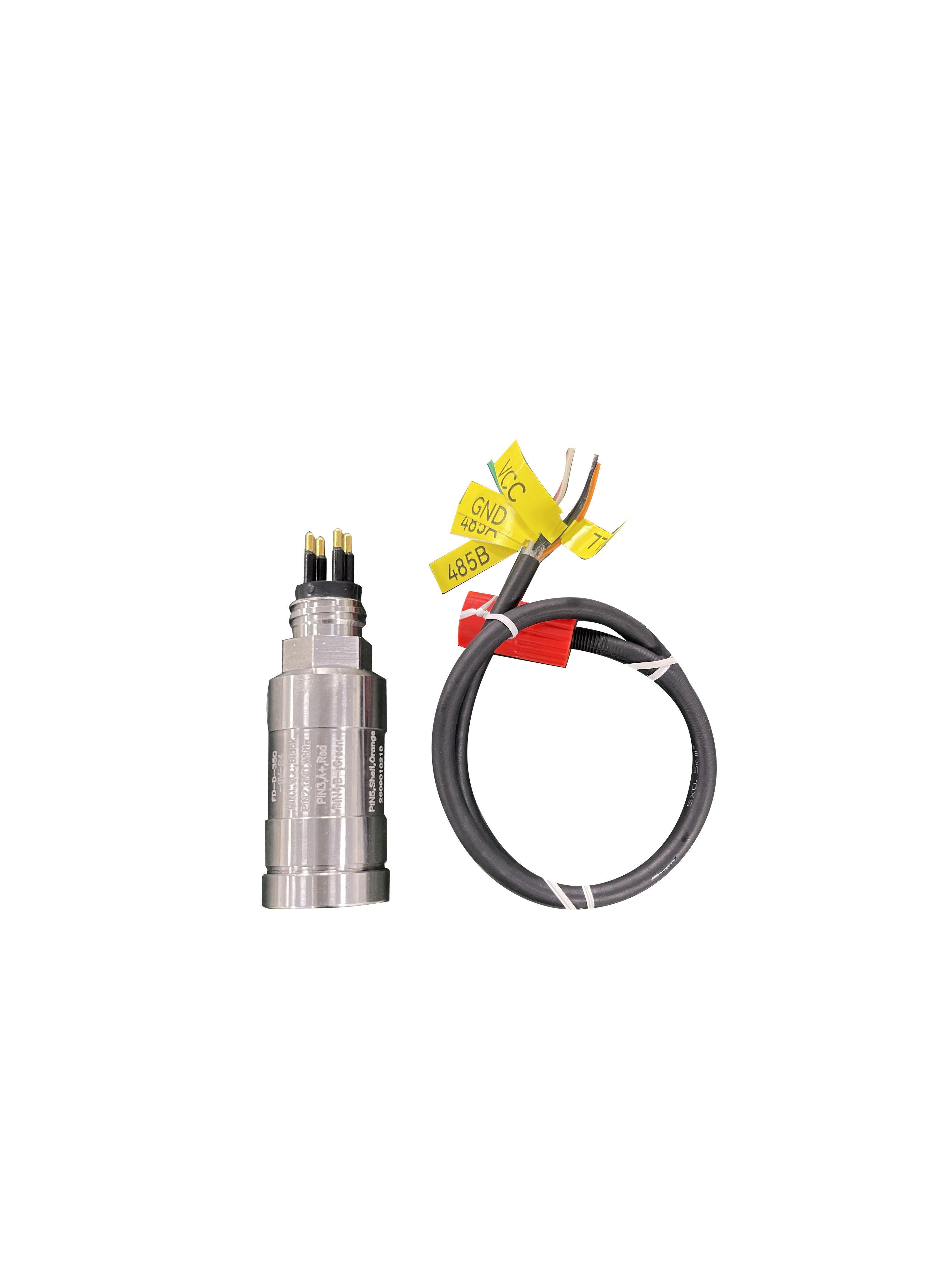

FD-D-35 3500m Depth Sensor

-All parts in contact with liquid are made of 316L stainless steel and corrosion-resistant, ageing-resistant, high-strength rubber materials
-Dual data compensation through hardware and software
-Pressure-resistant depth 3500 meters
-Measurement range: depth 0–35 MPa, temperature -21–70℃

Quantity:
Availability:





Inquire Add to Basket

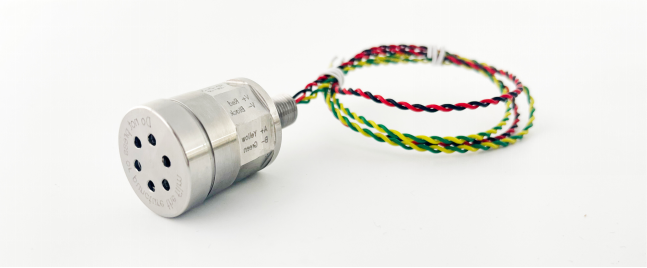

FD-D-35 Depth Sensor

1.Product Specifications

Model	FD-D-35
Rated Depth	3500m
Material	316L Stainless Steel
Depth Range	0~35Mpa
Accuracy Class	± 0.02%FS
Depth Resolution	100pa
Medium Temperature Range	'-21~70℃
Temperature Accuracy	±0.5℃
Temperature Resolution	0.0625℃
Power Supply (Vin)	5V DC / 9-30V DC
Operating Current	Approx. 50mA
Signal Interface	RS485 /5V TTL / CAN

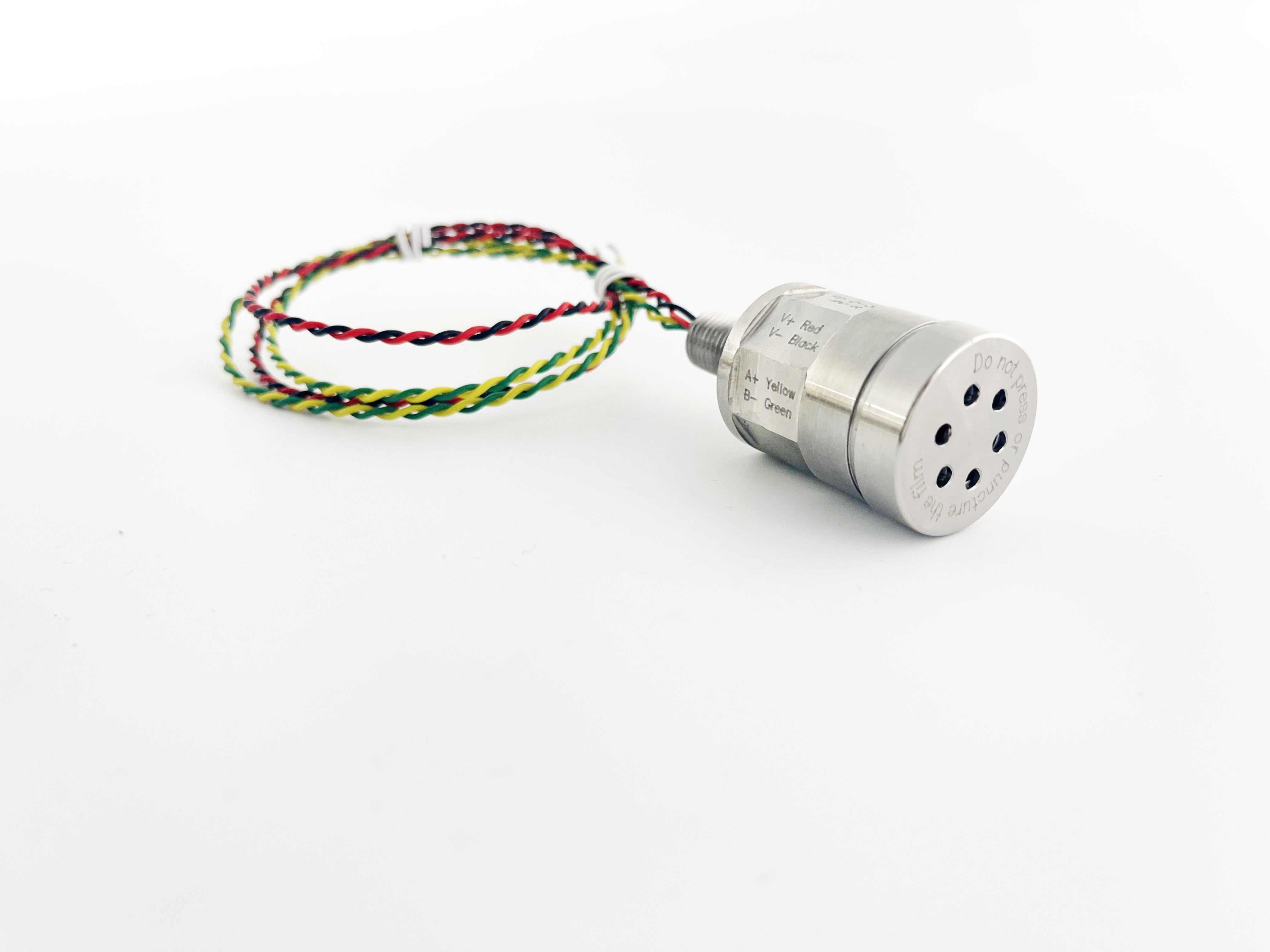

Wiring Definition	Red：VCC+ ； Black：GND ；Yellow and Green：Signal
Weight	In air：150g

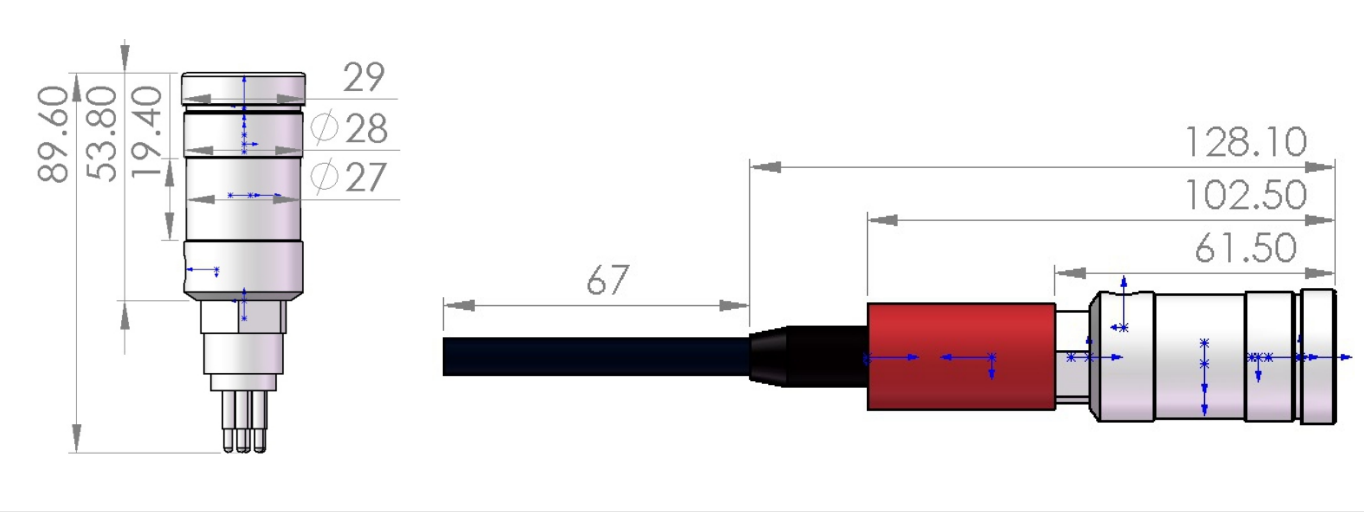

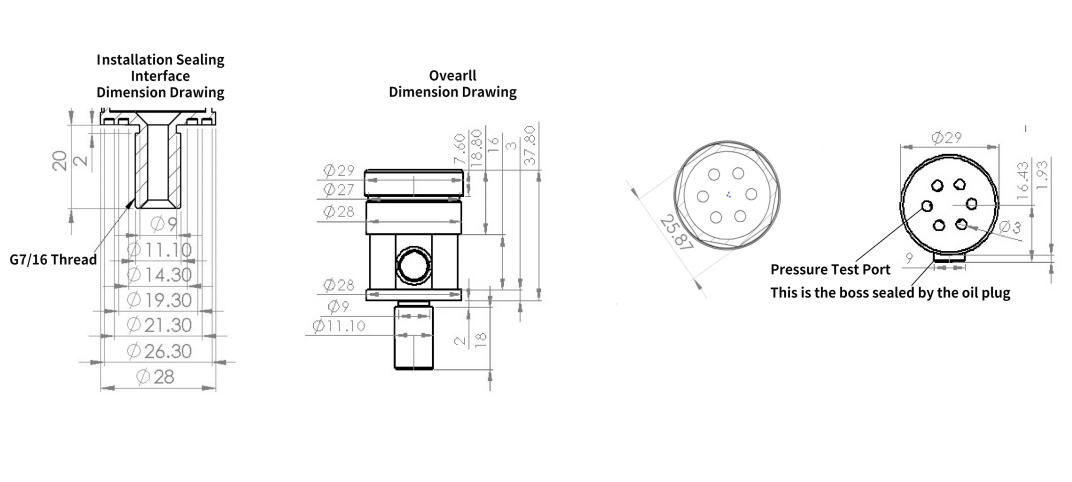

Installation Method	Bulkhead mounting, Thread specification: 7/16-20 UNF or Watertight Connector MCBH4M+MCIL4F

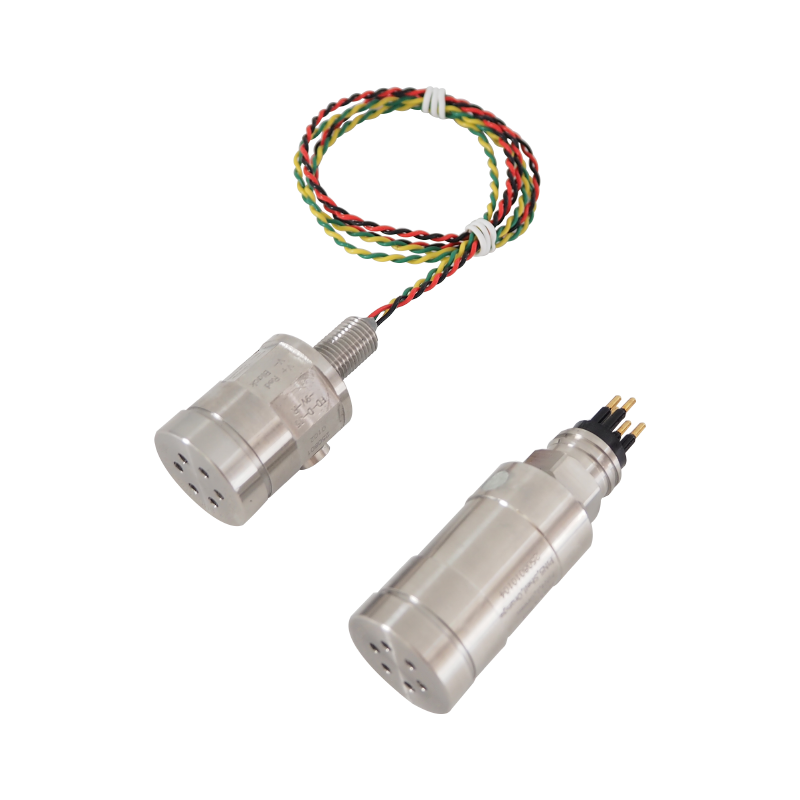

2.SKU

SKU	Power Supply	Signal Interface	Interface Type
FD-D-35-5V-T	5V	5V TTL	Threaded Mount
FD-D-35-5V-R	5V	RS485	Threaded Mount
FD-D-35-5V-C	5V	CAN	Threaded Mount
FD-D-35-9V-T	9-30V	5V TTL	Threaded Mount
FD-D-35-9V-R	9-30V	RS485	Threaded Mount
FD-D-35-9V-C	9-30V	CAN	Threaded Mount
FD-D-35C-5V-T	5V	5V TTL	Watertight Connector
FD-D-35C-5V-R	5V	RS485	Watertight Connector
FD-D-35C-5V-C	5V	CAN	Watertight Connector
FD-D-35C-9V-T	9-30V	5V TTL	Watertight Connector
FD-D-35C-9V-R	9-30V	RS485	Watertight Connector
FD-D-35C-9V-C	9-30V	CAN	Watertight Connector
