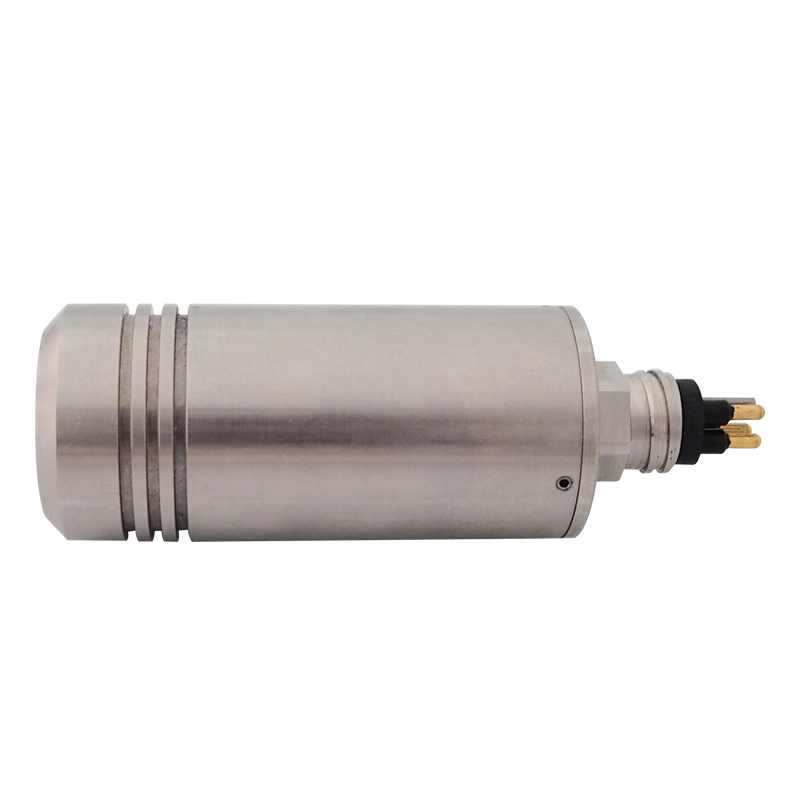

FD-DS6K-L35 Deep-water LED Light

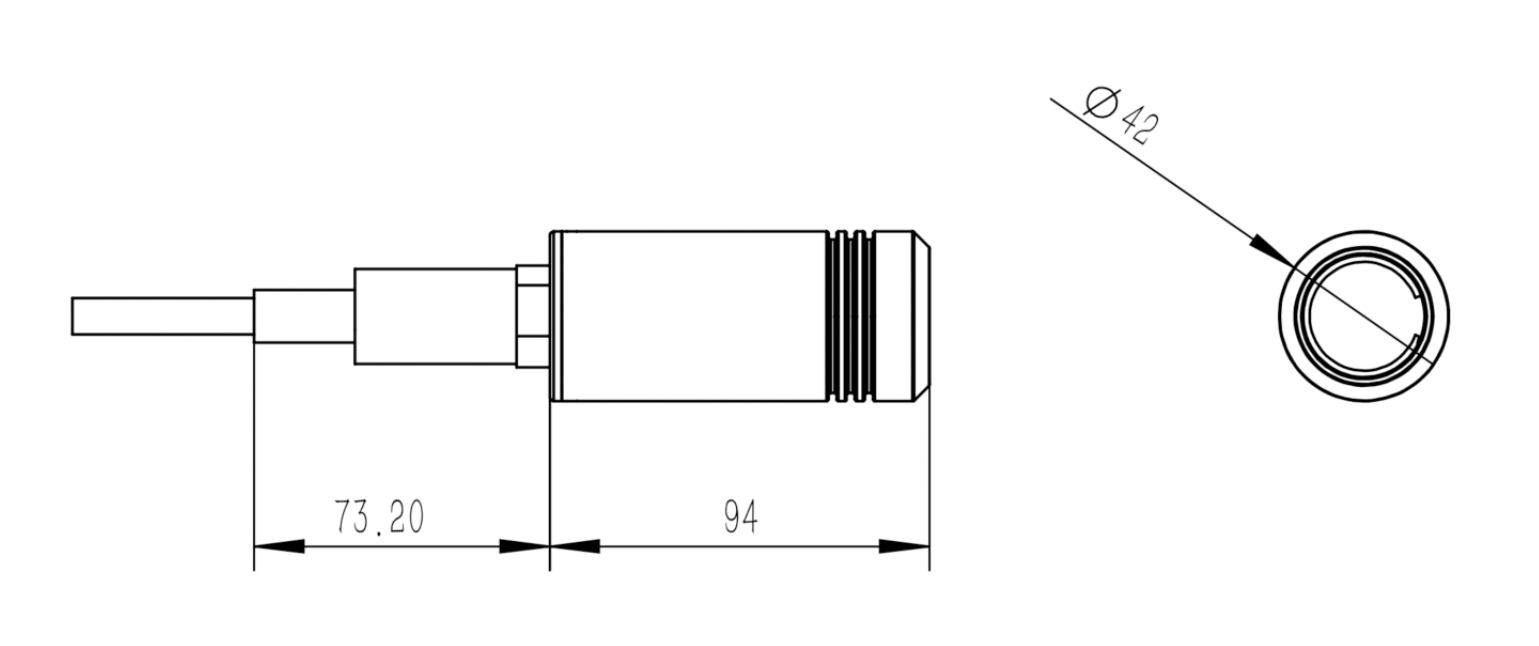

External Dimensions

Product specifications

Product Model

FD-DS6K-L35

Rated Depth

6000m

Shell Material

316L

Brightness

3500lm, white light

Temperature

6000K

Power

DC24V-36V

Power Consumption

35W

Beam Angle

120° in air

Wiring Definitions

1：VCC+；2：GND ；3：PWM

Weight

in air：690g ；in water：560g；

Working Mode

1.PWM duty cycle debugging. The high-level range of PWM: 3.3V - VIN. The frequency range of PWM: 1KHZ - 10KHZ.
2.Pulse width modulation: Frequency: 50HZ. The pulse width range: 1100 - 1900us.
3.Forced switch. Connect the yellow wire to the positive pole of the power supply to turn on at the maximum brightness; connect the yellow wire to the negative pole of the power supply to turn it off.

Precautions

This light is specifically designed for underwater operation and must not be operated in air for extended periods

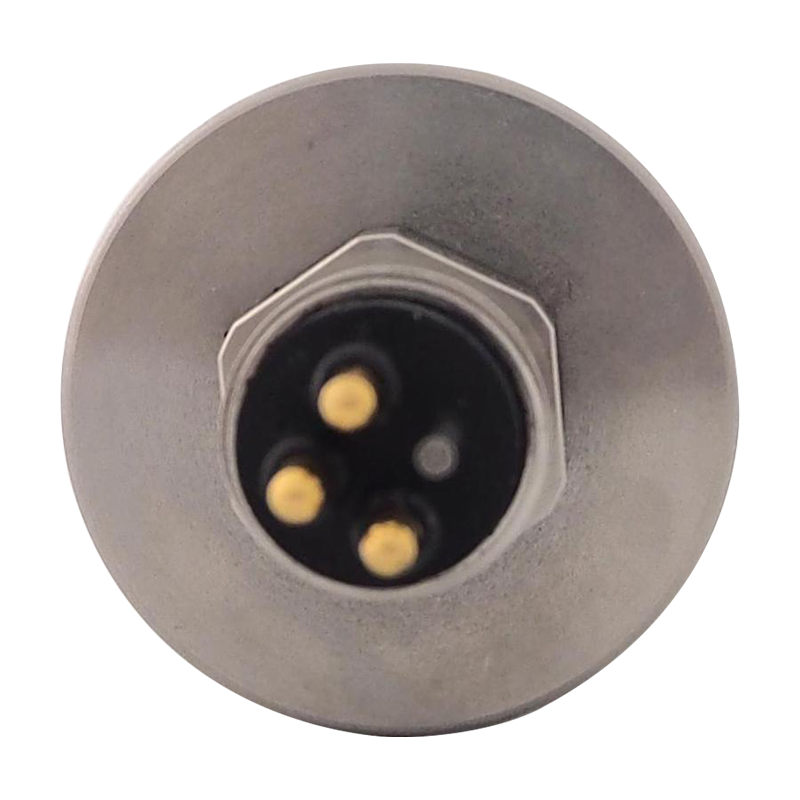

Connector

MCBH3M+MCIL3F，cable length 0.6 m
