T100 Underwater Thruster

T100 Underwater Thruster

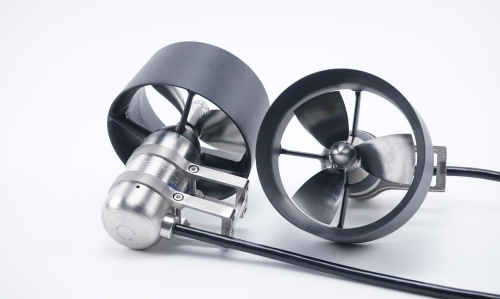

1、Product Introduction

T100 Underwater Thruster

-T100-120-24（CW/CCW）

-T100-120-48（CW/CCW）

-T100-160-48（CW/CCW）

-14.6kgf thrust; maximum power: 600W（T100-120）

-16.5kgf thrust; maximum power: 865W（T100-160）

-Fully sealed with oil pressure compensation; Rated depth: 300m

-Brushless motor; Supply voltage available: DC24V or DC48V

-316L SS (316L Stainless Steel) pressure shell

-Customize built - in ESC version

2、Product Specifications

Index

Parameter

Model

T100-120

Sealing method

maintenance-free full-sealing

Sealing structure

Double-compensated low-resistance rotary dynamic seal structure

Oil pressure compensation

With

Rated thrust

T100-120-24：11.7kgf（forward） 7.7kgf（reverse）
T100-120-48：14.6kgf（forward） 9.2kgf（reverse）

Rated power

T100-120-24：490W T100-120-48：600W

Rated voltage

T100-120-24：24VDC T100-120-48：48VDC

Working voltage

T100-120-24：11.1-25.2VDC
T100-120-48：22.2-50.4VDC

Moto type

exterior rotor brushless motor

Motor pole pairs

7

Main shaft diameter

8mm

Main shaft material

316L stainless steel

Blade diameter

100mm

Blade configuration

CW/CCW

Blade material

316L stainless steel

Shroud material:

pom

Thruster shell material

316L stainless steel

Cable iacket material

TPU

Cable specification

external diameter:8mm;length:1m ;inner core:3x2.5mm²

Base material

316L stainless steel

. Other parts material

316L stainless steel

Driver

external

Rated depth

300m

Weight

in air :1550g ;in water :1050g

Temperature

storage:0-40C working:0-35°C

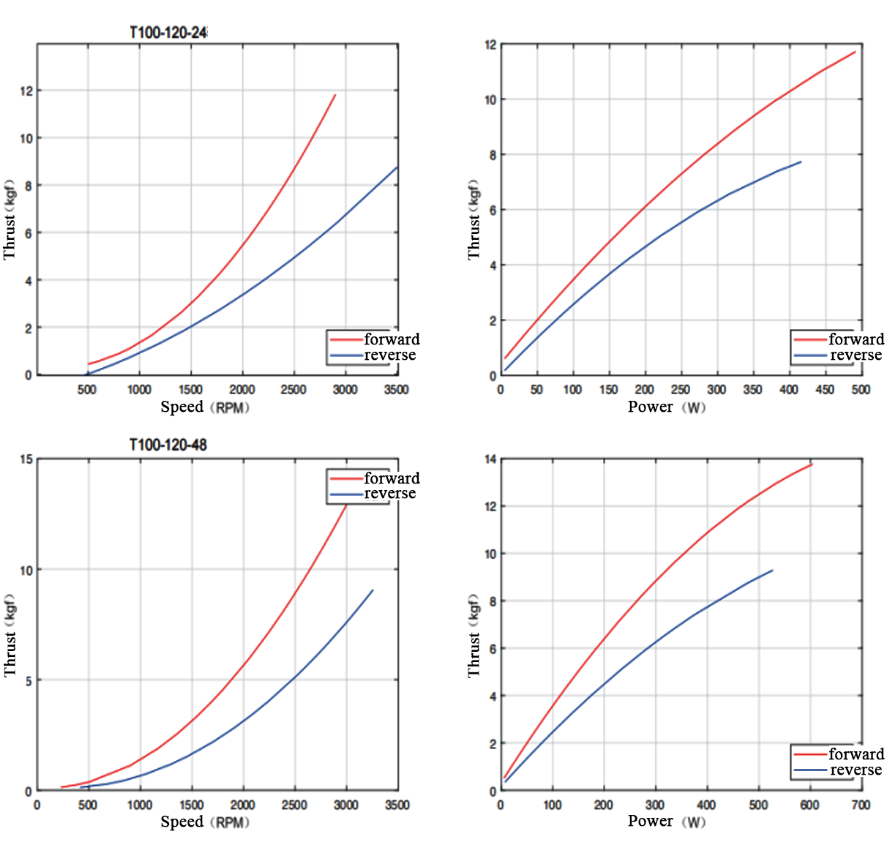

3、Thrust Curve

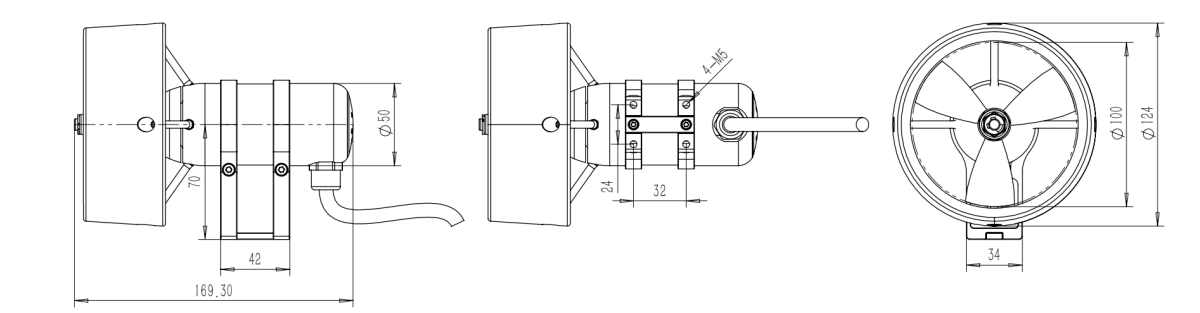

4、Overall Dimension
